HVI Conductor

High-voltage-resistance insulated HVI down conductors for maintaining the separation distance from conductive parts.

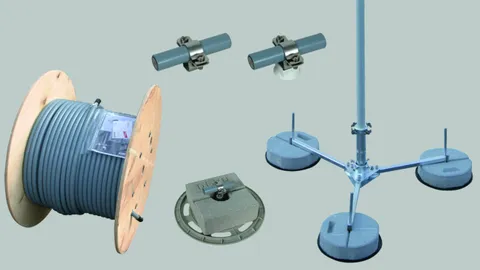

HVI light Conductor

High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

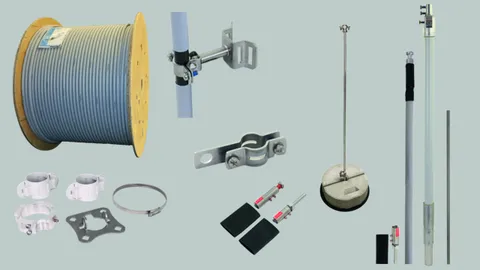

HVI light plus Conductor

The all-rounder among insulated down conductors..
Visually adapted installation of the HVI light Conductor inside the supporting tube. For use up to an equivalent separation distance of s ≤ 60 cm (in air) or s ≤ 120 cm (solid building material).

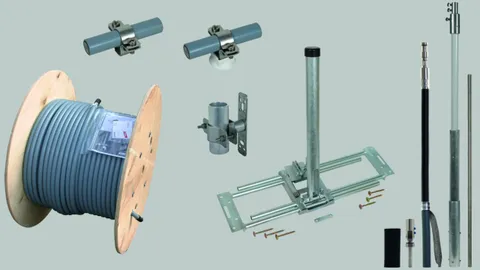

DEHNcon-H

System for isolated air-termination systems of transmitting and receiving systems (parabolic, terrestrial antennas) or entire buildings or building parts.

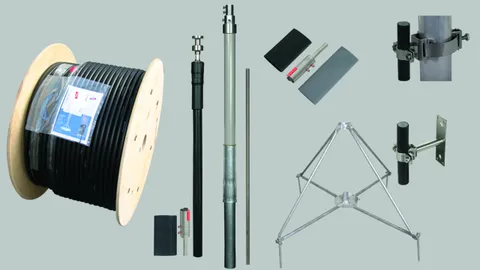

HVI Conductor

High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 75 cm (in air) or s ≤ 150 cm (solid material).

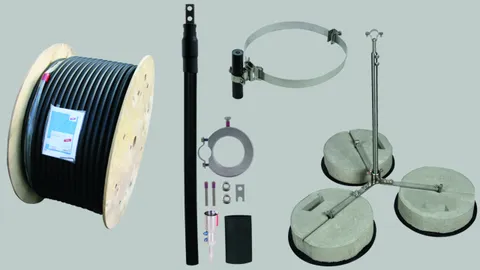

HVI power Conductor

High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).
