Insulating mats up to 36 kV

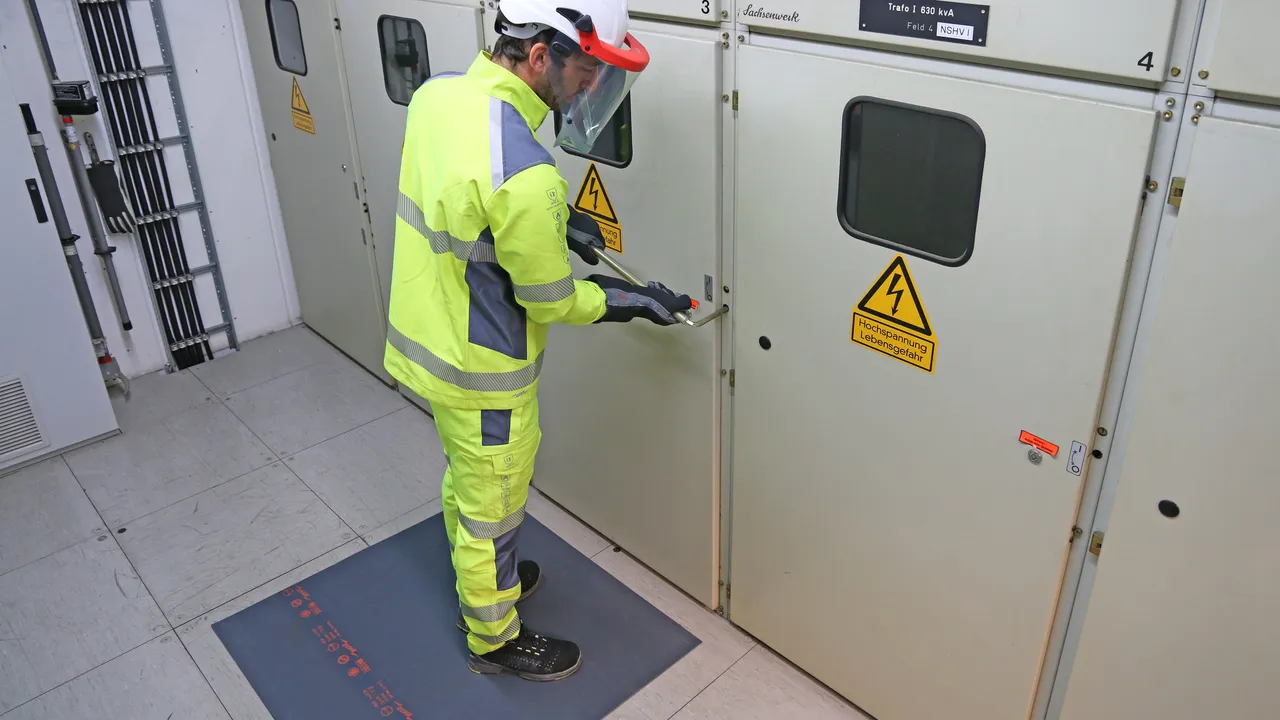

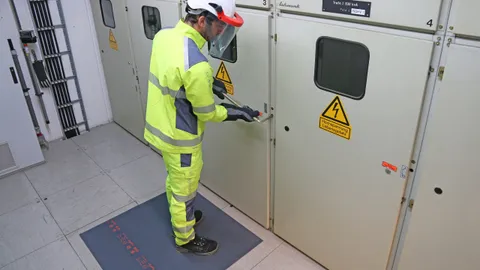

  • For standing surface insulation for live working up to 36 kV or in proximity to live installations
  • Different lengths

Insulating mat up to 36 kV

10 Products

Part No. 787459 ES4FI G - 1 X 10

GTIN 4013364480087, Customs tariff No. (EU): 40082110, Gross weight: 84.80 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 10 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787459 was added to Notepad.

Product 787459 was added to the cart.

Part No. 787471 ES4FI G - 1 X 1

GTIN 4013364513747, Customs tariff No. (EU): 40082110, Gross weight: 9.92 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 1 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787471 was added to Notepad.

Product 787471 was added to the cart.

Part No. 787472 ES4FI G - 1 X 2

GTIN 4013364513754, Customs tariff No. (EU): 40082110, Gross weight: 18.24 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 2 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787472 was added to Notepad.

Product 787472 was added to the cart.

Part No. 787473 ES4FI G - 1 X 3

GTIN 4013364513761, Customs tariff No. (EU): 40082110, Gross weight: 26.56 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 3 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787473 was added to Notepad.

Product 787473 was added to the cart.

Part No. 787474 ES4FI G - 1 X 4

GTIN 4013364513778, Customs tariff No. (EU): 40082110, Gross weight: 34.88 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 4 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787474 was added to Notepad.

Product 787474 was added to the cart.

Part No. 787475 ES4FI G - 1 X 5

GTIN 4013364513785, Customs tariff No. (EU): 40082110, Gross weight: 43.20 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 5 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787475 was added to Notepad.

Product 787475 was added to the cart.

Part No. 787476 ES4FI G - 1 X 6

GTIN 4013364513792, Customs tariff No. (EU): 40082110, Gross weight: 51.52 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 6 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787476 was added to Notepad.

Product 787476 was added to the cart.

Part No. 787477 ES4FI G - 1 X 7

GTIN 4013364513808, Customs tariff No. (EU): 40082110, Gross weight: 59.84 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 7 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787477 was added to Notepad.

Product 787477 was added to the cart.

Part No. 787478 ES4FI G - 1 X 8

GTIN 4013364513815, Customs tariff No. (EU): 40082110, Gross weight: 68.16 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 8 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787478 was added to Notepad.

Product 787478 was added to the cart.

Part No. 787479 ES4FI G - 1 X 9

GTIN 4013364513822, Customs tariff No. (EU): 40082110, Gross weight: 76.48 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Class 4
Nominal voltage up to (UN ) 36 kV
Temperature resistance -40°C to +65°C
Length 9 m
Width 1000 mm
Thickness 5.2 mm
Colour Grey

Product 787479 was added to Notepad.

Product 787479 was added to the cart.
