HVI light Conductor

HVI light Conductor also allows installations without an equipotential bonding connection to the building or structure at the end of an adjustment range.

The HVI light Conductor is a supplement to our proven HVI Conductor. Due to the defined coupling point, e.g. at the tripod, an equipotential bonding (functional earth conductor) is not necessary. Thus installation is easier and considerably time-saving.

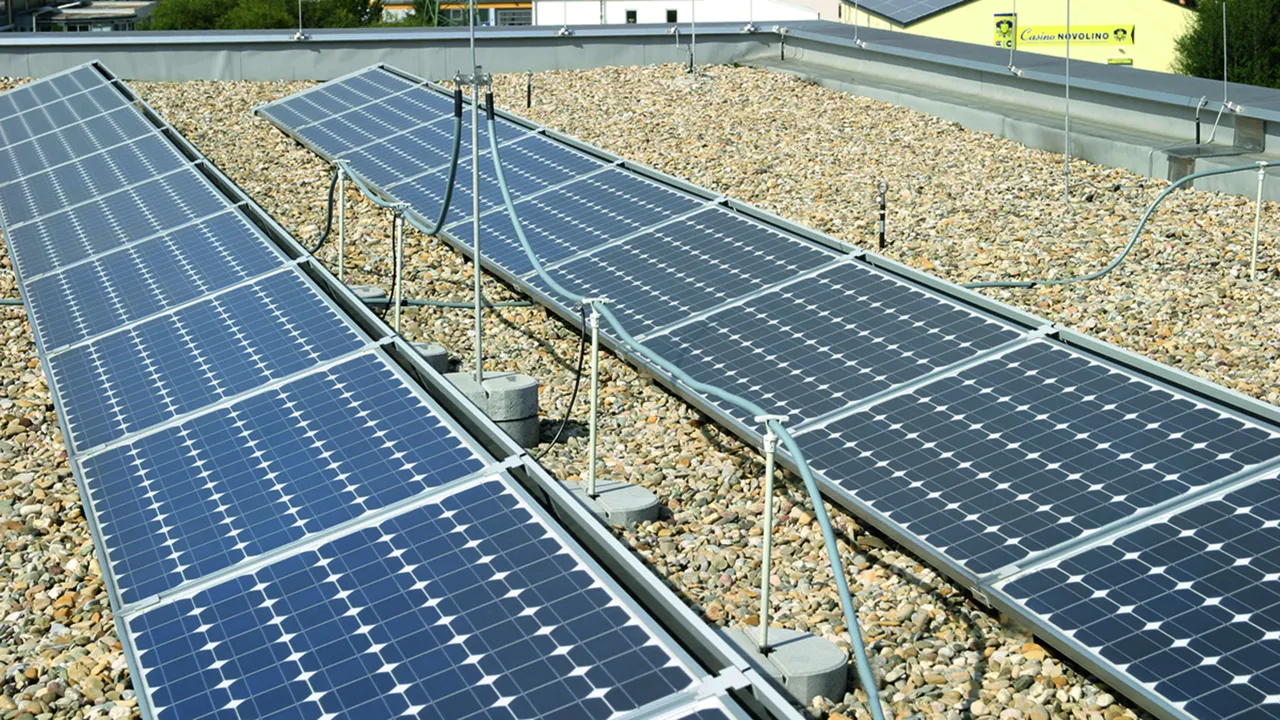

The roof area of buildings is often used as an installation level. Regardless of the potential risk of lightning strikes, pipings, electrical and information technical systems, or photovoltaic installations are installed there. As all of these systems provide a conductive connection into the building it is also possible that lightning partial currents are conducted into the building, where any sensitive electrical/electronic equipment can be interferred or even damaged. Such spreading of lightning partial currents into a building is avoided by an isolated air-termination system.

HVI light Conductor keeps the separation distance on flat roofs. Uncontrolled flashover e.g. through the roofing to metal or electrical parts underneath will be prevented by the high-voltage resistant insulation of the HVI light conductor.

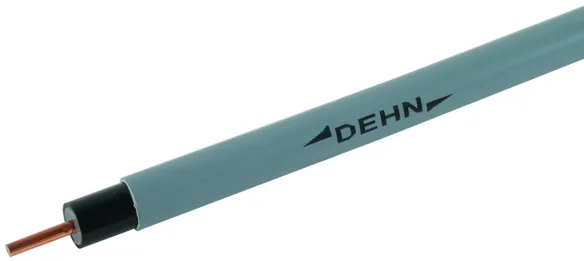

High-voltage-resistant insulated HVI light Conductor for keeping the separation distance from electrically conductive parts according to IEC/EN 62305-3.
For use up to an equivalent separation distance s ≤ 45 cm (in air), or s ≤ 90 cm (solid building material).
The HVI light Conductor meets the requirements according to DIN EN 62561-2.

Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.

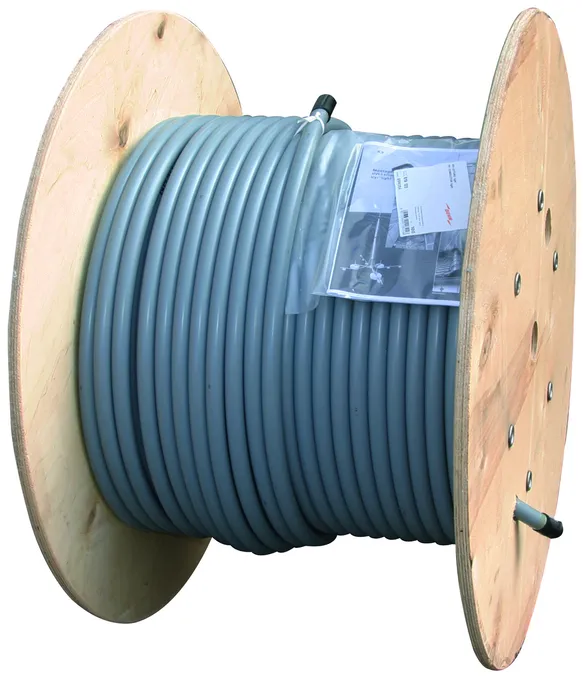

HVI light Conductor (on a reel)

The HVI light Conductor comes in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm). Allen key included in delivery.

1 Product

Part No. 819125 HVI LI 45 20 L100M GR

GTIN 4013364118416, Customs tariff No.: 85446010, Gross weight: 520.00 g/m, PU: 100.00 m


Images

Additional information

HVI light Conductor, Cu (on a reel)
HVI light Conductor
New system for keeping the separation distance on flat roofs. With the high-voltage-resistant insulation of HVI light Conductor, uncontrolled flashover, e.g. through the roofing to metal or electrical parts situated underneath, is avoided.
High-voltage-resistant insulated HVI light Conductor for keeping the separation distance from electrically conductive parts according to EN 62305-3.
Equivalent separation distance s =< 45 cm (in air),
or s =< 90 cm (solid building material).
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PVC
Colour of conductor: dark grey ●
Diameter Ø conductor: 20 mm

Brand: DEHN
Type: HVI LI 45 20 L100M GR
Part No.: 819125
or equivalent.

Certificates



Technical data

Material of conductor Cu
Material of insulation PE
Material of sheath PVC
Colour of conductor dark grey
RAL colour similar to 7000
Cross section of core 19 mm2
Equivalent separation distance s (in air) ≤ 45 cm
Diameter Ø conductor 20 mm
Characteristics of sheath UV stabilised and weather resistant

Product 819125 was added to Notepad.

Product 819125 was added to the cart.

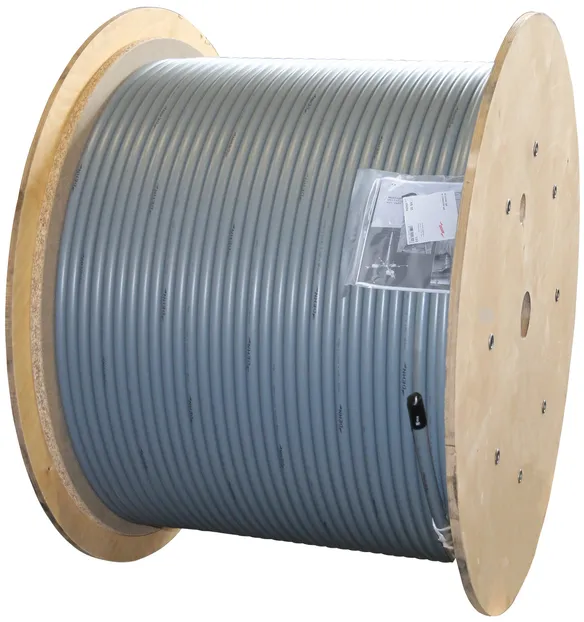

HVI light Conductor (500 m on a reel)

HVI light Conductor comes in a length of 500 m on a disposable plywood reel (diameter approx. 1 m, width approx. 670 mm, cylinder bore diameter approx. 80 mm). Allen key included in delivery. Total weight approx. 290 kg.

1 Product

Part No. 819124 HVI LI 45 20 L500M GR

GTIN 4013364329003, Customs tariff No.: 85446010, Gross weight: 520.00 g/m, PU: 500.00 m


Images

Additional information

HVI light Conductor Cu (on a reel)
HVI light Conductor
System for keeping the separation distance in case of flat roofs.
The high-voltage-resistant insulation of the HVI light Conductor
prevents uncontrolled flashover e.g. through the roofing to
metal or electrical parts underneath it.
High-voltage-resistant insulated HVI light Conductor for
keeping the separation distance to conductive parts
according to IEC 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PVC
Colour of conductor: dark grey ●
Diameter Ø conductor: 20 mm

Brand: DEHN
Type: HVI LI 45 20 L500M GR
Part No.: 819124
or equivalent.



Technical data

Material of conductor Cu
Material of insulation PE
Material of sheath PVC
Colour of conductor dark grey
RAL colour similar to 7000
Cross section of core 19 mm2
Equivalent separation distance s (in air) ≤ 45 cm
Diameter Ø conductor 20 mm
Characteristics of sheath UV stabilised and weather resistant

Product 819124 was added to Notepad.

Product 819124 was added to the cart.


HVI light Conductor (cut to length)

The cut-to-length HVI light Conductor is supplied in a cardboard box (max. 70 m).
Please state conductor length when ordering (0.5 m steps).

1 Product

Part No. 819129 HVI LI 45 20 L .. GR

GTIN 4013364223158, Customs tariff No.: 85446010, Gross weight: 4.49 kg, PU: 1.00 pc(s)


Images

Additional information

HVI light Conductor, Cu (cut to length)
HVI light Conductor
System for keeping the separation distance in case of flat roofs.
The high-voltage-resistant insulated HVI®light Conductor prevents an uncontrolled flashing over e.g. through the roofing to subjacent metal or electrical installations and for keeping the separation distance from electrically conductive parts according to IEC 62305-3.
Equivalent separation distance s =< 45 cm (in air) or s =< 90 cm (solid material).
Cut to length 6.0 - 70.0 m
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PVC
Colour of conductor: dark grey ●
Diameter Ø conductor: 20 mm
Minimum order length (l1): 6 m

Brand: DEHN
Type: HVI LI 45 20 L .. GR
Part No.: 819129
or equivalent.

Certificates



Technical data

Material of conductor Cu
Material of insulation PE
Material of sheath PVC
Colour of conductor dark grey
RAL colour similar to 7000
Cross section of core 19 mm2
Equivalent separation distance s (in air) ≤ 45 cm
Diameter Ø conductor 20 mm
Characteristics of sheath UV stabilised and weather-resistant
Minimum order length (l1) 6 m

Product 819129 was added to Notepad.

Product 819129 was added to the cart.
