Fixed Ball Points

  • Suitable for fixing busbar connections according to DIN 43673-1
  • Self-locking nut
  • M12 or M16 non-cutting formed female thread
  • M12 or M16 threaded pin

Details

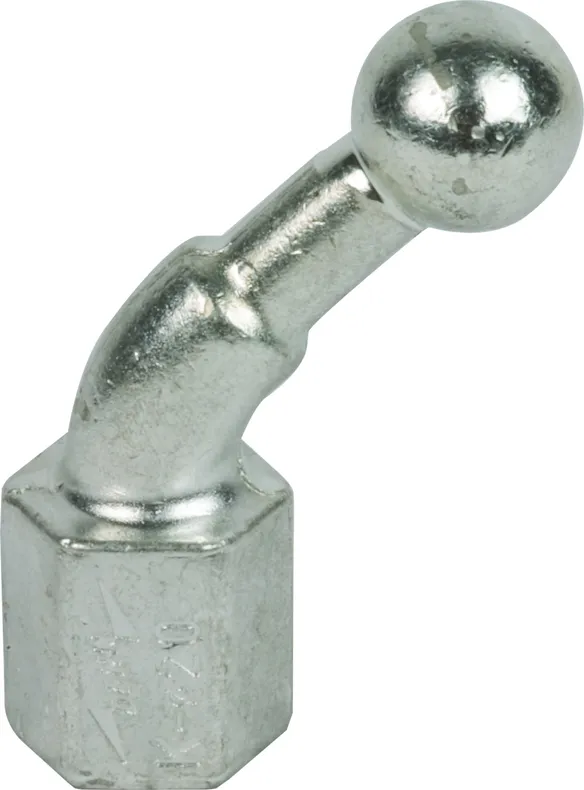

Angled fixed ball point
lorem ipsum

Angled with Terminal Lug

2 Products

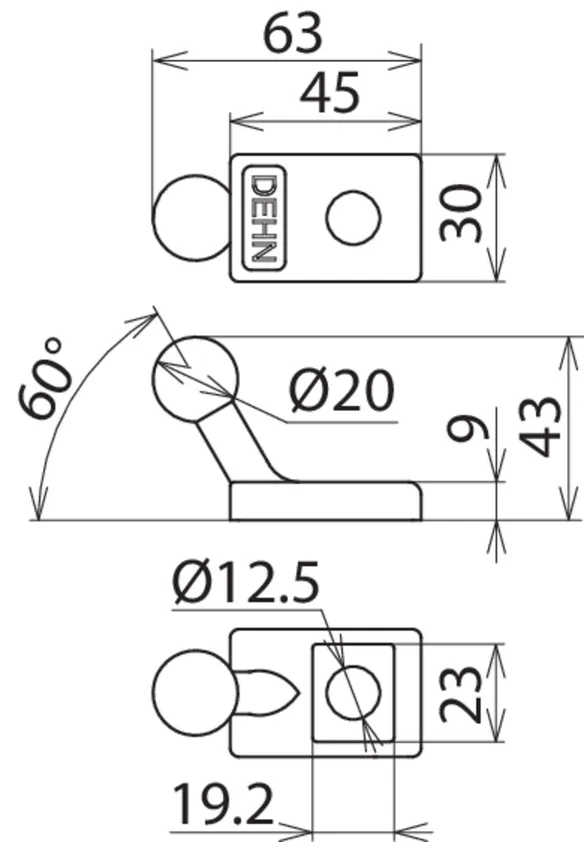

Part No. 706300 KFP 20 S AL 12

GTIN 4013364003675, Customs tariff No. (EU): 85359000, Gross weight: 129.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Bore Ø 12.5 mm
Dimensions 45 x 30 x 9 mm
Max. cable cross-section Cu 50 mm²
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product 706300 was added to Notepad.

Product 706300 was added to the cart.

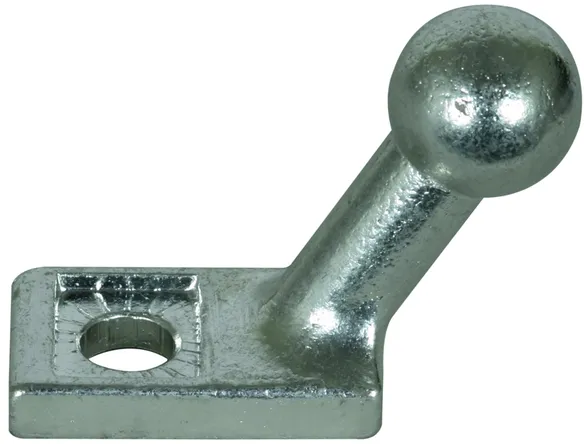

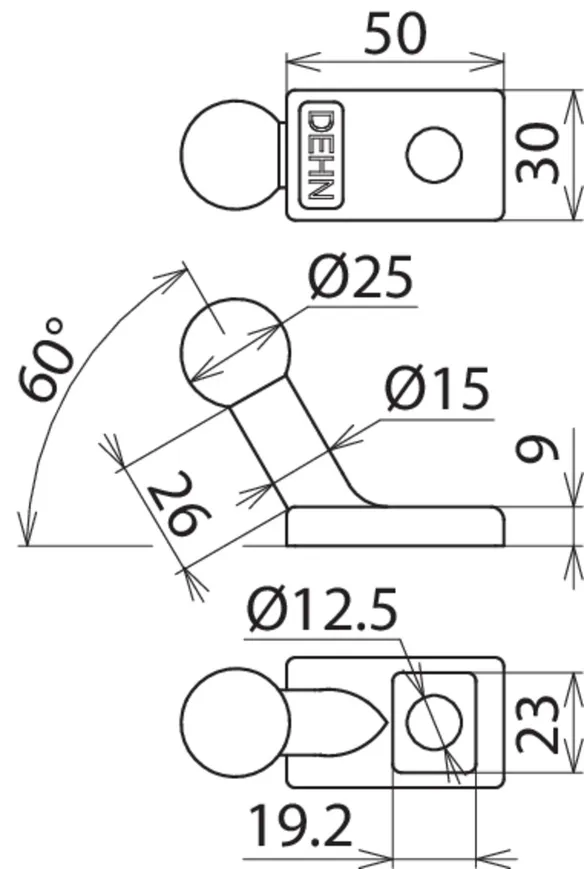

Part No. 756300 KFP 25 S AL 12

GTIN 4013364003682, Customs tariff No. (EU): 76169990, Gross weight: 212.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Bore Ø 12.5 mm
Dimensions 50 x 30 x 9 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 756300 was added to Notepad.

Product 756300 was added to the cart.


Straight with Threaded Pin and Self-locking Nut

7 Products

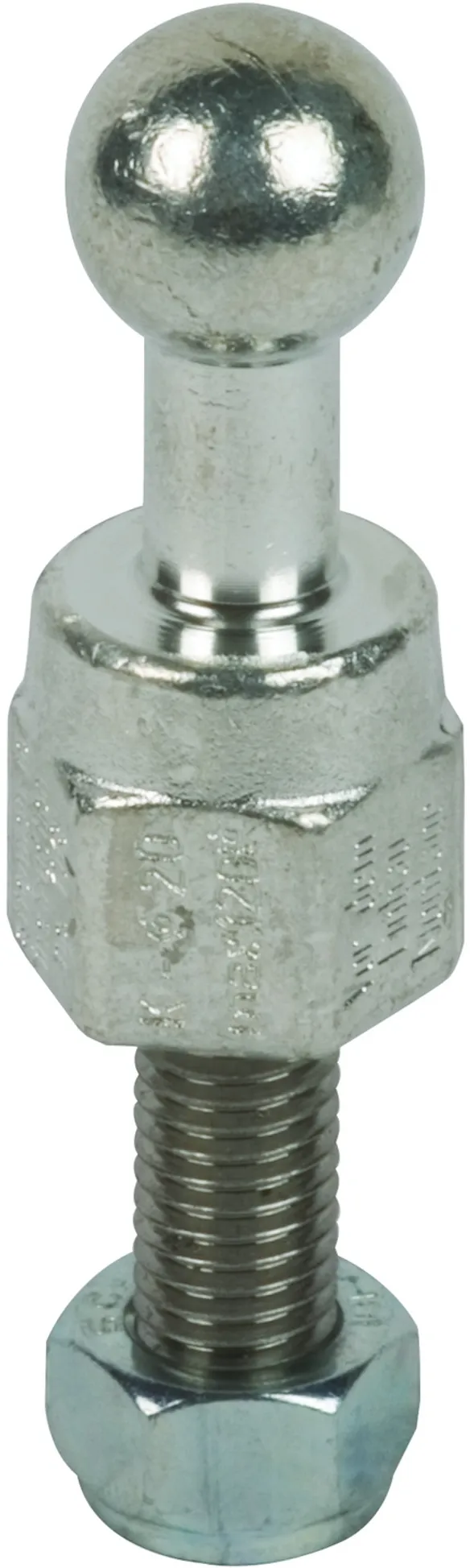

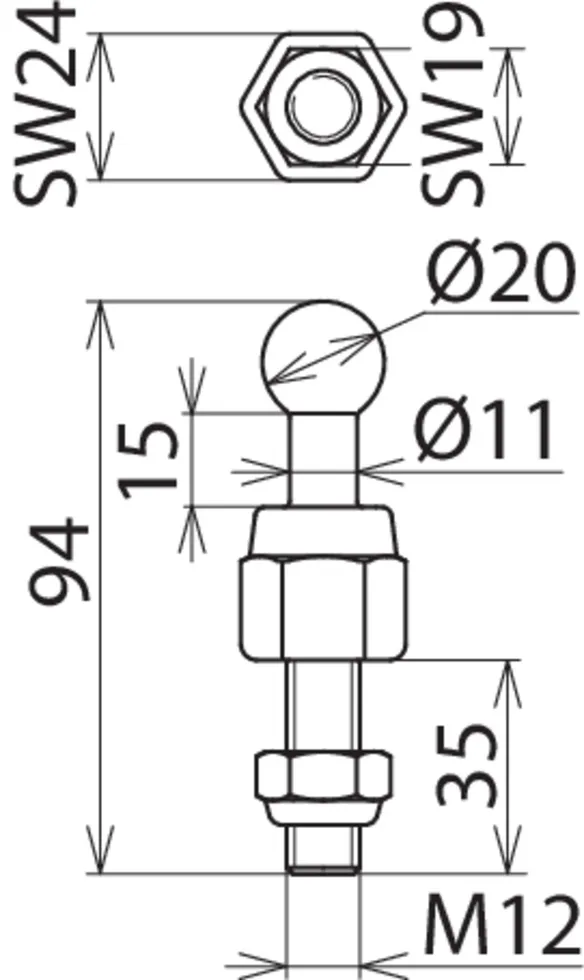

Part No. 754235 KFP 20 M12 35 SSM

GTIN 4013364004221, Customs tariff No. (EU): 85359000, Gross weight: 183.70 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12 x 35 mm
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754235 was added to Notepad.

Product 754235 was added to the cart.

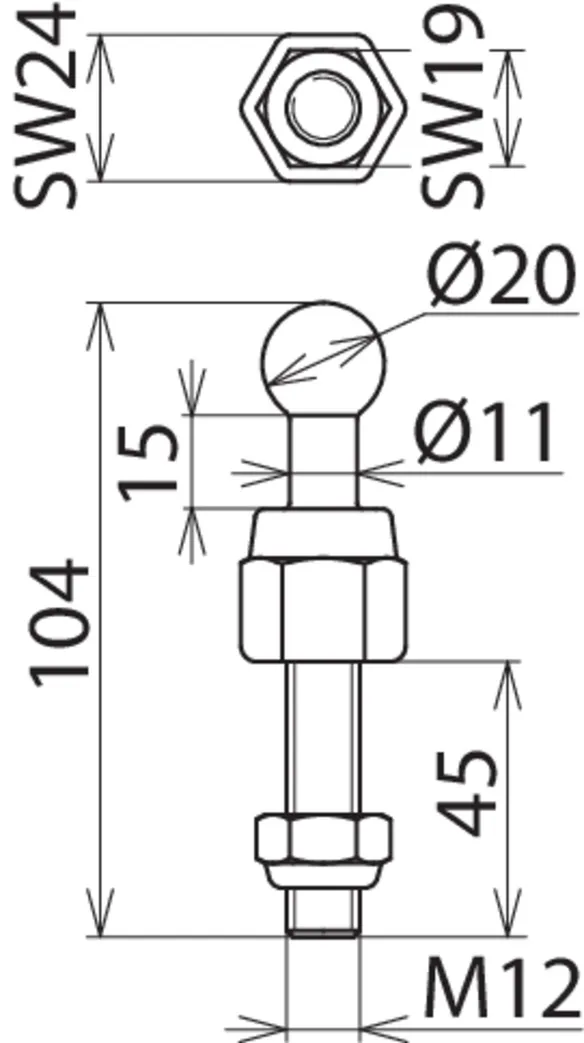

Part No. 754238 KFP 20 M12 45 SN7078

GTIN 4013364131309, Customs tariff No. (EU): 85359000, Gross weight: 180.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12 x 45 mm
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754238 was added to Notepad.

Product 754238 was added to the cart.

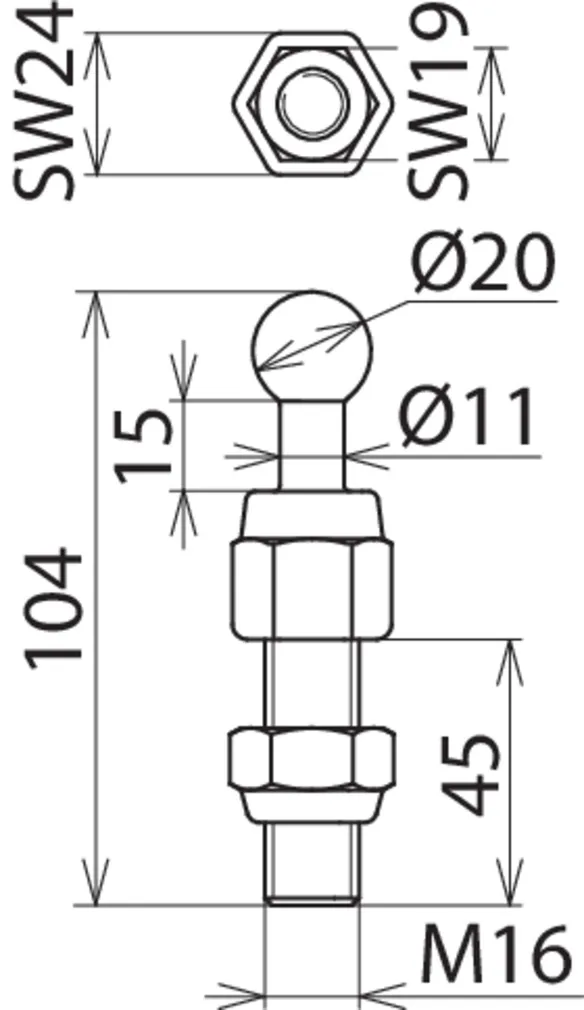

Part No. 754645 KFP 20 M16 45 SSM

GTIN 4013364004238, Customs tariff No. (EU): 85359000, Gross weight: 286.80 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16 x 45 mm
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754645 was added to Notepad.

Product 754645 was added to the cart.

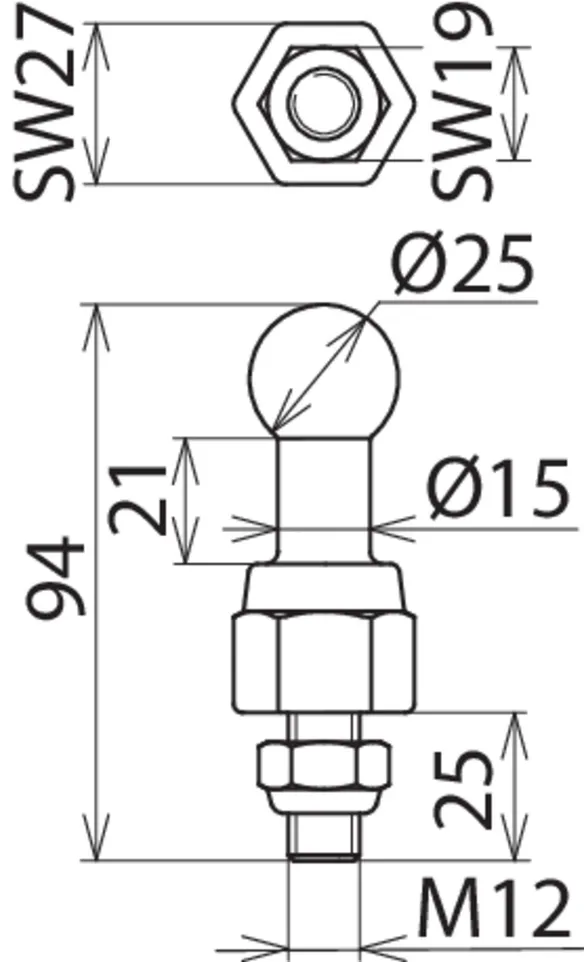

Part No. 755225 KFP 25 M12 25 SSM

GTIN 4013364004498, Customs tariff No. (EU): 85359000, Gross weight: 265.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 25 mm
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755225 was added to Notepad.

Product 755225 was added to the cart.

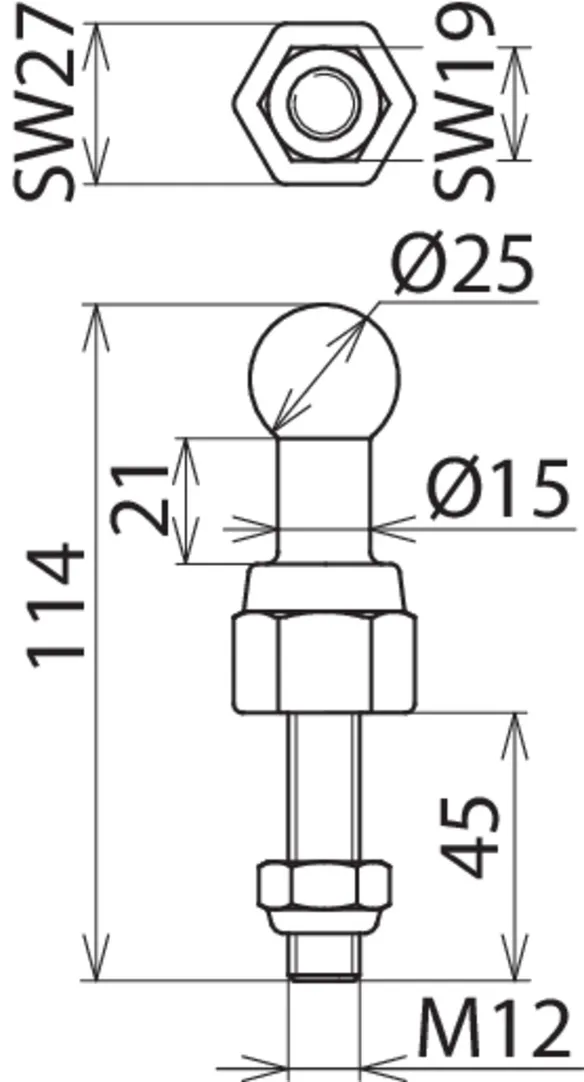

Part No. 755245 KFP 25 M12 45 SSM

GTIN 4013364000070, Customs tariff No. (EU): 85359000, Gross weight: 278.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755245 was added to Notepad.

Product 755245 was added to the cart.

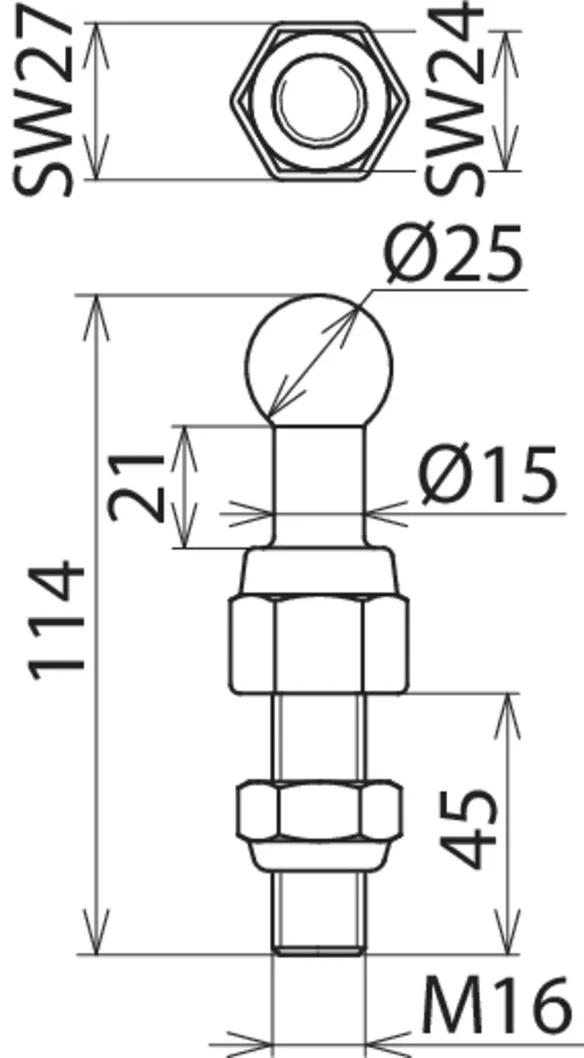

Part No. 755645 KFP 25 M16 45 SSM

GTIN 4013364000100, Customs tariff No. (EU): 85359000, Gross weight: 318.90 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755645 was added to Notepad.

Product 755645 was added to the cart.

Part No. 755247 KFP 25 M12 45 SN7125

GTIN 4013364133327, Customs tariff No. (EU): 85359000, Gross weight: 278.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755247 was added to Notepad.

Product 755247 was added to the cart.


Straight with Female Thread

5 Products

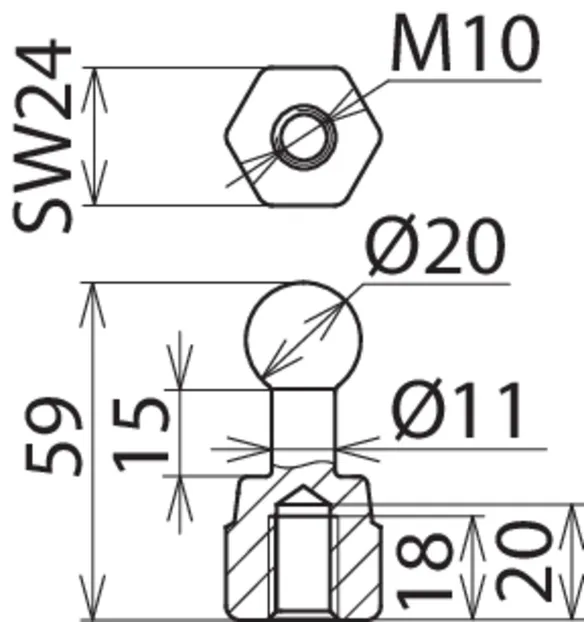

Part No. 754205 KFP 20 M10

GTIN 4013364097865, Customs tariff No. (EU): 85359000, Gross weight: 136.60 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M10
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754205 was added to Notepad.

Product 754205 was added to the cart.

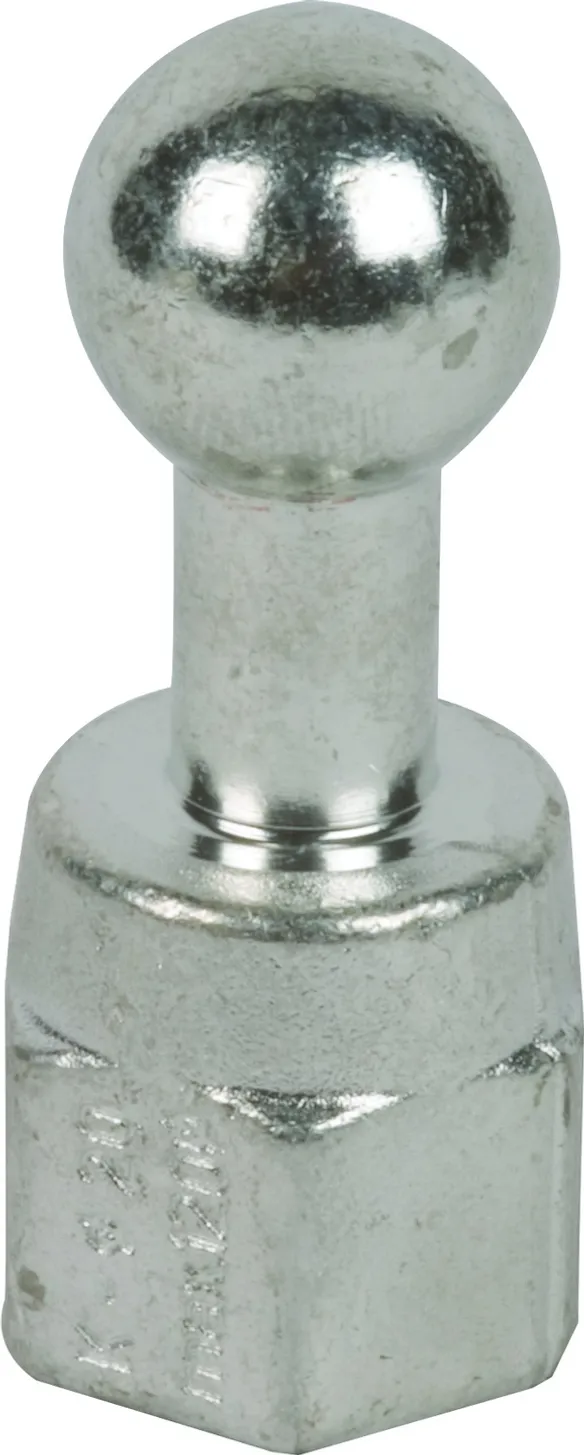

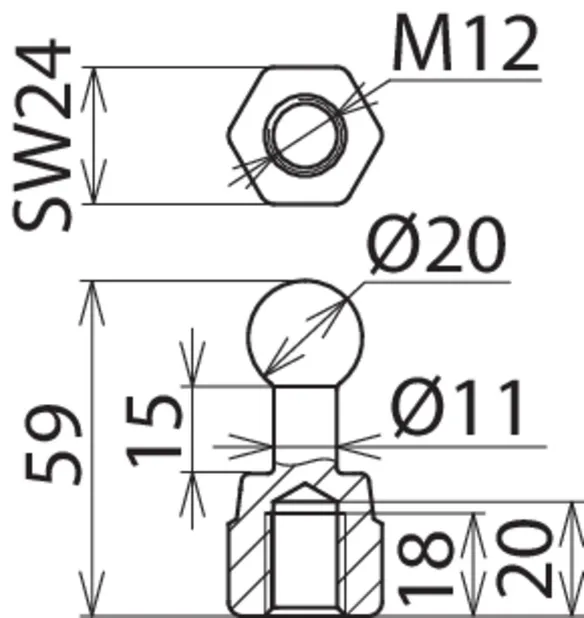

Part No. 754200 KFP 20 M12

GTIN 4013364004207, Customs tariff No. (EU): 85359000, Gross weight: 131.30 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754200 was added to Notepad.

Product 754200 was added to the cart.

Part No. 754600 KFP 20 M16

GTIN 4013364004214, Customs tariff No. (EU): 85359000, Gross weight: 116.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16
Wrench size 24 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 754600 was added to Notepad.

Product 754600 was added to the cart.

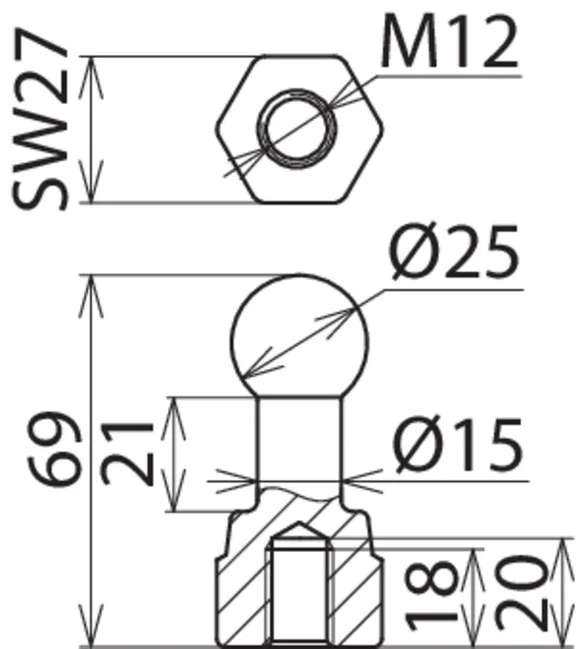

Part No. 755200 KFP 25 M12

GTIN 4013364000087, Customs tariff No. (EU): 85359000, Gross weight: 220.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755200 was added to Notepad.

Product 755200 was added to the cart.

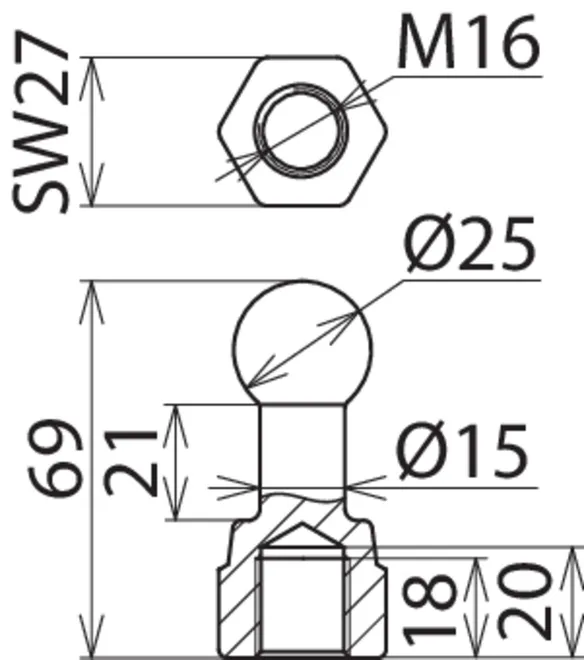

Part No. 755600 KFP 25 M16

GTIN 4013364000094, Customs tariff No. (EU): 85359000, Gross weight: 204.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16
Wrench size 27 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 755600 was added to Notepad.

Product 755600 was added to the cart.


Straight with Threaded Pin, Nut and Washer

3 Products

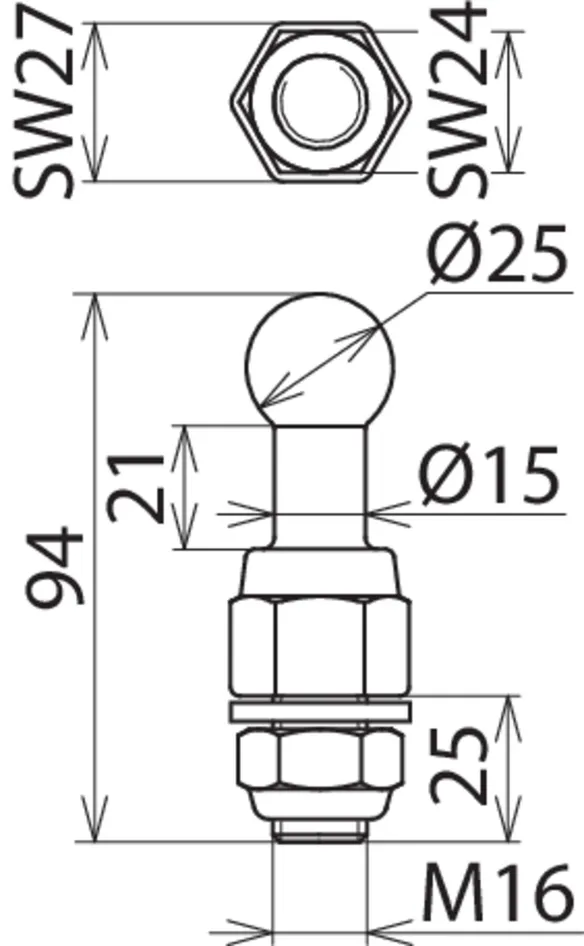

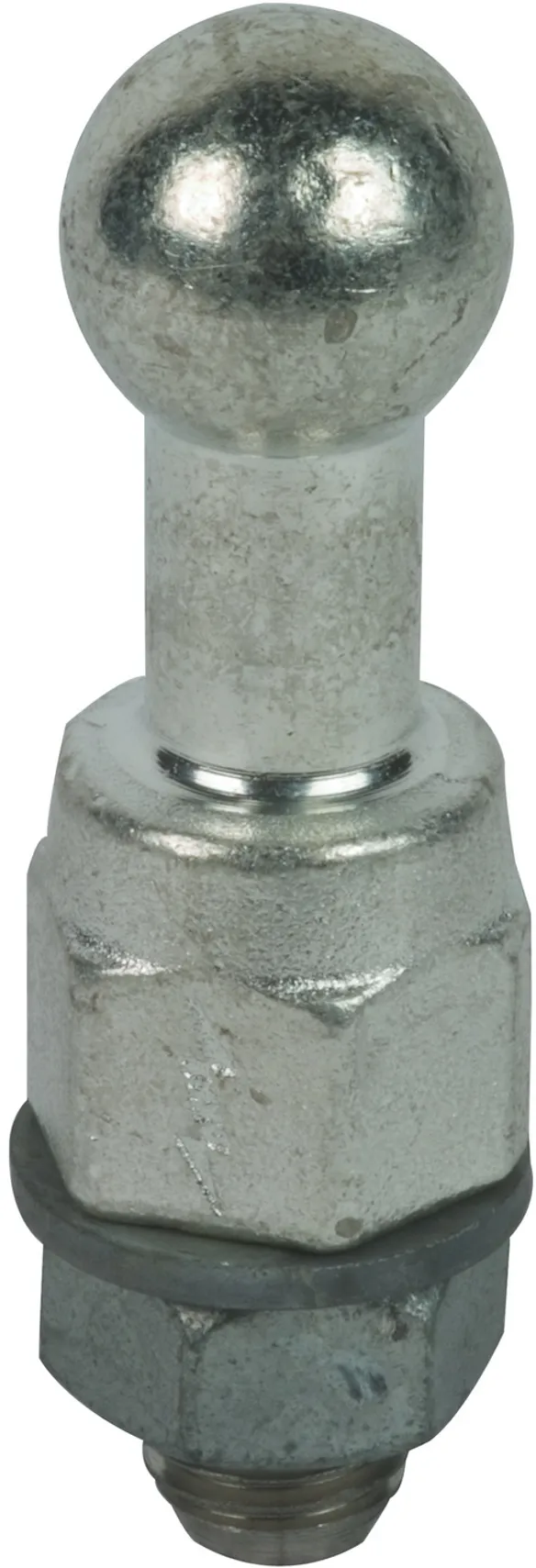

Part No. 755626 KFP 25 M16 25 SKM

GTIN 4013364079625, Customs tariff No. (EU): 85359000, Gross weight: 301.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 25 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.63
DB material No. 157 541

Product 755626 was added to Notepad.

Product 755626 was added to the cart.

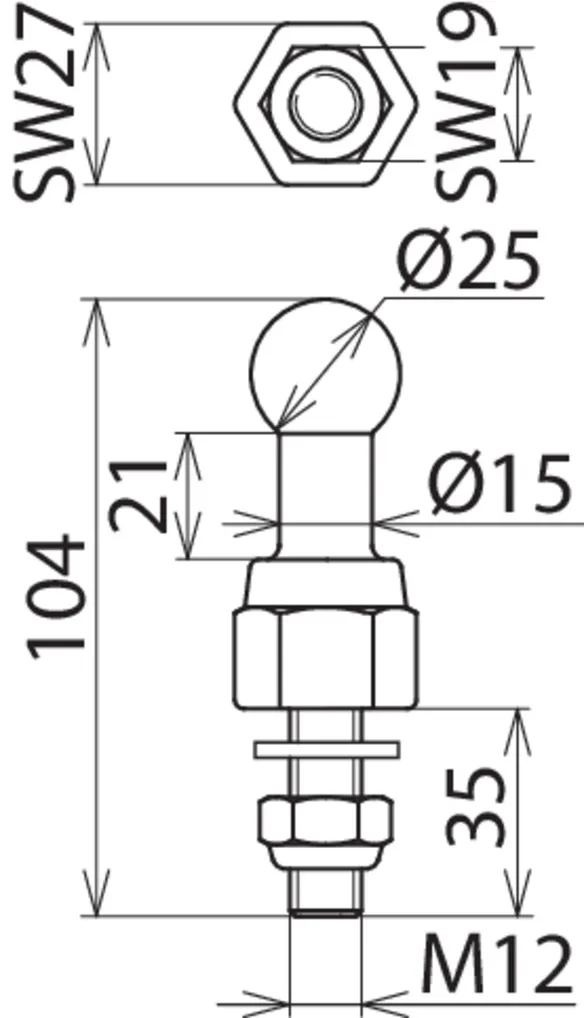

Part No. 755627 KFP 25 M12 35 SKM

GTIN 4013364077768, Customs tariff No. (EU): 85359000, Gross weight: 310.90 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 35 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.63
DB material No. 622 014

Product 755627 was added to Notepad.

Product 755627 was added to the cart.

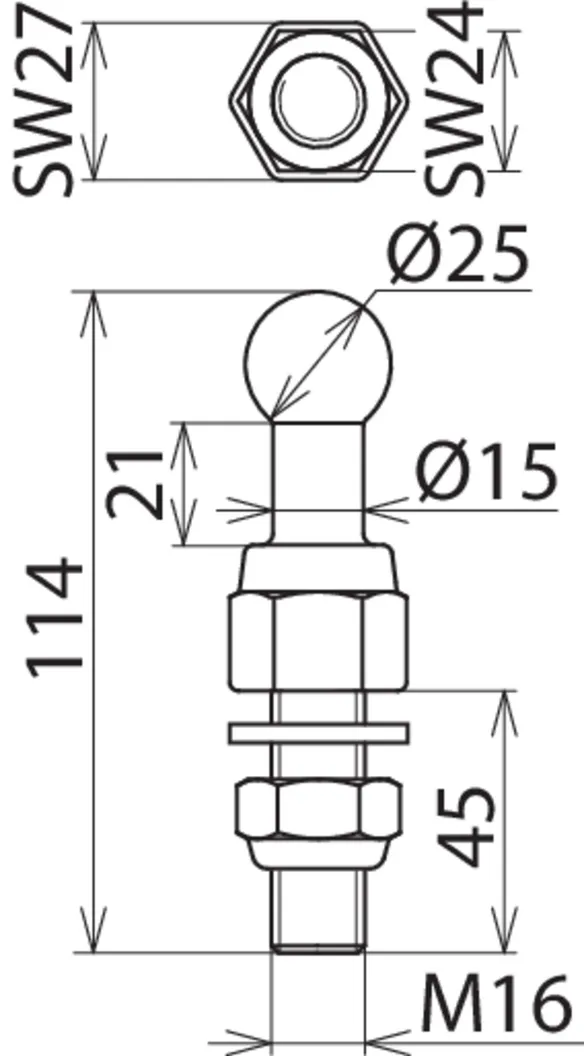

Part No. 755646 KFP 25 M16 45 SKM

GTIN 4013364079632, Customs tariff No. (EU): 85359000, Gross weight: 330.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 45 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.63
DB material No. 157 542

Product 755646 was added to Notepad.

Product 755646 was added to the cart.


Straight with Threaded Pin

1 Product

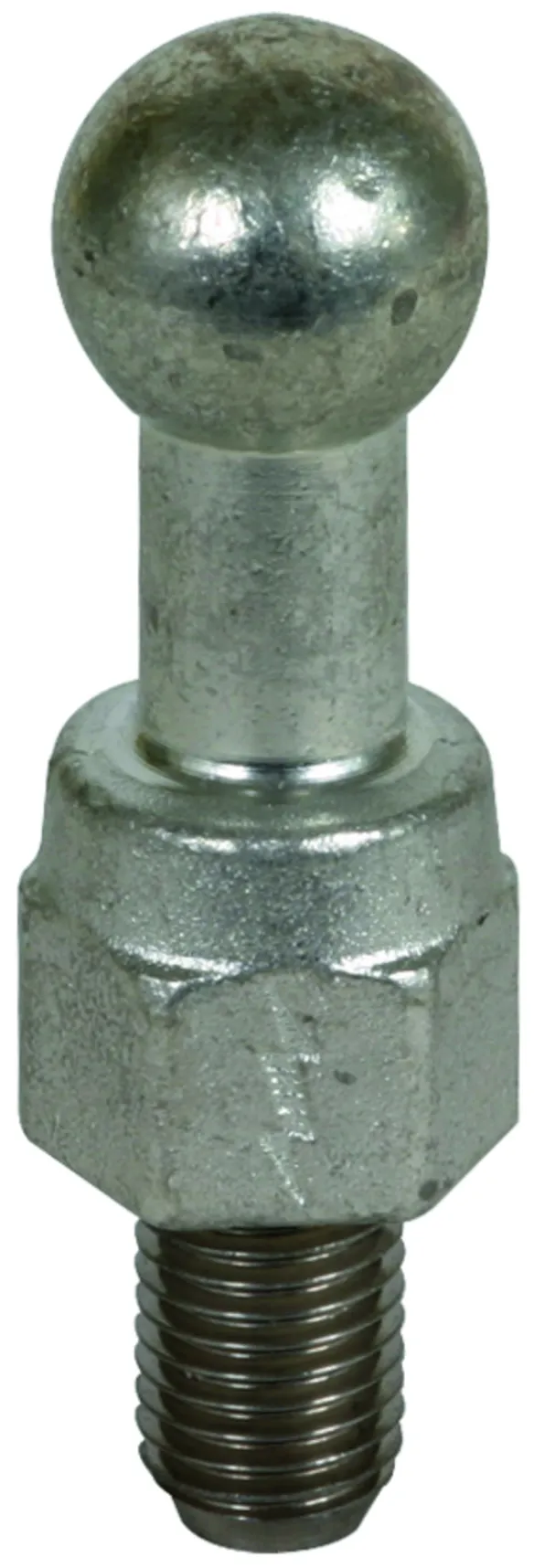

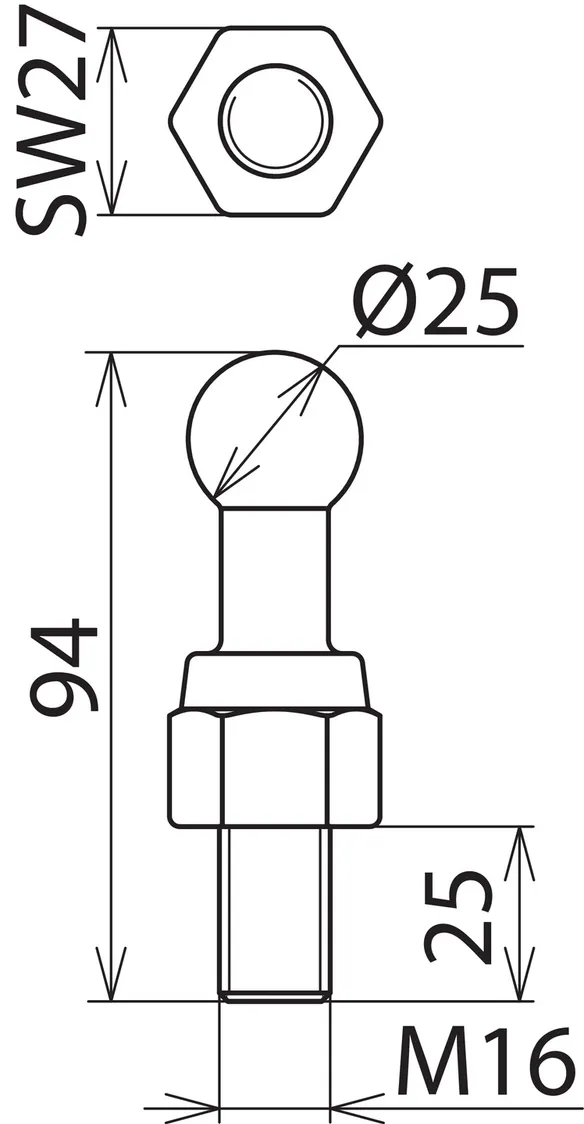

Part No. 755636 KFP 25 M16 25

GTIN 4013364079670, Customs tariff No. (EU): 85359000, Gross weight: 309.50 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 25 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.63
DB material No. 609 426

Product 755636 was added to Notepad.

Product 755636 was added to the cart.


Straight with Round Conductor Half Shell for Round Copper Conductors

6 Products

Part No. 725010 KFP 25 RL 10

GTIN 4013364003750, Customs tariff No. (EU): 85359000, Gross weight: 410.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 10 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725010 was added to Notepad.

Product 725010 was added to the cart.

Part No. 725012 KFP 25 RL 12

GTIN 4013364003767, Customs tariff No. (EU): 85359000, Gross weight: 400.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 12 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725012 was added to Notepad.

Product 725012 was added to the cart.

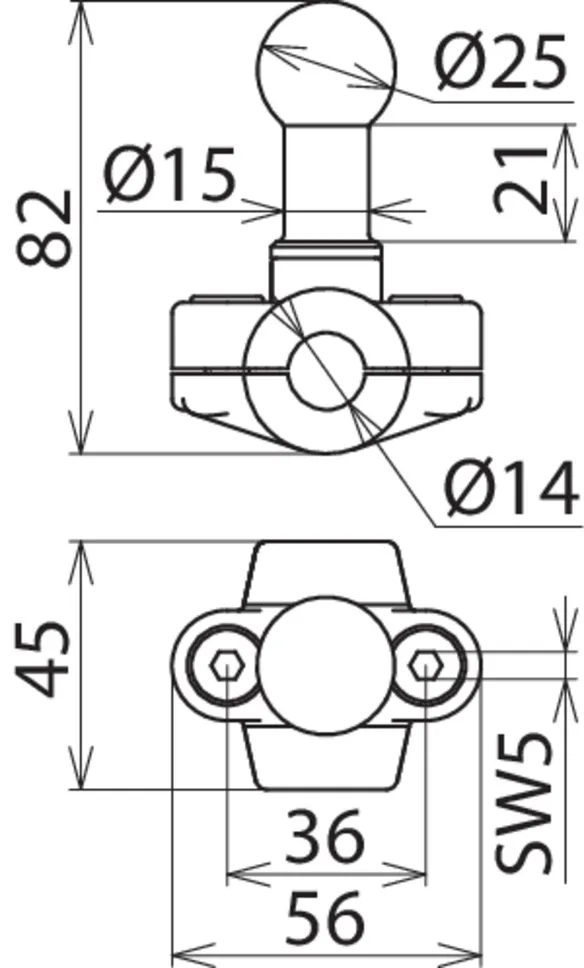

Part No. 725014 KFP 25 RL 14

GTIN 4013364003774, Customs tariff No. (EU): 85359000, Gross weight: 385.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 14 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725014 was added to Notepad.

Product 725014 was added to the cart.

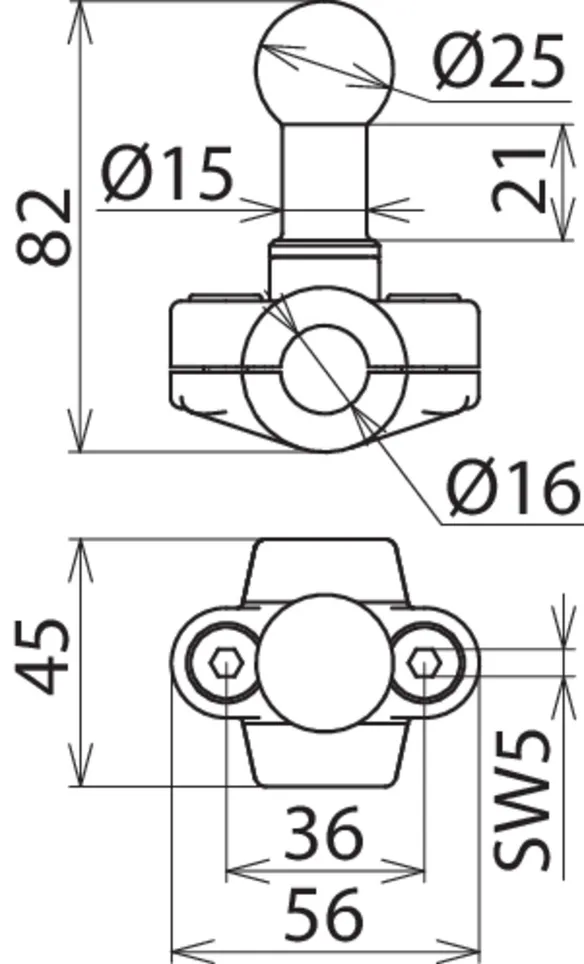

Part No. 725016 KFP 25 RL 16

GTIN 4013364003781, Customs tariff No. (EU): 85359000, Gross weight: 365.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 16 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725016 was added to Notepad.

Product 725016 was added to the cart.

Part No. 725018 KFP 25 RL 18

GTIN 4013364078048, Customs tariff No. (EU): 85359000, Gross weight: 345.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 18 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725018 was added to Notepad.

Product 725018 was added to the cart.

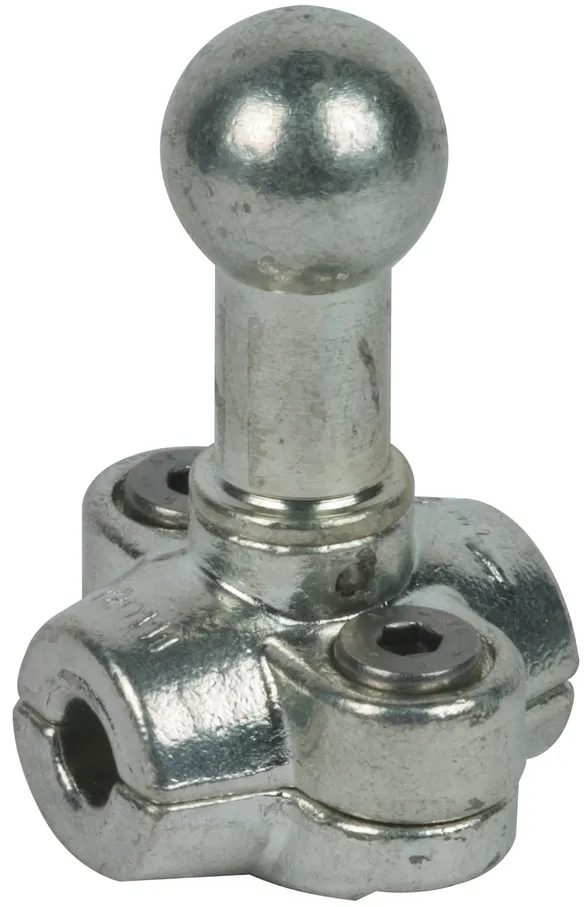

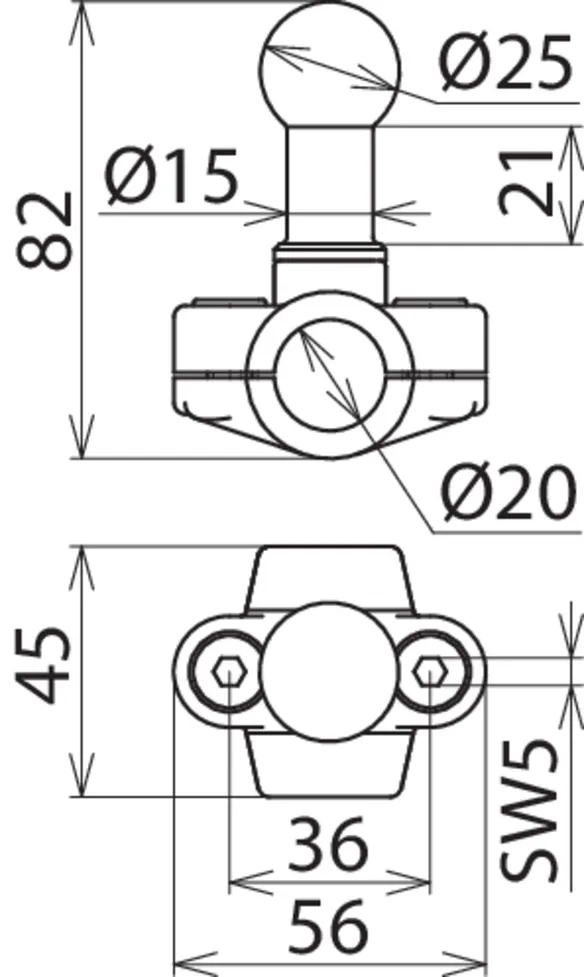

Part No. 725020 KFP 25 RL 20

GTIN 4013364003804, Customs tariff No. (EU): 85359000, Gross weight: 320.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
For round conductor Ød 20 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 725020 was added to Notepad.

Product 725020 was added to the cart.


45° angled with Threaded Pin and Self-locking Nut

5 Products

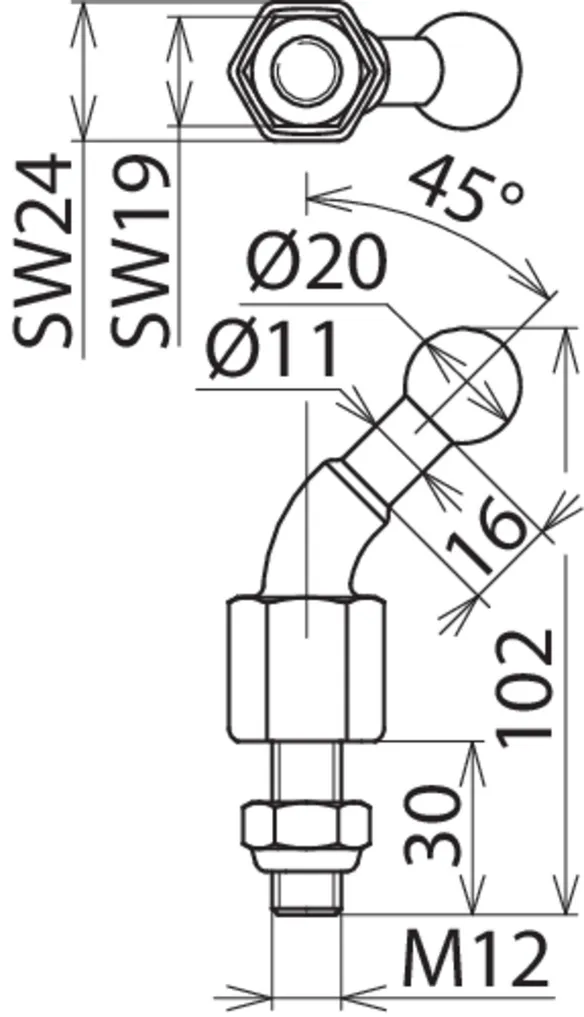

Part No. 706239 KFP 20 W45M12 SN7024

GTIN 4013364155145, Customs tariff No. (EU): 85359000, Gross weight: 227.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12 x 30 mm
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 706239 was added to Notepad.

Product 706239 was added to the cart.

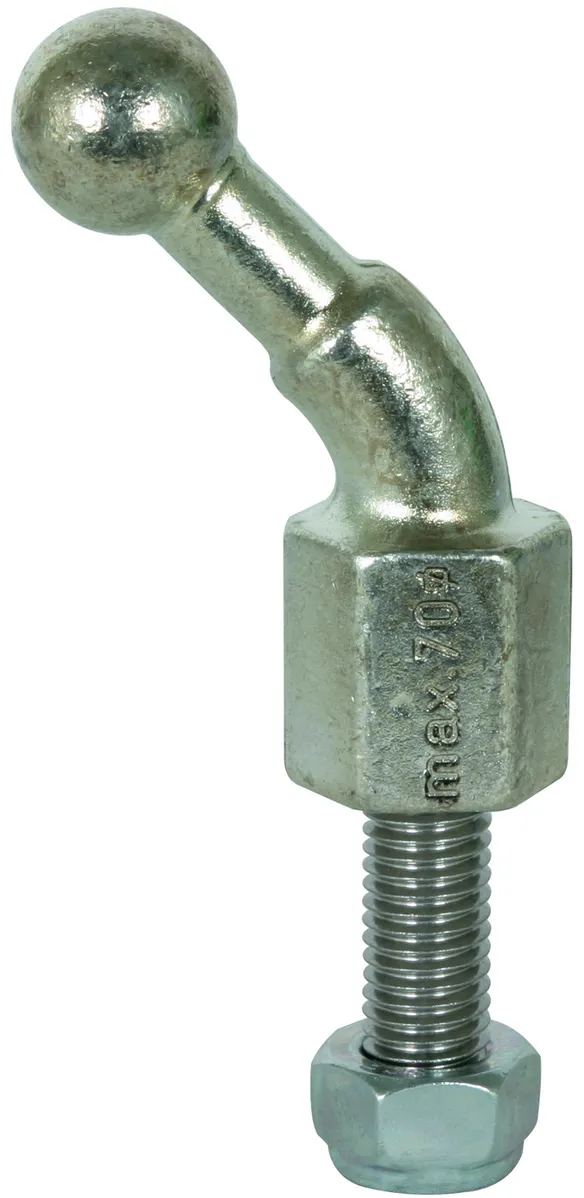

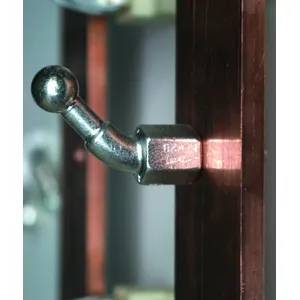

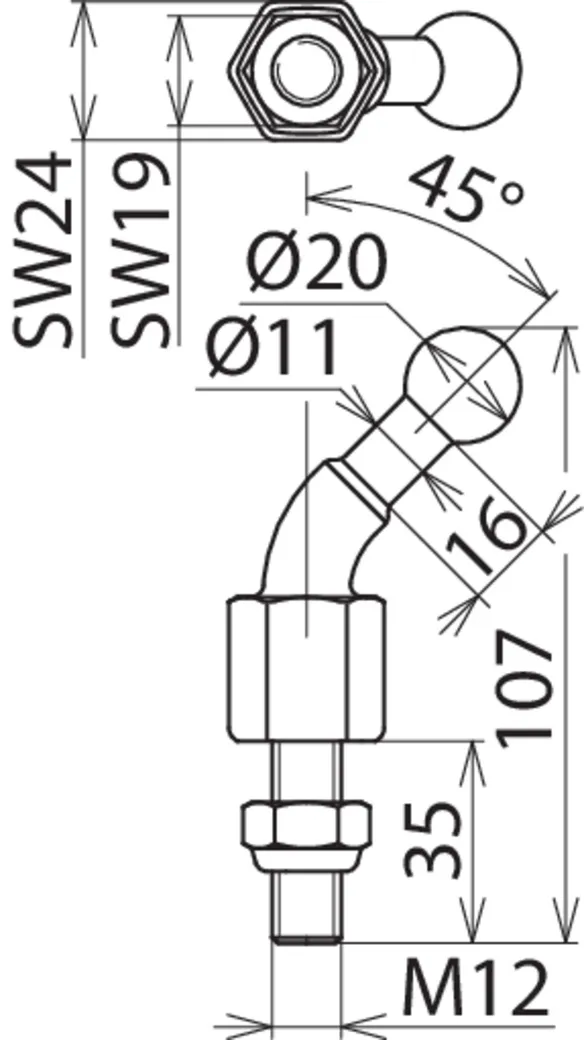

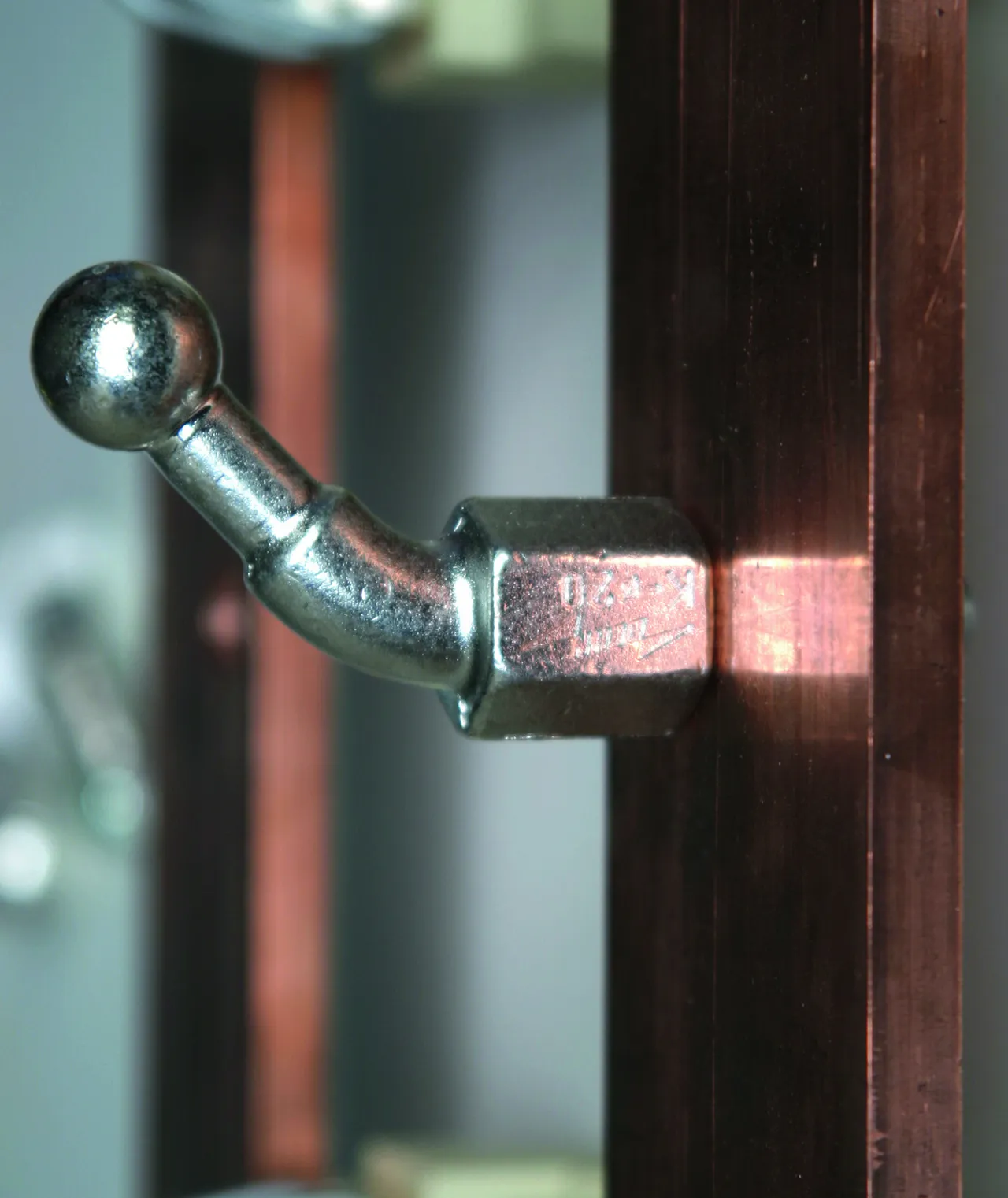

Part No. 706235 KFP 20 W45 M12 35SSM

GTIN 4013364004290, Customs tariff No. (EU): 85359000, Gross weight: 219.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12 x 35 mm
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 706235 was added to Notepad.

Product 706235 was added to the cart.

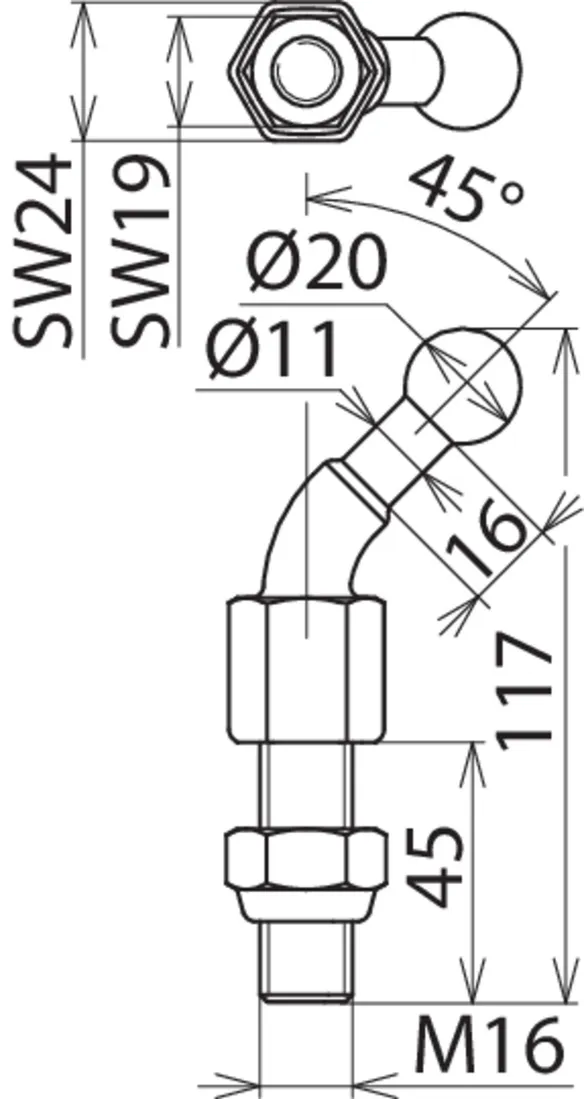

Part No. 706645 KFP 20 W45 M16 45SSM

GTIN 4013364004306, Customs tariff No. (EU): 85359000, Gross weight: 273.80 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16 x 45 mm
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 706645 was added to Notepad.

Product 706645 was added to the cart.

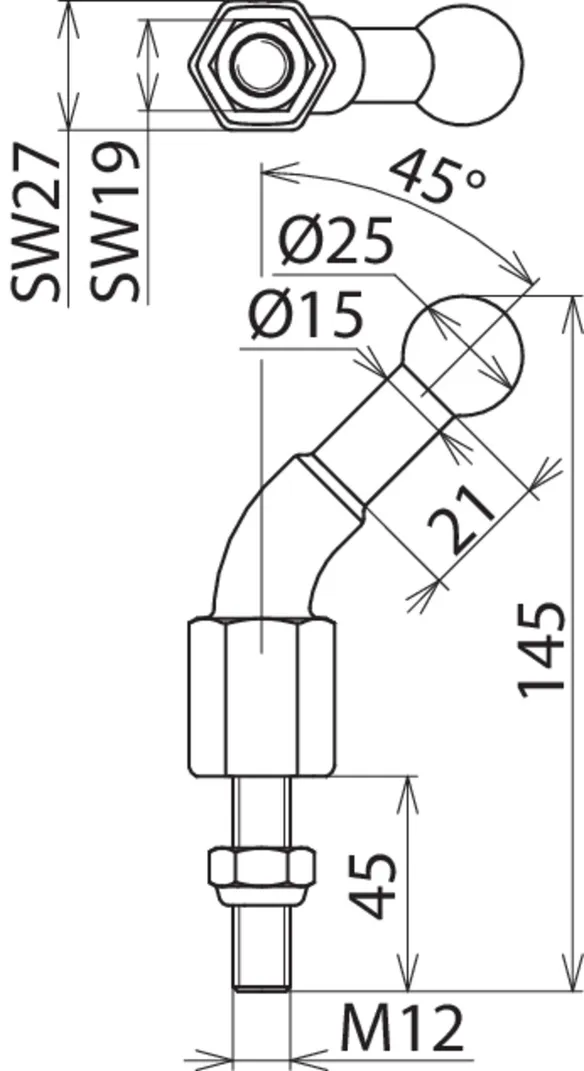

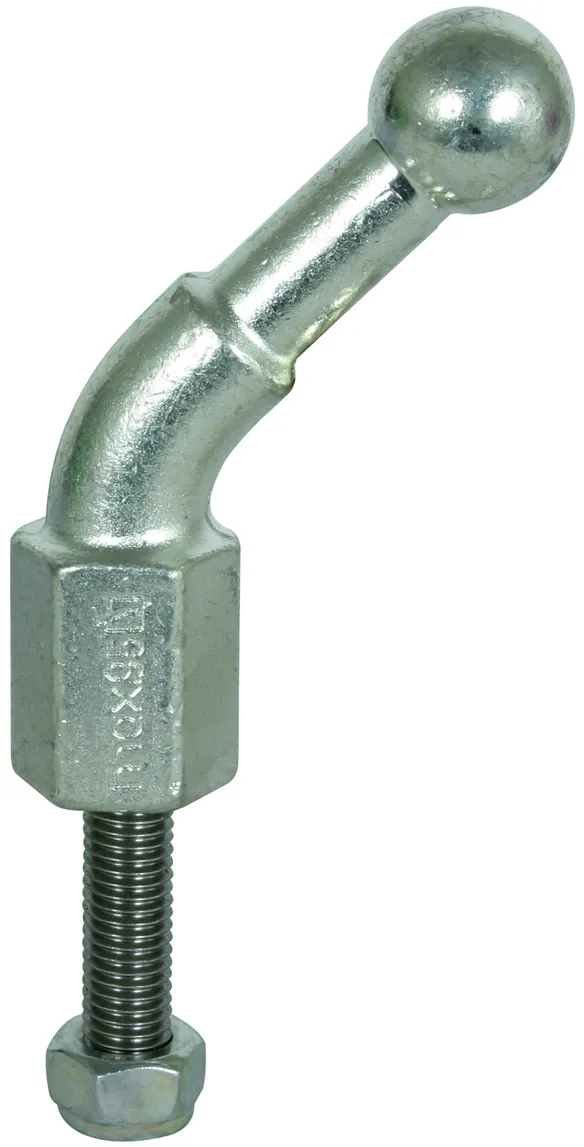

Part No. 756245 KFP 25 W45 M12 45SSM

GTIN 4013364004337, Customs tariff No. (EU): 85359000, Gross weight: 434.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 756245 was added to Notepad.

Product 756245 was added to the cart.

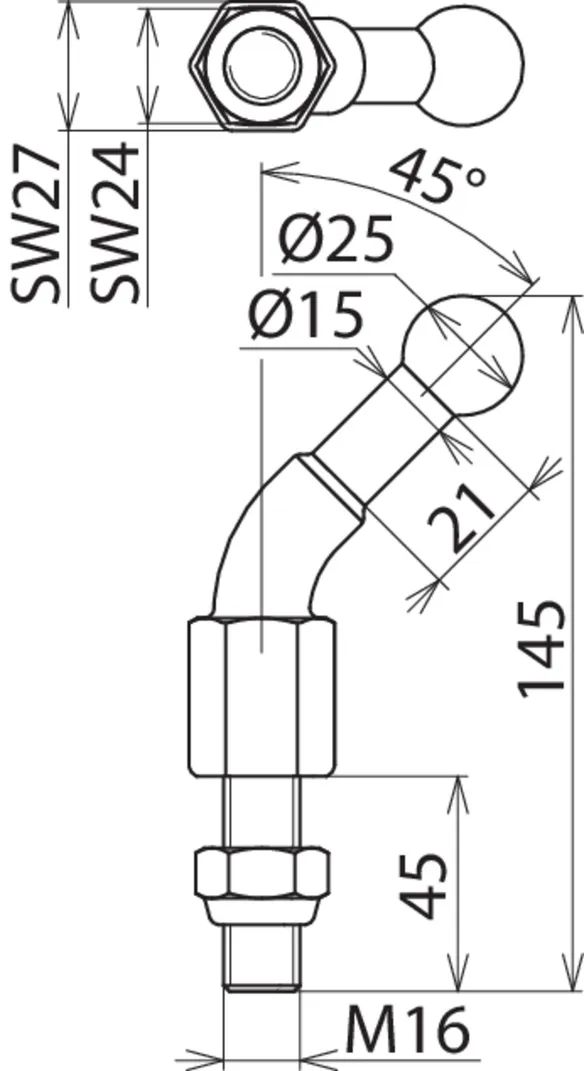

Part No. 756645 KFP 25 W45 M16 45SSM

GTIN 4013364004344, Customs tariff No. (EU): 85359000, Gross weight: 469.80 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 756645 was added to Notepad.

Product 756645 was added to the cart.


45° angled with Female Thread

4 Products

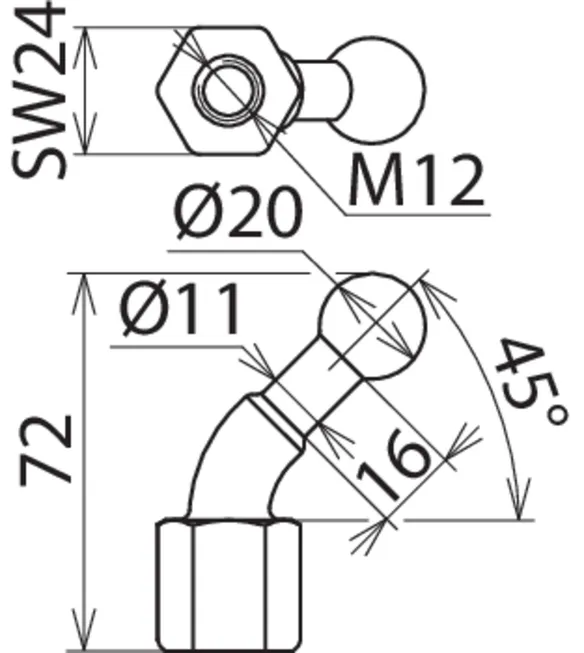

Part No. 706200 KFP 20 W45 M12

GTIN 4013364004276, Customs tariff No. (EU): 85359000, Gross weight: 172.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 706200 was added to Notepad.

Product 706200 was added to the cart.

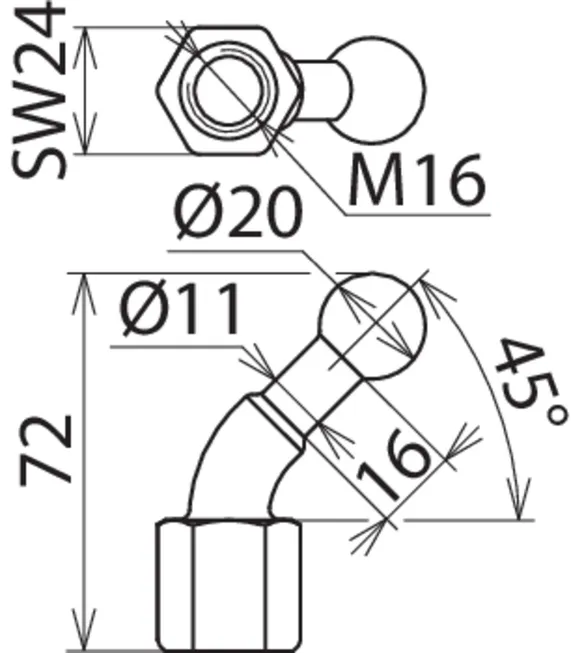

Part No. 706600 KFP 20 W45 M16

GTIN 4013364004283, Customs tariff No. (EU): 85359000, Gross weight: 158.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 706600 was added to Notepad.

Product 706600 was added to the cart.

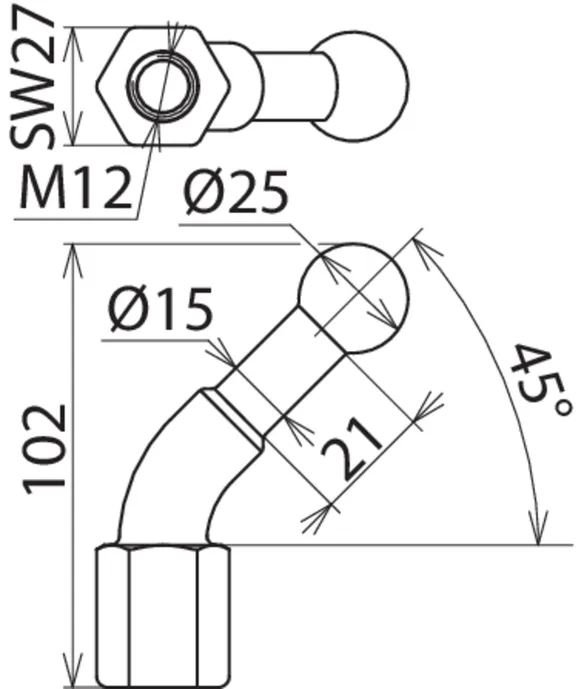

Part No. 756200 KFP 25 W45 M12

GTIN 4013364004313, Customs tariff No. (EU): 85359000, Gross weight: 357.20 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 756200 was added to Notepad.

Product 756200 was added to the cart.

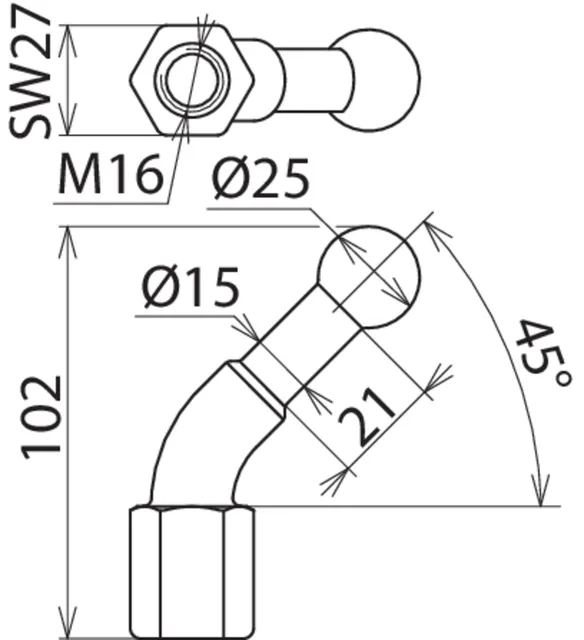

Part No. 756600 KFP 25 W45 M16

GTIN 4013364004320, Customs tariff No. (EU): 85359000, Gross weight: 356.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 756600 was added to Notepad.

Product 756600 was added to the cart.


90° angled with Threaded Pin and Self-locking Nut

4 Products

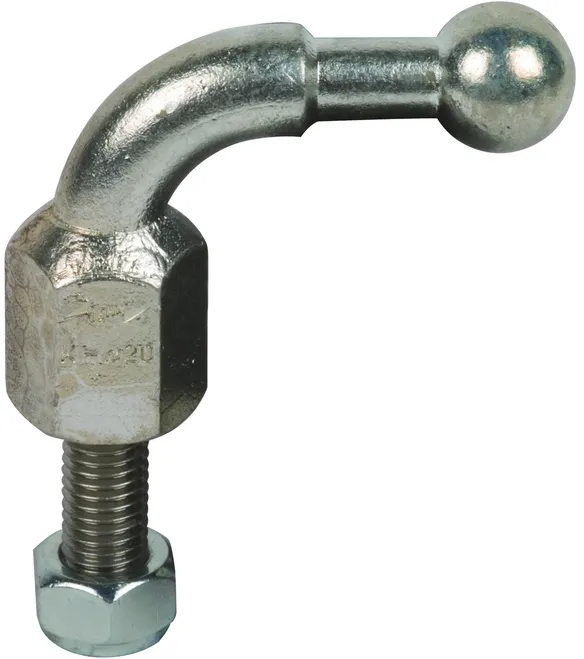

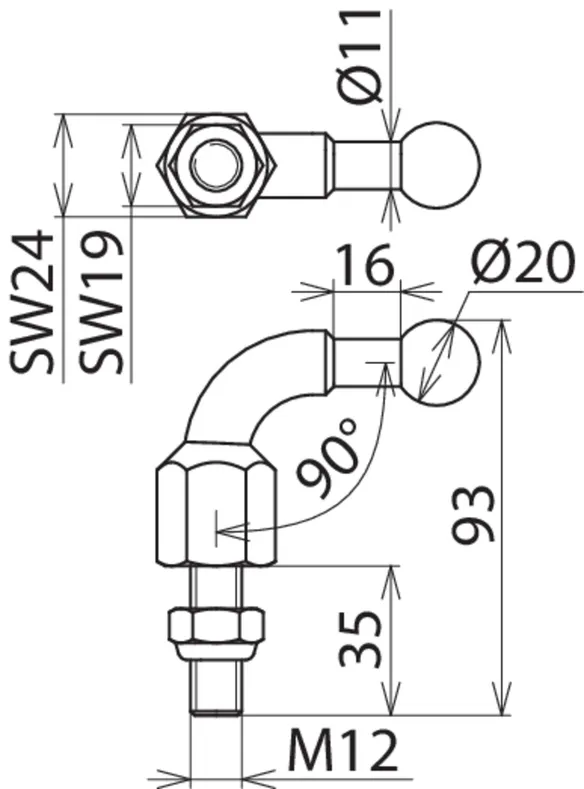

Part No. 707235 KFP 20 W90 M12 35SSM

GTIN 4013364004382, Customs tariff No. (EU): 85359000, Gross weight: 259.20 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12 x 35 mm
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 707235 was added to Notepad.

Product 707235 was added to the cart.

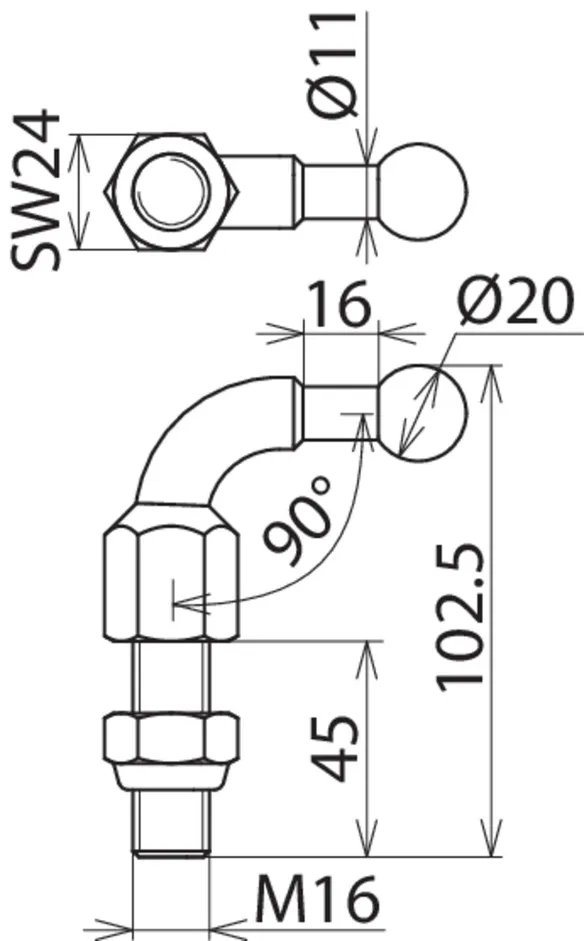

Part No. 707645 KFP 20 W90 M16 45SSM

GTIN 4013364004399, Customs tariff No. (EU): 85359000, Gross weight: 298.80 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16 x 45 mm
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 707645 was added to Notepad.

Product 707645 was added to the cart.

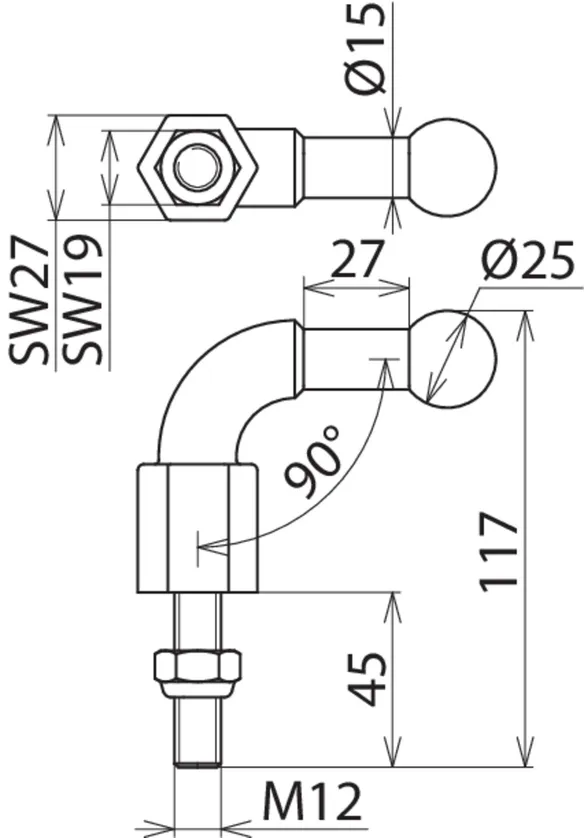

Part No. 757245 KFP 25 W90 M12 45SSM

GTIN 4013364004429, Customs tariff No. (EU): 85359000, Gross weight: 454.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 757245 was added to Notepad.

Product 757245 was added to the cart.

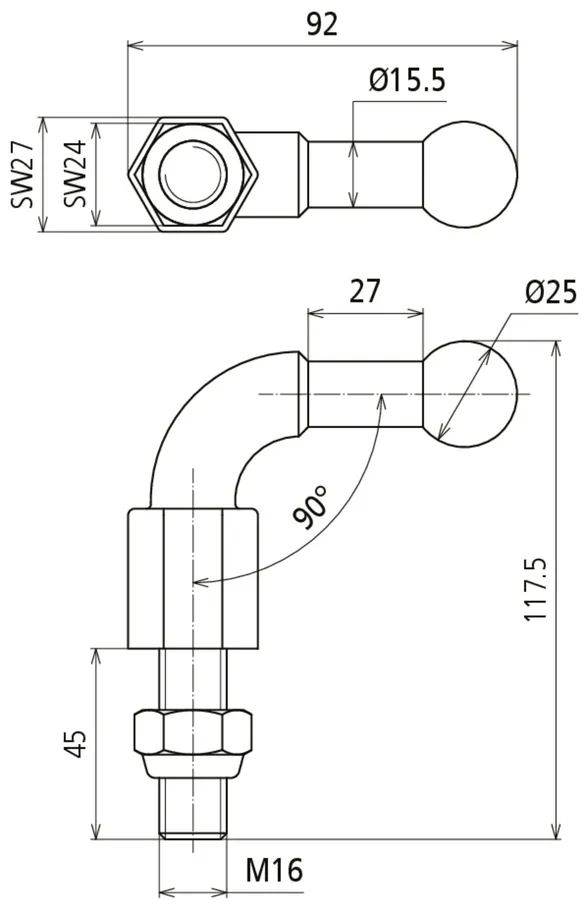

Part No. 757645 KFP 25 W90 M16 45SSM

GTIN 4013364004436, Customs tariff No. (EU): 85359000, Gross weight: 491.20 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M16 x 45 mm
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 757645 was added to Notepad.

Product 757645 was added to the cart.


90° angled with Female Thread

4 Products

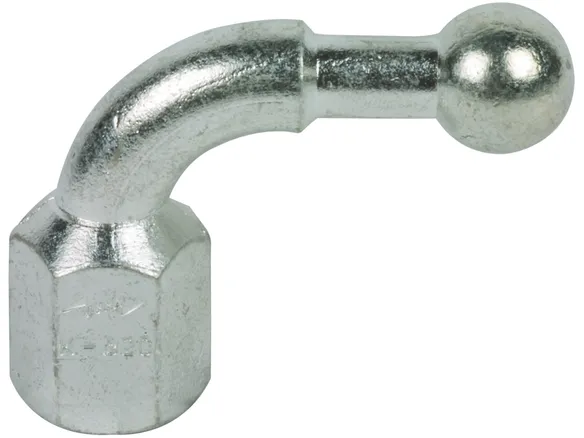

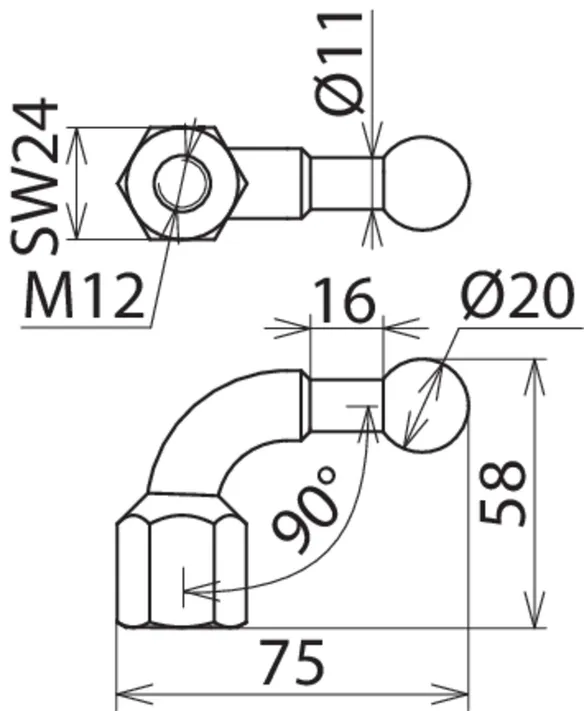

Part No. 707200 KFP 20 W90 M12

GTIN 4013364004368, Customs tariff No. (EU): 85359000, Gross weight: 204.40 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M12
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 707200 was added to Notepad.

Product 707200 was added to the cart.

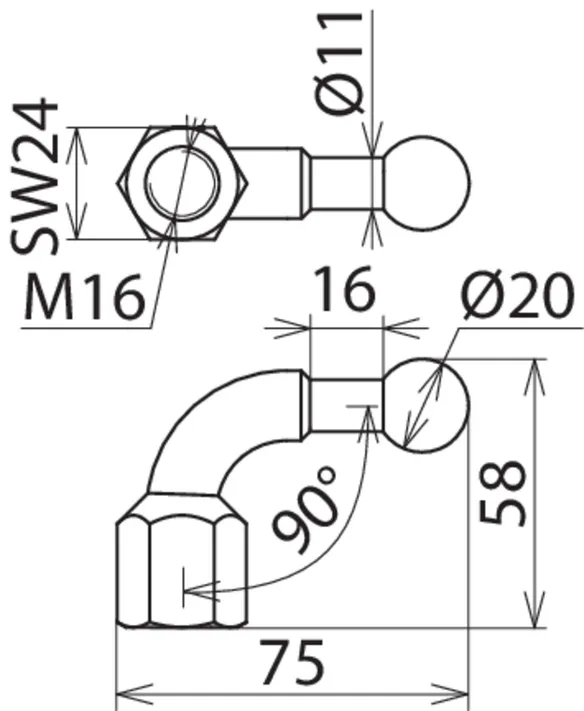

Part No. 707600 KFP 20 W90 M16

GTIN 4013364004375, Customs tariff No. (EU): 85359000, Gross weight: 191.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 20 mm
Dimensions M16
Wrench size 24 mm
Max. cable cross-section Cu 70 mm²
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product 707600 was added to Notepad.

Product 707600 was added to the cart.

Part No. 757200 KFP 25 W90 M12

GTIN 4013364004405, Customs tariff No. (EU): 85359000, Gross weight: 394.80 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Fixed ball point Ø 25 mm
Dimensions M12
Wrench size 27 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
