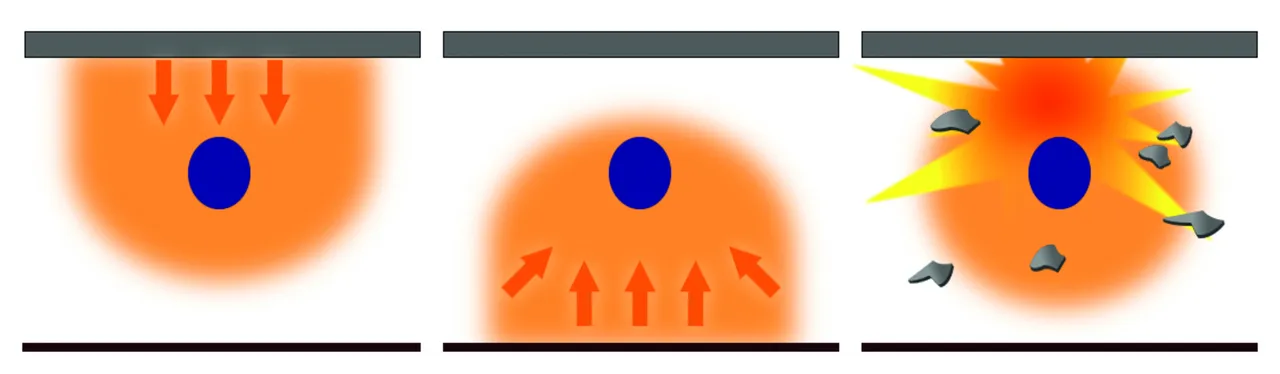

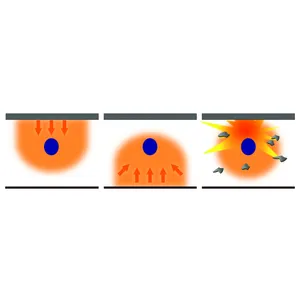

In case of an arc fault the DEHNcare protective hood in combination with the safety helmet for electricians provides:
  • Frontal protection in case of direct incident energy from the switchgear (zone 1 = heat shield)
  • Secondary protection in case of indirect incident energy, e.g. in case of energy reflection from the side and from the back (zone 2 = all-around protection)
  • Protection against bursting off or falling down parts (zone 3)


lorem ipsum

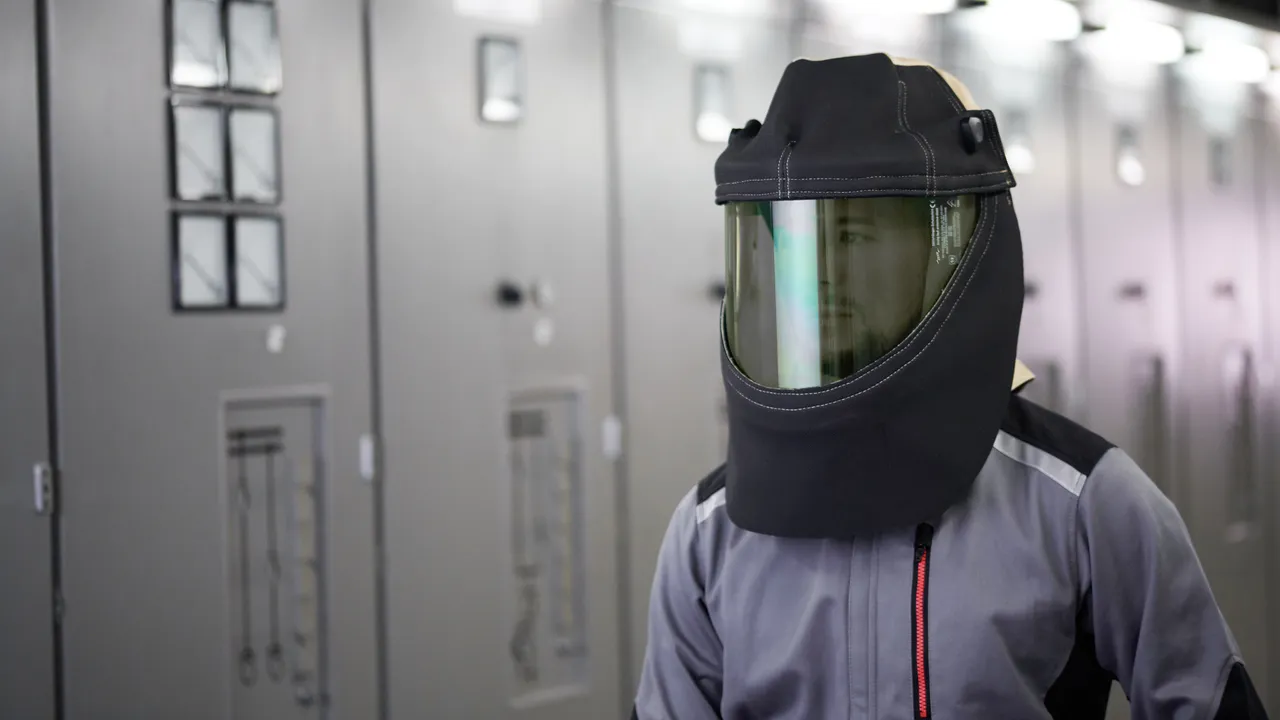

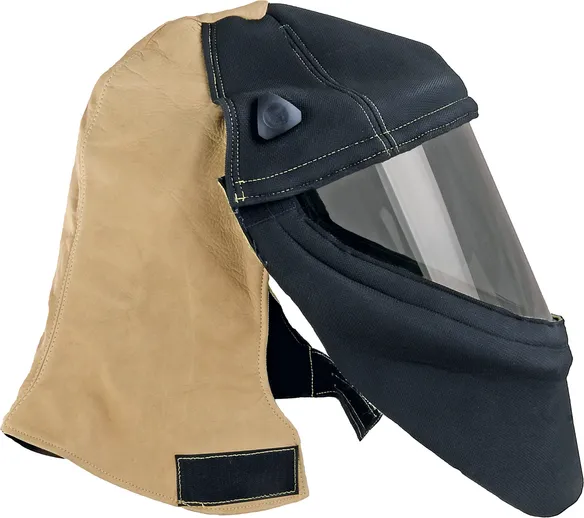

Arc-fault-tested Protective Hood

Note: Safety helmet for electricians ESH U S is not included in delivery!

1 Product

Part No. 785760 APHO

GTIN 4013364336384, Customs tariff No.: 65061080, Gross weight: 1.34 kg, PU: 1.00 pc(s)




Technical data

Material plastic, neoprene, leather
Arc fault protection class (box test 7 kA / 0.5 s – single-pole) APC 2
Arc energy (Warc or WLBP ) 320 kJ
Arc Rating – ATPV (Open Arc Test) 37.2 cal / cm2
PPE category (NFPA 70E) PPE 3
Visible light transmittance (VLT) 29.1 ... 43.2 %
