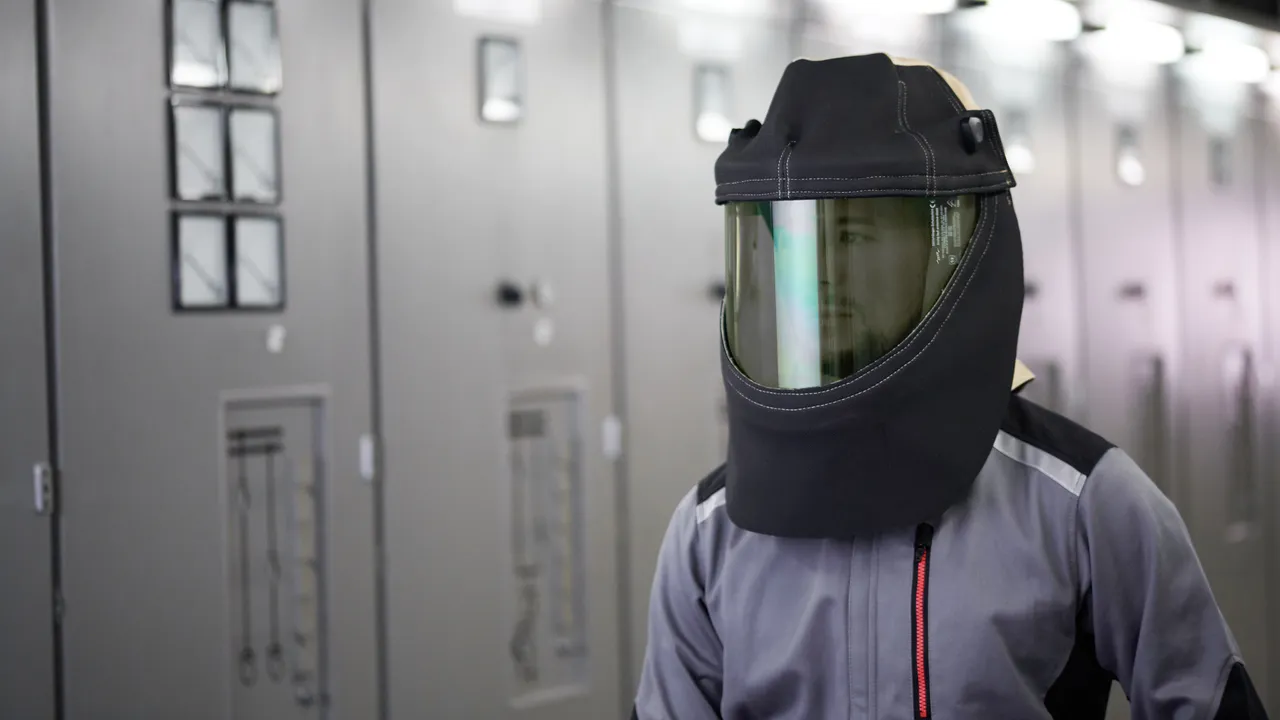

DEHNcare APHO

In case of an arc fault the DEHNcare protective hood in combination with the safety helmet for electricians provides:
  • Frontal protection in case of direct incident energy from the switchgear (zone 1 = heat shield)
  • Secondary protection in case of indirect incident energy, e.g. in case of energy reflection from the side and from the back (zone 2 = all-around protection)
  • Protection against bursting off or falling down parts (zone 3)

Details

lorem ipsum

Arc-fault-tested Protective Hood

Note: Safety helmet for electricians ESH U S is not included in delivery!

1 Product

Part No. 785760 APHO

GTIN 4013364336384, Customs tariff No.: 39269097, Gross weight: 1.34 kg, PU: 1.00 pc(s)


Images

Certificates



Technical data

Material plastic, neoprene, leather
Incident energy (after box test: class 2) (Eio ) 423 kJ / m2
Arc energy (Warc ) 318 kJ
Arc thermal performance value (ATPV) 37.2 cal / cm2
Visible light transmittance (VLT) 29.1 ... 43.2 %
