Cables

For use in lightning protection and earth-termination systems.

Aluminium cable

E.g. for isolated air-termination systems (DEHNiso Combi).

1 Product

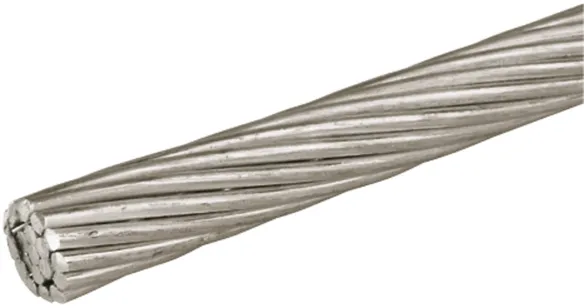

Part No. 840050 SEIL 9 50Q AL R100M

GTIN 4013364070141, Customs tariff No.: 76149000, Gross weight: 133.00 g/m, PU: 100.00 m


Images

Additional information

Aluminium cable, 50 mm², Al
Cable for use in lightning protection systems.
Cross-section: 50 mm2
Cable structure qty x Ø wire: 19 x 1.8 mm
Material: Al

Brand: DEHN
Type: SEIL 9 50Q AL R100M
Part No.: 840050
or equivalent.



Technical data

Cross-section 50 mm2
Cable structure qty x Ø wire 19 x 1.8 mm
Material Al
Standard EN 62561-2
Diameter Ø outside 9 mm

Product 840050 was added to Notepad.

Product 840050 was added to the cart.


Steel cable

1 Product

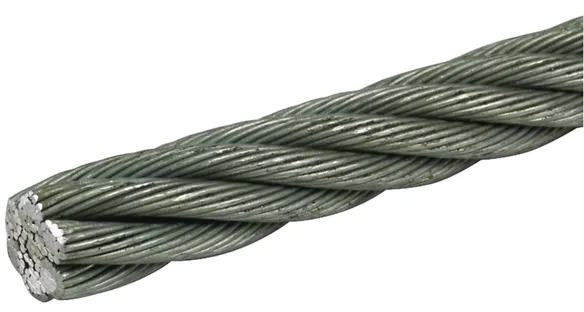

Part No. 801050 SEIL 10 STGALZN R100M

GTIN 4013364018921, Customs tariff No.: 73121081, Gross weight: 330.00 g/m, PU: 100.00 m


Images

Additional information

Steel cable, 42 mm², St/gal Zn
Cable for use in lightning protection systems.
Cross-section: 42 mm2
Cable structure qty x Ø wire: [6x] 19 x 0.65 mm
Material: St/gal Zn

Brand: DEHN
Type: SEIL 10 STGALZN R100M
Part No.: 801050
or equivalent.



Technical data

Cross-section 42 mm2
Cable structure qty x Ø wire [6x] 19 x 0.65 mm
Material St/gal Zn
Diameter Ø outside 10 mm

Product 801050 was added to Notepad.

Product 801050 was added to the cart.


Stainless steel cable

E.g. for equipotential bonding.

2 Products

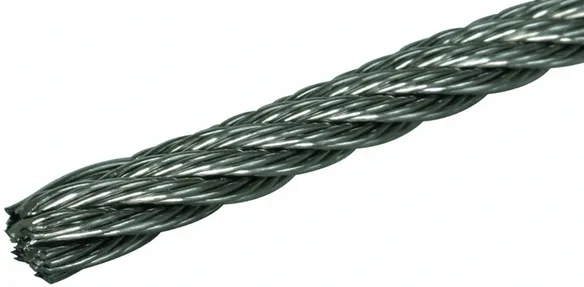

Part No. 850008 SEIL 8 V4A R100M

GTIN 4013364129627, Customs tariff No.: 73121020, Gross weight: 235.00 g/m, PU: 100.00 m


Images

Additional information

Stainless steel cable, 27 mm², StSt (V4A)
Cable for e.g. equipotential bonding.
Cross-section: 27 mm2
Cable structure qty x Ø wire: [7x] 19 x ca. 0.59 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: SEIL 8 V4A R100M
Part No.: 850008
or equivalent.



Technical data

Cross-section 27 mm2
Cable structure qty x Ø wire [7x] 19 x ca. 0.59 mm
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Diameter Ø outside 8 mm

Product 850008 was added to Notepad.

Product 850008 was added to the cart.

Part No. 850010 SEIL 10 V4A R100M

GTIN 4013364129634, Customs tariff No.: 73121020, Gross weight: 395.00 g/m, PU: 100.00 m


Images

Additional information

Stainless steel cable, 42 mm², StSt (V4A)
Cable for e.g. euipotential bonding.
Cross-section: 42 mm2
Cable structure qty x Ø wire: [7x] 19 x ca. 0.68 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: SEIL 10 V4A R100M
Part No.: 850010
or equivalent.



Technical data

Cross-section 42 mm2
Cable structure qty x Ø wire [7x] 19 x ca. 0.68 mm
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Diameter Ø outside 10 mm

Product 850010 was added to Notepad.

Product 850010 was added to the cart.


Copper cable

6 Products

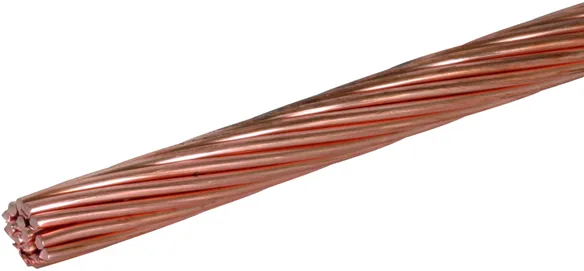

Part No. 832739 SEIL 9 50Q CU R50M

GTIN 4013364018907, Customs tariff No.: 74130000, Gross weight: 438.00 g/m, PU: 50.00 m


Images

Additional information

Copper cable, 50 mm², Cu

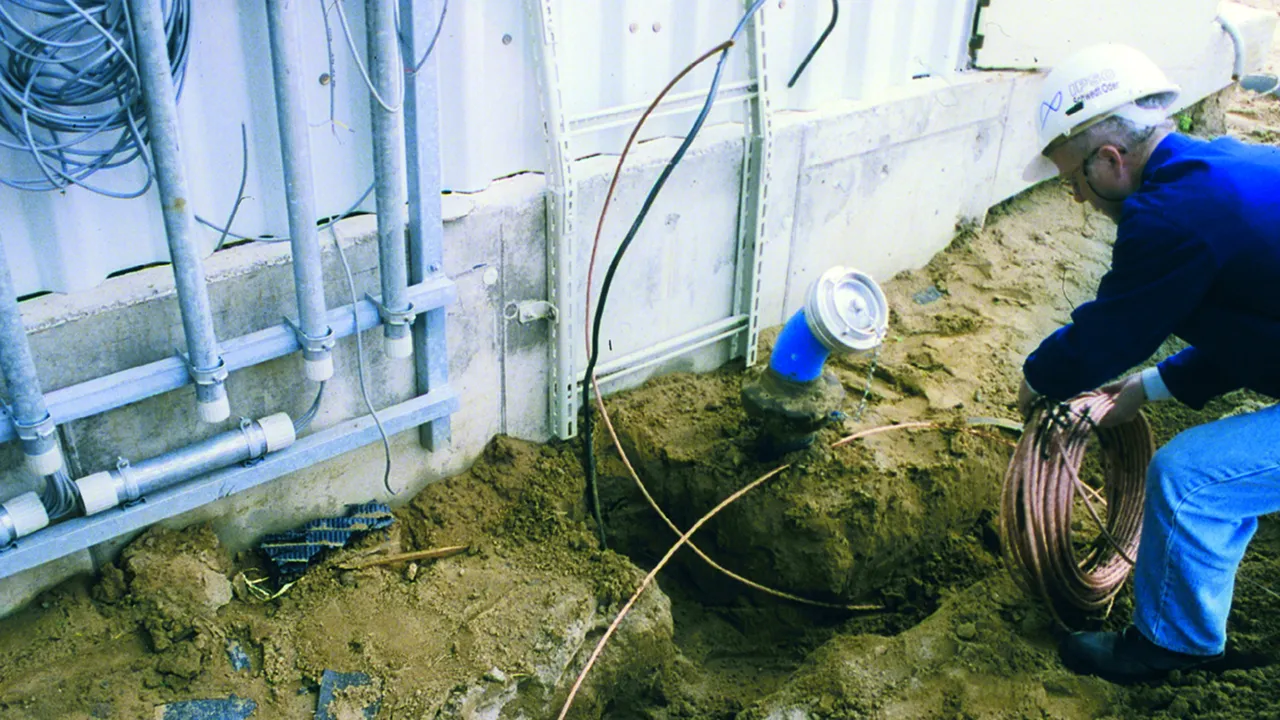

Cable for use in earth-termination and lightning protection systems.
Cross-section: 50 mm2
Cable structure qty x Ø wire: 19 x 1.8 mm
Material: Cu

Brand: DEHN
Type: SEIL 9 50Q CU R50M
Part No.: 832739
or equivalent.



Technical data

Cross-section 50 mm2
Cable structure qty x Ø wire 19 x 1.8 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 9 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 9.8 kA

Product 832739 was added to Notepad.

Product 832739 was added to the cart.

Part No. 832740 SEIL 9 50Q CU R100M

GTIN 4013364093454, Customs tariff No.: 74130000, Gross weight: 438.00 g/m, PU: 100.00 m


Images

Additional information

Copper cable, 50 mm², Cu
Cable for use in earth-termination and lightning protection systems.
Cross-section: 50 mm2
Cable structure qty x Ø wire: 19 x 1.8 mm
Material: Cu

Brand: DEHN
Type: SEIL 9 50Q CU R100M
Part No.: 832740
or equivalent.



Technical data

Cross-section 50 mm2
Cable structure qty x Ø wire 19 x 1.8 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 9 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 9.8 kA

Product 832740 was added to Notepad.

Product 832740 was added to the cart.

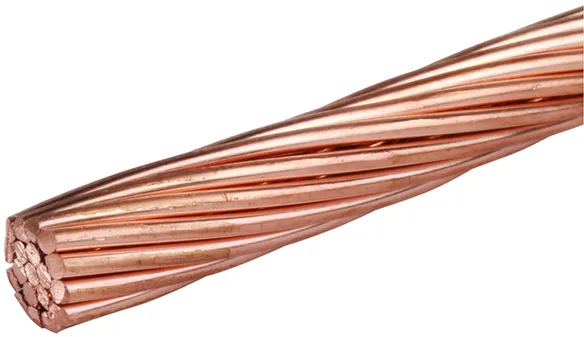

Part No. 832192 SEIL 10.5 70Q CU R50M

GTIN 4013364018914, Customs tariff No.: 74130000, Gross weight: 597.00 g/m, PU: 50.00 m


Images

Additional information

Copper cable, 70 mm², Cu
Cable for use in earth-termination and lightning protection systems.
Cross-section: 70 mm2
Cable structure qty x Ø wire: 19 x 2.1 mm
Material: Cu

Brand: DEHN
Type: SEIL 10.5 70Q CU R50M
Part No.: 832192
or equivalent.



Technical data

Cross-section 70 mm2
Cable structure qty x Ø wire 19 x 2.1 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 10.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 13.7 kA

Product 832192 was added to Notepad.

Product 832192 was added to the cart.

Part No. 832193 SEIL 10.5 70Q CU R100M

GTIN 4013364093430, Customs tariff No.: 74130000, Gross weight: 597.00 g/m, PU: 100.00 m


Images

Additional information

Copper cable, 70 mm², Cu
Cable for use in earth-termination and lightning protection systems.
Cross-section: 70 mm2
Cable structure qty x Ø wire: 19 x 2.1 mm
Material: Cu

Brand: DEHN
Type: SEIL 10.5 70Q CU R100M
Part No.: 832193
or equivalent.



Technical data

Cross-section 70 mm2
Cable structure qty x Ø wire 19 x 2.1 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 10.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 13.7 kA

Product 832193 was added to Notepad.

Product 832193 was added to the cart.

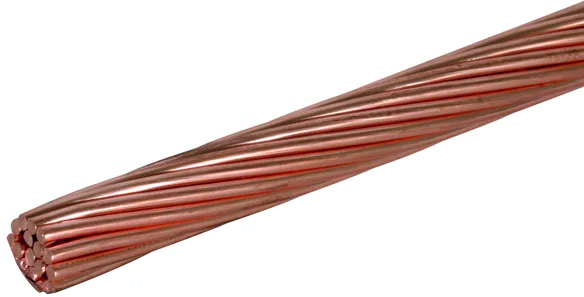

Part No. 832095 SEIL 12.5 95Q CU R50M

GTIN 4013364048324, Customs tariff No.: 74130000, Gross weight: 845.00 g/m, PU: 50.00 m


Images

Additional information

Copper cable, 95 mm², Cu
Cable for use in earth-termination and lightning protection systems.
Cross-section: 95 mm2
Cable structure qty x Ø wire: 19 x 2.5 mm
Material: Cu

Brand: DEHN
Type: SEIL 12.5 95Q CU R50M
Part No.: 832095
or equivalent.



Technical data

Cross-section 95 mm2
Cable structure qty x Ø wire 19 x 2.5 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 12.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 18.5 kA

Product 832095 was added to Notepad.

Product 832095 was added to the cart.

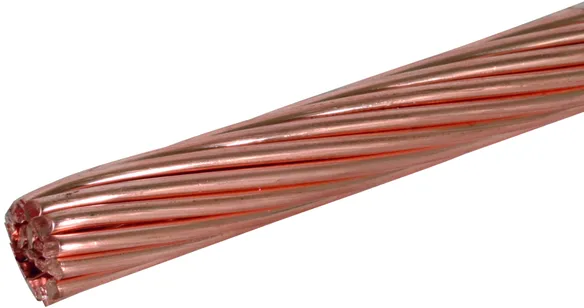

Part No. 832120 SEIL 14.5 120Q CU R50M

GTIN 4013364129610, Customs tariff No.: 74130000, Gross weight: 1.06 kg/m, PU: 50.00 m


Images

Additional information

Copper cable, 120 mm², Cu
Cable for use in earth-termination and lightning protection systems.
Cross-section: 120 mm2
Cable structure qty x Ø wire: 19 x 2.8 mm
Material: Cu

Brand: DEHN
Type: SEIL 14.5 120Q CU R50M
Part No.: 832120
or equivalent.



Technical data

Cross-section 120 mm2
Cable structure qty x Ø wire 19 x 2.8 mm
Material Cu
Standard EN 62561-2
Diameter Ø outside 14.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C ) 23.4 kA

Product 832120 was added to Notepad.

Product 832120 was added to the cart.


Copper cable tinned

6 Products

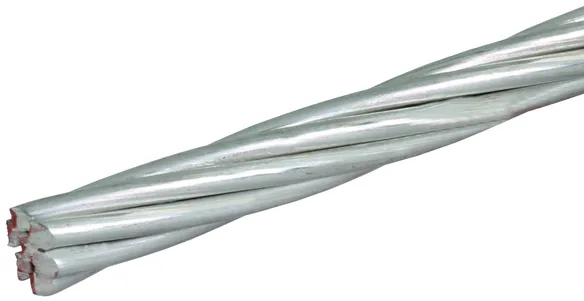

Part No. 832838 Seil 7.5 CUGALSN 35Q R100M

GTIN 4013364335776, Customs tariff No.: 74130000, Gross weight: 334.00 g/m, PU: 100.00 m


Images

Additional information

Copper cable, tinned, 35mm² Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 35 mm2
Cable structure qty x Ø wire: 7 x 2.5 mm
Material: Cu/gal Sn

Brand: DEHN
Type: Seil 7.5 CUGALSN 35Q R100M
Part No.: 832838
or equivalent.



Technical data

Cross-section 35 mm2
Cable structure qty x Ø wire 7 x 2.5 mm
Material Cu/gal Sn
Diameter Ø outside 7.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 5 kA

Product 832838 was added to Notepad.

Product 832838 was added to the cart.

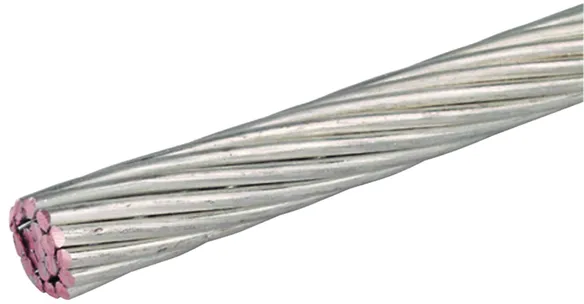

Part No. 832839 SEIL 9 50Q CUGALSN R100M

GTIN 4013364093164, Customs tariff No.: 74130000, Gross weight: 438.00 g/m, PU: 100.00 m


Images

Additional information

Copper cable, tin-plated, 50 mm², Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 50 mm2
Cable structure qty x Ø wire: 19 x 1.8 mm
Material: Cu/gal Sn

Brand: DEHN
Type: SEIL 9 50Q CUGALSN R100M
Part No.: 832839
or equivalent.



Technical data

Cross-section 50 mm2
Cable structure qty x Ø wire 19 x 1.8 mm
Material Cu/gal Sn
Standard EN 62561-2
Diameter Ø outside 9 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 7.2 kA

Product 832839 was added to Notepad.

Product 832839 was added to the cart.

Part No. 832202 SEIL 10.5 70Q CUGALSN R50M

GTIN 4013364081048, Customs tariff No.: 74130000, Gross weight: 597.00 g/m, PU: 50.00 m


Images

Additional information

Tin-plated copper cable, 70mm², Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 70 mm2
Cable structure qty x Ø wire: 19 x 2.1 mm
Material: Cu/gal Sn

Brand: DEHN
Type: SEIL 10.5 70Q CUGALSN R50M
Part No.: 832202
or equivalent.



Technical data

Cross-section 70 mm2
Cable structure qty x Ø wire 19 x 2.1 mm
Material Cu/gal Sn
Standard EN 62561-2
Diameter Ø outside 10.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 10.1 kA

Product 832202 was added to Notepad.

Product 832202 was added to the cart.

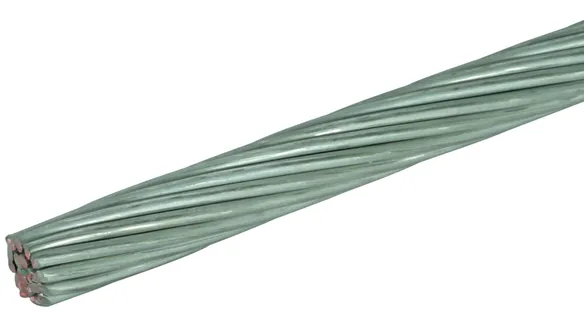

Part No. 832292 SEIL 10.5 70Q CUGALSN R100M

GTIN 4013364093171, Customs tariff No.: 74130000, Gross weight: 597.00 g/m, PU: 100.00 m


Images

Additional information

Copper cable, tin-plated, 70 mm², Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 70 mm2
Cable structure qty x Ø wire: 19 x 2.1 mm
Material: Cu/gal Sn

Brand: DEHN
Type: SEIL 10.5 70Q CUGALSN R100M
Part No.: 832292
or equivalent.



Technical data

Cross-section 70 mm2
Cable structure qty x Ø wire 19 x 2.1 mm
Material Cu/gal Sn
Standard EN 62561-2
Diameter Ø outside 10.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 10.1 kA

Product 832292 was added to Notepad.

Product 832292 was added to the cart.

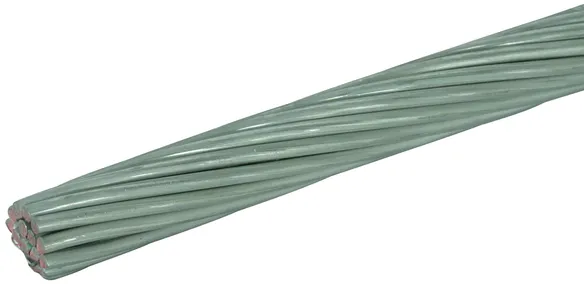

Part No. 832295 SEIL 12.5 95Q CUGALSN R50M

GTIN 4013364093447, Customs tariff No.: 74130000, Gross weight: 845.00 g/m, PU: 50.00 m


Images

Additional information

Copper cable, tin-plated, 95 mm², Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 95 mm2
Cable structure qty x Ø wire: 19 x 2.5 mm
Material: Cu/gal Sn

Brand: DEHN
Type: SEIL 12.5 95Q CUGALSN R50M
Part No.: 832295
or equivalent.



Technical data

Cross-section 95 mm2
Cable structure qty x Ø wire 19 x 2.5 mm
Material Cu/gal Sn
Standard EN 62561-2
Diameter Ø outside 12.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 13.8 kA

Product 832295 was added to Notepad.

Product 832295 was added to the cart.

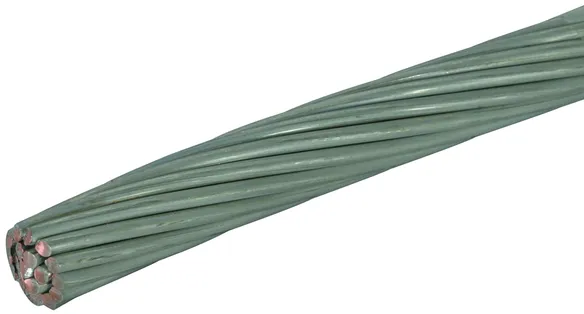

Part No. 832320 SEIL 14.5 120Q CUGALSN R50M

GTIN 4013364129641, Customs tariff No.: 74130000, Gross weight: 1.06 kg/m, PU: 50.00 m


Images

Additional information

Tin-plated copper cable, 120 mm², Cu/gal Sn
Cable for use in earth-termination and lightning protection systems.
Cross-section: 120 mm2
Cable structure qty x Ø wire: 19 x 2.8 mm
Material: Cu/gal Sn

Brand: DEHN
Type: SEIL 14.5 120Q CUGALSN R50M
Part No.: 832320
or equivalent.



Technical data

Cross-section 120 mm2
Cable structure qty x Ø wire 19 x 2.8 mm
Material Cu/gal Sn
Standard EN 62561-2
Diameter Ø outside 14.5 mm
Short-circuit current (50 Hz) (1 s; ≤ 150 °C ) 17.3 kA

Product 832320 was added to Notepad.

Product 832320 was added to the cart.


back to top
