Lightning Strike Counter

Counter for digitally recording impulse currents.
The discharge current counter is preferably installed between the equipotential bonding bar and the earth-termination system.
Material for fixing the counter on round or flat conductors is included in delivery.

1 Product

Part No. 599100 DLSC 100 IP65

GTIN 4013364287402, Customs tariff No.: 90291000, Gross weight: 430.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

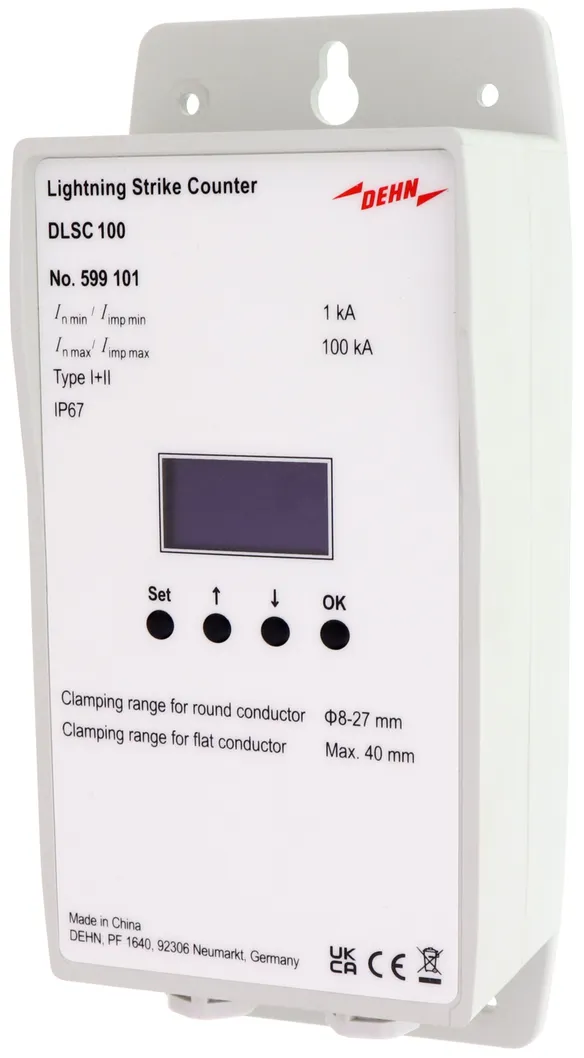

Lightning strike counter
Lightning strike counter for digitally recording impulse currents

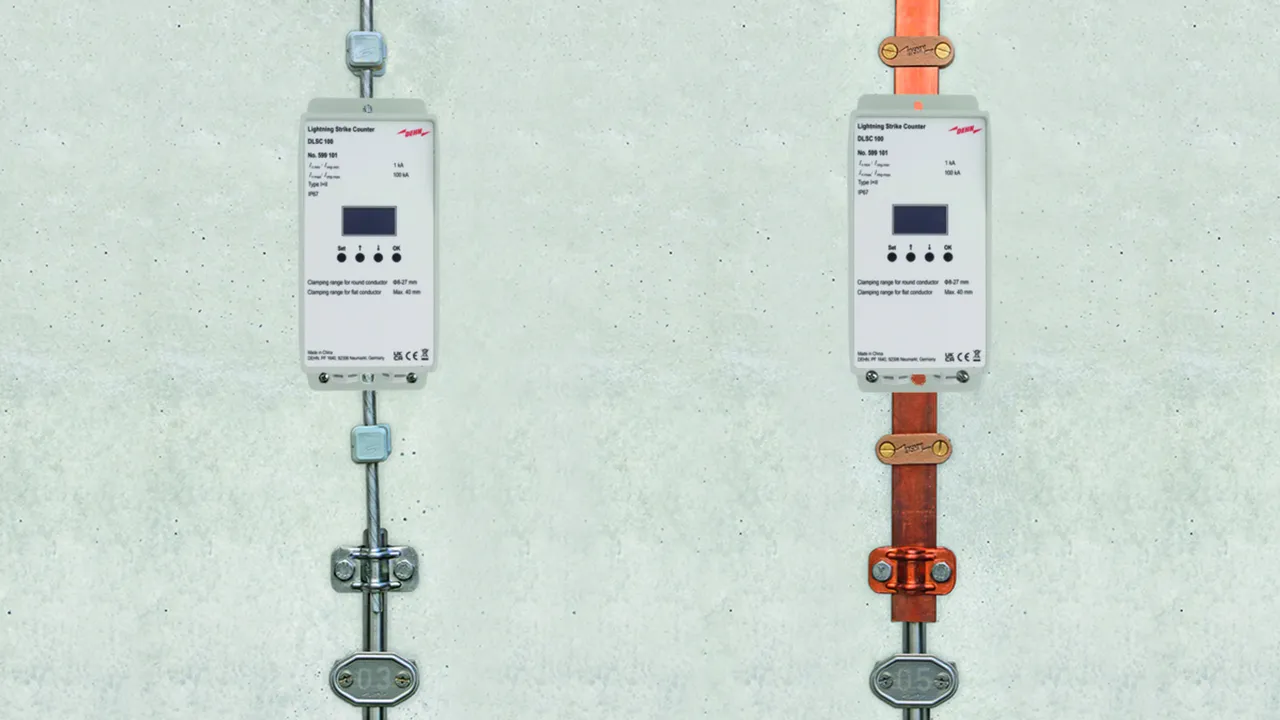

The counter is preferably installed on the down conductors of the
lightning protection system or between the equipotential bonding
bar and the earth-termination system.
Operating current (8/20 µs): 1 kA
Max. discharge current (10/350 µs): 100 kA
Clamping range Rd: 8-10 mm
Clamping range Fl: max. 30 mm
Degree of protection: IP 65

Brand: DEHN
Type: DLSC 100 IP65
Part No.: 599100
or equivalent.

Certificates



Technical data

Operating current (8/20 µs) (Itc ) 1 kA
Max. discharge current (10/350 µs) (Imcw ) 100 kA
Clamping range Rd 8-10 mm
Clamping range Fl max. 30 mm
Degree of protection IP 65
