Roof Conductor Holders with Preformed Brace for Roof Surfaces

Hung onto the groove of roof tiles.

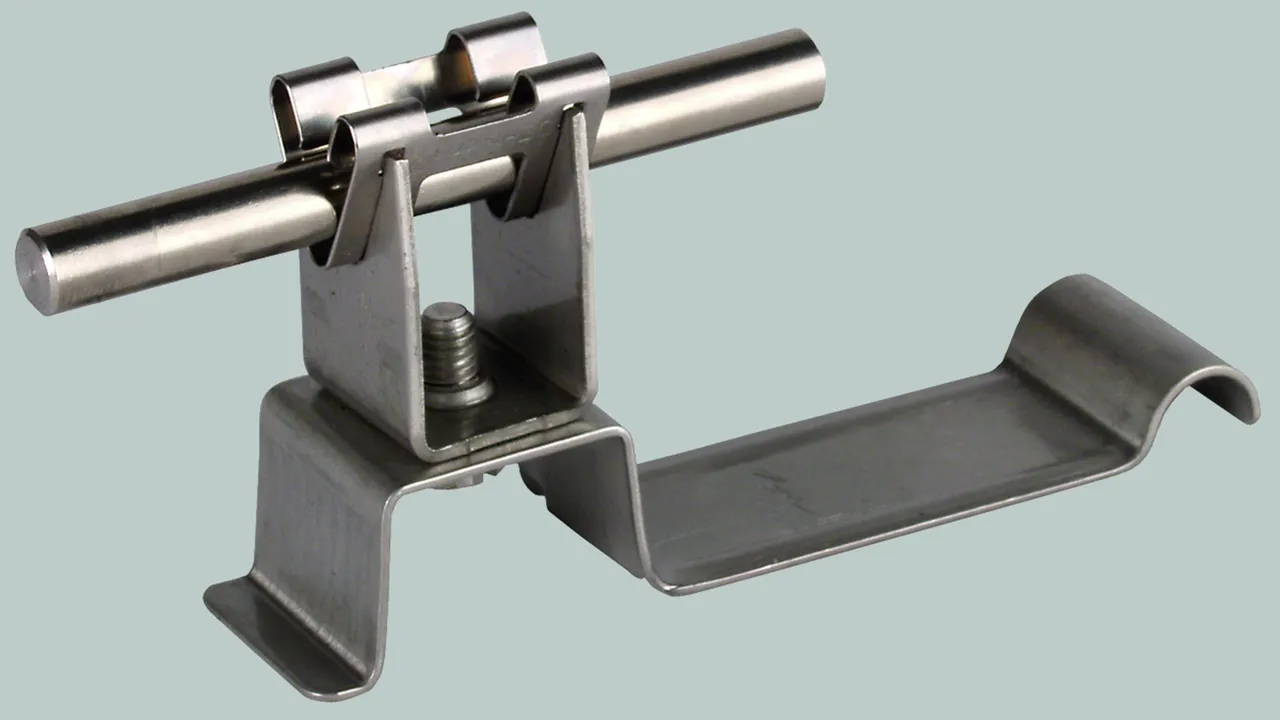

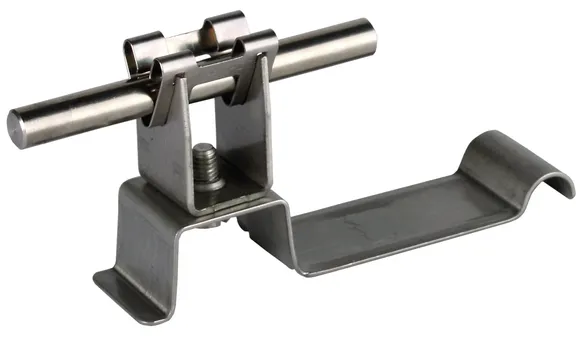

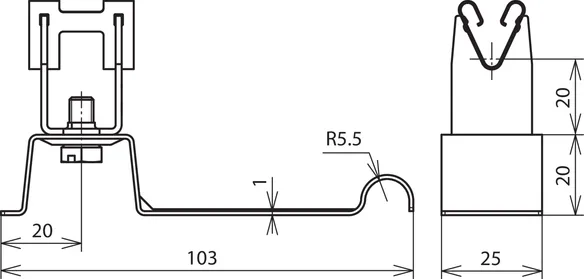

Hung onto the lower groove, with conductor holder DEHNgrip

Loose conductor routing.

1 Product

Part No. 206349 DLH DG 8 H20 L103 EH V2A

GTIN 4013364047716, Customs tariff No.: 85389099, Gross weight: 50.20 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

Gable roofs - roof conductor holder for hanging onto the lower groove, StSt
Roof conductor holder with preformed brace
Hung onto the lower groove of pantiled roofs, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 20 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L103 EH V2A
Part No.: 206349
or equivalent.

Technical data

Material of roof conductor holder	StSt
Length of brace	103 mm
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Standard	EN 62561-4

Material of roof conductor holder	StSt
Length of brace	103 mm
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Female thread	M6
Type of roofing	tiled roofs
Conductor routing	loose
Fixing possibility	clip with bead for hooking into the bottom groove
Standard	EN 62561-4

Product 206349 was added to Notepad.

Go to Notepad

Product 206349 was added to the cart.

Go to Web-Shop

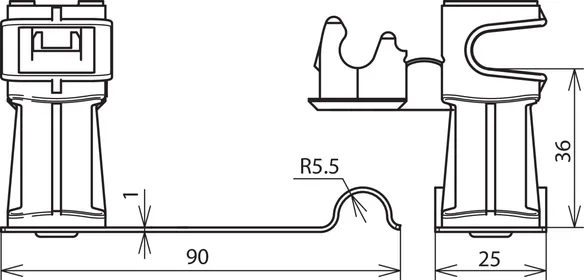

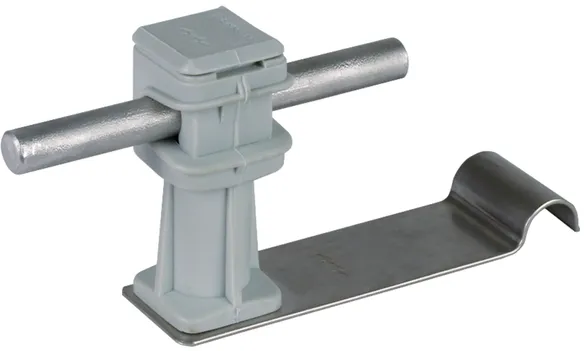

Hung onto the lower groove, with conductor holder DEHNsnap

Hung onto the lower groove of pantiles, with conductor holder DEHNsnap, loose conductor routing, brace length 90 mm.

2 Products

Part No. 204229 DLH DS 8 H36 L90 EH GR V2A

GTIN 4013364035300, Customs tariff No.: 85389099, Gross weight: 33.40 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

Gable roofs - roof conductor holder hung onto the lower groove, StSt, grey
Roof conductor holder with preformed brace
Hung onto the lower groove of pantiles, with DEHNsnap conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L90 EH GR V2A
Part No.: 204229
or equivalent.

Certificates

Technical data

Material of roof conductor holder	StSt
Length of brace	90 mm
Height of conductor holder	36 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm

Material of roof conductor holder	StSt
Length of brace	90 mm
Height of conductor holder	36 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Female thread	M6
Type of roofing	tiled roofs
Conductor routing	loose
Fixing possibility	clip with bead for hooking into the bottom groove

Product 204229 was added to Notepad.

Go to Notepad

Product 204229 was added to the cart.

Go to Web-Shop

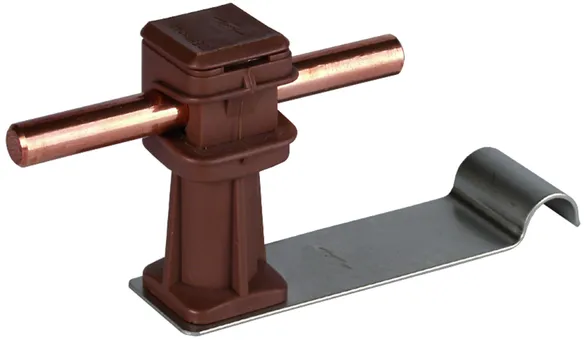

Part No. 204239 DLH DS 8 H36 L90 EH BR V2A

GTIN 4013364035317, Customs tariff No.: 85389099, Gross weight: 33.50 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

Gable roofs - roof conductor holder hung onto the lower groove, StSt, brown
Roof conductor holder with preformed brace
Hung onto the lower groove of pantiles, with DEHNsnap conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L90 EH BR V2A
Part No.: 204239
or equivalent.

Certificates

Technical data

Material of roof conductor holder	StSt
Length of brace	90 mm
Height of conductor holder	36 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor support Rd	8 mm

Material of roof conductor holder	StSt
Length of brace	90 mm
Height of conductor holder	36 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Female thread	M6
Type of roofing	tiled roofs
Conductor routing	loose
Fixing possibility	clip with bead for hooking into the bottom groove

Product 204239 was added to Notepad.

Go to Notepad

Product 204239 was added to the cart.

Go to Web-Shop

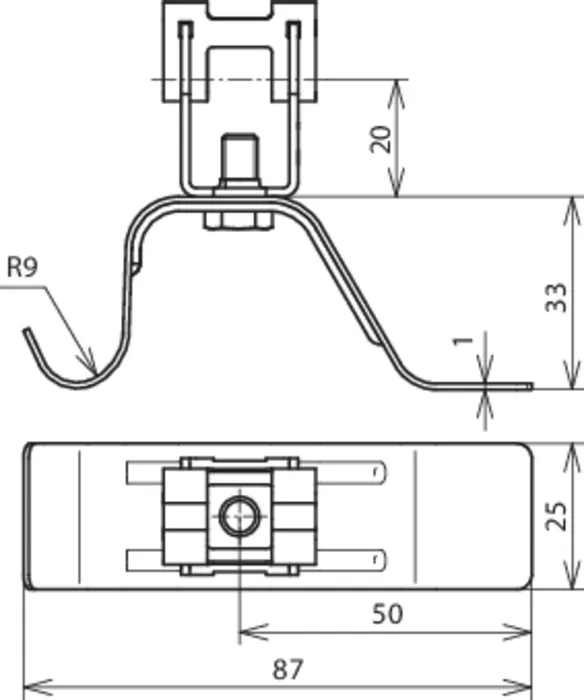

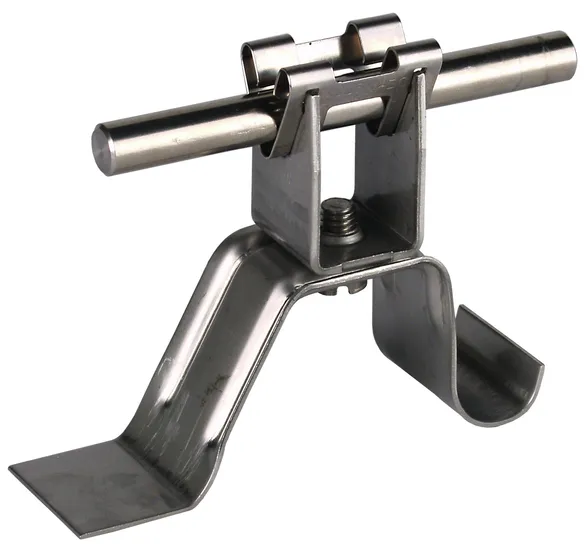

Hung onto the upper groove, with conductor holder DEHNgrip

Hung onto the groove of pantiles, with conductor holder DEHNgrip, loose conductor routing, brace length 87 mm.

1 Product

Part No. 206369 DLH DG 8 H20 L87 EH V2A

GTIN 4013364086494, Customs tariff No.: 85389099, Gross weight: 52.30 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

Gable roofs - roof conductor holder hung onto the upper groove, StSt
Roof conductor holder with preformed brace
Hung onto the upper groove of pantiles, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 20 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L87 EH V2A
Part No.: 206369
or equivalent.

Technical data

Material of roof conductor holder	StSt
Length of brace	87 mm
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Standard	EN 62561-4

Material of roof conductor holder	StSt
Length of brace	87 mm
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Female thread	M6
Type of roofing	tiled roofs
Conductor routing	loose
Fixing possibility	for hooking into grooved tiles
Standard	EN 62561-4

Product 206369 was added to Notepad.

Go to Notepad

Product 206369 was added to the cart.

Go to Web-Shop
