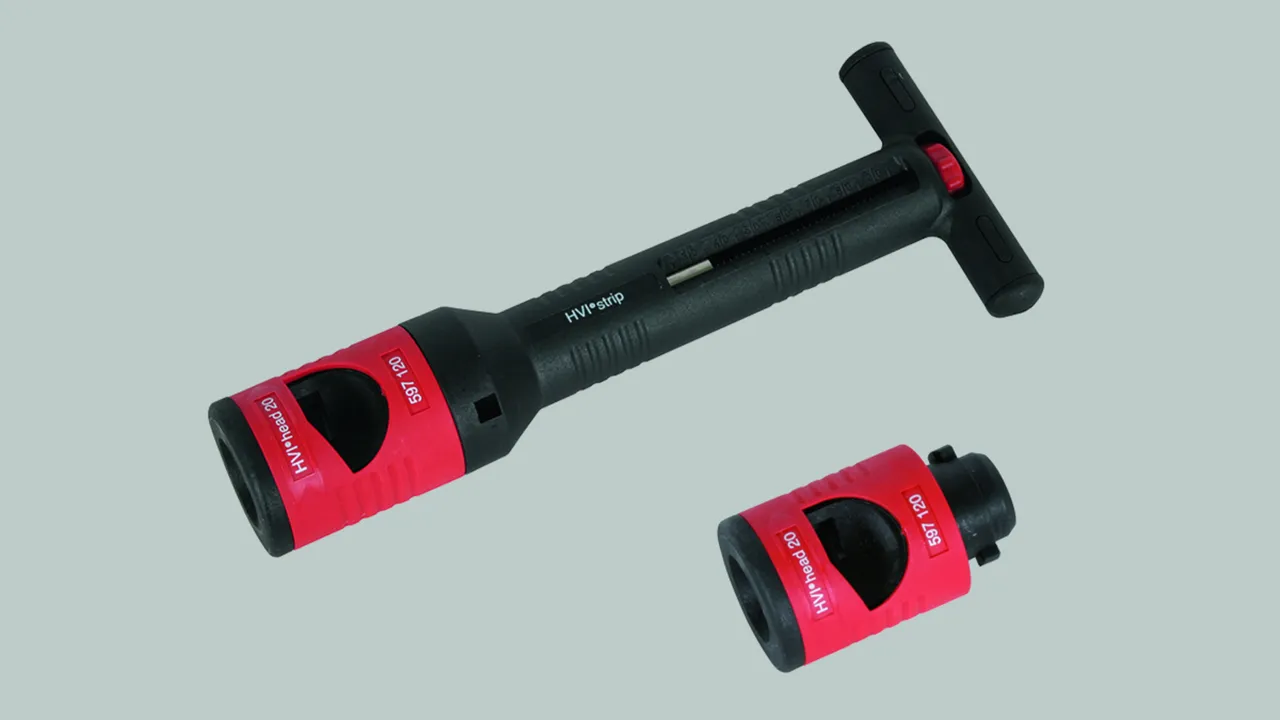

Stripping tool for the HVI light conductor / HVI light plus Conductor / HVI Conductor

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI light Conductor, HVI Conductor (outer diameter 20 mm).
  • The tool consists of a handle and various interchangeable stripping inserts
  • The stripping length of the HVI light Conductor, HVI light plus Conductor, HVI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length that is set.
OperationPosition the stripping insert at the cut-off end of the conductor.Turn clockwise applying light pressure, the cutting operation/stripping occurs through the tool.The interchangeable stripping insert can be attached without tools via the bayonet coupling.

HVI strip 20

Version for the HVI light conductor, HVI light plus Conductor and HVI Conductor (handle + stripping insert).

1 Product

Part No. 597220 HVI STRIP 20

GTIN 4013364144972, Customs tariff No. (EU): 82055980, Gross weight: 330.00 g, PU: 1.00 pc(s)


Images

Additional information



Brand: DEHN
Type: HVI STRIP 20
Part No.: 597220
or equivalent.



Technical data

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

Product 597220 was added to Notepad.

Product 597220 was added to the cart.


HVI head 20

Version for HVI light Conductor, HVI light plus Conductor and HVI Conductor (stripping insert).

1 Product

Part No. 597120 HVI HEAD 20

GTIN 4013364142497, Customs tariff No. (EU): 82055980, Gross weight: 100.00 g, PU: 1.00 pc(s)


Images

Additional information



Brand: DEHN
Type: HVI HEAD 20
Part No.: 597120
or equivalent.



Technical data

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

Product 597120 was added to Notepad.

Product 597120 was added to the cart.
