DEHNcube

  • Prewired multipole surge arrester with IP 65 degree of protection for use in photovoltaic systems
  • No space required in a distribution board enclosure

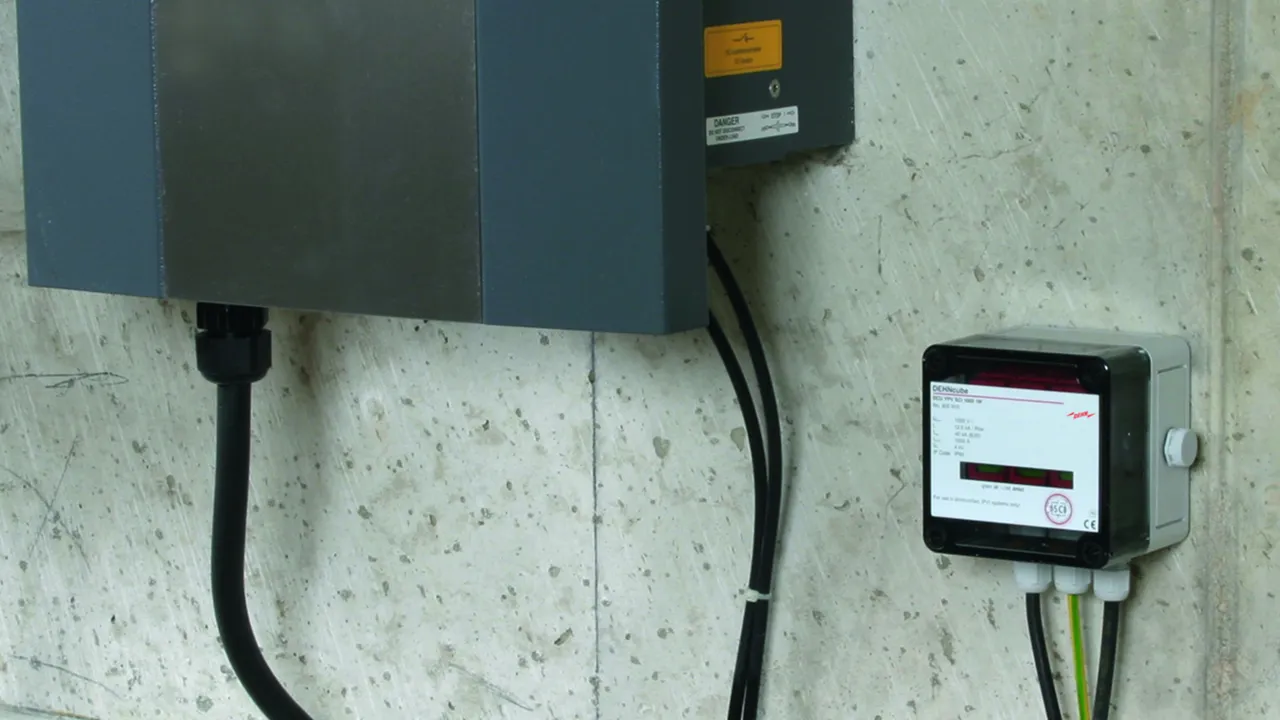

  • Pre-assembled connecting cable available for simple connection of the surge arrester directly upstream of the inverter to be protected
  • Combined disconnection and short-circuiting device with safe electrical isolation in every protective path (patented SCI principle)
  • Spring-loaded terminals for easy and quick connection without tools
  • Tested to EN 50539-11
  • For use in all PV systems according to IEC 60364-7-712

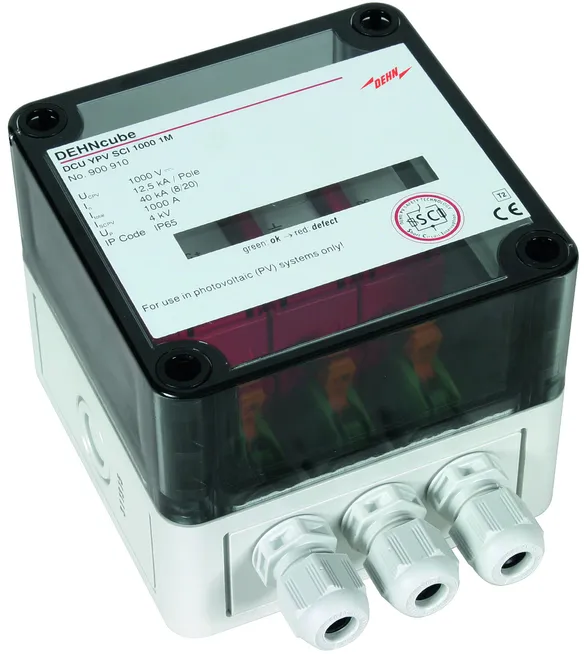

DEHNcube YPV SCI 1000 1M

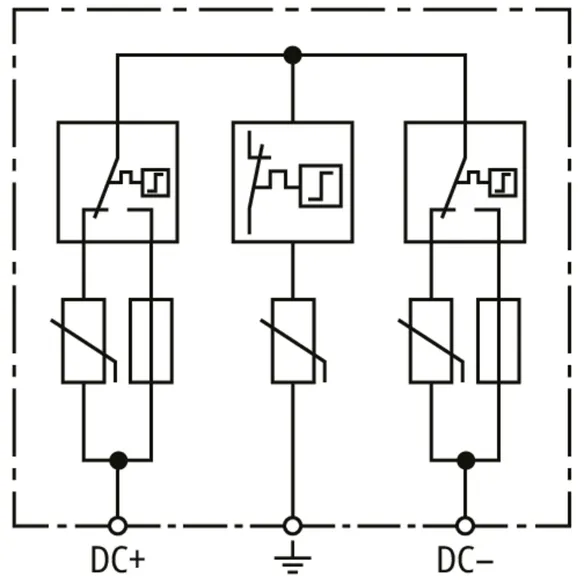

Two-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting one MPP input.

1 Product

Part No. 900910 DCU YPV SCI 1000 1M

GTIN 4013364155046, Customs tariff No.: 85363030, Gross weight: 426.00 g, PU: 1.00 pc(s)


Images

Additional information

DEHNcube YPV SCI 1000 1M surge arrester
Multipole arrester for use
in photovoltaic systems up to 1000 V d.c.
For protecting 1 MPP input with IP65 degree of protection
Fault indication
Type 2 SPD according to EN 50539-11
with three-step d.c. switching device
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1000 V d.c.
Nominal discharge current (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

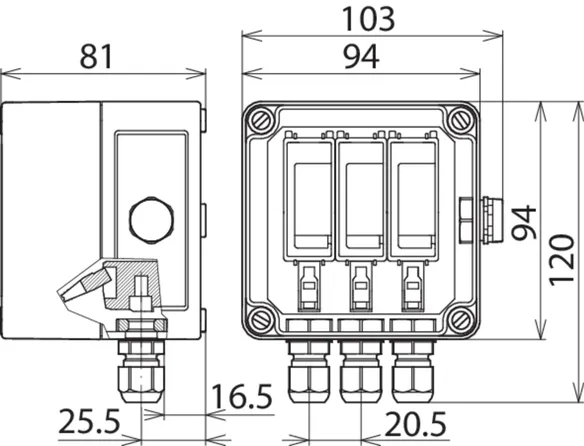

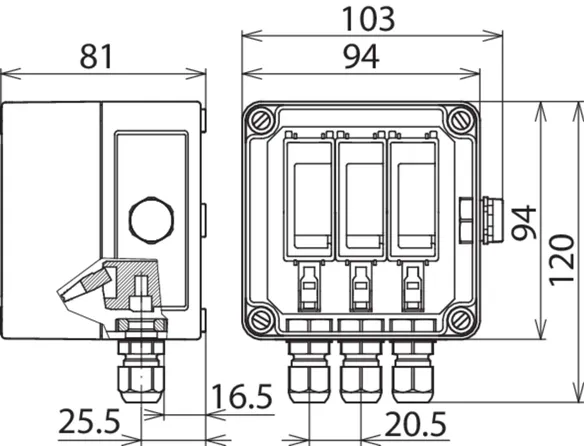

Dimensions 94 x 94 x 81 mm
Cable entry: 3x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 1M
Part No.: 900910
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1000 V
Short-circuit withstand capability (ISCPV ) 1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE ] (In ) 12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 25 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Product 900910 was added to Notepad.

Product 900910 was added to the cart.


DEHNcube YPV SCI 1000 2M

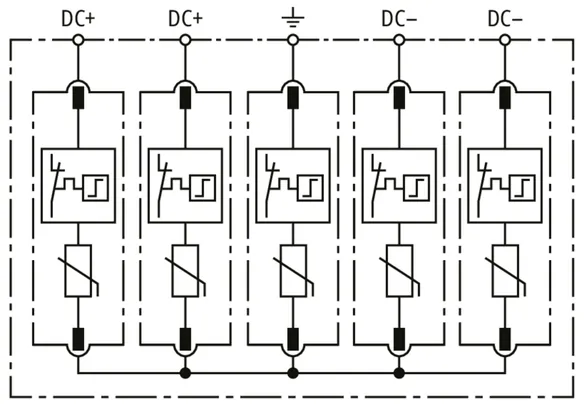

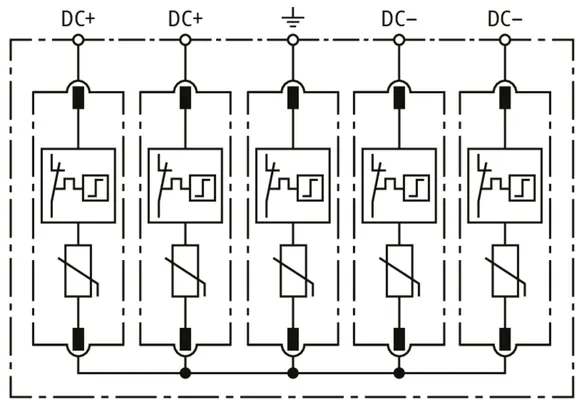

Four-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting two MPP inputs.

1 Product

Part No. 900920 DCU YPV SCI 1000 2M

GTIN 4013364155053, Customs tariff No.: 85363030, Gross weight: 731.00 g, PU: 1.00 pc(s)


Images

Additional information

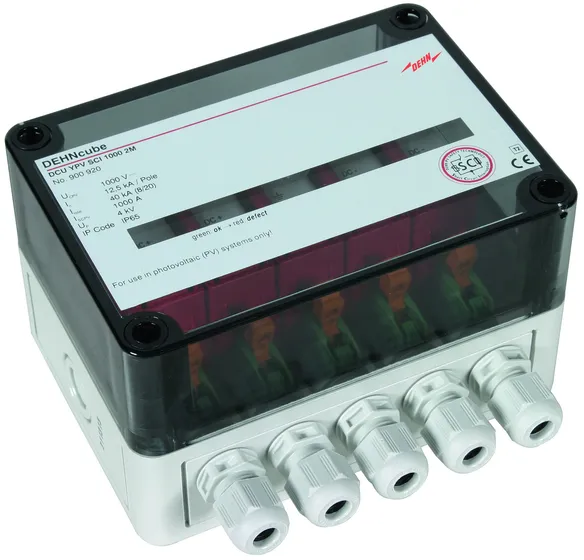

DEHNcube YPV SCI 1000 2M surge arrester
Multipole arrester for use in
photovoltaic systems up to 1000 V d.c.
For protecting 2 MPP inputs with IP65 degree of protection
Fault indication
Type 2 SPD according to EN 50539-11
with three-step d.c. switching device
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1000 V d.c.
Nominal discharge current: (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

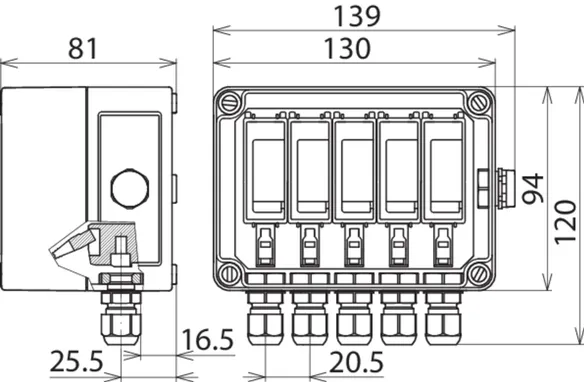

Dimensions: 130 x 94 x 81 mm
Cable entry: 5x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 2M
Part No.: 900920
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1000 V
Short-circuit withstand capability (ISCPV ) 1000 A
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE ] (In ) 12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 25 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Product 900920 was added to Notepad.

Product 900920 was added to the cart.
