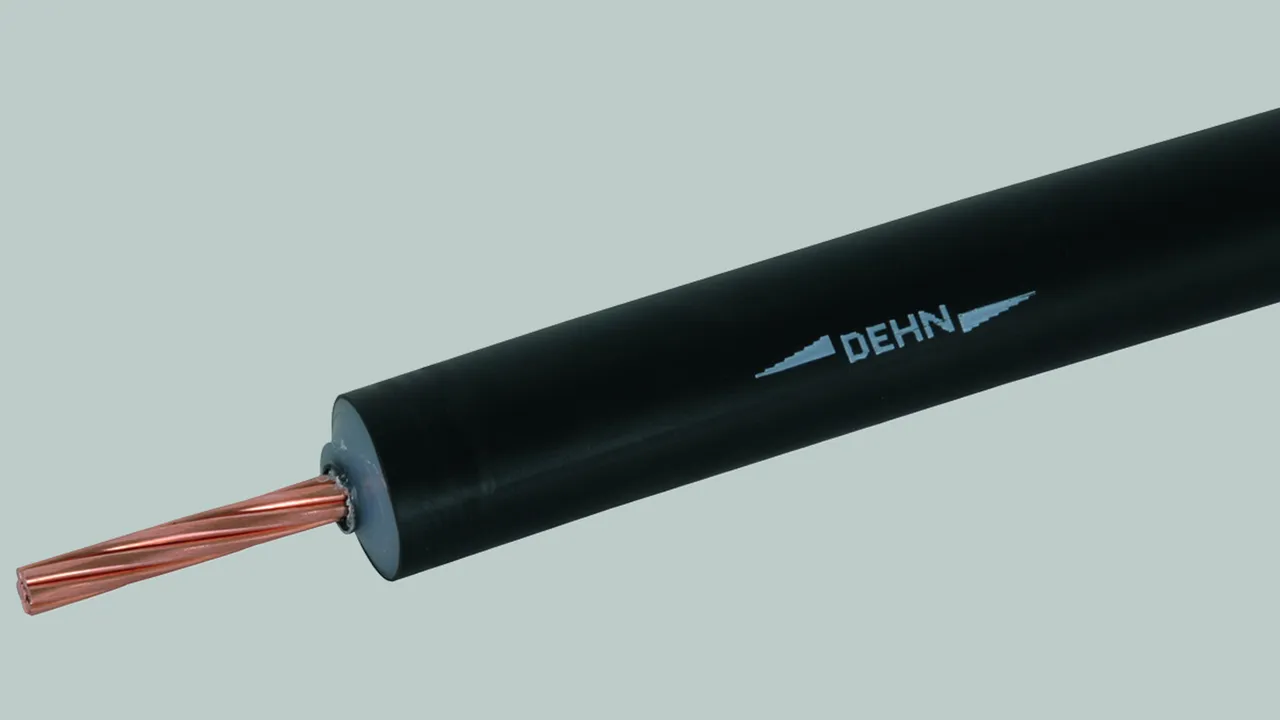

HVI Conductor / HVI long Conductor
HVI Conductor / HVI long Conductor
High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.
For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The HVI long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.
High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.
For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The HVI long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.
HVI long Conductor (cut to length)
Please specify conductor length when ordering (0.5 m steps).
HVI Conductor (pre-assembled, installation inside the supporting tube)
Please specify conductor length when ordering (0.5 m steps).
HVI Conductor (pre-assembled, installation inside the supporting tube)
Please specify conductor length when ordering (0.5 m steps).
HVI Conductor (pre-assembled, installation outside the supporting tube)
Please specify conductor length when ordering (0.5 m steps).
HVI Conductor (pre-assembled, installation outside the supporting tube)
Please specify conductor length when ordering (0.5 m steps).
HVI long Conductor (on cable reel)
The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
HVI long Conductor (on cable reel)
The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
HVI long Conductor (on cable reel)
The HVI long Conductor for on-site assembly is delivered in a length of 500 m on a disposable plywood reel (diameter approx. 990 mm, width approx. 700 mm, total weight approx. 330 kg) incl. an Allen key.
HVI long Conductor (on cable reel)
The HVI long Conductor for on-site assembly is delivered in a length of 400 m on a disposable plywood reel (diameter approx. 1000 mm, width approx. 690 mmtotal weight approx. 300 kg), incl. an Allen key.
HVI long Conductor (cut to length)
Please specify conductor length when ordering (0.5 m steps).
HVI long Conductor with solid inner conductor (on a reel)
The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
HVI long Conductor with solid inner conductor (on a reel)
The HVI long Conductor for on-site assembly is delivered in a length of 400 m on a disposable plywood reel (diameter approx. 1000 mm, width approx. 690 mmtotal weight approx. 300 kg), incl. an Allen key.
