DEHNguard modular E (Y)PV SCI 1500

  • Prewired modular complete unit for use in photovoltaic systems up to 1500 V consisting of a base part and plug-in protection modules
  • Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle)
  • New design for safe use in PV systems up to 1500 V
  • Tested to EN 50539-11
  • Suitable for use in all PV systems in accordance with IEC 60364-7-712

Details

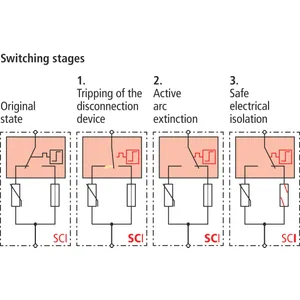

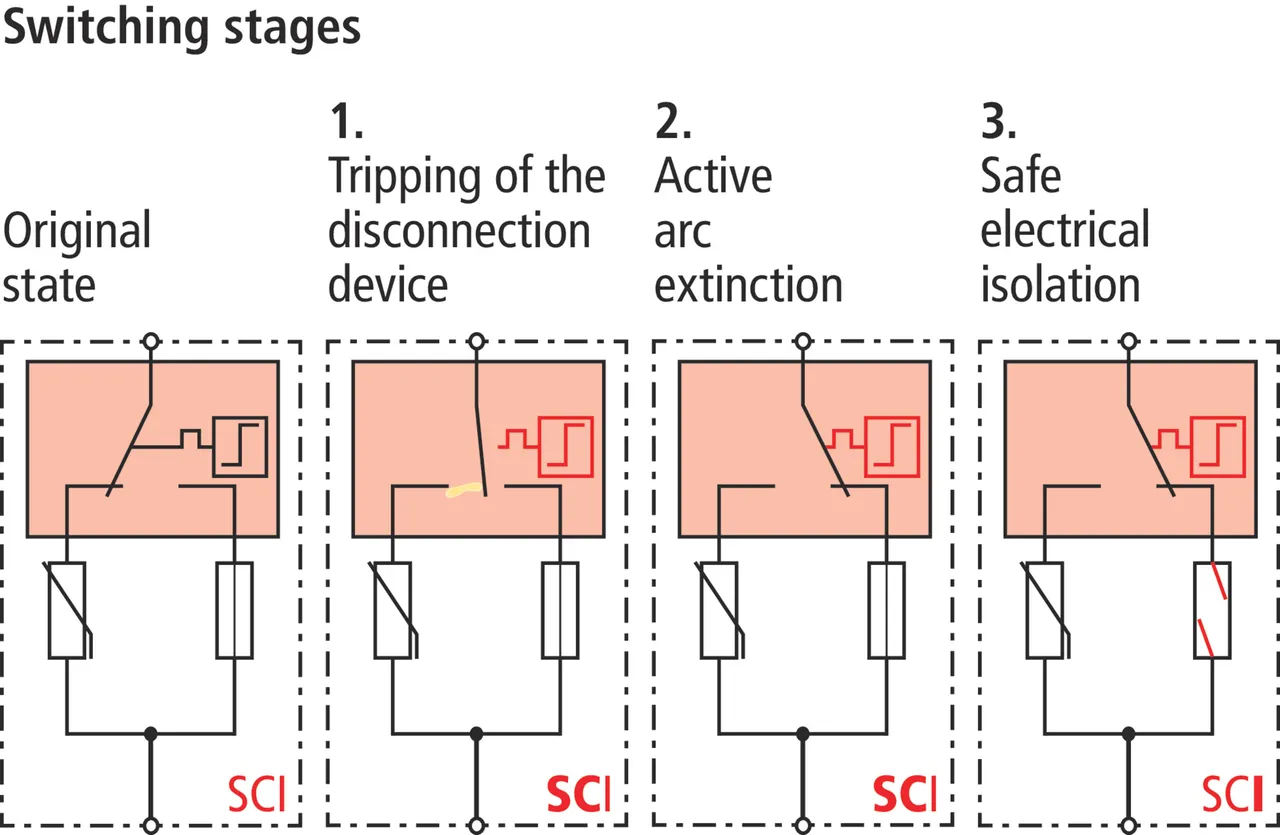

Three-step d.c. switching device (patented SCI principle)
lorem ipsum

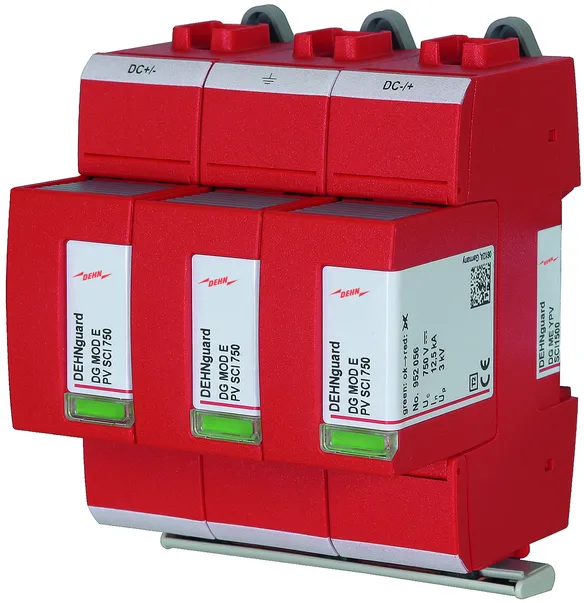

DEHNguard ME YPV SCI 1500 (FM)

Modular multipole surge arrester with three-step d.c. switching device for PV systems.

2 Products

Part No. 952520 DG ME YPV SCI 1500

GTIN 4013364149069, Customs tariff No.: 85363030, Gross weight: 535.70 g, PU: 1.00 pc(s)


Images

Additional information

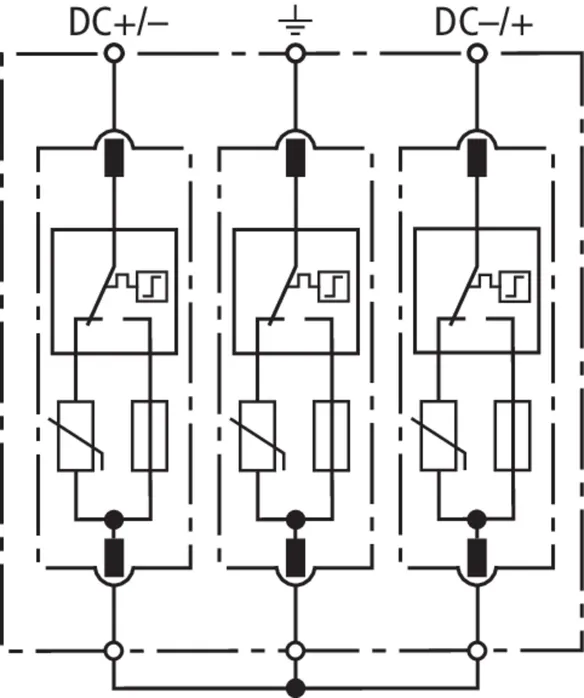

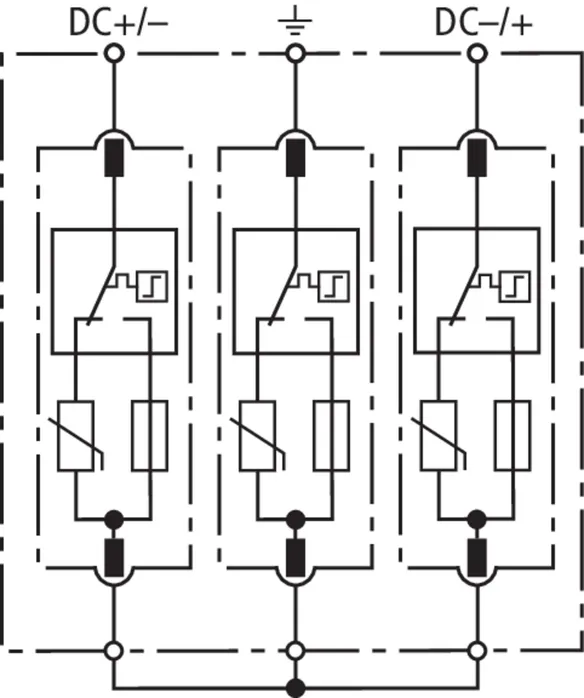

DEHNguard ME YPV SCI 1500 surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.

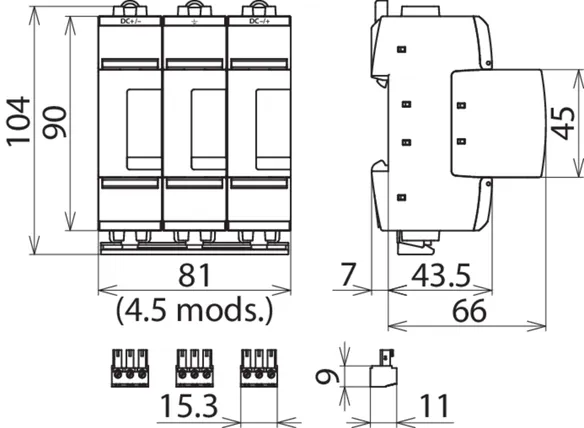

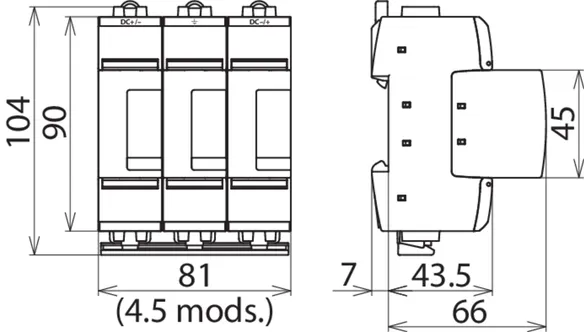

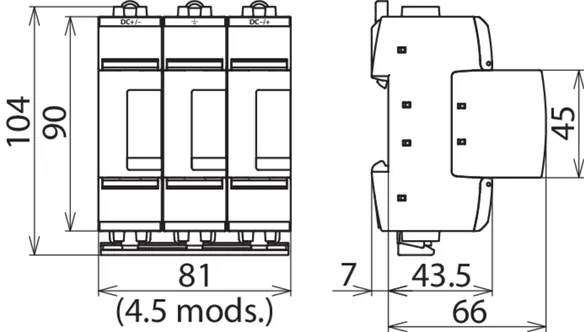

with three-step d.c. switching device, width: 4.5 modules
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI 1500
Part No.: 952520
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Total discharge current (8/20 µs) (Itotal ) 25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL

Product 952520 was added to Notepad.

Product 952520 was added to the cart.

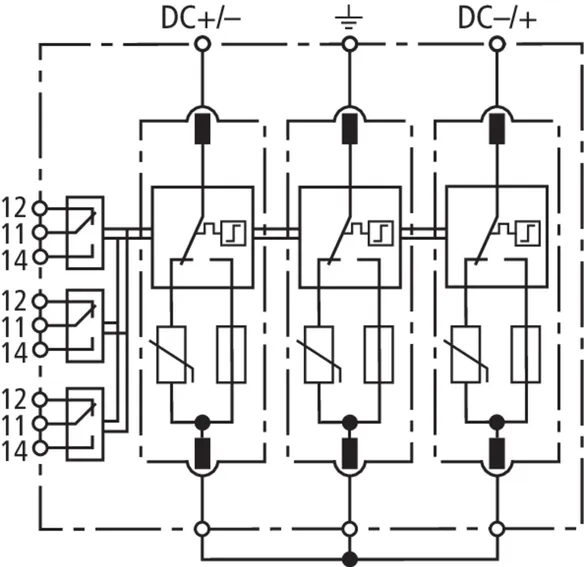

Part No. 952525 DG ME YPV SCI1500 FM

GTIN 4013364149076, Customs tariff No.: 85354000, Gross weight: 556.00 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard ME YPV SCI 1500 FM surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 4.5 modules
with remote signalling contact
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI1500 FM
Part No.: 952525
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Total discharge current (8/20 µs) (Itotal ) 25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 952525 was added to Notepad.

Product 952525 was added to the cart.


DEHNguard SE PV SCI 1500 (FM)

Modular single-pole surge arrester with three-step d.c. switching device for PV systems earthed on the d.c. side; FM version with floating remote signalling contact.

2 Products

Part No. 952561 DG SE PV SCI 1500

GTIN 4013364149083, Customs tariff No.: 85363030, Gross weight: 367.80 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard SE PV SCI 1500 surge arrester
Modular and pluggable single-pole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 3 modules
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG SE PV SCI 1500
Part No.: 952561
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL

Product 952561 was added to Notepad.

Product 952561 was added to the cart.

Part No. 952566 DG SE PV SCI 1500 FM

GTIN 4013364149090, Customs tariff No.: 85363030, Gross weight: 375.70 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard SE PV SCI 1500 FM surge arrester
Modular and pluggable single-pole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 3 modules
with remote signalling contact
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG SE PV SCI 1500 FM
Part No.: 952566
or equivalent.

Certificates



Technical data

SPD according to EN 50539-11 type 2
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 952566 was added to Notepad.

Product 952566 was added to the cart.
