Bridging Braids

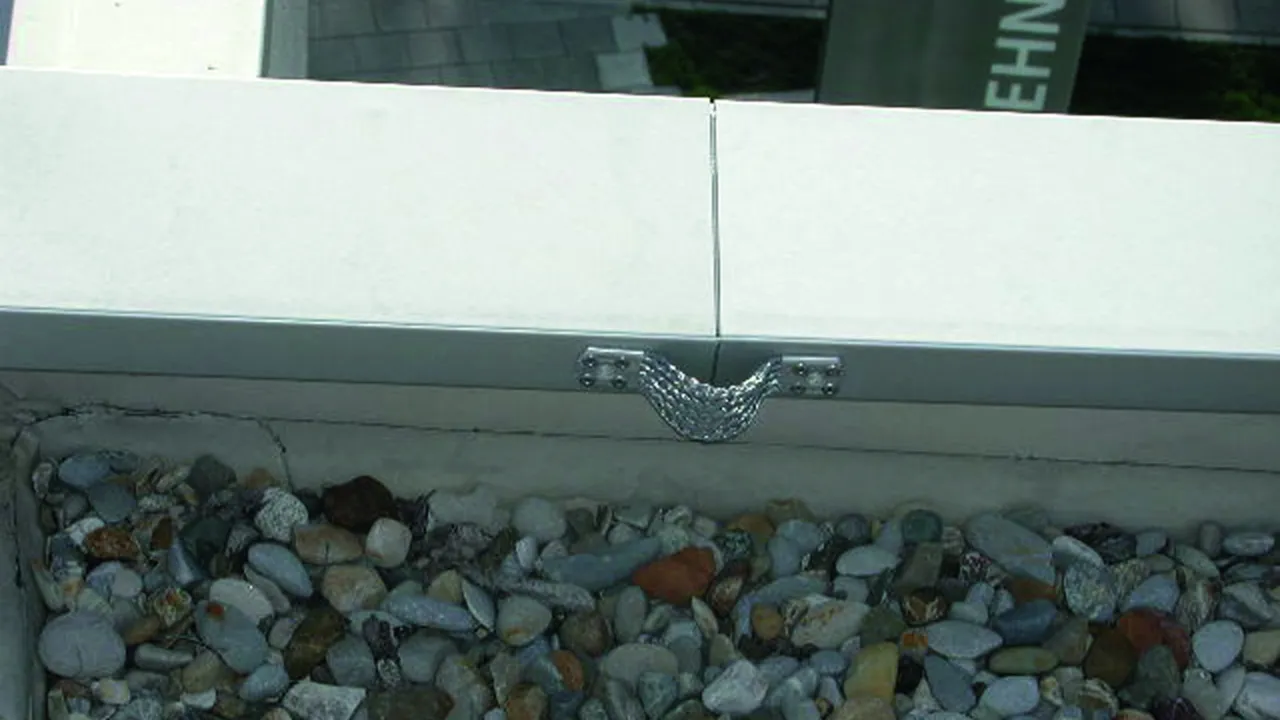

Suitable for connecting metal claddings (riveting or screwing) as an expansion compensation piece for round wires; or as compensation for certain temperature-related changes in length for round wires; Connection e.g. with KS connector part no. 301 019

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

Short design

2 Products

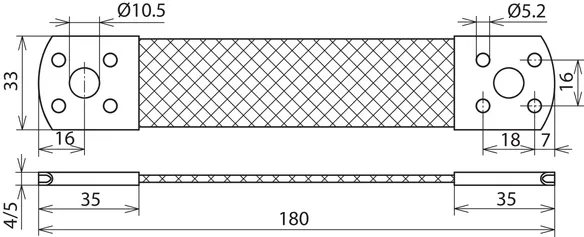

Part No. 377015 UEBB L180 B10.5 B5.2 AL

GTIN 4013364092693, Customs tariff No.: 85359000, Gross weight: 36.00 g, PU: 10.00 pc(s)


Images

Additional information

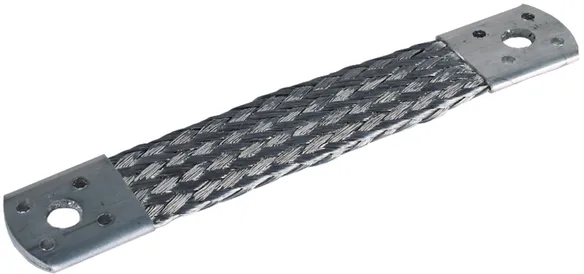

Bridging braid, short, Al
Bridging braid for connecting metal cladding or for use as an expansion compensation piece, for riveting or screwing
Material: Al
Length: 180 mm
Fixing : [8x] Ø5.2 / [2x] Ø10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBB L180 B10.5 B5.2 AL
Part No.: 377015
or equivalent.

Certificates



Technical data

Material Al
Length (lG ) 180 mm
Cross-section 50 mm2
Fixing [8x] Ø5.2 / [2x] Ø10.5 mm
Fixing possibility blind rivets / screws
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377015 was added to Notepad.

Product 377015 was added to the cart.

Part No. 377007 UEBB L180 B10.5 B5.2 CU

GTIN 4013364092686, Customs tariff No.: 85359000, Gross weight: 107.00 g, PU: 10.00 pc(s)


Images

Additional information

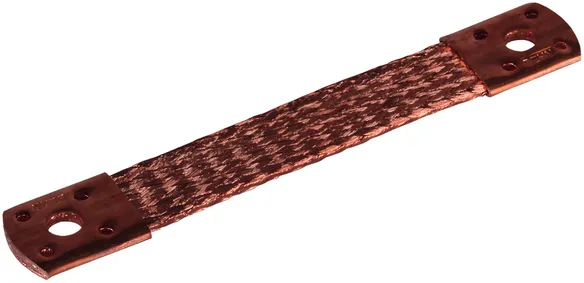

Bridging braid, short, Cu
Bridging braid for connecting metal cladding or for use as an expansion compensation piece, for riveting or screwing
Material: Cu
Length: 180 mm
Fixing : [8x] Ø5.2 / [2x] Ø10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBB L180 B10.5 B5.2 CU
Part No.: 377007
or equivalent.

Certificates



Technical data

Material Cu
Length (lG ) 180 mm
Cross-section 50 mm2
Fixing [8x] Ø5.2 / [2x] Ø10.5 mm
Fixing possibility blind rivets / screws
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377007 was added to Notepad.

Product 377007 was added to the cart.


Short design, fixed with drilling screws

1 Product

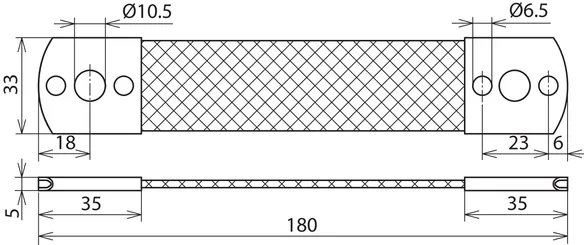

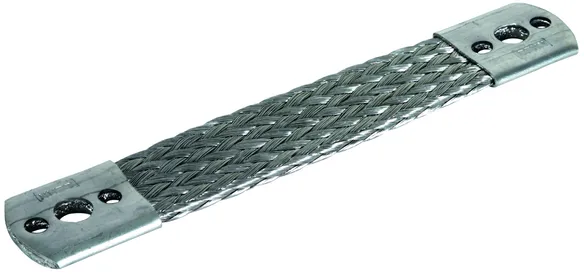

Part No. 377045 UEBB L180 B10.5 B6.5 AL

GTIN 4013364099296, Customs tariff No.: 85359000, Gross weight: 37.05 g, PU: 100.00 pc(s)


Images

Additional information

Bridging braid, short, Al
Bridging braid for connecting metal cladding or for use as an expansion compensation piece, for riveting or screwing
Material: Al
Length: 180 mm
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBB L180 B10.5 B6.5 AL
Part No.: 377045
or equivalent.

Certificates



Technical data

Material Al
Length (lG ) 180 mm
Cross-section 50 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Fixing possibility drilling screws / screws
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377045 was added to Notepad.

Product 377045 was added to the cart.


Long design, with middle hole

Note: At cross points, two bridging braids can be connected with a M10 x 20 mm screw and nut.

2 Products

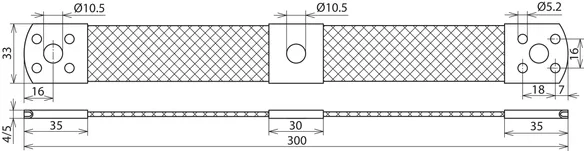

Part No. 377115 UEBB L300 3XB10.5 B5,2 AL

GTIN 4013364092716, Customs tariff No.: 85359000, Gross weight: 59.00 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

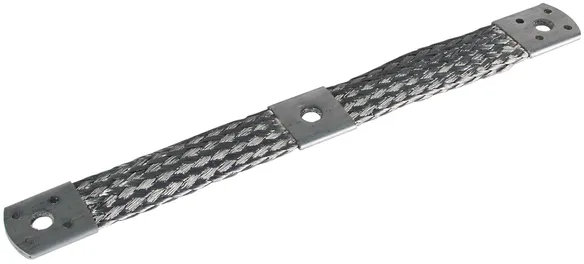

Bridging braid, long, with centre hole, Al
Bridging braid for connecting metal sheaths or for use as a compensation piece for expansions, for riveting or screwing, with central bore for crossovers
Material: Al
Length: 300 mm
Fixing : [8x] Ø5.2 / [3x] Ø10.5 mm
Central hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBB L300 3XB10.5 B5,2 AL
Part No.: 377115
or equivalent.

Certificates



Technical data

Material Al
Length (lG ) 300 mm
Cross-section 50 mm2
Fixing [8x] Ø5.2 / [3x] Ø10.5 mm
Central hole Ø 10.5 mm
Fixing possibility blind rivets / screws
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377115 was added to Notepad.

Product 377115 was added to the cart.

Part No. 377107 UEBB L300 3XB10.5 B5.2 CU

GTIN 4013364092709, Customs tariff No.: 85359000, Gross weight: 172.00 g, PU: 10.00 pc(s)


Images

Additional information

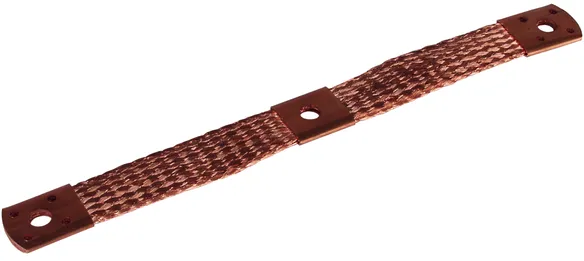

Bridging braid, long, with centre hole, Cu
