Number plates that can be marked

Numbers from 1 to 999 and also certain combinations, such as A01, b02, C03, d04, etc., can be created with the 7-segment number plate and the accompanying paint marker. The special black paint marker has been tried and tested over a long period of time in use with the number plate, is highly opaque, dries quickly, is weatherproof and extremely light-resistant, as well as abrasion-resistant. Other paints or pens cannot be recommended.
The number plate without pre-embossing can be used for on-site marking with punched numbers 10 mm in size.

Number plate with 7-segment embossing for round / flat conductors

For on-site marking with a paint marker

1 Product

Part No. 484000 NS 7.10 FL30 7SEG AL

GTIN 4013364327306, Customs tariff No. (EU): 83100000, Gross weight: 26.28 g, PU: 50.00 pc(s)


Images

Additional information

Number plates with 7-segment embossing for round / flat conductors
Number plates for marking test joints
Material: Al
Clamping range Rd / Fl: 7-10 / 30 mm

Brand: DEHN
Type: NS 7.10 FL30 7SEG AL
Part No.: 484000
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Fl 7-10 / 30 mm

Product 484000 was added to Notepad.

Product 484000 was added to the cart.

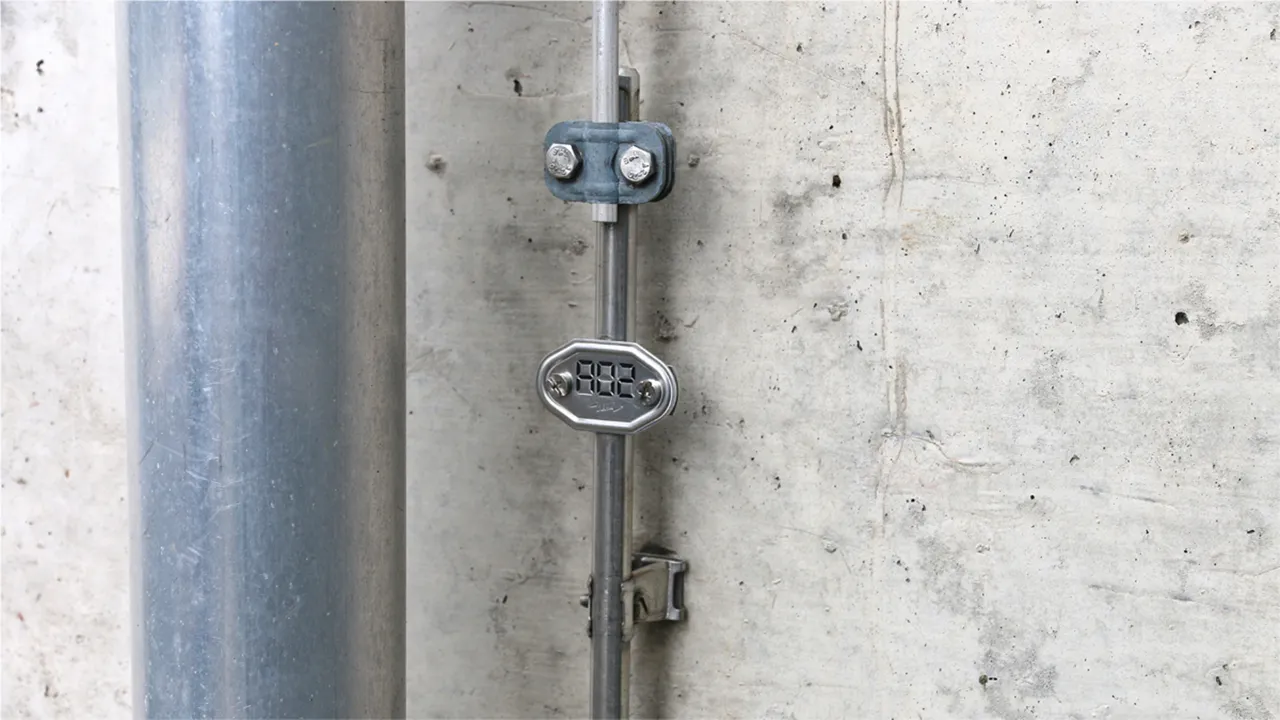

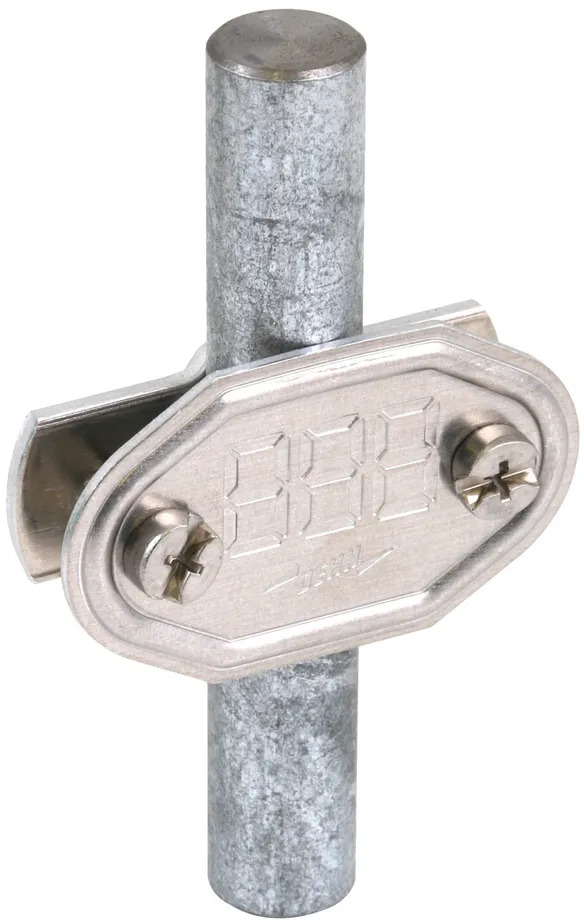

Number plate with 7-segment embossing for earth entry rods

For on-site marking with a paint marker

1 Product

Part No. 484001 NS 16 7SEG AL

GTIN 4013364327313, Customs tariff No. (EU): 83100000, Gross weight: 27.40 g, PU: 50.00 pc(s)


Images

Additional information

Number plates with 7-segment embossing for earth entry rods
Number plates for marking test joints
Material: Al
Clamping range Rd: 16 mm

Brand: DEHN
Type: NS 16 7SEG AL
Part No.: 484001
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd 16 mm

Product 484001 was added to Notepad.

Product 484001 was added to the cart.

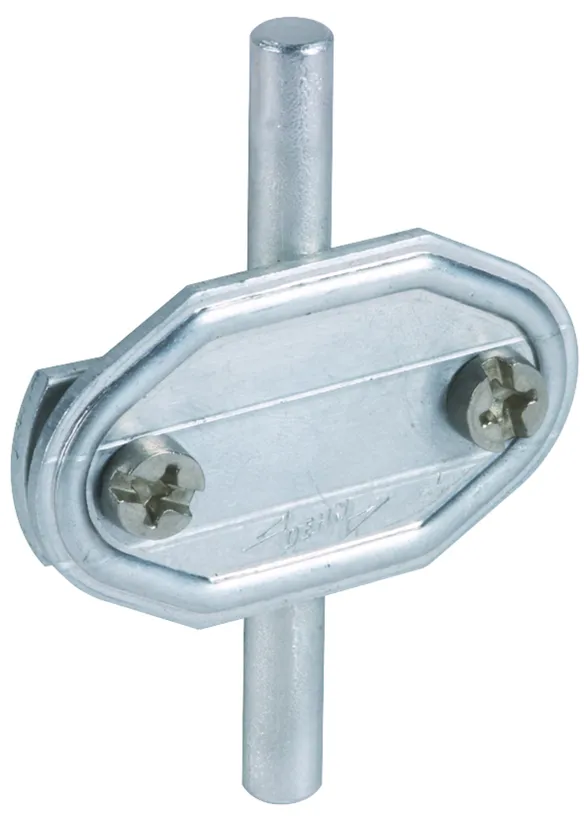

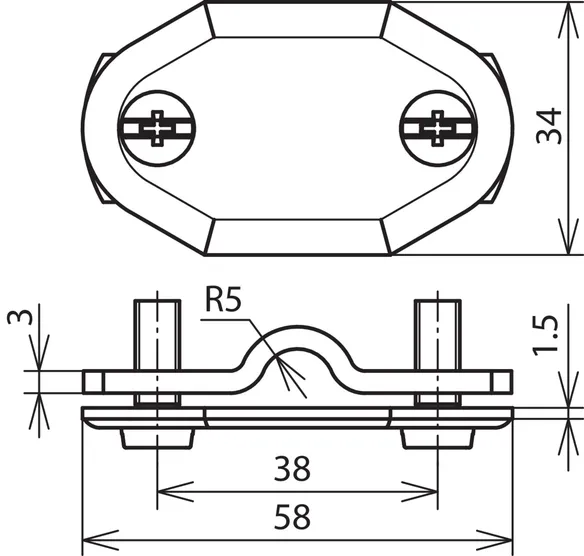

Without number for round / flat conductors

For on-site labelling with punched numbers 0-9, size 10 mm.

1 Product

Part No. 480003 NS 7.10 FL30 OZ AL

GTIN 4013364035348, Customs tariff No. (EU): 83100000, Gross weight: 25.60 g, PU: 50.00 pc(s)


Images

Additional information

Number plate without number for round / flat conductors, Al
Number plate for marking test joints
Material: Al
Clamping range Rd / Fl: 7-10 / 30 mm

Brand: DEHN
Type: NS 7.10 FL30 OZ AL
Part No.: 480003
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Fl 7-10 / 30 mm

Product 480003 was added to Notepad.

Product 480003 was added to the cart.

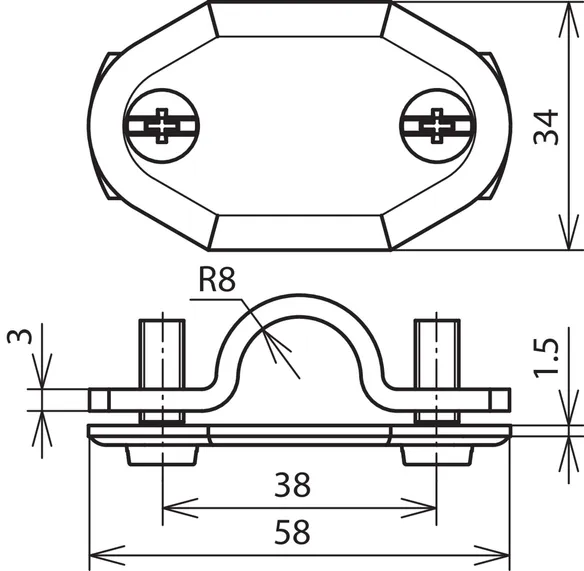

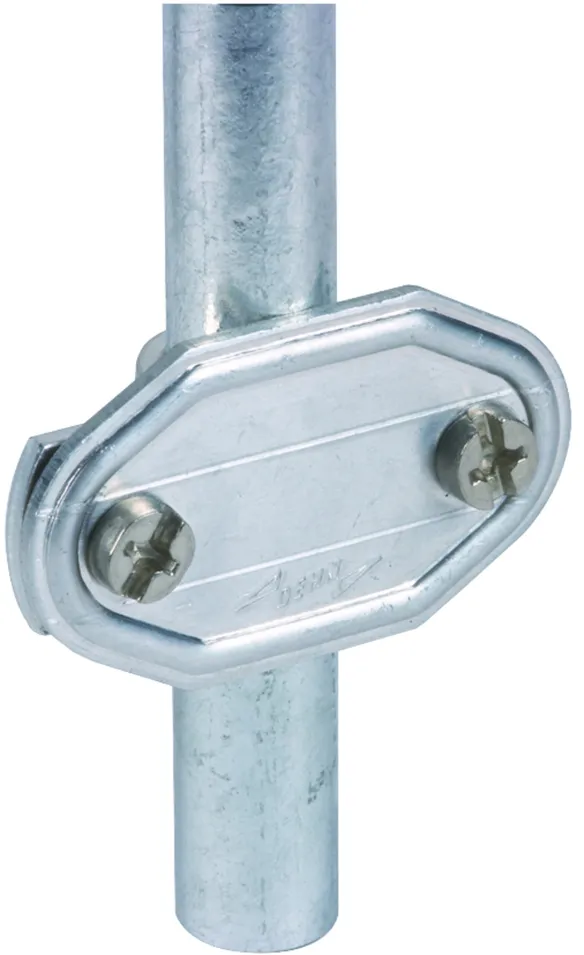

Without number for earth entry rods

For on-site labelling with punched numbers 0-9, size 10 mm.

1 Product

Part No. 480004 NS 16 OZ AL

GTIN 4013364035355, Customs tariff No. (EU): 83100000, Gross weight: 28.00 g, PU: 50.00 pc(s)


Images

Additional information

Number plate without number for earth entry rods
Number plate for marking test joints
Material: Al
Clamping range Rd: 16 mm

Brand: DEHN
Type: NS 16 OZ AL
Part No.: 480004
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd 16 mm

Product 480004 was added to Notepad.

Product 480004 was added to the cart.
