SCS Switching Sticks

Easy and safe working
  • Cost-effective
  • User-friendly

Nominal Voltages up to 72.5 kV

With end cap.

6 Products

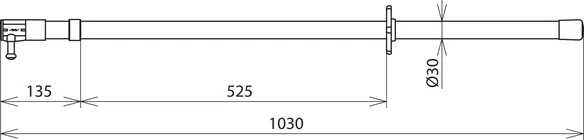

Part No. 763610 SCS 36 1000

GTIN 4013364003286, Customs tariff No.: 90309000, Gross weight: 1462.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 36 kV
Max. load on the operating head 6 kg
Total length (lG ) 1030 mm
Insertion depth (IO ) 135 mm
For use at ^

Product 763610 was added to Notepad.

Product 763610 was added to the cart.

Part No. 763611 SCS 36 1500

GTIN 4013364076921, Customs tariff No.: 90309000, Gross weight: 1410.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 36 kV
Max. load on the operating head 7.5 kg
Total length (lG ) 1500 mm
Insertion depth (IO ) 415 mm
For use at ^

Product 763611 was added to Notepad.

Product 763611 was added to the cart.

Part No. 763612 SCS 36 2000

GTIN 4013364078635, Customs tariff No.: 90309000, Gross weight: 1800.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 36 kV
Max. load on the operating head 7.5 kg
Total length (lG ) 2000 mm
Insertion depth (IO ) 765 mm
For use at ^

Product 763612 was added to Notepad.

Product 763612 was added to the cart.

Part No. 763615 SCS 72 1500

GTIN 4013364003309, Customs tariff No.: 90309000, Gross weight: 2.22 kg, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 72.5 kV
Total length (lG ) 1500 mm
Insertion depth (IO ) 290 mm
For use at ^

Product 763615 was added to Notepad.

Product 763615 was added to the cart.

Part No. 763620 SCS 72 2000

GTIN 4013364003316, Customs tariff No.: 90309000, Gross weight: 1800.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 72.5 kV
Total length (lG ) 2000 mm
Insertion depth (IO ) 690 mm
For use at ^

Product 763620 was added to Notepad.

Product 763620 was added to the cart.

Part No. 763630 SCS 72 3000

GTIN 4013364003330, Customs tariff No.: 90309000, Gross weight: 2.15 kg, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 72.5 kV
Total length (lG ) 3000 mm
Insertion depth (IO ) 1500 mm
For use at ^

Product 763630 was added to Notepad.

Product 763630 was added to the cart.


Nominal Voltages up to 36 kV

Handle sealed with plastic plug-in coupling for extending the handle.

2 Products

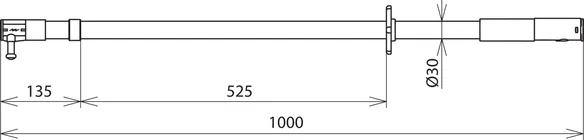

Part No. 763100 SCS 36 STK 1000

GTIN 4013364125155, Customs tariff No.: 90309000, Gross weight: 1100.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 36 kV
Max. load on the operating head 6 kg
Total length (lG ) 1000 mm
Insertion depth (IO ) 135 mm
For use at ^

Product 763100 was added to Notepad.

Product 763100 was added to the cart.

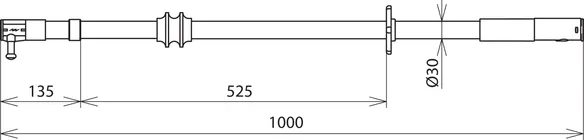

Part No. 763111 SCSN 36 STK 1000

GTIN 4013364137226, Customs tariff No.: 90309000, Gross weight: 1080.00 g, PU: 1.00 pc(s)


Images



Technical data

Nominal voltage (UN ) 1 ... 36 kV
Max. load on the operating head 6 kg
Total length (lG ) 1000 mm
Insertion depth (IO ) 135 mm
For use at _

Product 763111 was added to Notepad.

Product 763111 was added to the cart.
