Insulating Stick Kit for Cleaning the Windscreens of Electric Locomotives

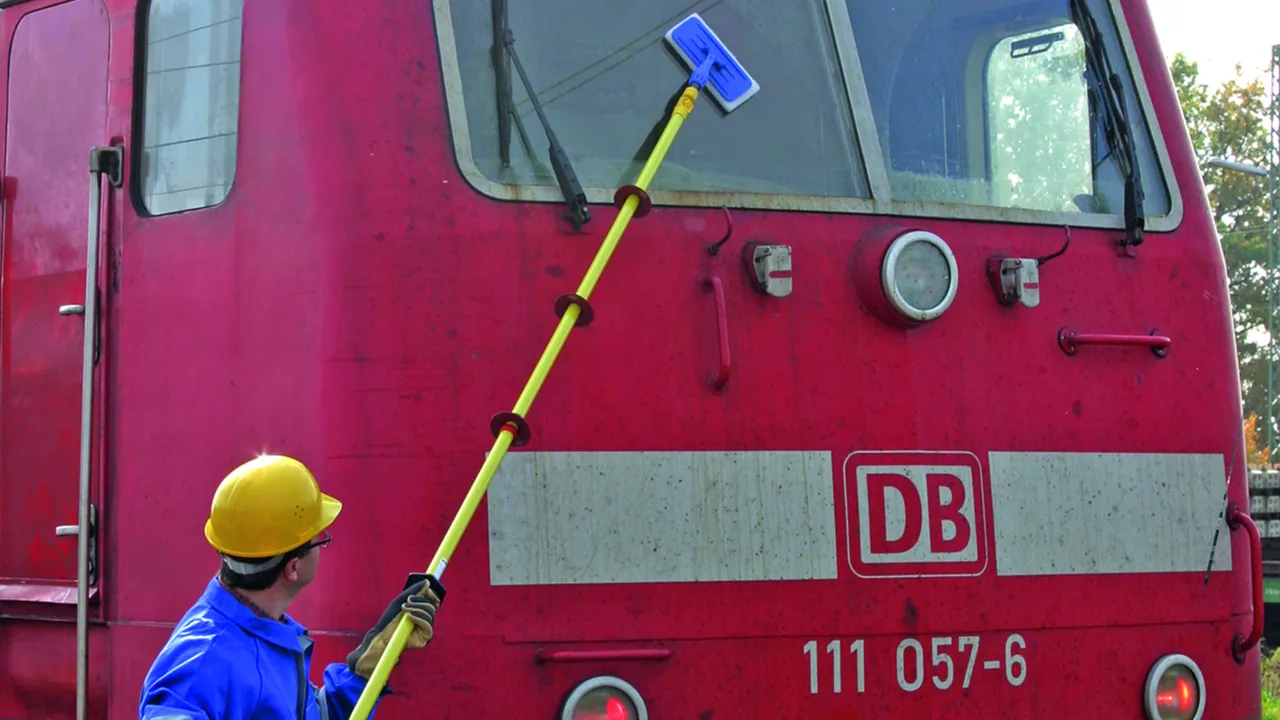

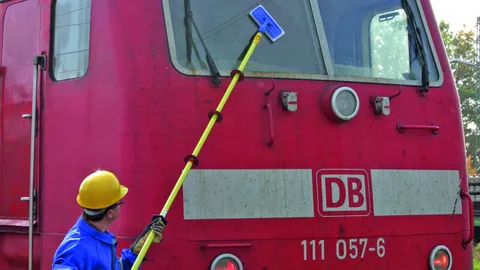

For cleaning the windscreens of electric locomotives
Protection against accidental contact with live parts (e.g. overhead contact lines)
Adjustable inclination angle of the operating head

Details

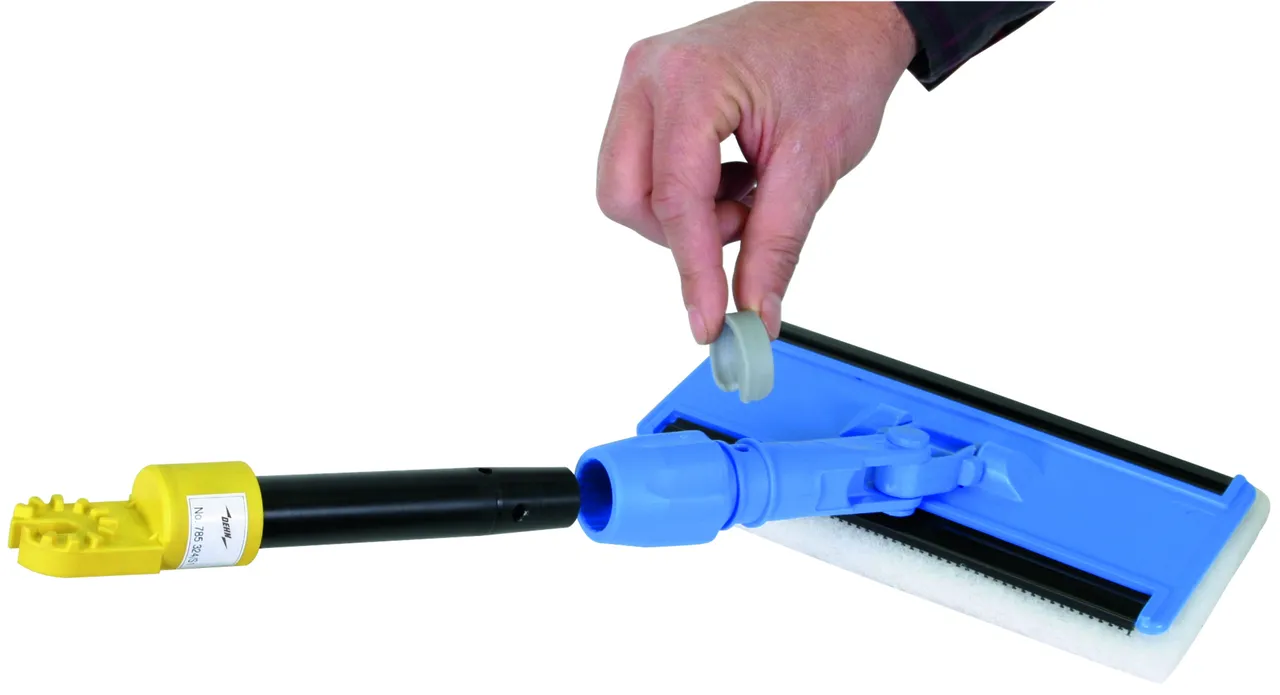

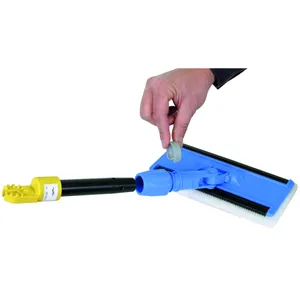

Adapter with gear coupling for attaching the cleaning head.

lorem ipsum — Adapter with gear coupling for attaching the cleaning head.

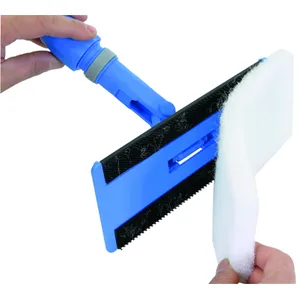

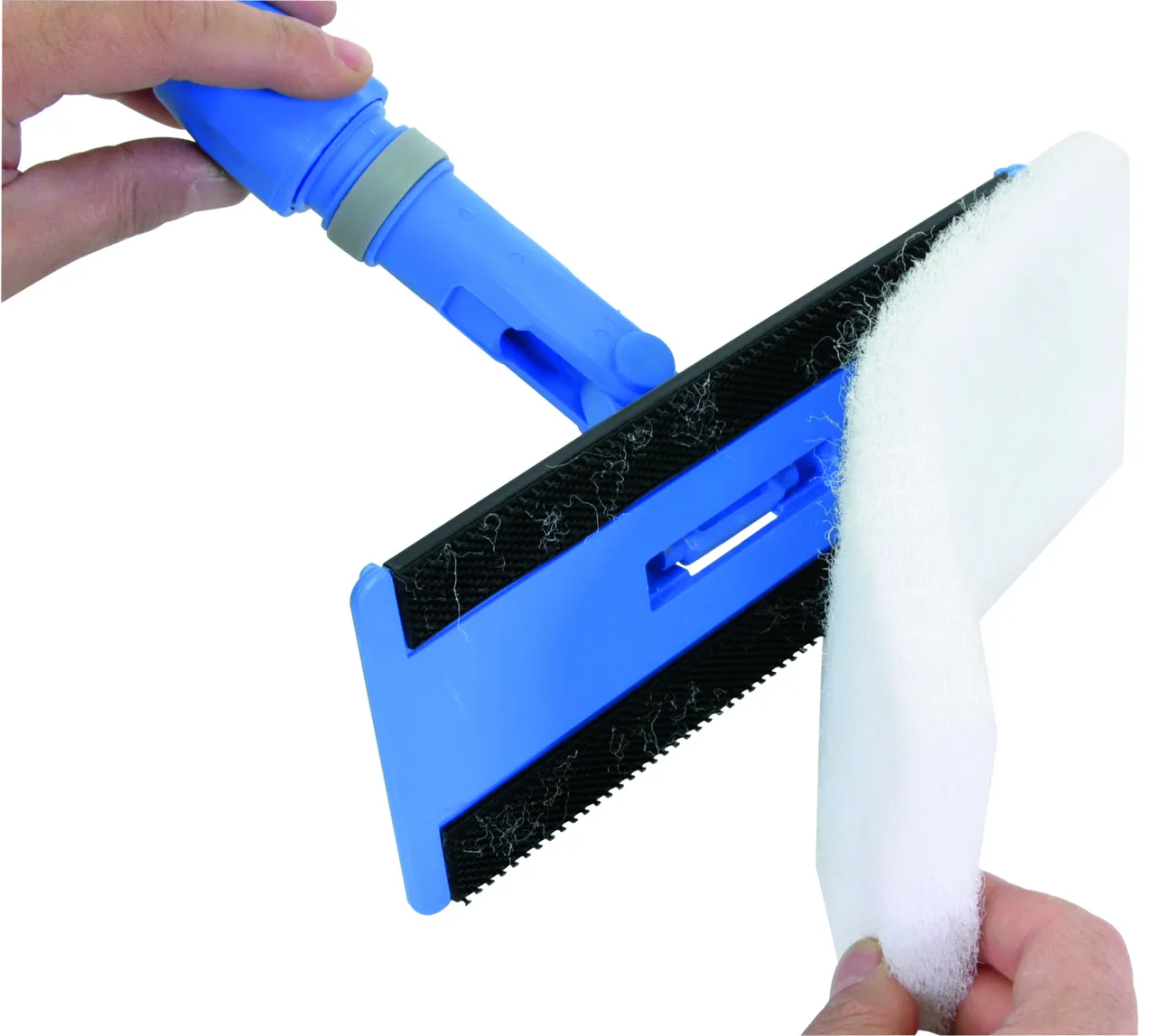

The hook-and-loop fastener allows fast replacement of the cleaning pad.

lorem ipsum — The hook-and-loop fastener allows fast replacement of the cleaning pad.

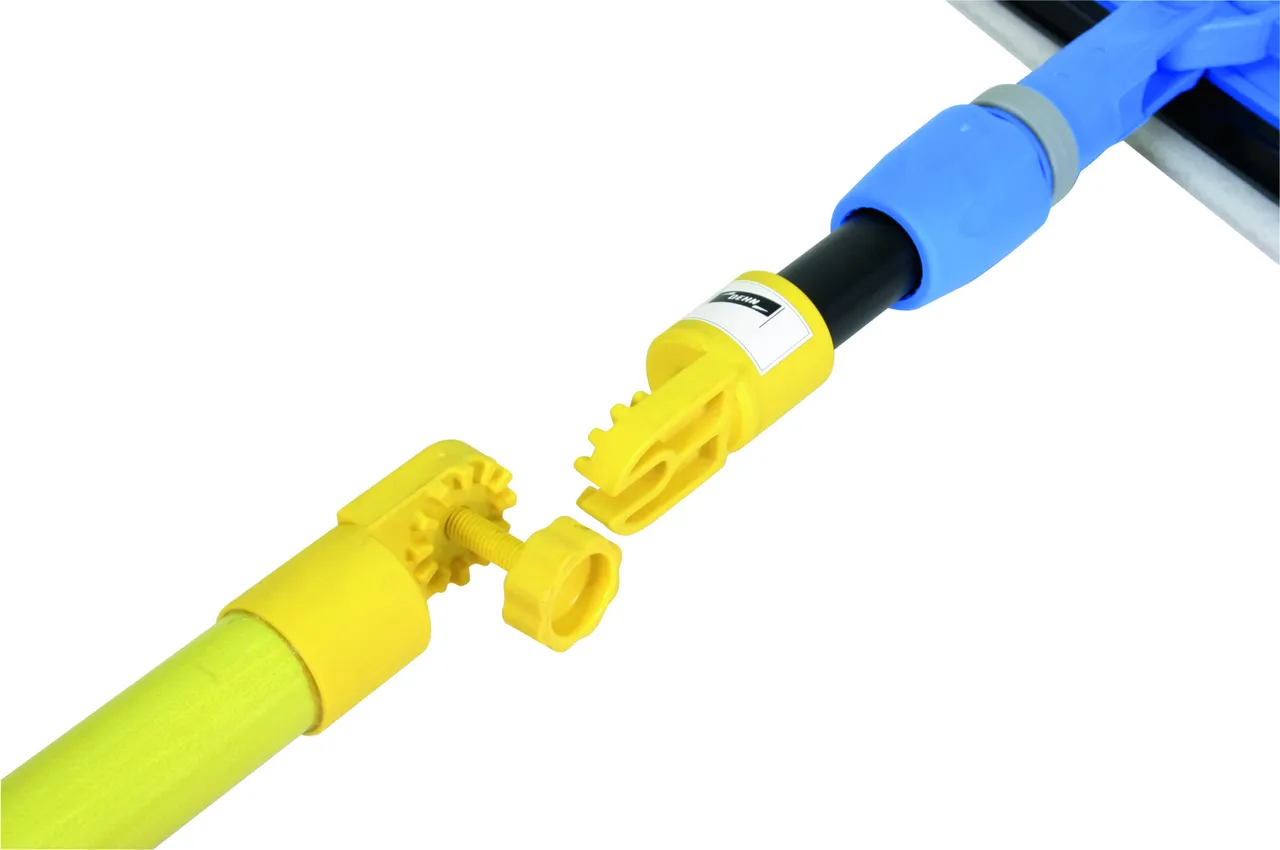

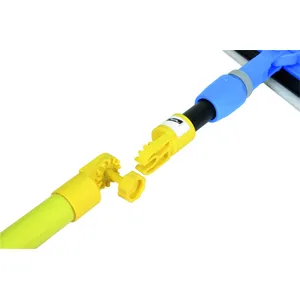

The universal gear coupling can be adjusted from 0° to 90° in 30° increments.

lorem ipsum — The universal gear coupling can be adjusted from 0° to 90° in 30° increments.

lorem ipsum

Insulating Stick Kit for Cleaning Windscreens

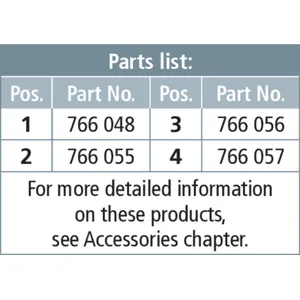

1 Product

Part No. 766340 IS 25 ZK RK 3160

GTIN 4013364125056, Customs tariff No.: 82055980, Gross weight: 3.80 kg, PU: 1.00 pc(s)

Images

Additional information

Technical data

Nominal voltage U_Na.c.	Up to 25 kV
Nominal voltage U_Nd.c.	Up to 7.5 kV

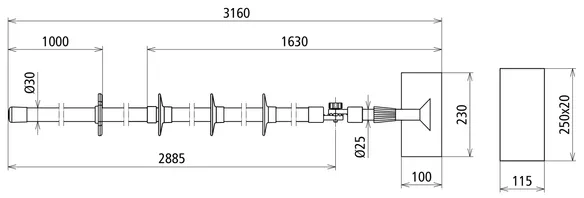

Total length (l_G )	3160 mm
Insertion depth (I_O )	1630 mm
