DEHNcon-H Supporting Tubes for HVI light Conductor

Supporting tubes for HVI light Conductor for on-site assembly, air-termination tip, StSt, Ø10 mm.

With air-termination tip

4 Products

Part No. 105272 SR D30 1990 FSP10 500 GFK AL V2A

GTIN 4013364255777, Customs tariff No.: 85389099, Gross weight: 2.40 kg, PU: 1.00 pc(s)


Images

Additional information

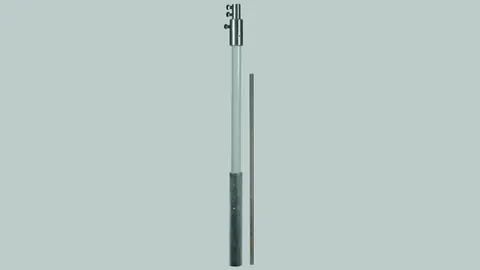

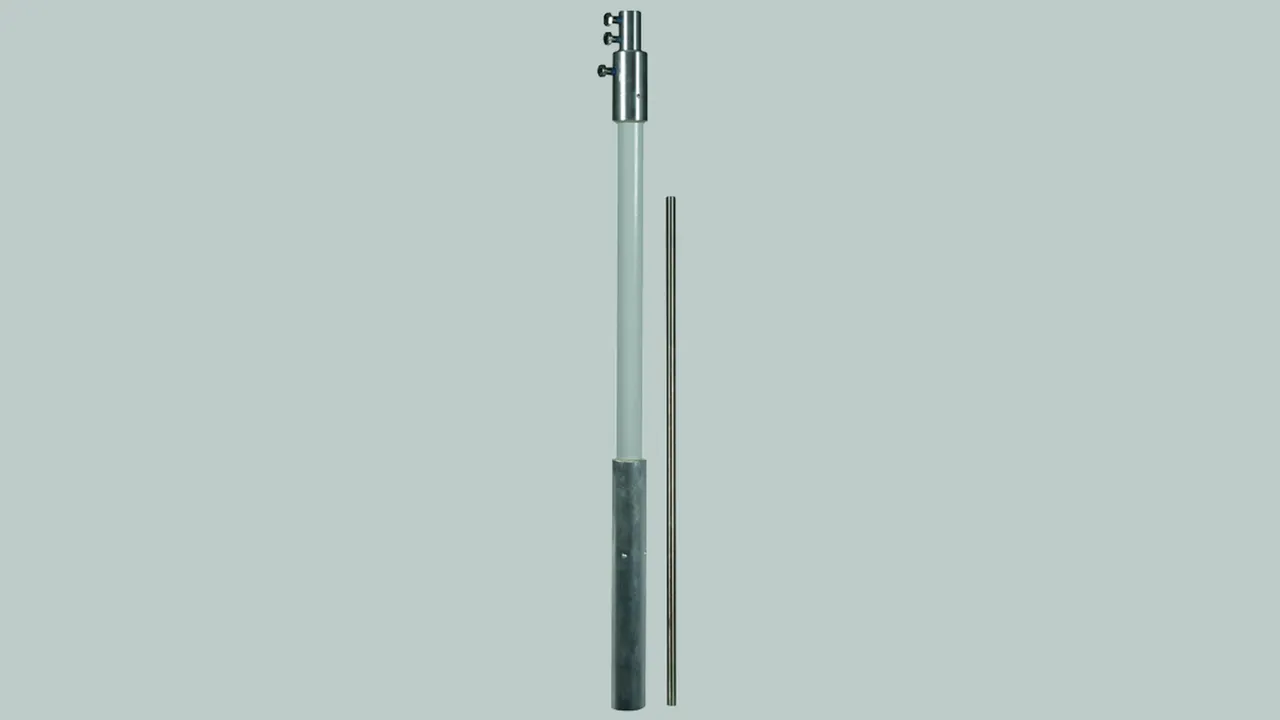

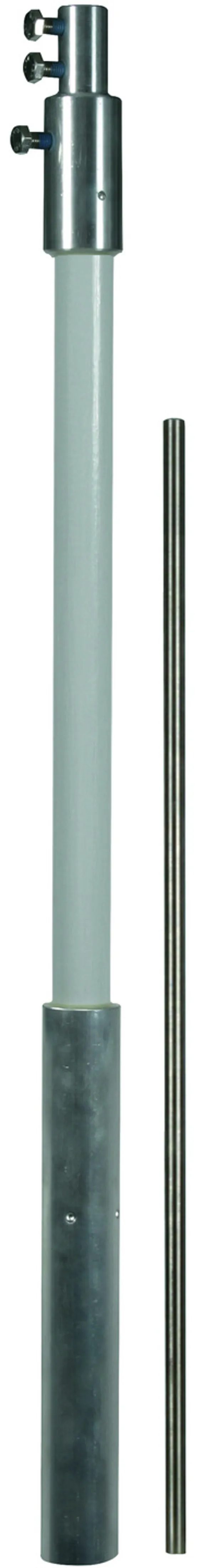

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 500 mm, GRP/Al
Supporting tubes GRP/Al with internal sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 232 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece, combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Transport length: 1990 mm
Outside diameter Ø GRP: 30 mm
Outside diameter Ø Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 232 km/h
Max. free length: 1890 mm
Min. clamping length: 600 mm

Brand: DEHN
Type: SR D30 1990 FSP10 500 GFK AL V2A
Part No.: 105272
or equivalent.



Technical data

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination tip 500 mm
Outside diameter Ø GRP 30 mm
Outside diameter Ø Al (clamping range) 40 mm
Max. gust wind speed 232 km/h
Max. free length 1890 mm
Min. clamping length 600 mm

Product 105272 was added to Notepad.

Product 105272 was added to the cart.

Part No. 105273 SR D30 1990 FSP10 1000 GFK AL V2A

GTIN 4013364255807, Customs tariff No.: 85389099, Gross weight: 2.70 kg, PU: 1.00 pc(s)


Images

Additional information

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 1000 mm, GRP/Al
Supporting tubes GRP/Al with internal sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 198 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece, combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Transport length: 1990 mm
Outside diameter Ø GRP: 30 mm
Outside diameter Ø Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 198 km/h
Max. free length: 2390 mm
Min. clamping length: 600 mm

Brand: DEHN
Type: SR D30 1990 FSP10 1000 GFK AL V2A
Part No.: 105273
or equivalent.



Technical data

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination tip 1000 mm
Outside diameter Ø GRP 30 mm
Outside diameter Ø Al (clamping range) 40 mm
Max. gust wind speed 198 km/h
Max. free length 2390 mm
Min. clamping length 600 mm

Product 105273 was added to Notepad.

Product 105273 was added to the cart.

Part No. 105274 SR D30 2840 FSP10 500 GFK AL V2A

GTIN 4013364255814, Customs tariff No.: 85389099, Gross weight: 3.35 kg, PU: 1.00 pc(s)


Images

Additional information

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 500 mm, GRP/Al
Supporting tubes GRP/Al with internal sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 232 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece, combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Transport length: 2640 mm
Outside diameter Ø GRP: 30 mm
Outside diameter Ø Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 232 km/h
Max. free length: 2540 mm
Min. clamping length: 600 mm

Brand: DEHN
Type: SR D30 2840 FSP10 500 GFK AL V2A
Part No.: 105274
or equivalent.



Technical data

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination tip 500 mm
Outside diameter Ø GRP 30 mm
Outside diameter Ø Al (clamping range) 40 mm
Max. gust wind speed 232 km/h
Max. free length 2540 mm
Min. clamping length 600 mm

Product 105274 was added to Notepad.

Product 105274 was added to the cart.

Part No. 105280 SR D30 2640 FSP10 1000 GFK AL V2A

GTIN 4013364255838, Customs tariff No.: 85389099, Gross weight: 3.65 kg, PU: 1.00 pc(s)


Images

Additional information

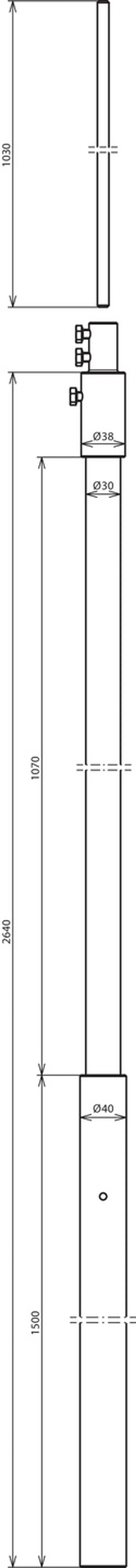

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 1000 mm, GRP/Al
Supporting tubes GRP/Al with internal sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 198 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece, combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Transport length: 2640 mm
Outside diameter Ø GRP: 30 mm
Outside diameter Ø Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 198 km/h
Max. free length: 3040 mm
Min. clamping length: 600 mm

Brand: DEHN
Type: SR D30 2640 FSP10 1000 GFK AL V2A
Part No.: 105280
or equivalent.



Technical data

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination tip 1000 mm
Outside diameter Ø GRP 30 mm
Outside diameter Ø Al (clamping range) 40 mm
Max. gust wind speed 198 km/h
Max. free length 3040 mm
Min. clamping length 600 mm

Product 105280 was added to Notepad.

Product 105280 was added to the cart.
