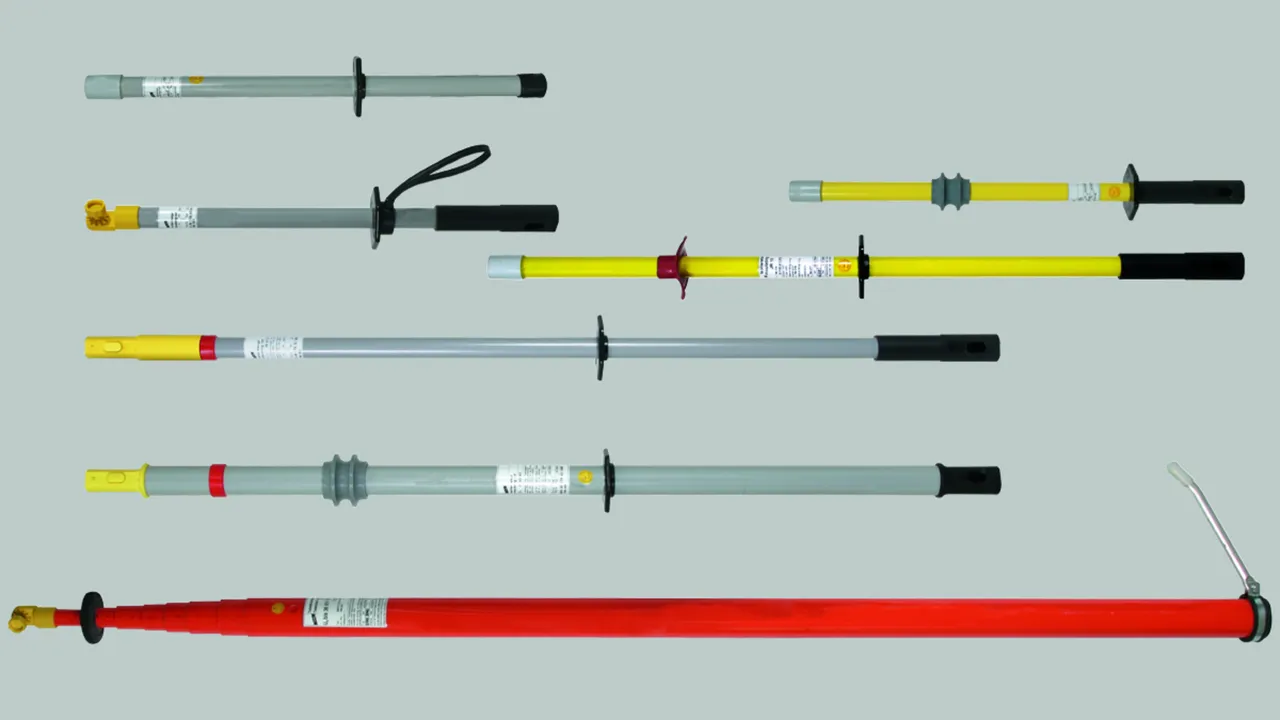

Insulating Sticks

Insulating stick for PHE III with M12 threaded bushing

1 Product

Part No. 766328 IS M12 AK 635

GTIN 4013364135765, Customs tariff No. (EU): 82055980, Gross weight: 283.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 635 mm
Handle length (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766328 was added to Notepad.

Go to Notepad

Product 766328 was added to the cart.

Go to Web-Shop

Insulating stick for cleaning windscreens

1 Product

Part No. 766048 IS 25 ZK 2885

GTIN 4013364120433, Customs tariff No. (EU): 82055980, Gross weight: 3.40 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) Up to 25 kV AC
Total length (lG ) 2890 mm
Length (handle) (lH ) 1000 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766048 was added to Notepad.

Go to Notepad

Product 766048 was added to the cart.

Go to Web-Shop

Insulating stick for ASP with universal gear coupling

1 Product

Part No. 766369 IS ZK STK HS 670

GTIN 4013364125025, Customs tariff No. (EU): 82055980, Gross weight: 388.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 670 mm
Length (handle) (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766369 was added to Notepad.

Go to Notepad

Product 766369 was added to the cart.

Go to Web-Shop

Plastic bolt with star knob

1 Product

Part No. 766105 KS SG BLS 8

GTIN 4013364125988, Customs tariff No. (EU): 90330090, Gross weight: 10.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Product 766105 was added to Notepad.

Go to Notepad

Product 766105 was added to the cart.

Go to Web-Shop

ISN 36 STK insulating stick with silicon insulator

2 Products

Part No. 766362 ISN 36 STK 930SN7688

GTIN 4013364230705, Customs tariff No. (EU): 82055980, Gross weight: 1175.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 930 mm
Length (handle) (IH ) 190 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766362 was added to Notepad.

Go to Notepad

Product 766362 was added to the cart.

Go to Web-Shop

Part No. 766367 ISN 36 STK 30 1280

GTIN 4013364137042, Customs tariff No. (EU): 82055980, Gross weight: 1200.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 1280 mm
Length (handle) (IH ) 560 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766367 was added to Notepad.

Go to Notepad

Product 766367 was added to the cart.

Go to Web-Shop

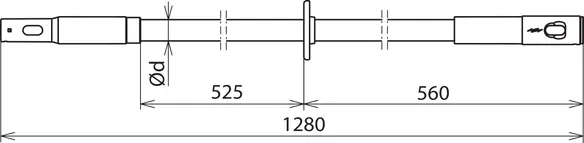

IS STK insulating stick with plug-in coupling

1 Product

Part No. 766363 IS 36 STK 30 1280

GTIN 4013364121737, Customs tariff No. (EU): 82055980, Gross weight: 1200.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 1280 mm
Length (handle) (IH ) 560 mm
Diameter 30 mm

Product 766363 was added to Notepad.

Go to Notepad

Product 766363 was added to the cart.

Go to Web-Shop

Telescopic insulating stick, with universal gear coupling

1 Product

Part No. 766037 ISMTC N 36 ZK 10600

GTIN 4013364125940, Customs tariff No. (EU): 82055980, Gross weight: 7.56 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG max / IG min ) 10,600 / 1750 mm
Length (handle) (IH min ) 1680 mm
Material Glass-fibre reinforced epoxy resin tube

Product 766037 was added to Notepad.

Go to Notepad

Product 766037 was added to the cart.

Go to Web-Shop

Insulating stick for PHE4 with M12 threaded bushing

3 Products

Part No. 783905 IS PHE4 STK 770

GTIN 4013364292499, Customs tariff No. (EU): 82055980, Gross weight: 538.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 770 mm
Length (handle) (lH ) 220 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783905 was added to Notepad.

Go to Notepad

Product 783905 was added to the cart.

Go to Web-Shop

Part No. 783906 IS PHE4 STK 1110

GTIN 4013364292482, Customs tariff No. (EU): 82055980, Gross weight: 752.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 1110 mm
Length (handle) (lH ) 520 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783906 was added to Notepad.

Go to Notepad

Product 783906 was added to the cart.

Go to Web-Shop

Part No. 783900 IS PHE4 STK 700

GTIN 4013364292505, Customs tariff No. (EU): 82055980, Gross weight: 493.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 700 mm
Length (handle) (lH ) 250 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783900 was added to Notepad.

Go to Notepad

Product 783900 was added to the cart.

Go to Web-Shop

Insulating stick for PHE III with M12 threaded bushing

1 Product

Part No. 766331 IS M12 STK 640

GTIN 4013364115002, Customs tariff No. (EU): 82055980, Gross weight: 375.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 640 mm
Length (handle) (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766331 was added to Notepad.

Go to Notepad

Product 766331 was added to the cart.

Go to Web-Shop

Insulating stick for PHE (voltage detectors for overhead lines)

2 Products

Part No. 766072 IS M12 STK 30 720

GTIN 4013364126114, Customs tariff No. (EU): 82055980, Gross weight: 400.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 720 mm
Diameter 30 mm
DB drawing No. 3 Ebgw 02.51

Product 766072 was added to Notepad.

Go to Notepad

Product 766072 was added to the cart.

Go to Web-Shop

Part No. 766075 IS M12 STK 30 1060

GTIN 4013364120471, Customs tariff No. (EU): 82055980, Gross weight: 520.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG ) 1060 mm
Diameter 30 mm
DB drawing No. 3 Ebgw 02.53

Product 766075 was added to Notepad.

Go to Notepad

Product 766075 was added to the cart.

Go to Web-Shop

Insulating stick for PHE4 and PHE III with universal gear coupling

1 Product

Part No. 766368 IS ZK STK 670

GTIN 4013364115026, Customs tariff No. (EU): 82055980, Gross weight: 340.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 30 kV
Total length (lG ) 670 mm
Length (handle) (IH ) 265 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766368 was added to Notepad.

Go to Notepad

Product 766368 was added to the cart.

Go to Web-Shop

Support

1 Product

Part No. 766038 AH ISMTC

GTIN 4013364105355, Customs tariff No. (EU): 82055980, Gross weight: 275.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Suitable for Telescopic insulating stick

Product 766038 was added to Notepad.

Go to Notepad

Product 766038 was added to the cart.

Go to Web-Shop
