Protection Module for DEHNguard M UL series

  • High discharge capacity due to heavy-duty zinc oxide varistors (Imax 50 kA 8x20 μs)
  • ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
  • High reliability due to "Thermo Dynamic Control" SPD monitoring device

Varistor-Based Protection Module

Varistor-based protection module for DEHNguard MU ... and DEHNguard SU ... surge arresters.

6 Products

Part No. 908011 DG PLU 180

GTIN 4013364148482, Customs tariff No. (EU): 85363030, Gross weight: 43.80 g, PU: 1.00 pc(s)


Images

Additional information

DG PLU 180 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 180 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 180
Part No.: 908011
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908011 was added to Notepad.

Product 908011 was added to the cart.

Part No. 908012 DG PLU 230

GTIN 4013364148505, Customs tariff No. (EU): 85363030, Gross weight: 46.70 g, PU: 1.00 pc(s)


Images

Additional information

DG PLU 230 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 230 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 230
Part No.: 908012
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908012 was added to Notepad.

Product 908012 was added to the cart.

Part No. 908010 DG PLU 275

GTIN 4013364148512, Customs tariff No. (EU): 85363030, Gross weight: 49.40 g, PU: 1.00 pc(s)


Images

Additional information

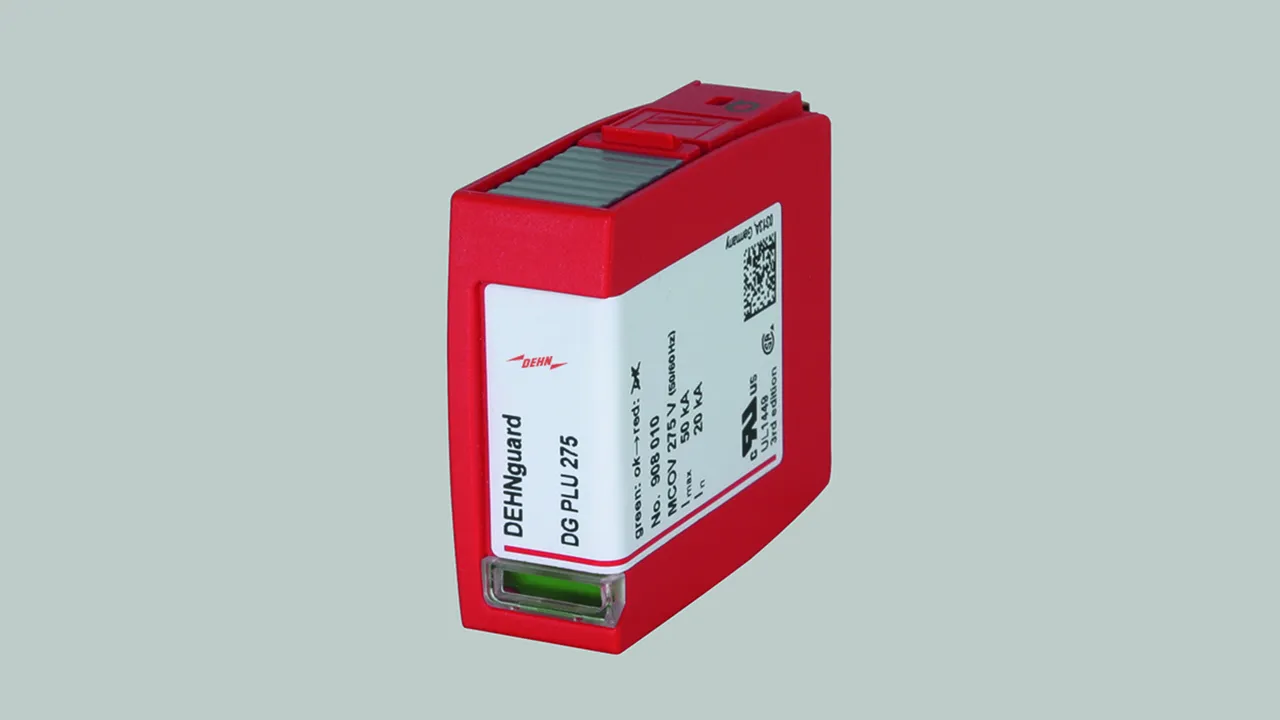

DG PLU 275 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 275 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 275
Part No.: 908010
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908010 was added to Notepad.

Product 908010 was added to the cart.

Part No. 908014 DG PLU 385

GTIN 4013364148529, Customs tariff No. (EU): 85363030, Gross weight: 55.70 g, PU: 1.00 pc(s)


Images

Additional information

DG PLU 385 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 385 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 385
Part No.: 908014
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908014 was added to Notepad.

Product 908014 was added to the cart.

Part No. 908013 DG PLU 510

GTIN 4013364148536, Customs tariff No. (EU): 85363030, Gross weight: 63.90 g, PU: 1.00 pc(s)


Images

Additional information

DG PLU 510 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 510 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 510
Part No.: 908013
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908013 was added to Notepad.

Product 908013 was added to the cart.

Part No. 908015 DG PLU 550

GTIN 4013364148543, Customs tariff No. (EU): 85363030, Gross weight: 66.90 g, PU: 1.00 pc(s)


Images

Additional information

DG PLU 550 varistor-based protection module
Pluggable protection module for DEHNguard MU ...
and DEHNguard SU ...
ANSI/UL 1449 – 4th Ed. Open-Type 1 SPD
High capacity varistor technology
Max. continuous operating voltage: 550 V a.c.
Nominal discharge current: 20 kA
Maximal discharge current: 50 kA
Fault indication

Brand: DEHN
Type: DG PLU 550
Part No.: 908015
or equivalent.

Certificates



Technical data

Nominal discharge current (8/20 µs) ( In ) 20 kA
Max. discharge current (Imax ) 50 kA

Product 908015 was added to Notepad.

Product 908015 was added to the cart.
