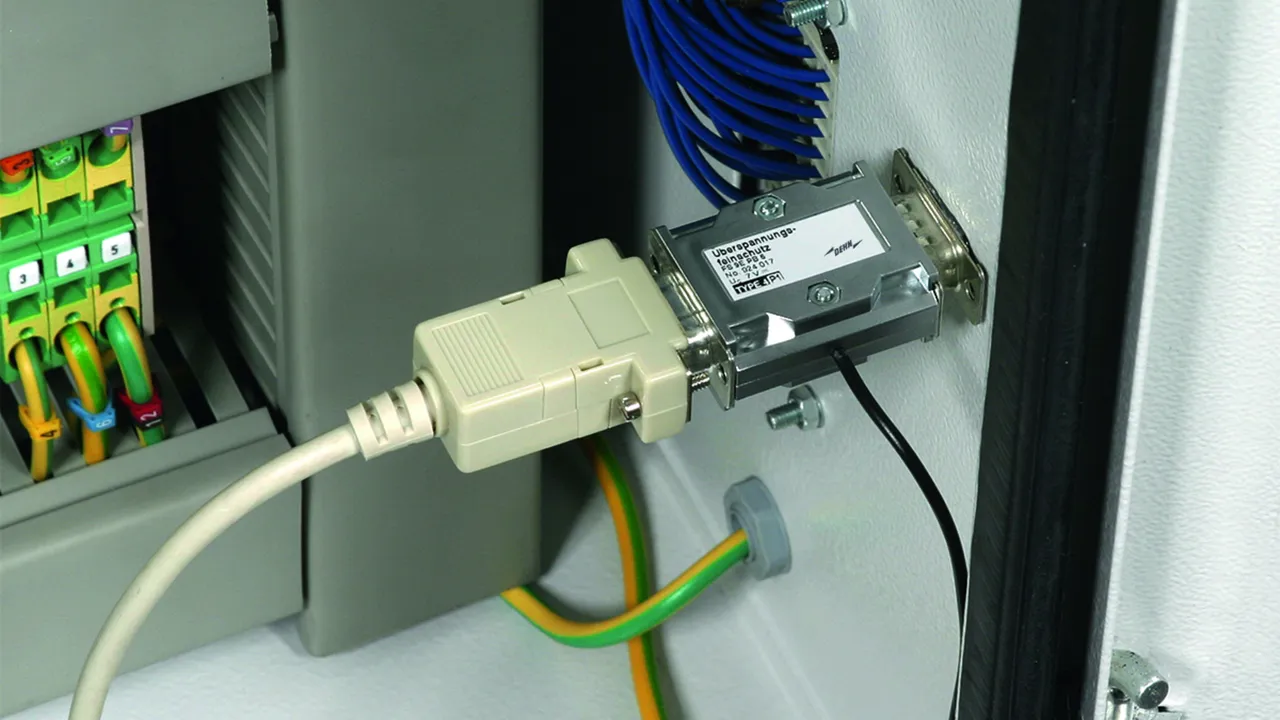

Surge arrester with SUB-D connection system for easy retrofitting
9-pole standard connection
Standard Profibus DP

Details

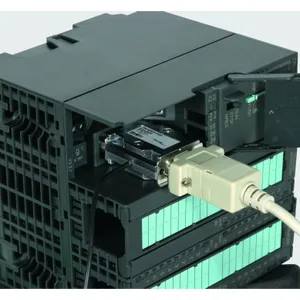

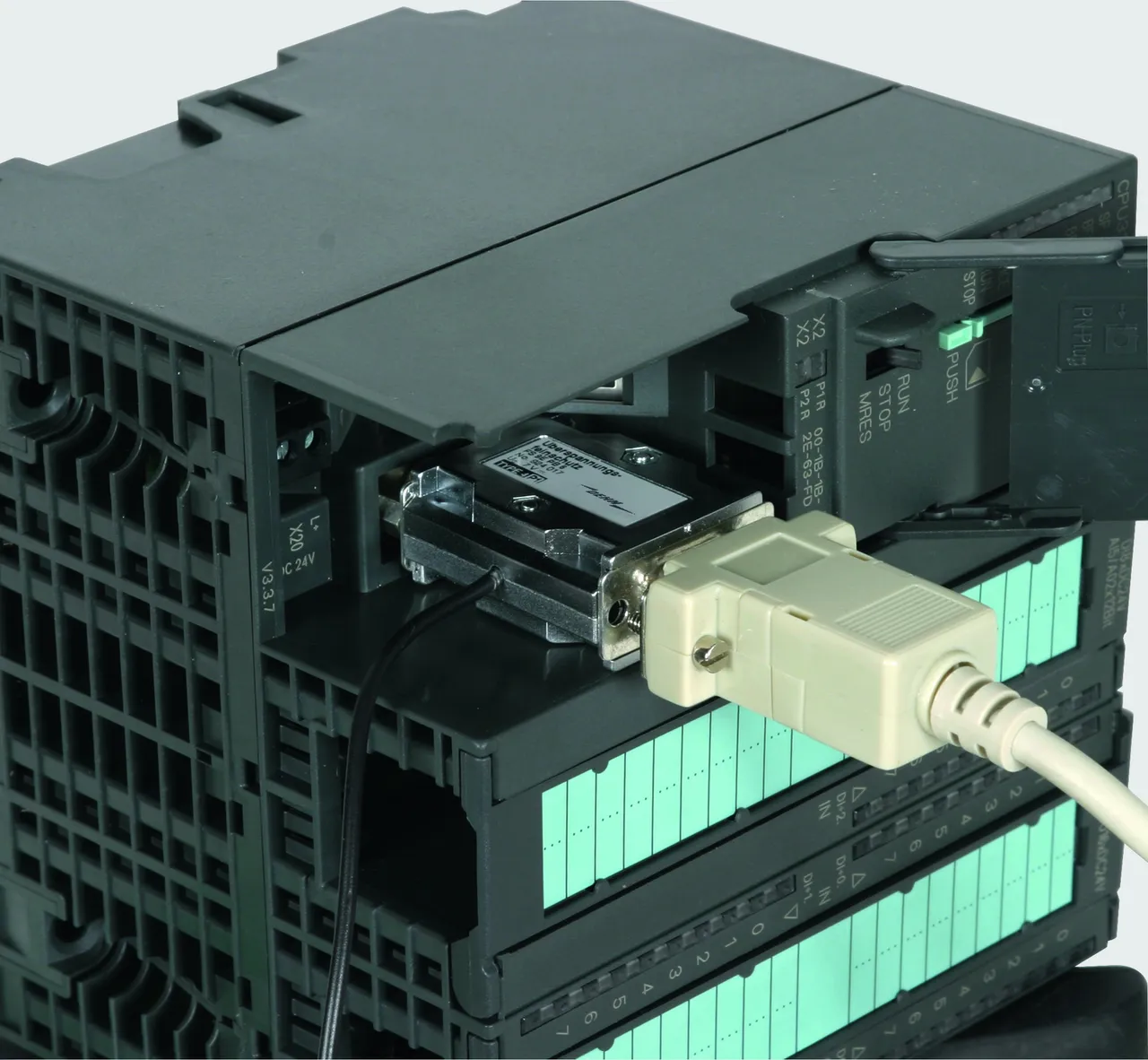

Direct connection to the device ensures optimal protection.

lorem ipsum — Direct connection to the device ensures optimal protection.

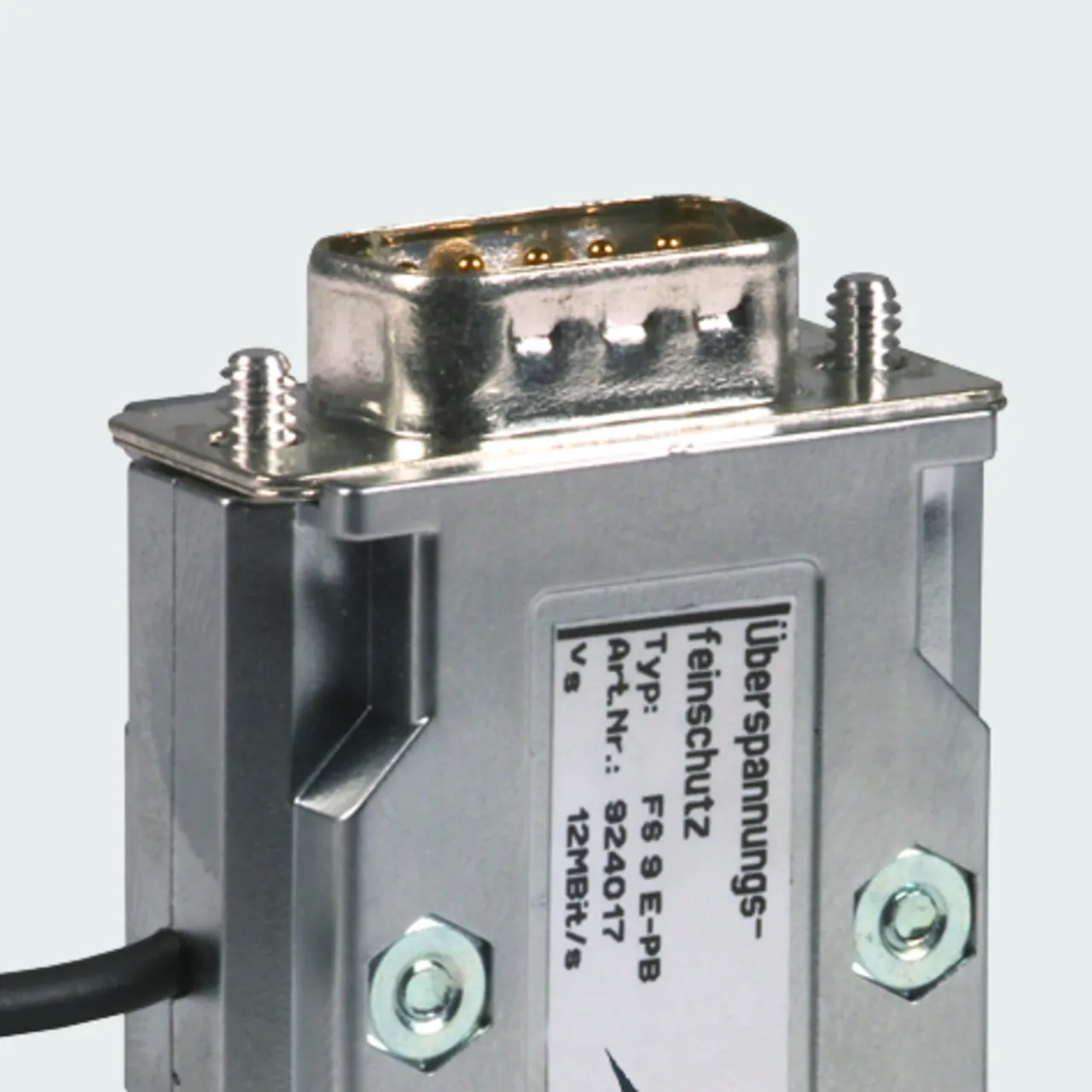

FS 9E PB

Surge arrester for Profibus-DP. 9-pin SUB-D version, pin 6 unprotected for the programming interface.

1 Product

Part No. 924017 FS 9E PB 6

GTIN 4013364045934, Customs tariff No. (EU): 85363010, Gross weight: 38.40 g, PU: 1.00 pc(s)

Images

Additional information

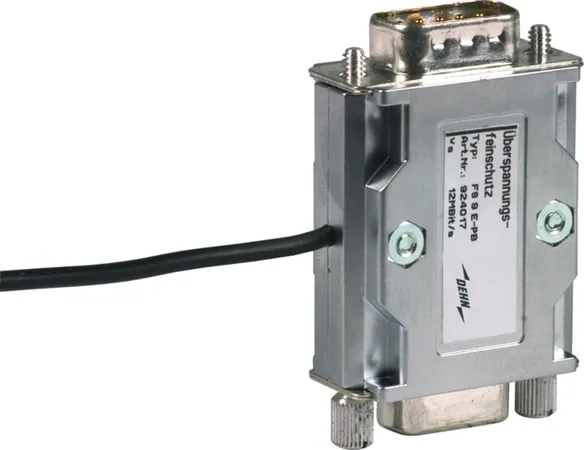

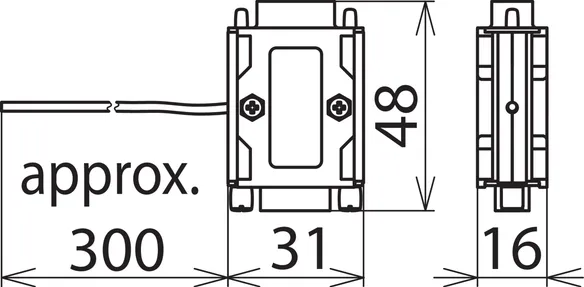

FS 9E PB 6 surge arrester for Profibus-DP
Surge arrester FS, SPD class TYPE 4/P1, tested
acc. to EN 61643-21 for the protection of data
interfaces Profibus-DP, SINEC L2 up to 12 Mbit/s,
D-SUB adapter construction, earthing via attached cable
Max. continuous operating voltage (d.c.): 7 V
C1 Nominal discharge current (8/20 µs) line-line: 0.2 kA
C1 Nominal discharge current (8/20 µs) line-SG: 0.2 kA

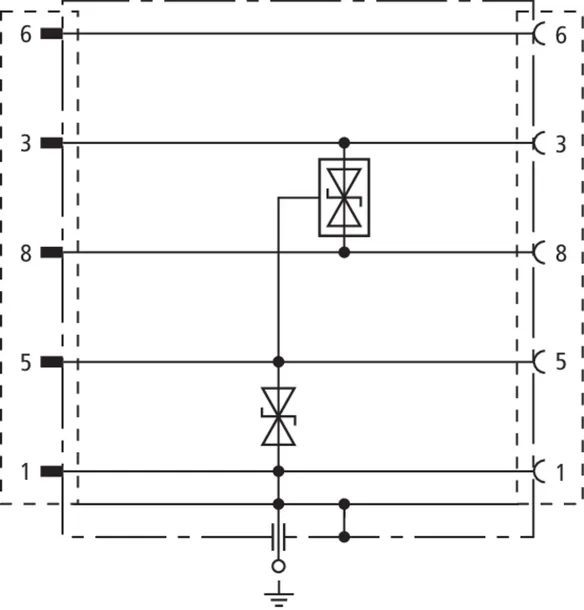

Pinning: line: 3/8, SG: 5, PG: 1, 6: unprotected

Brand: DEHN
Type: FS 9E PB 6
Part No.: 924017
or equivalent.

Certificates

Technical data

SPD class	[
Max. continuous operating voltage (d.c.) (U_C )	7 V
C1 Nominal discharge current (8/20 µs) line-line (I_n )	0.2 kA
C1 Nominal discharge current (8/20 µs) line-SG (I_n )	0.2 kA
C1 Nominal discharge current (8/20 µs) SG-PG (I_n )	0.4 kA
Cut-off frequency (f_G )	90 MHz
Connection (input / output)	SUB-D 9 plug / SUB-D 9 socket

SPD class	[
Nominal voltage (U_N )	6 V
Max. continuous operating voltage (d.c.) (U_C )	7 V
C1 Nominal discharge current (8/20 µs) line-line (I_n )	0.2 kA
C1 Nominal discharge current (8/20 µs) line-SG (I_n )	0.2 kA
C1 Nominal discharge current (8/20 µs) SG-PG (I_n )	0.4 kA
Voltage protection level line-line for I_nC1 (U_P )	≤ 32 V
Voltage protection level line-SG for I_nC1 (U_P )	≤ 32 V
Voltage protection level SG-PG for I_n C1 (U_P )	≤ 25 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 25 V
Voltage protection level line-SG at 1 kV/µs C3 (U_P )	≤ 25 V
Voltage protection level SG-PG at 1 kV/µs C3 (U_P )	≤ 18 V
Cut-off frequency (f_G )	90 MHz
Capacitance line-line (C)	25 pF
Capacitance line-SG (C)	35 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 40
For mounting on	SUB-D (2 threaded screws 4/40 UNC)
Connection (input / output)	SUB-D 9 plug / SUB-D 9 socket
Pinning	line: 3/8, SG: 5, PG: 1, 6: unprotected
Earthing via	outgoing earthing conductor (0.75 mm²)
Enclosure material	plastic, metallised
Colour	silver
Test standards	IEC 61643-21 / EN 61643-21
