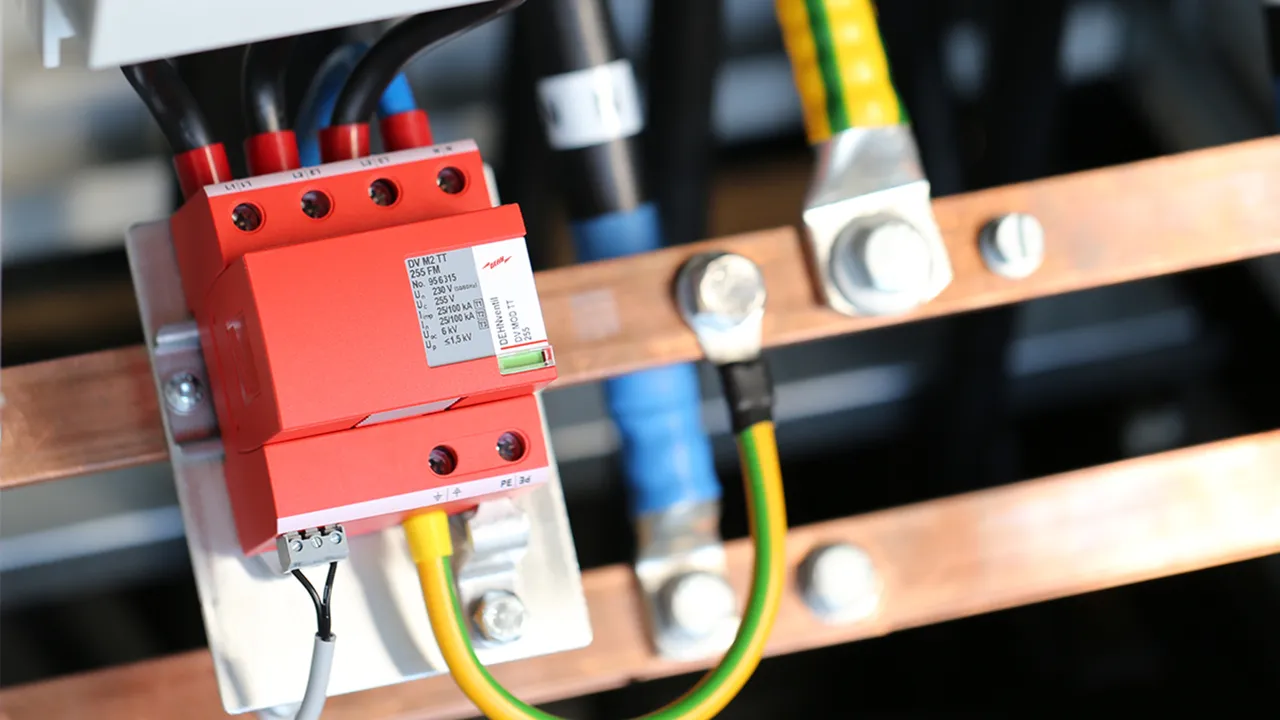

DEHNventil modular

  • Prewired spark-gap-based type 1 and type 2 and type 3 combined lightning current and surge arrester consisting of a base part and a single plug-in protection module
  • RAC spark gap technology that is powerful yet gentle on terminal devices
  • No tripping of 20 A gG fuses up to short-circuit currents of 50 kA rms
  • Discharge capacity up to 100 kA (10/350 µs)
  • Capable of protecting terminal equipment
  • Operating state / fault indication by green / red indicator flag in the inspection window and monitoring of all modes of protection
  • Easy replacement of protection modules without tools due to module locking system with module release buttons

Details

lorem ipsum

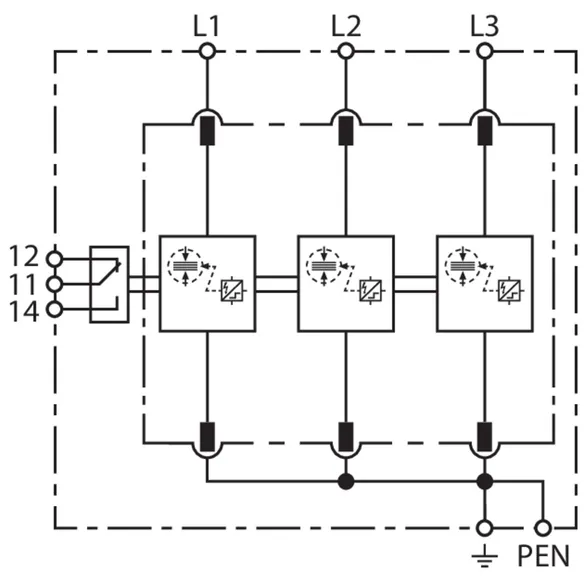

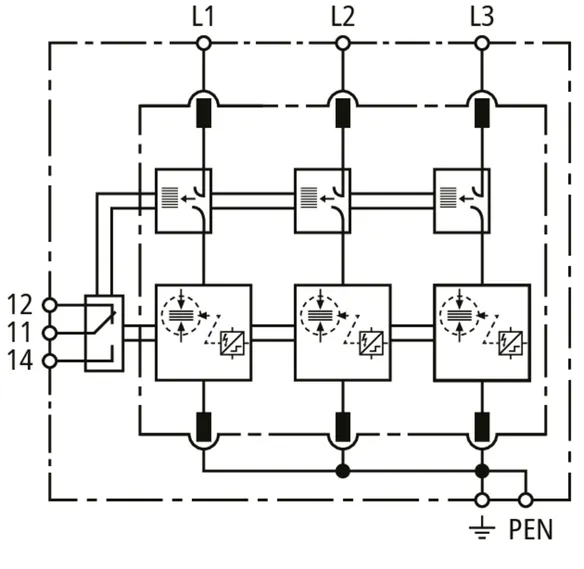

DEHNventil M2 TNC FM

Modular combined arrester for TN-C systems.

1 Product

Part No. 954305 DV M2 TNC 255 FM

GTIN 4013364400900, Customs tariff No.: 85363090, Gross weight: 519.19 g, PU: 1.00 pc(s)


Images

Additional information

Modular combined arrester DEHNventil M2 TNC 255 FM
Three-pole, modular, pluggable combined arrester for
230/400 V- TN-C systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Protection level: <= 1.5 kV
Lightning impulse current (10/350): 75 kA
Follow current extinguishing capability up to 100 kArms.
Energy coordination as per IEC 61643-12:2008
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TNC 255 FM
Part No.: 954305
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Use for 16.7 Hz traction power supply systems
– Test voltage AC (UC ) 266 V
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 160 A gG @ 16,7 Hz
SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-PEN] (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 250 A gG
Approvals VDE, KEMA
Type of remote signalling contact yes / changeover contact
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)

Product 954305 was added to Notepad.

Product 954305 was added to the cart.


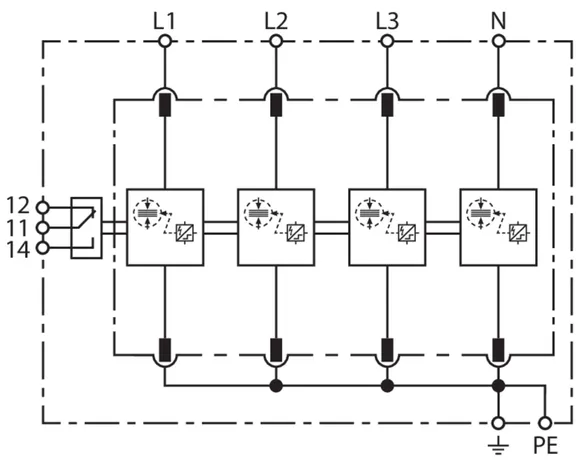

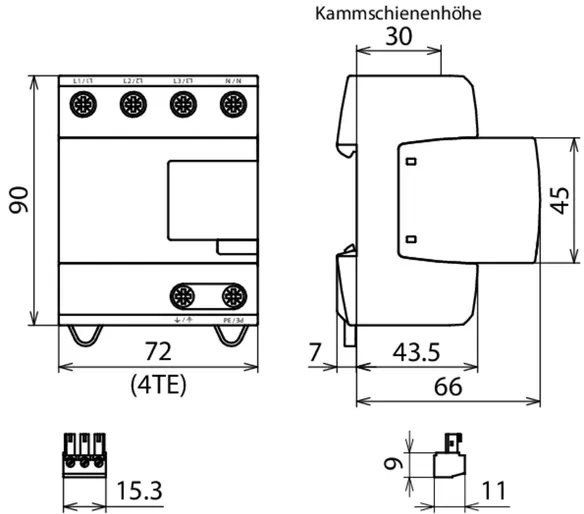

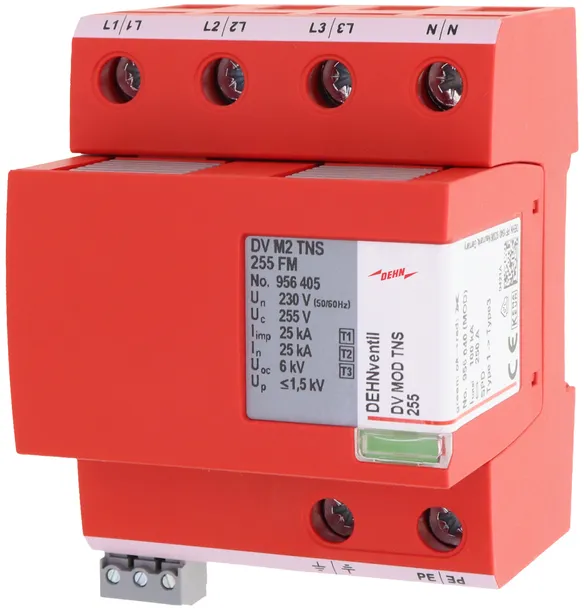

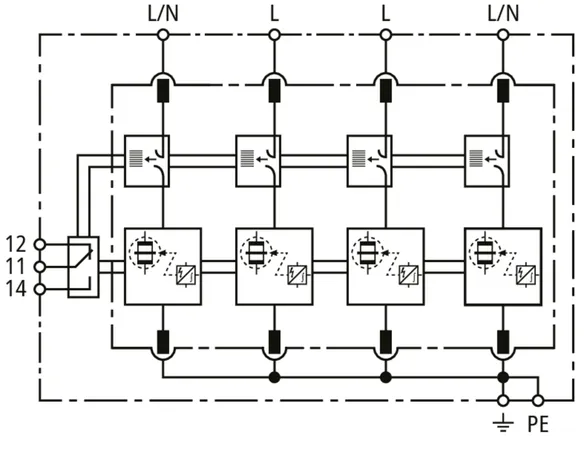

DEHNventil M2 TNS FM

Modular combined arrester for TN-S systems.

1 Product

Part No. 954405 DV M2 TNS 255 FM

GTIN 4013364400894, Customs tariff No.: 85363090, Gross weight: 583.68 g, PU: 1.00 pc(s)


Images

Additional information

Modular combined arrester DEHNventil M2 TNS 255 FM
Four-pole, modular, pluggable combined arrester for
230/400 V- TN(C)-S systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Protection level: <= 1.5 kV
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability up to 100 kArms.
Energy coordination as per IEC 61643-12:2008
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TNS 255 FM
Part No.: 954405
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 250 A gG
Approvals VDE, KEMA
Type of remote signalling contact yes / changeover contact
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Test voltage AC (UC ) 266 V
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 160 A gG @ 16,7 Hz

Product 954405 was added to Notepad.

Product 954405 was added to the cart.

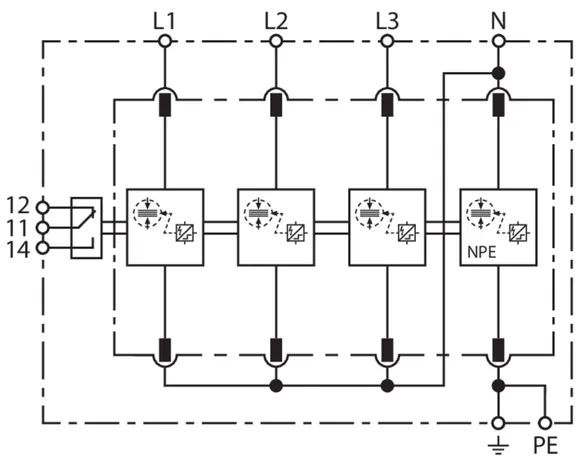

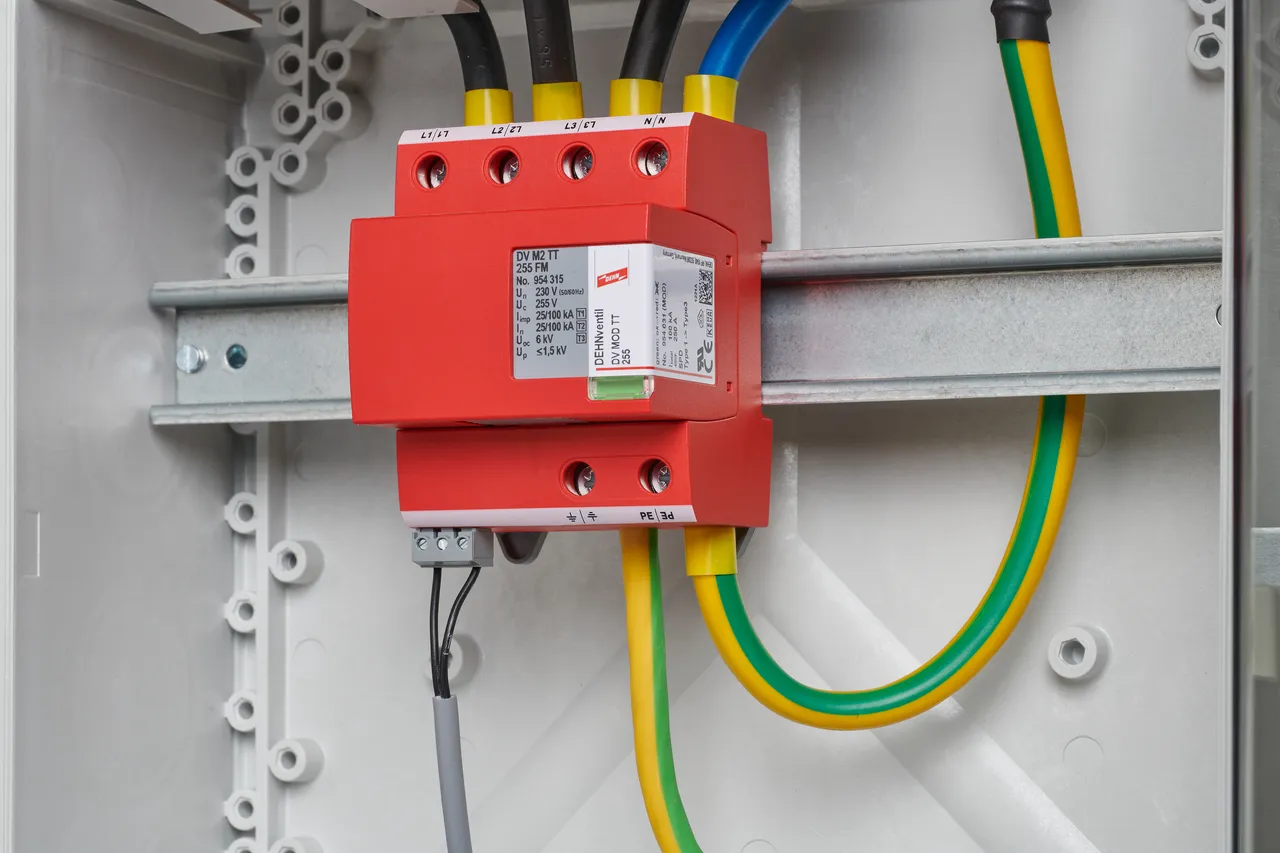

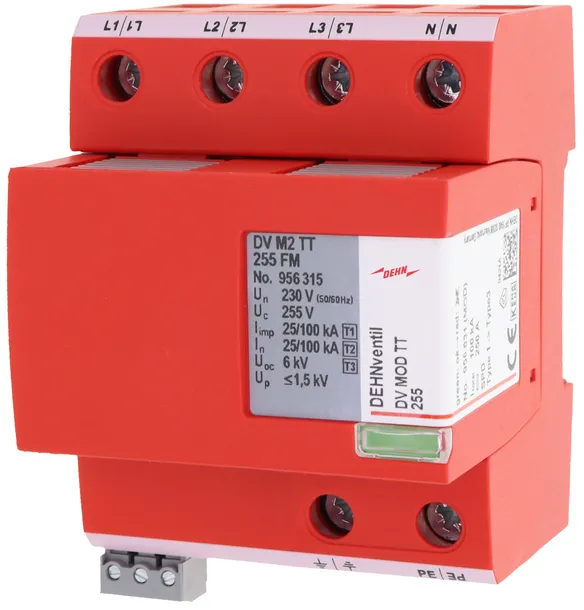

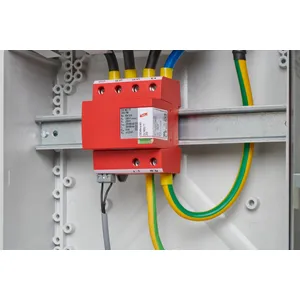

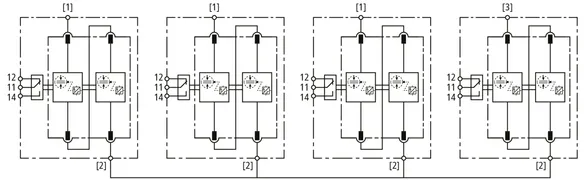

DEHNventil M2 TT FM

Modular combined arrester for TT and TN-S systems (3+1 circuit).

1 Product

Part No. 954315 DV M2 TT 255 FM

GTIN 4013364400917, Customs tariff No.: 85363090, Gross weight: 596.81 g, PU: 1.00 pc(s)


Images

Additional information

Modular combined arrester DEHNventil M2 TT 255 FM
Four-pole, modular, pluggable combined arrester for
230/400 V TT and TN(C)-S systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Protection level: <= 1.5 kV
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability up to 100 kArms.
Energy coordination as per IEC 61643-12:2008
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TT 255 FM
Part No.: 954315
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) [L-N] (UC ) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 100 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 250 A gG
Approvals VDE, KEMA
Type of remote signalling contact yes / changeover contact
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 1.8 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Test voltage AC (UC ) 266 V
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 160 A gG @ 16,7 Hz

Product 954315 was added to Notepad.

Product 954315 was added to the cart.

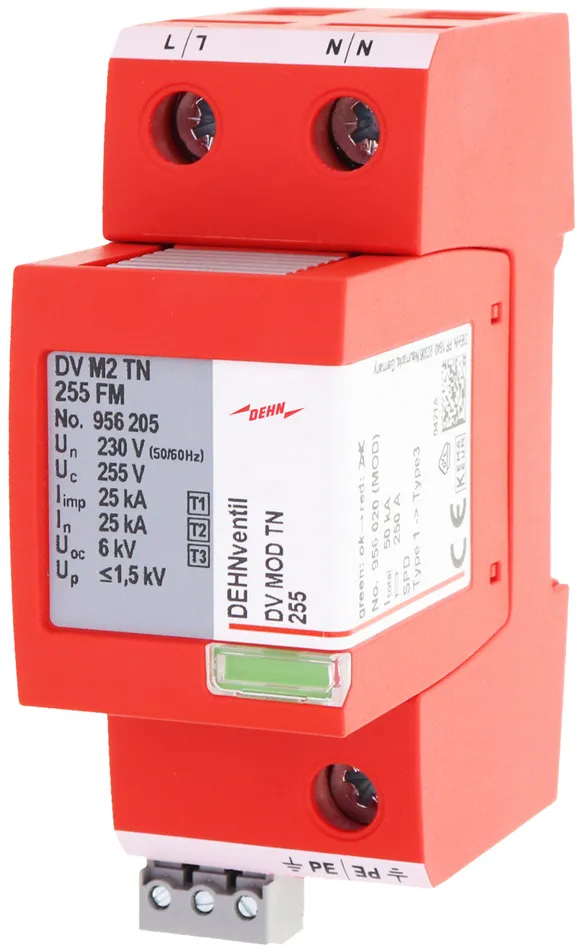

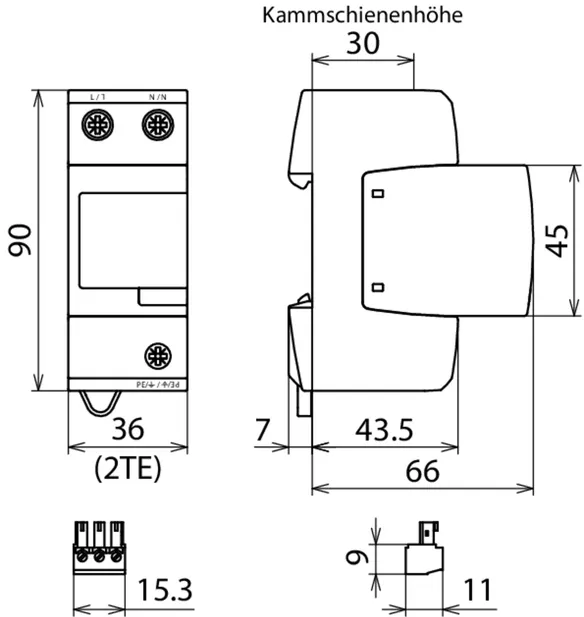

DEHNventil M2 TN FM

Modular combined arrester for single-phase TN systems.

1 Product

Part No. 954205 DV M2 TN 255 FM

GTIN 4013364398023, Customs tariff No.: 85363090, Gross weight: 311.29 g, PU: 1.00 pc(s)


Images

Additional information

Modular combined arrester DEHNventil M2 TN 255 FM
Two-pole, modular, pluggable combined arrester for
single-phase TN systems, 2-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability up to 100 kArms.
Energy coordination as per IEC 61643-12:2008
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TN 255 FM
Part No.: 954205
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 250 A gG
Approvals VDE, KEMA
Type of remote signalling contact yes / changeover contact
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Test voltage AC (UC ) 266 V
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 160 A gG @ 16,7 Hz

Product 954205 was added to Notepad.

Product 954205 was added to the cart.

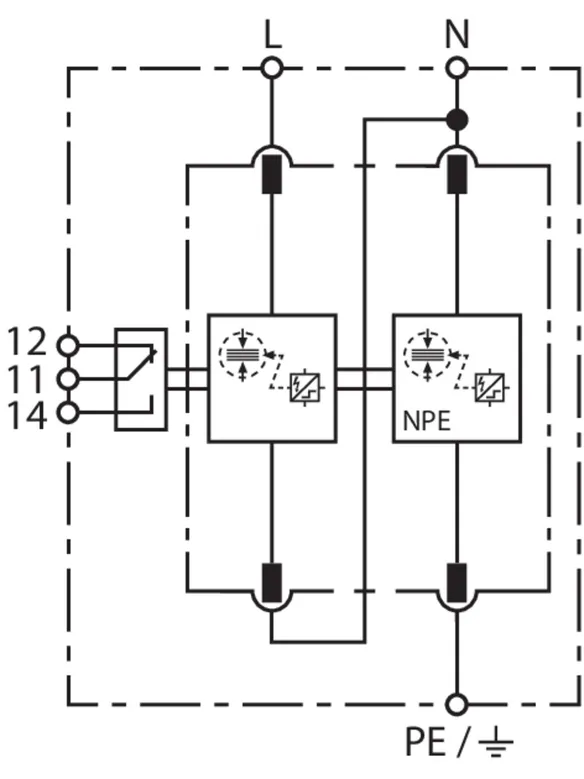

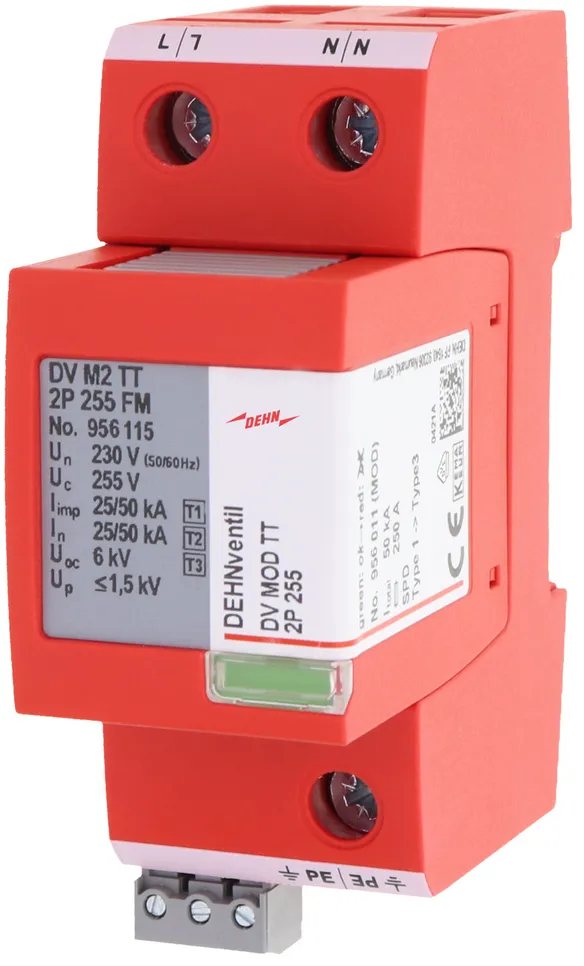

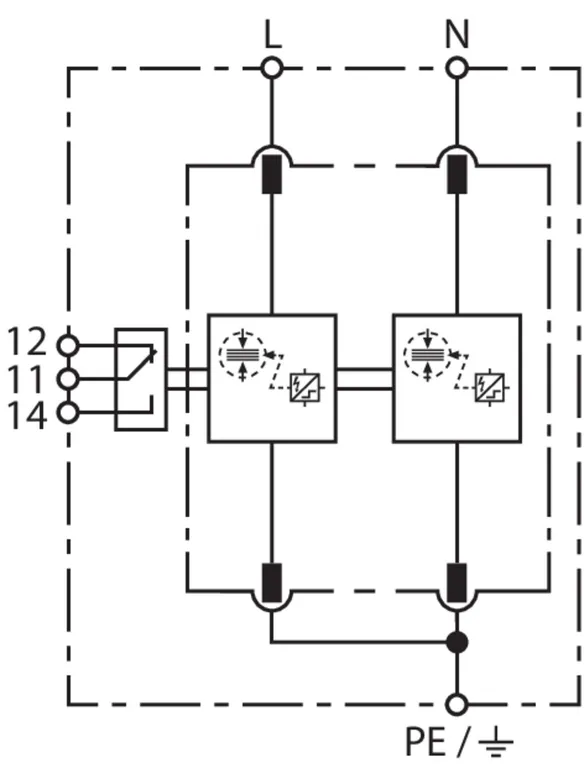

DEHNventil M2 TT 2P FM

Modular combined arrester for single-phase TT and TN systems (1+1 circuit).

1 Product

Part No. 954115 DV M2 TT 2P 255 FM

GTIN 4013364400924, Customs tariff No.: 85363090, Gross weight: 319.82 g, PU: 1.00 pc(s)


Images

Additional information

Modular combined arrester DEHNventil M2 TT 2P 255 FM
Two-pole, modular, pluggable combined arrester for
single-phase TT and TN systems, 2-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability up to 100 kArms.
Energy coordination as per IEC 61643-12:2008
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TT 2P 255 FM
Part No.: 954115
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) [L-N] (UC ) 255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 50 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 250 A gG
Approvals VDE, KEMA
Type of remote signalling contact yes / changeover contact
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 1.8 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Test voltage AC (UC ) 266 V
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 160 A gG @ 16,7 Hz

Product 954115 was added to Notepad.

Product 954115 was added to the cart.
