Insulating Mats with Dielectric Strength 50 kV

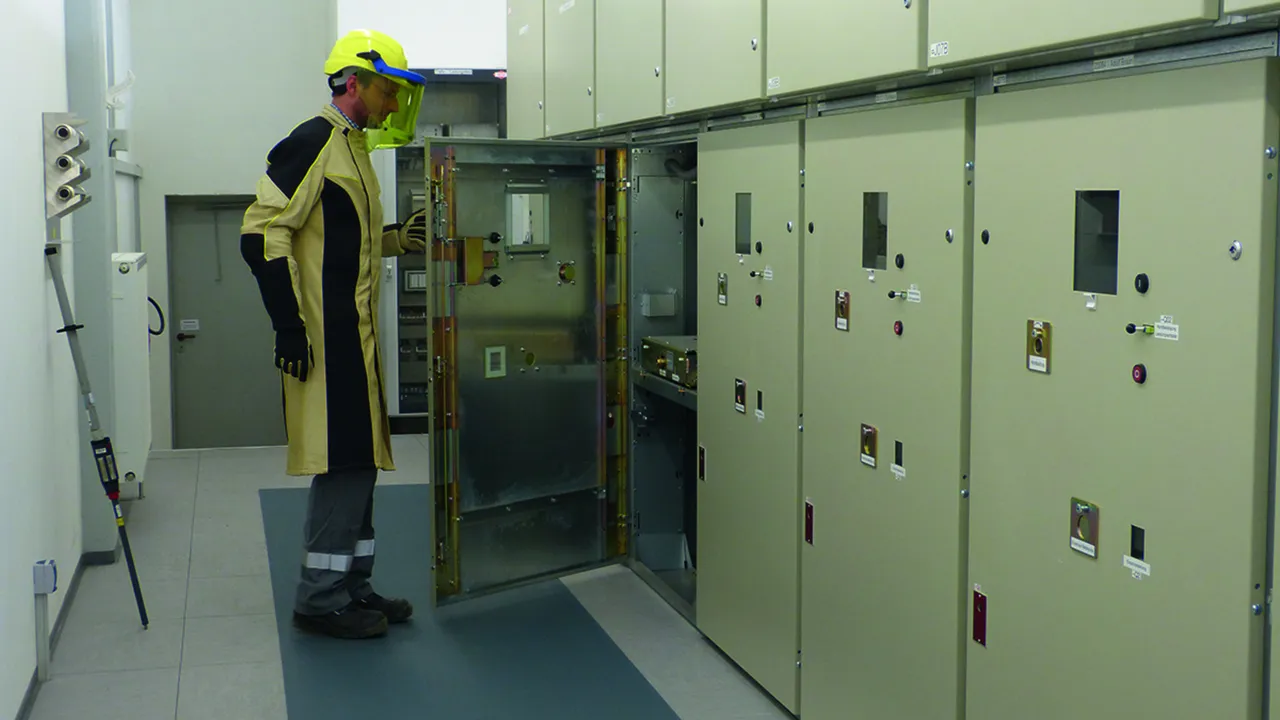

  • For use in electrical switch and test rooms
  • Dielectric strength of 50 kV tested in accordance with DIN VDE 0303-21

1 Product

Part No. 785457

GTIN , Gross weight: , PU:

Images

Additional information



Technical data

Class 0
Nominal voltage up to (UN ) 1000 V
Length 10 m
Width 1000 mm
Thickness 3.0 mm
Colour Grey ●
Standard DIN VDE 0682-512 (EN/IEC 61111)

Product 785457 was added to Notepad.

Go to Notepad

Product 785457 was added to the cart.

Go to Web-Shop

1 Product

Part No. 785459 IMG SAN 1M 10M

GTIN 4013364115057, Customs tariff No. (EU): 40082190, Gross weight: 56.00 kg, PU: 1.00 Stk

Images

Additional information



Technical data

Nominal voltage up to (UN ) 50 kV
Temperature resistance -55 °C ... +70 °C
Length 10 m
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21

Product 785459 was added to Notepad.

Go to Notepad

Product 785459 was added to the cart.

Go to Web-Shop

Insulating Mats made of Polymer NR/SBR

1 Product

Part No. 785459 IMG SAN 1M 10M

GTIN 4013364115057, Customs tariff No. (EU): 40082190, Gross weight: 56.00 kg, PU: 1.00 Stk

Images

Additional information



Technical data

Nominal voltage up to (UN ) 50 kV
Temperature resistance -55 °C ... +70 °C
Length 10 m
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21
*) Required length to be specified at order!

Product 785459 was added to Notepad.

Go to Notepad

Product 785459 was added to the cart.

Go to Web-Shop

1 Product

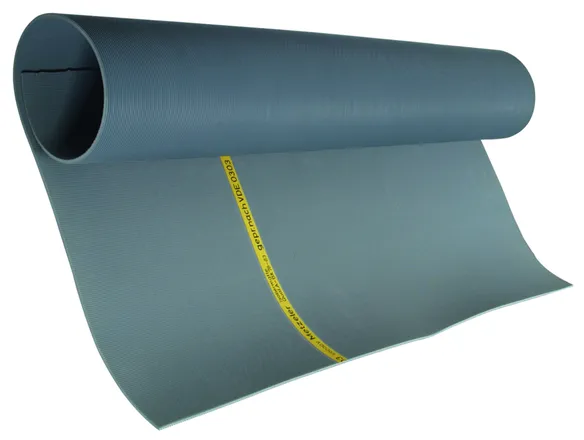

Part No. 785458 IMG SAN 1M ..M

GTIN 4013364115064, Customs tariff No. (EU): 40082190, Gross weight: 6.00 g/mm, PU: 1.00 mm

Images

Additional information



Technical data

Nominal voltage up to (UN ) 50 kV
Temperature resistance -55 °C ... +70 °C
Length up to 10 m *)
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21
Minimum order length 1000 mm

Product 785458 was added to Notepad.

Go to Notepad

Product 785458 was added to the cart.

Go to Web-Shop

2 Products

Part No. 785455 IMG SI 1M NS

GTIN 4013364088337, Customs tariff No. (EU): 40082190, Gross weight: 3.60 kg, PU: 1.00 Stk

Images

Additional information



Technical data

Class 0
Nominal voltage up to (UN ) 1000 V
Length 1 m
Width 1000 mm
Thickness 3.0 mm
Colour Grey ●
Standard DIN VDE 0682-512 (EN/IEC 61111)

Product 785455 was added to Notepad.

Go to Notepad

Product 785455 was added to the cart.

Go to Web-Shop

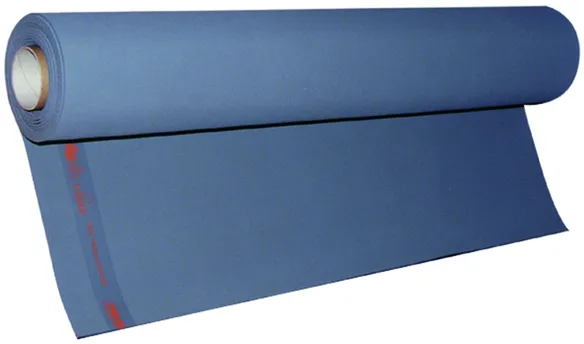

Part No. 785456 IMG SI ..M NS

GTIN 4013364086821, Customs tariff No. (EU): 40082190, Gross weight: 3.60 g/mm, PU: 1.00 mm

Images

Additional information



Technical data

Class 0
Nominal voltage up to (UN ) 1000 V
Length Any up to 10 m *)
Width 1000 mm
Thickness 3.0 mm
Colour Grey ●
Standard DIN VDE 0682-512 (EN/IEC 61111)
Minimum order length 1000 mm

Product 785456 was added to Notepad.

Go to Notepad

Product 785456 was added to the cart.

Go to Web-Shop
