Wskaźnik wysokiego napięcia HSA 205

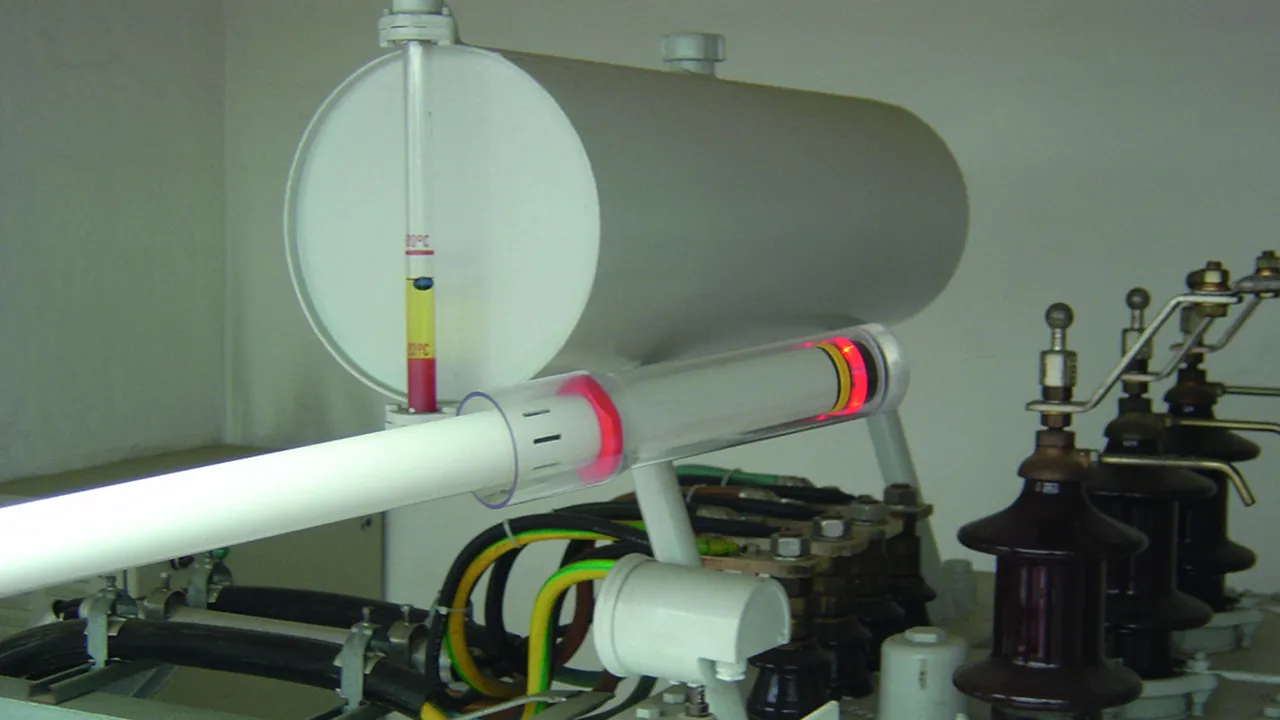

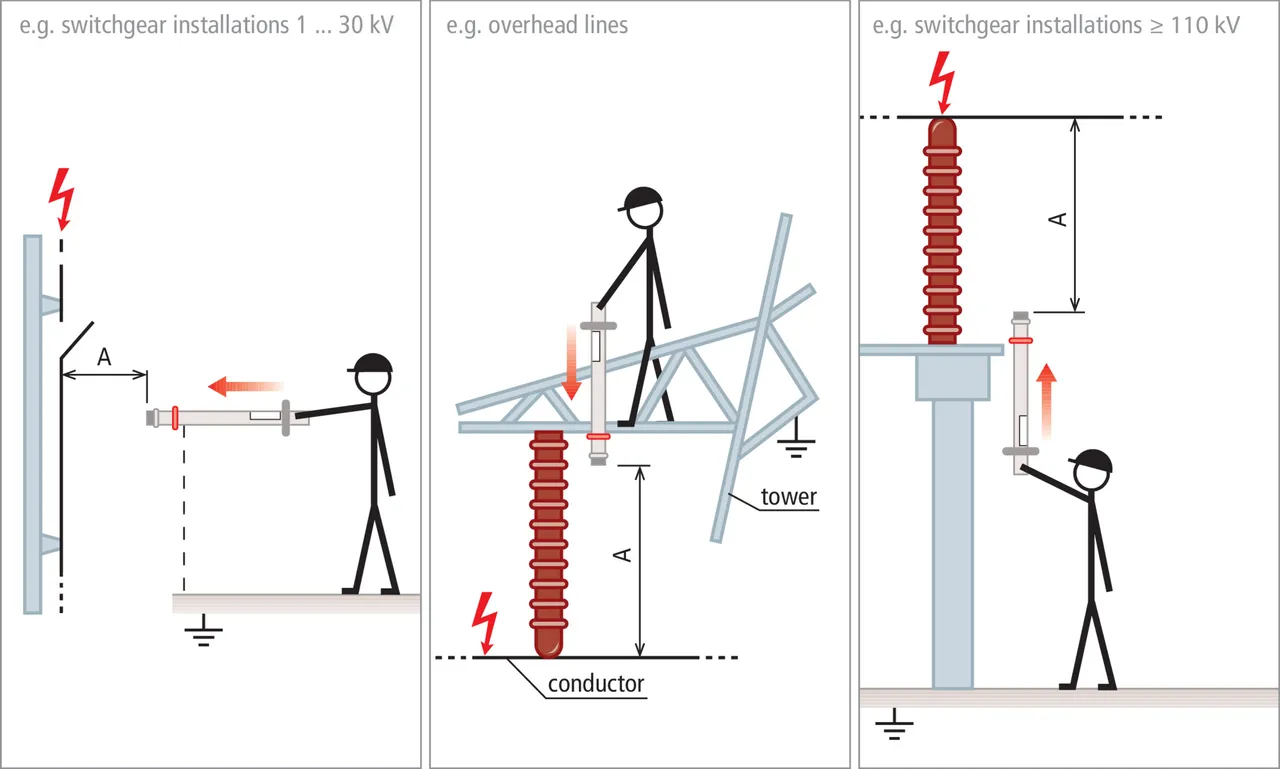

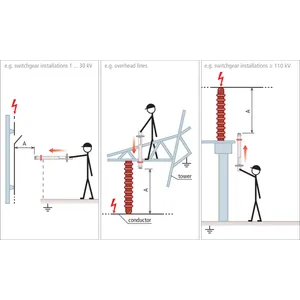

  • For contactlessly verifying that switchgear installations and high-voltage overhead lines are dead
  • Wide nominal voltage range

Details

lorem ipsum
lorem ipsum

Zakres napięcia znamionowego do 420 kV, regulowany zakres

With insulating cap and plug-in coupling as end fitting for extending the handle.

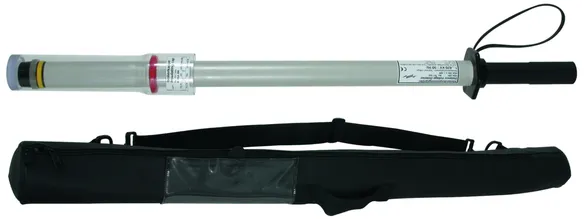

Storage bag included in delivery.

2 Products

Part No. 767552 HSA205 U 1 420 STK

GTIN 4013364115736, Customs tariff No. (EU): 90303370, Gross weight: 2.50 kg, PU: 1.00 szt.

Images

Additional information

Certificates



Technical data

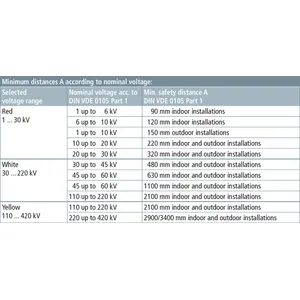

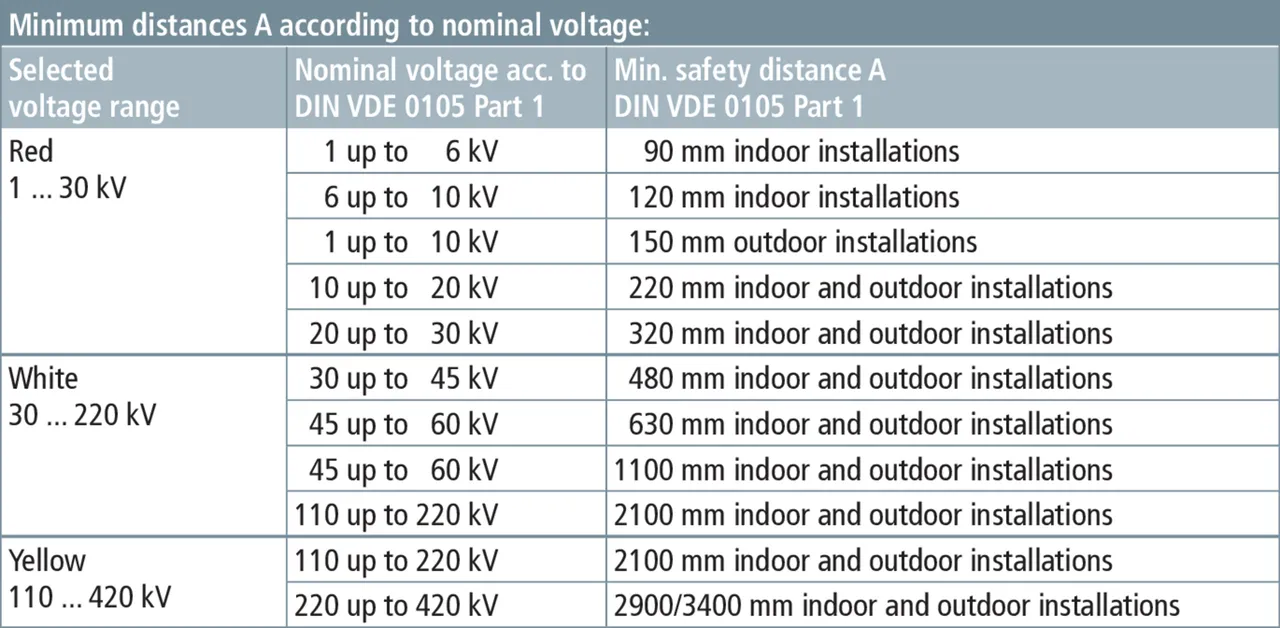

Nominal voltage range (UN ) 1 ... 30 / 30 ... 220 / 110 ... 420 kV
Frequency 50 Hz

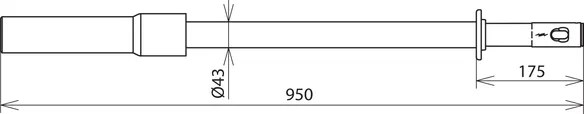

Total length (lG ) 950 mm
Insulating clearance (lI ) 540 mm

Product 767552 was added to Notepad.

Go to Notepad

Product 767552 was added to the cart.

Go to Web-Shop

Part No. 767547 HSA205 U 1 420SN7608

GTIN 4013364158276, Customs tariff No. (EU): 90303370, Gross weight: 2.00 kg, PU: 1.00 szt.

Images

Additional information



Technical data

Nominal voltage range (UN ) 1 ... 30 / 30 ... 220 / 110 ... 420 kV
Frequency 60 Hz
Total length (lG ) 950 mm
Insulating clearance (lI ) 540 mm

Product 767547 was added to Notepad.

Go to Notepad

Product 767547 was added to the cart.

Go to Web-Shop
back to top
