Elementy przyłączniowe uziemienia do zastosowań kolejowych

Safe earth connection elements for railway applications

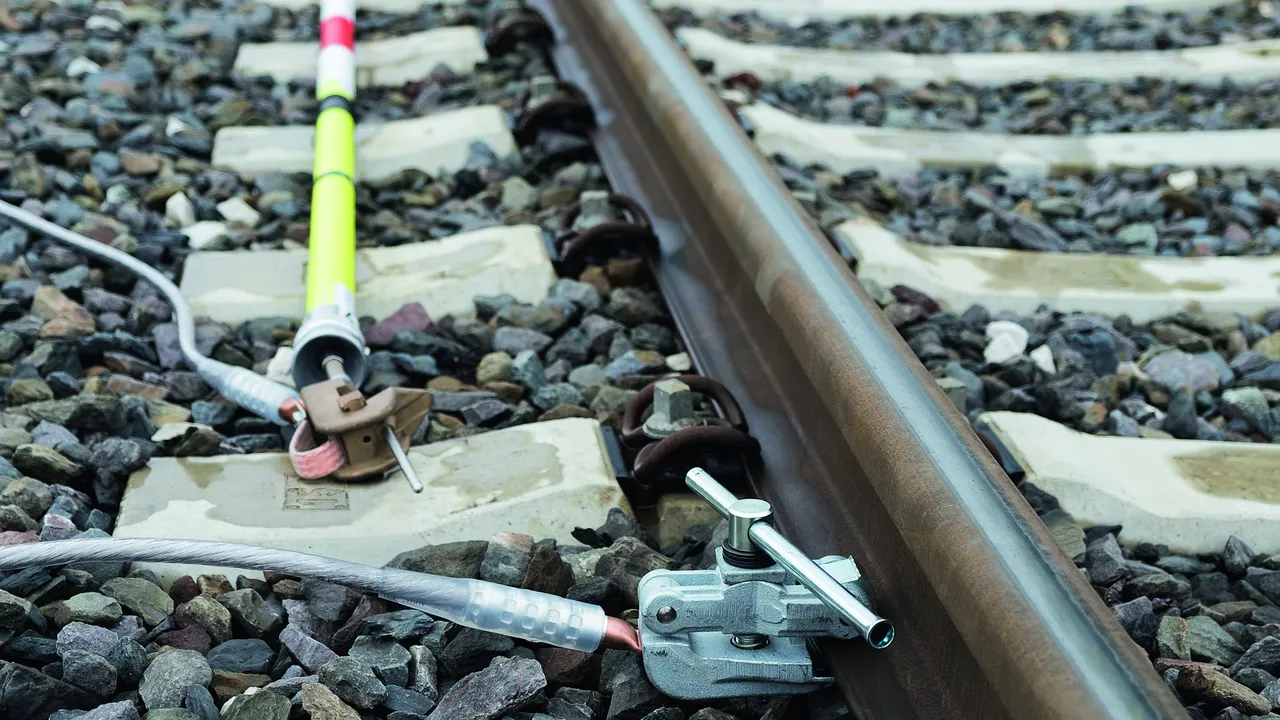

Zacisk do szyn z pokrętłem T-kształtnym

With detachable tommy bar (locking spring).
For profile-free earthing of track profiles S49, S54, S64 and UIC60.

2 Products

Part No. 792450 SAK PFE KN

GTIN 4013364051744, Customs tariff No. (EU): 85359000, Gross weight: 2.77 kg, PU: 1.00 szt.

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.53
DB material No. 157 535

Product 792450 was added to Notepad.

Go to Notepad

Product 792450 was added to the cart.

Go to Web-Shop

Part No. 792451 SAK PFE KN AB29

GTIN 4013364230170, Customs tariff No. (EU): 85359000, Gross weight: 2.77 kg, PU: 1.00 szt.

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. Ebgw 01.82

Product 792451 was added to Notepad.

Go to Notepad

Product 792451 was added to the cart.

Go to Web-Shop

Zacisk do szyn z kluczem zapadkowym

With detachable ratchet.
For profile-free earthing of track profiles S49, S54, S64 and UIC60.

2 Products

Part No. 792455 SAK PFE ARA

GTIN 4013364376724, Customs tariff No. (EU): 85359000, Gross weight: 3.01 kg, PU: 1.00 szt.

Predecessor

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.53
DB material No. 157 549

Product 792455 was added to Notepad.

Go to Notepad

Product 792455 was added to the cart.

Go to Web-Shop

Part No. 792456 SAK PFE ARA AB29

GTIN 4013364446625, Customs tariff No. (EU): 85359000, Gross weight: 3.15 kg, PU: 1.00 szt.

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. Ebgw 01.83

Product 792456 was added to Notepad.

Go to Notepad

Product 792456 was added to the cart.

Go to Web-Shop

Zacisk uniwersalny, trzpień z poprzecznym kołkiem

T pin according to DIN 48087.

1 Product

Part No. 773251 UK K25 FL30 SQL

GTIN 4013364005990, Customs tariff No. (EU): 85359000, Gross weight: 901.00 g, PU: 1.00 szt.

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable cross section Cu 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 4 Ebgw 01.59
DB material No. 157 538

Product 773251 was added to Notepad.

Go to Notepad

Product 773251 was added to the cart.

Go to Web-Shop

Zacisk uniwersalny z uchwytem

1 Product

Part No. 774251 UK K25 FL30 HG

GTIN 4013364006003, Customs tariff No. (EU): 85359000, Gross weight: 955.00 g, PU: 1.00 szt.

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable cross section Cu 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 4 Ebgw 01.64
DB material No. 157 537

Product 774251 was added to Notepad.

Go to Notepad

Product 774251 was added to the cart.

Go to Web-Shop
