Jordingsklemmer til jernbaner

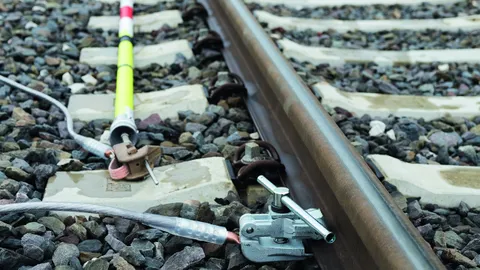

Sikker og jordsidet tilslutning for anvendelse ved jernbaner

Skinnetilslutningsklemme med håndtag

Med aftageligt håndtag (arterbar fjeder).
Jording af skinneprofil S49, S54, S64 og UIC60 uden profil.

2 Products

Part No. 792450 SAK PFE KN

GTIN 4013364051744, Customs tariff No. (EU): 85359000, Gross weight: 2.77 kg, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Ledermateriale Cu
Til ledertværsnit 50 mm2
Max. kortslutningsstrøm Ik 0,06 s 34,0 kA
DB tegnings-nr. 3 Ebgw 01.53 Bl. 1
DB materiale-nr. 157 535

Product 792450 was added to Notepad.

Go to Notepad

Product 792450 was added to the cart.

Go to Web-Shop

Part No. 792451 SAK PFE KN AB29

GTIN 4013364230170, Customs tariff No. (EU): 85359000, Gross weight: 2.77 kg, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Ledermateriale Al
Til ledertværsnit 70 mm2
Max. kortslutningsstrøm Ik 0,06 s 32,0 kA
DB tegnings-nr. Ebgw 01.82

Product 792451 was added to Notepad.

Go to Notepad

Product 792451 was added to the cart.

Go to Web-Shop

Skinnetilslutningsklemme med skralde

Med aftagelig skralde.
Jording af skinneprofil S49, S54, S64 og UIC60 uden profil.

2 Products

Part No. 792455 SAK PFE ARA

GTIN 4013364376724, Customs tariff No. (EU): 85359000, Gross weight: 3.01 kg, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information



Technical data

Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Ledermateriale Cu
Til ledertværsnit 50 mm2
Max. kortslutningsstrøm Ik 0,06 s 32,0 kA
DB tegnings-nr. 3 Ebgw 01.53 Bl. 2

Product 792455 was added to Notepad.

Go to Notepad

Product 792455 was added to the cart.

Go to Web-Shop

Part No. 792456 SAK PFE ARA AB29

GTIN 4013364446625, Customs tariff No. (EU): 85359000, Gross weight: 3.15 kg, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Ledermateriale Al
Til ledertværsnit 70 mm2
Max. kortslutningsstrøm Ik 0,06 s 32,0 kA
DB tegnings-nr. 3 Ebgw 01.83-1

Product 792456 was added to Notepad.

Go to Notepad

Product 792456 was added to the cart.

Go to Web-Shop

Universalklemme med bajonetfatning

Bajonetfatning efter DIN 48087.

1 Product

Part No. 773251 UK K25 FL30 SQL

GTIN 4013364005990, Customs tariff No. (EU): 85359000, Gross weight: 901.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Til kuglehoved Ø 25 / 30 mm
Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Til ledertværsnit Cu 50 mm2
Max. kortslutningsstrøm Ik 0,06 s 34,0 kA
DB tegnings-nr. 4 Ebgw 01.59
DB materiale-nr. 157 538
*) see Table clamping range and max. cable cross-section for universal clamps

Product 773251 was added to Notepad.

Go to Notepad

Product 773251 was added to the cart.

Go to Web-Shop

Universalklemme med håndtag

1 Product

Part No. 774251 UK K25 FL30 HG

GTIN 4013364006003, Customs tariff No. (EU): 85359000, Gross weight: 955.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Til kuglehoved Ø 25 / 30 mm
Fordrejningsbeskyttelse PK2 (Ø10,5 mm)
Til ledertværsnit Cu 50 mm2
Max. kortslutningsstrøm Ik 0,06 s 34,0 kA
DB tegnings-nr. 4 Ebgw 01.64
DB materiale-nr. 157 537

Product 774251 was added to Notepad.

Go to Notepad

Product 774251 was added to the cart.

Go to Web-Shop
