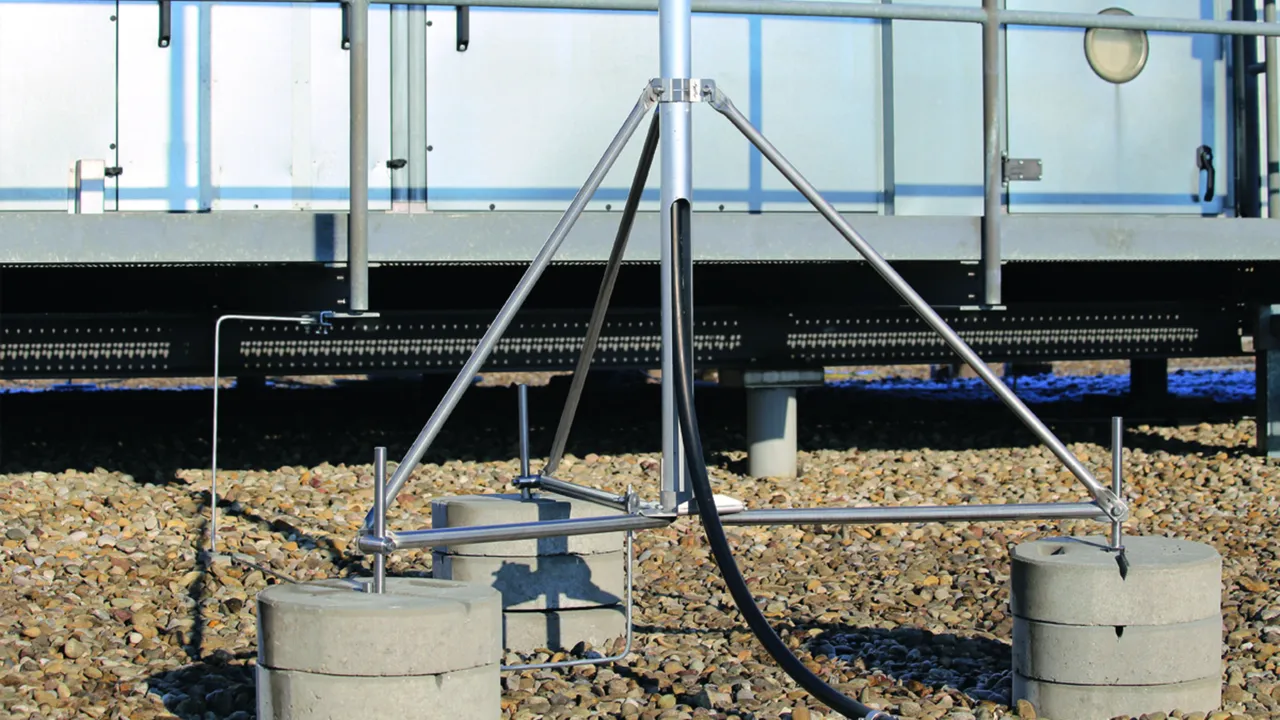

Tripods for Supporting Tubes with Side Outlet

Special design for supporting tube with HVI Conductor installed inside the supporting tube, with side outlet and double clamp for connection of 2x Rd 8-10 mm.
Adjustable to a roof inclination up to max. 5°

The stackable concrete base (Part No. 102 012) and the base plate (Part No. 102 050) as well as the threaded rod kits (Part Nos. 105 396-105 398 or Part Nos. 105 496-105 498) must to be ordered separately.

Note: Please contact us to find out whether the material of the roof conductor holder or base plate is compatible with the roof elements.

Tripod, small

1 Product

Part No. 105390 DBS KB D50 HS RA600 V2A

GTIN 4013364156944, Customs tariff No.: 85389099, Gross weight: 7.07 kg, PU: 1.00 pc(s)

Images

Additional information

Small tripod, StSt (hinged)
Hinged tripod for supporting tubes D 50 mm with side outlet and double clamp for connecting 2x Rd 8-10 mm
To be installed in conjunction with concrete bases (weight: 17 kg)
Adaptation to roof inclinations up max. 5° by means of the M16 threaded rod
The stackable concrete base (Part No. 102 010), the base plate (Part No. 102 050) as well as the threaded rod sets (Part Nos. 105 396 - Part Nos. 105 398) must be ordered separately
Tripods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Material: StSt
Support: 50 mm
Radius: 600 mm

Brand: DEHN
Type: DBS KB D50 HS RA600 V2A
Part No.: 105390
or equivalent.



Technical data

Material StSt
Support 50 mm
Radius 600 mm
Space required for stand 1400 x 1200 mm

Product 105390 was added to Notepad.

Go to Notepad

Product 105390 was added to the cart.

Go to Web-Shop

Tripod, large

1 Product

Part No. 105391 DBS KB D50 HS RA1450 V2A

GTIN 4013364156951, Customs tariff No.: 85389099, Gross weight: 22.47 kg, PU: 1.00 pc(s)

Images

Additional information

Large tripod, StSt (hinged)
Hinged tripod for supporting tubes D 50 mm with side outlet and double clamp for connecting 2x Rd 8-10 mm
To be installed in conjunction with concrete bases (weight: 17 kg)
Adaptation to roof inclinations up max. 5° by means of the M16 threaded rod
The stackable concrete base (Part No. 102 010), the base plate (Part No. 102 050) as well as the threaded rod sets (Part Nos. 105 396 - Part No. 105 398) must be ordered separately
Tripods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Material: StSt
Support: 50 mm
Radius: 1450 mm

Brand: DEHN
Type: DBS KB D50 HS RA1450 V2A
Part No.: 105391
or equivalent.



Technical data

Material StSt
Support 50 mm
Radius 1450 mm
Space required for stand 2900 x 2500 mm

Product 105391 was added to Notepad.

Go to Notepad

Product 105391 was added to the cart.

Go to Web-Shop

Four-legged stand, small

1 Product

Part No. 105490 VBS KB D50 HS RA600 V2A

GTIN 4013364156968, Customs tariff No.: 85389099, Gross weight: 8.80 kg, PU: 1.00 pc(s)

Images

Additional information

Small four-legged stand, StSt (hinged)
Hinged four-legged stand for supporting tubes D 50 mm with side outlet and double clamp for connecting 2x Rd 8-10 mm
To be installed in conjunction with concrete bases (weight: 17 kg)
Adaptation to roof inclinations up max. 5° by means of the M16 threaded rod
The stackable concrete base (Part No. 102 010), the base plate (Part No. 102 050) as well as the threaded rod sets (Part Nos. 105 496 - 105 498) must be ordered separately
Four-legged stands are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Material: StSt
Support: 50 mm
Radius: 600 mm

Brand: DEHN
Type: VBS KB D50 HS RA600 V2A
Part No.: 105490
or equivalent.



Technical data

Material StSt
Support 50 mm
Radius 600 mm
Space required for stand 1200 x 1200 mm

Product 105490 was added to Notepad.

Go to Notepad

Product 105490 was added to the cart.

Go to Web-Shop

Four-legged stand, large

1 Product

Part No. 105491 VBS KB D50 HS RA1450 V2A

GTIN 4013364156975, Customs tariff No.: 85389099, Gross weight: 29.38 kg, PU: 1.00 pc(s)

Images

Additional information

Large four-legged stand, StSt (hinged)
Hinged four-legged stand for supporting tubes D 50 mm with side outlet and double clamp for connecting 2x Rd 8-10 mm. To be installed in conjunction with concrete bases (weight: 17 kg)
Adaptation to roof inclinations up max. 5° by means of the M16 threaded rod
The stackable concrete base (Part No. 102 010), the base plate (Part No. 102 050) as well as the threaded rod sets (Part Nos. 105 496 - 105 498) must be ordered separately.
Four-legged stands are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Material: StSt
Support: 50 mm
Radius: 1450 mm

Brand: DEHN
Type: VBS KB D50 HS RA1450 V2A
Part No.: 105491
or equivalent.



Technical data

Material StSt
Support 50 mm
Radius 1450 mm
Space required for stand 2400 x 2400 mm

Product 105491 was added to Notepad.

Go to Notepad

Product 105491 was added to the cart.

Go to Web-Shop
