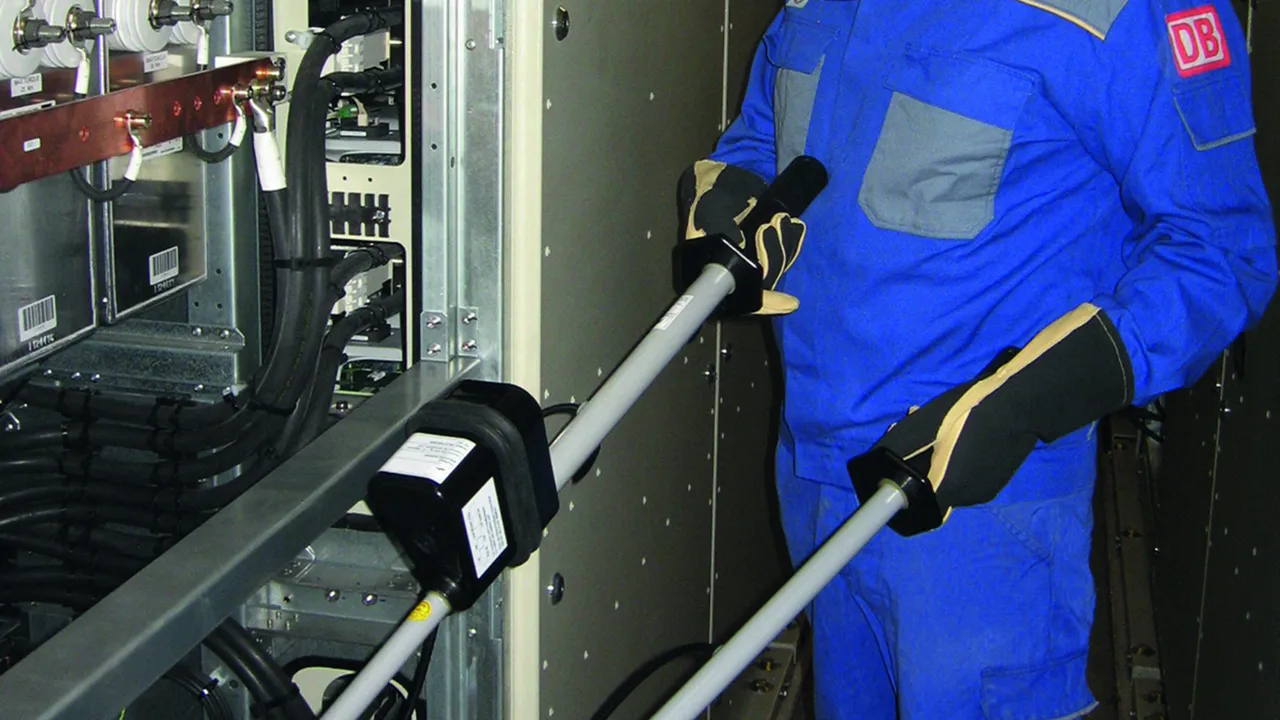

PHE/G d.c. Voltage Detector

Safe verification of isolation from supply voltage
  • For use in direct voltage systems (electrified rail networks, d.c. links)
  • Reliable indication
  • Easy to use due to compact design
  • User-friendly

Details

lorem ipsum

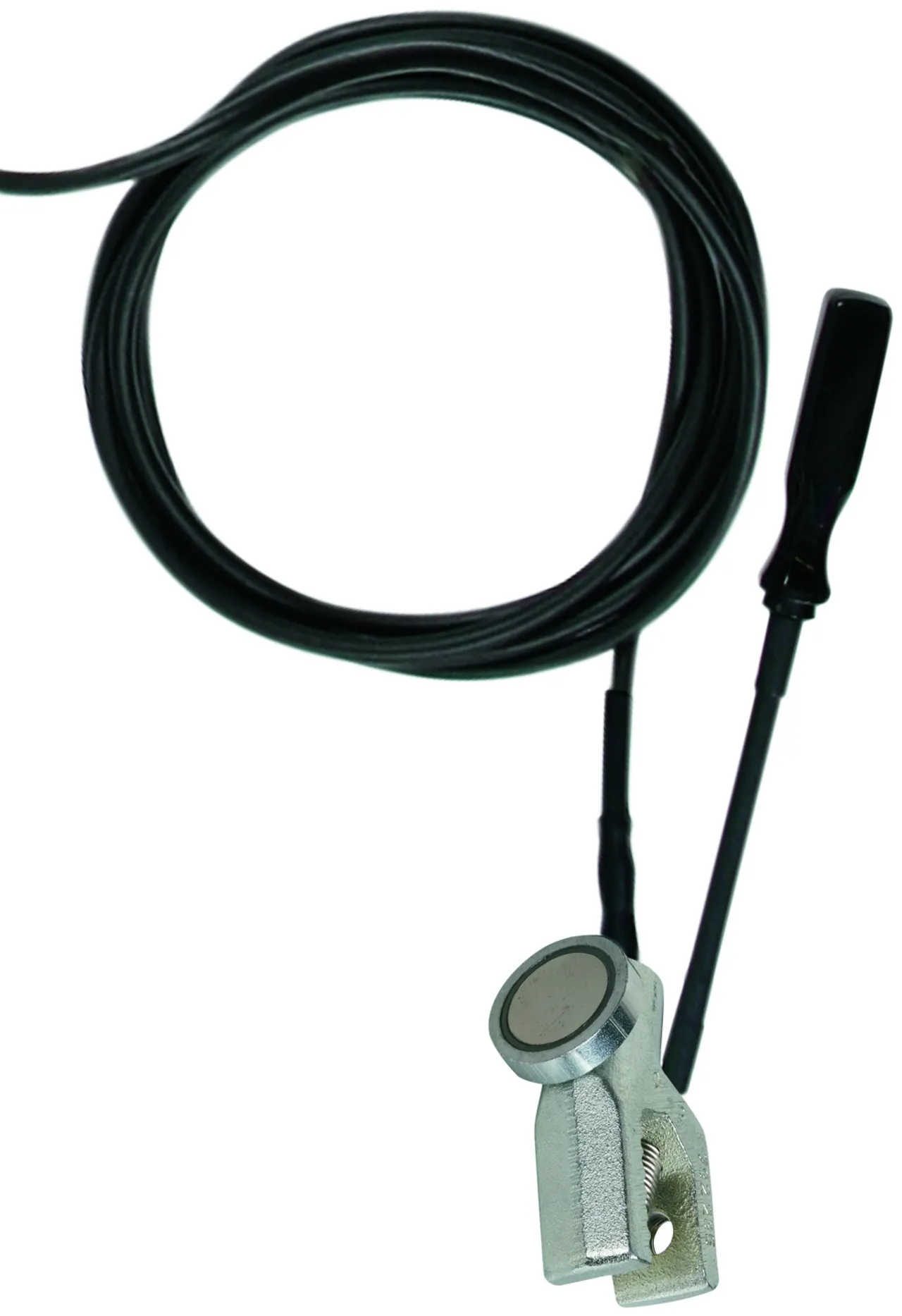

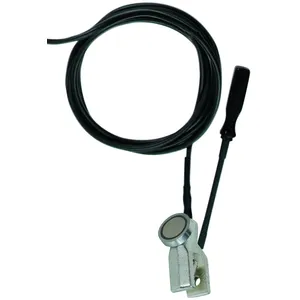

Earth clamp with adjustable handle and magnet
lorem ipsum

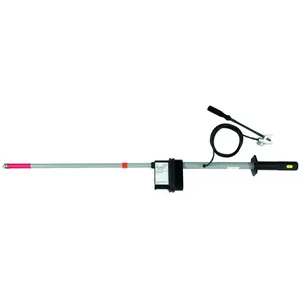

PHE/G I for Overhead Contact Lines, positive pole on indicator with test prod

One stick (three elements)

  • For direct voltage systems with earthed negative pole
  • Positive pole: Indicator with test prod
  • Negative pole: Earth clamp

1 Product

Part No. 767610 PHEG1 FD P 3

GTIN 4013364135208, Customs tariff No. (EU): 90303370, Gross weight: 5.10 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 1.1 kV
Nominal voltage (UN ) 3.0 kV
Length (earthing cable) 6000 mm
Total length (lG ) 4125 mm

Product 767610 was added to Notepad.

Product 767610 was added to the cart.


PHE/G I for Overhead Contact Lines, nagative pole on indicator with test prod

One stick (four elements)

  • For d.c. voltage systems with earthed positive pole
  • Negative pole: Indicator with test prod
  • Positive pole: Earth clamp

1 Product

Part No. 767614 PHEG1 FD M SN7223

GTIN 4013364135307, Customs tariff No. (EU): 90303370, Gross weight: 7.55 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 0.825 kV
Nominal voltage (UN ) 1.65 kV
Length (earthing cable) 8000 mm
Total length (lG ) 4060 mm

Product 767614 was added to Notepad.

Product 767614 was added to the cart.

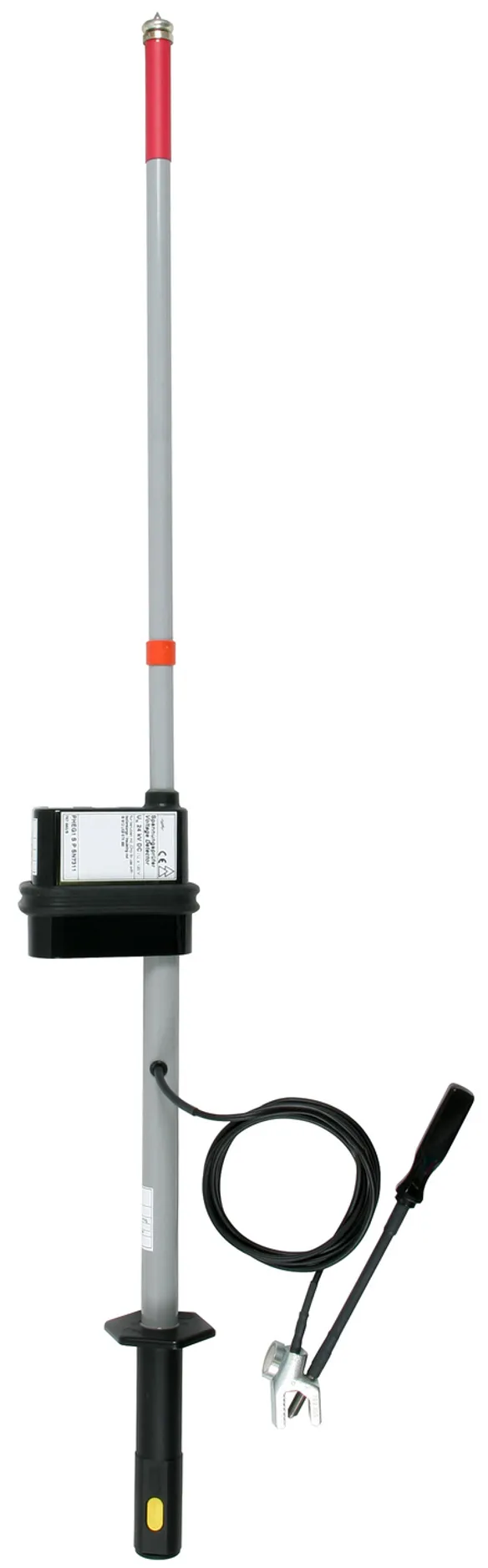

PHE/G I for Switchgear Installations, positive pole on indicator with test prod

One stick

  • For direct voltage systems with earthed negative pole
  • Positive pole: indicator with test prod
  • Negative pole: earth clamp with magnet

1 Product

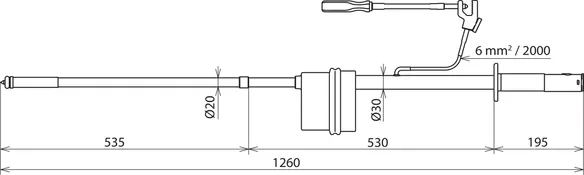

Part No. 767666 PHEG1.S P SN7401

GTIN 4013364157071, Customs tariff No. (EU): 90303370, Gross weight: 2.90 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 24 kV
Length (earthing cable) 2000 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 535 mm

Product 767666 was added to Notepad.

Product 767666 was added to the cart.

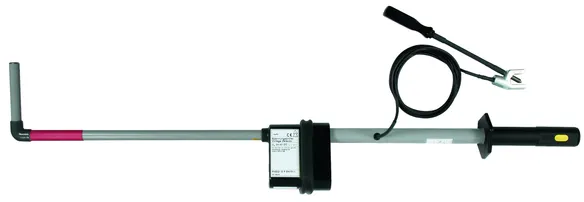

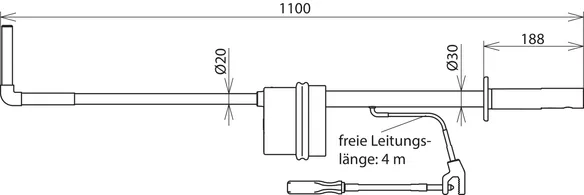

PHE/G I for Switchgear Installations, positive pole on indicator with test prod, angled

One stick

  • For direct voltage systems with earthed negative pole
  • Positive pole: Indicator with test prod
  • Negative pole: Earth clamp

1 Product

Part No. 767636 PHEG1 S P SN7240

GTIN 4013364155886, Customs tariff No. (EU): 90303370, Gross weight: 3.01 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 60 V
Nominal voltage (UN ) 3.8 kV
Length (earthing cable) 4000 mm
Total length (lG ) 1100 mm

Product 767636 was added to Notepad.

Product 767636 was added to the cart.

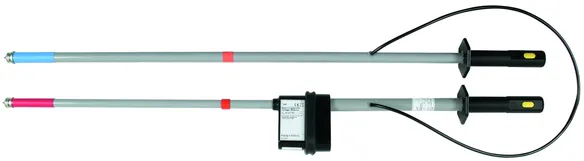

PHE/G II for Switchgear Installations

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links
  • Positive pole: Indicator with test prod
  • Negative pole: Insulating stick

2 Products

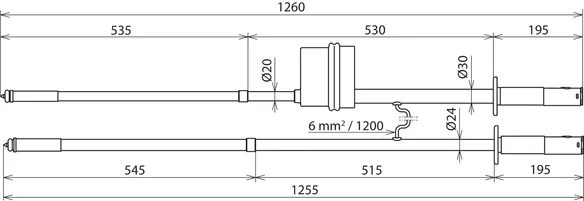

Part No. 767671 PHEG2.P SN7517

GTIN 4013364156807, Customs tariff No. (EU): 90303370, Gross weight: 3.30 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 90 V
Nominal voltage (UN ) 1 ... 24 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 545 mm

Product 767671 was added to Notepad.

Product 767671 was added to the cart.

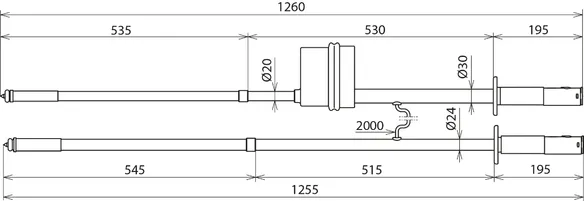

Part No. 767681 PHEG2.P SN7629

GTIN 4013364153165, Customs tariff No. (EU): 90303370, Gross weight: 2.60 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 24 kV
Length (connecting cable) 2000 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 545 mm

Product 767681 was added to Notepad.

Product 767681 was added to the cart.

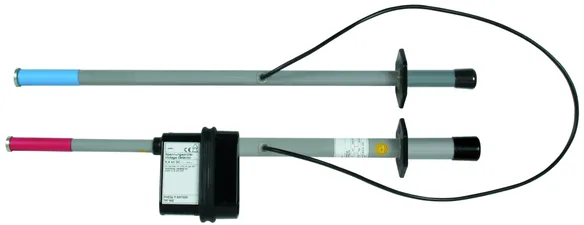

PHE/G II for Switchgear Installations and DC Links

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links (e.g. electric locomotives; Part No. 767 647)
  • Positive pole: Indicator with test prod
  • Negative pole: Insulating stick

4 Products

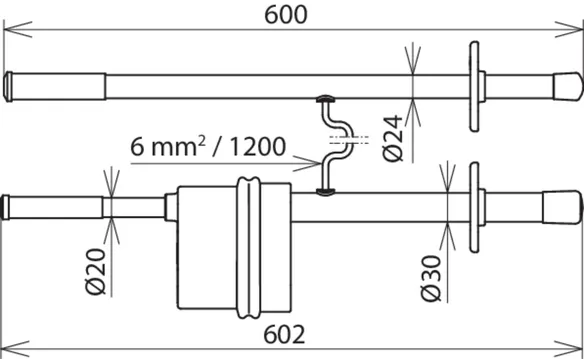

Part No. 767647 PHEG2 P SN7552

GTIN 4013364156081, Customs tariff No. (EU): 90303370, Gross weight: 2.80 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 90 V
Nominal voltage (UN ) 1 ... 4.2 kV
Length (connecting cable) 1200 mm
Total length (lG ) 600 mm

Product 767647 was added to Notepad.

Product 767647 was added to the cart.

Part No. 767645 PHEG2 P SN7259

GTIN 4013364156067, Customs tariff No. (EU): 90303370, Gross weight: 3.30 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 12 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

Product 767645 was added to Notepad.

Product 767645 was added to the cart.

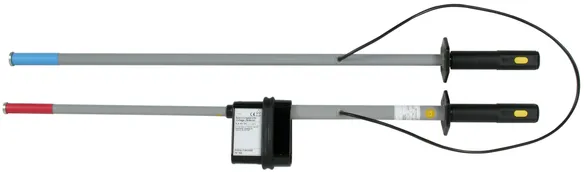

Part No. 767640 PHEG2 P SN7407

GTIN 4013364155978, Customs tariff No. (EU): 90303370, Gross weight: 2.88 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 350 V
Nominal voltage (UN ) 600 ... 750 V
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

Product 767640 was added to Notepad.

Product 767640 was added to the cart.

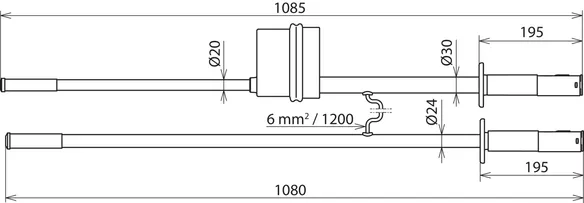

Part No. 767637 PHEG2 P SN7194

GTIN 4013364155879, Customs tariff No. (EU): 90303370, Gross weight: 2.80 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 750 V
Nominal voltage (UN ) 1.5 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

Product 767637 was added to Notepad.

Product 767637 was added to the cart.

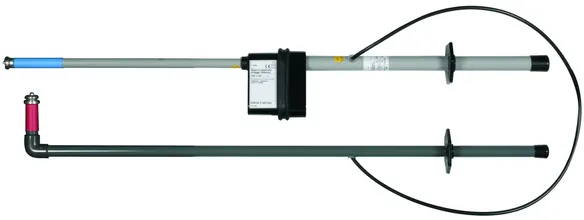

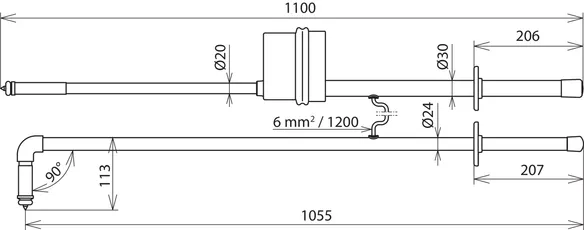

PHE/G II, angled positive pole

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links
  • Positive pole: Insulating stick
  • Negative pole: Test prod

1 Product

Part No. 767639 PHEG2 P SN7346

GTIN 4013364155817, Customs tariff No. (EU): 90303370, Gross weight: 3.10 kg, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Threshold voltage (Ut ) 150 V
Nominal voltage (UN ) 750 V
Length (connecting cable) 1200 mm
Total length (lG ) 1100 mm

Product 767639 was added to Notepad.

Product 767639 was added to the cart.
