DEHNcap Test Adapter

Easy and safe testing
  • Easy mechanical and electrical adaptation to HR, LR test sockets
  • Measuring impedance for maintenance tests on coupling systems with suitable µA meter
  • 4 mm safety plugs or sockets
  • Energised HR plug, insulated

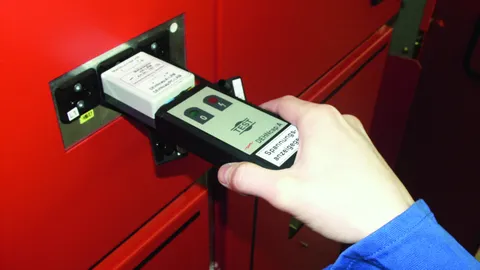

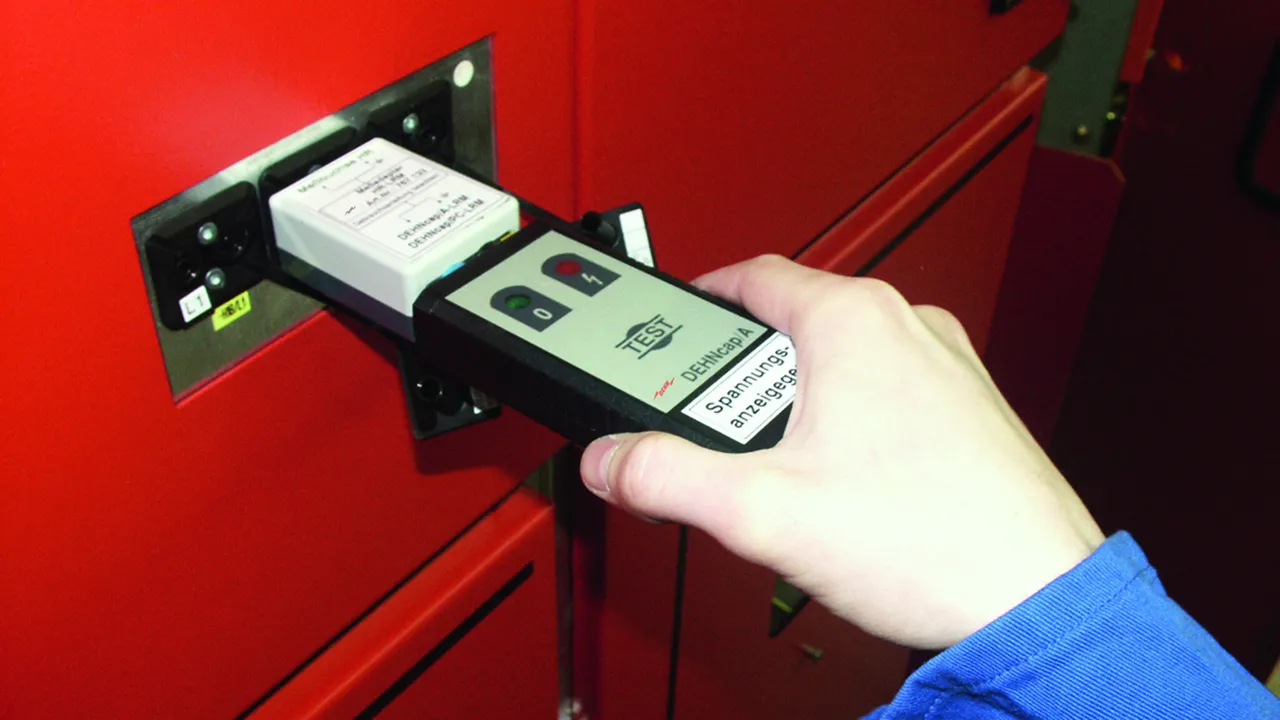

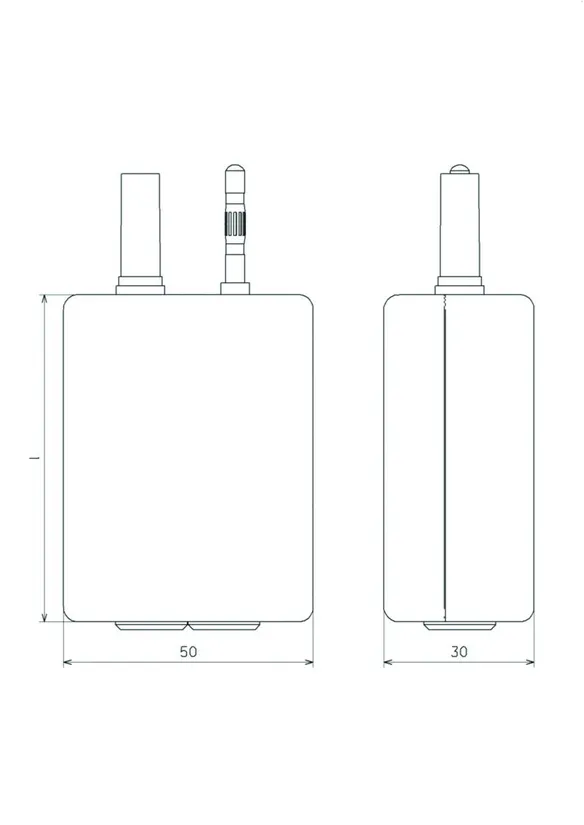

HR-LRM Test Adapter

For electrical and mechanical adaptation of HR (HO) to LRM systems.
Used as a measuring impedance with XC = 36 MOhms for maintenance tests on HR coupling systems (with suitable µA meter).

1 Product

Part No. 767133 MA DCA HR LRM

GTIN 4013364073494, Customs tariff No. (EU): 90309000, Gross weight: 97.50 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions 90 x 50 x 30 mm
Plug spacing 19 mm
Socket spacing 14 mm
Type of plug 2 multilam plugs (Ø4 mm)
Type of test socket 2 sockets (Ø4 mm)

Product 767133 was added to Notepad.

Go to Notepad

Product 767133 was added to the cart.

Go to Web-Shop

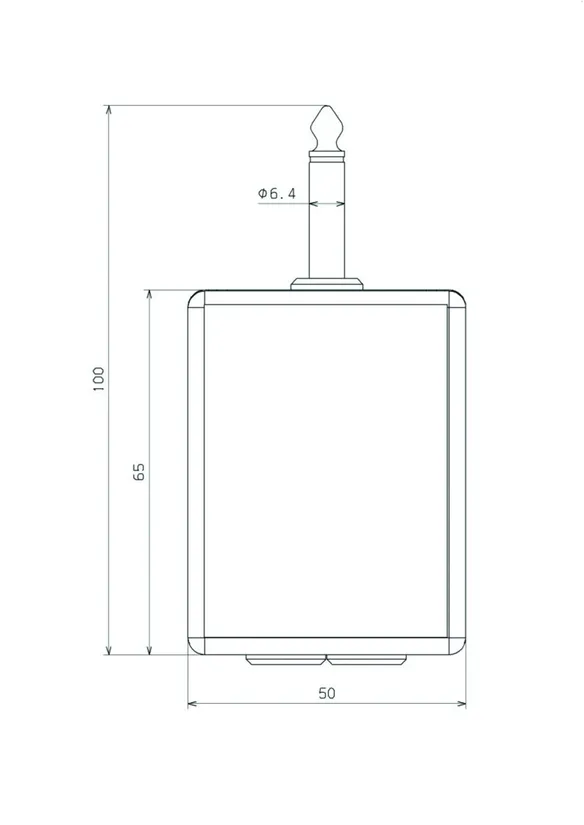

LR-LRM Test Adapter

For mechanical adaptation of LR (NO) to LRM systems.

1 Product

Part No. 767136 MA DCA LR LRM

GTIN 4013364081109, Customs tariff No. (EU): 90309000, Gross weight: 65.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions 100 x 50 x 30 mm
Plug spacing jack, 6.3 mm
Socket spacing 14 mm
Type of plug 1 jack
Type of test socket 2 sockets (Ø4 mm)
