Conductor Holders for Installation on Walls

Conductor holder

1 Product

Part No. 275252 LH ZS 20 23 B5.5X10 V2A

GTIN 4013364155626, Customs tariff No.: 85389099, Gross weight: 49.00 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Wall-mounted conductor holder with slotted hole, StSt
Conductor holder with two-screw clamp
for HVI Conductors / CUI Conductors, e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm
Fixing hole: 5.5 x 10 mm
Standard: EN 62561-4

Brand: DEHN
Type: LH ZS 20 23 B5.5X10 V2A
Part No.: 275252
or equivalent.



Technical data

Material of conductor holder StSt
Conductor support Rd 20 / 23 mm
Fixing hole 5.5 x 10 mm
Standard EN 62561-4

Product 275252 was added to Notepad.

Product 275252 was added to the cart.


Conductor holder

1 Product

Part No. 275259 LH ZS 20 23 KS H10 V2A

GTIN 4013364155633, Customs tariff No.: 85389099, Gross weight: 52.00 g, PU: 25.00 pc(s)


Images

Additional information

Wall-mounted conductor holder with plastic base, StSt
Conductor holder with two-screw clamp
for HVI Conductors / CUI Conductors including plastic base, e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm
Thread: M8
Standard: EN 62561-4

Brand: DEHN
Type: LH ZS 20 23 KS H10 V2A
Part No.: 275259
or equivalent.



Technical data

Material of conductor holder StSt
Conductor support Rd 20 / 23 mm
Thread M8
Standard EN 62561-4

Product 275259 was added to Notepad.

Product 275259 was added to the cart.


Conductor holder

2 Products

Part No. 275251 LH ZS 20 23 GM6 V2A

GTIN 4013364155619, Customs tariff No.: 85389099, Gross weight: 49.00 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Wall-mounted conductor holder with thread, StSt, M6
Conductor holder with two-screw clamp
for HVI Conductors / CUI Conductors, e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm
Thread: M6
Standard: EN 62561-4

Brand: DEHN
Type: LH ZS 20 23 GM6 V2A
Part No.: 275251
or equivalent.



Technical data


Product 275251 was added to Notepad.

Product 275251 was added to the cart.

Part No. 275250 LH ZS 20 23 GM8 V2A

GTIN 4013364155602, Customs tariff No.: 85389099, Gross weight: 49.00 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

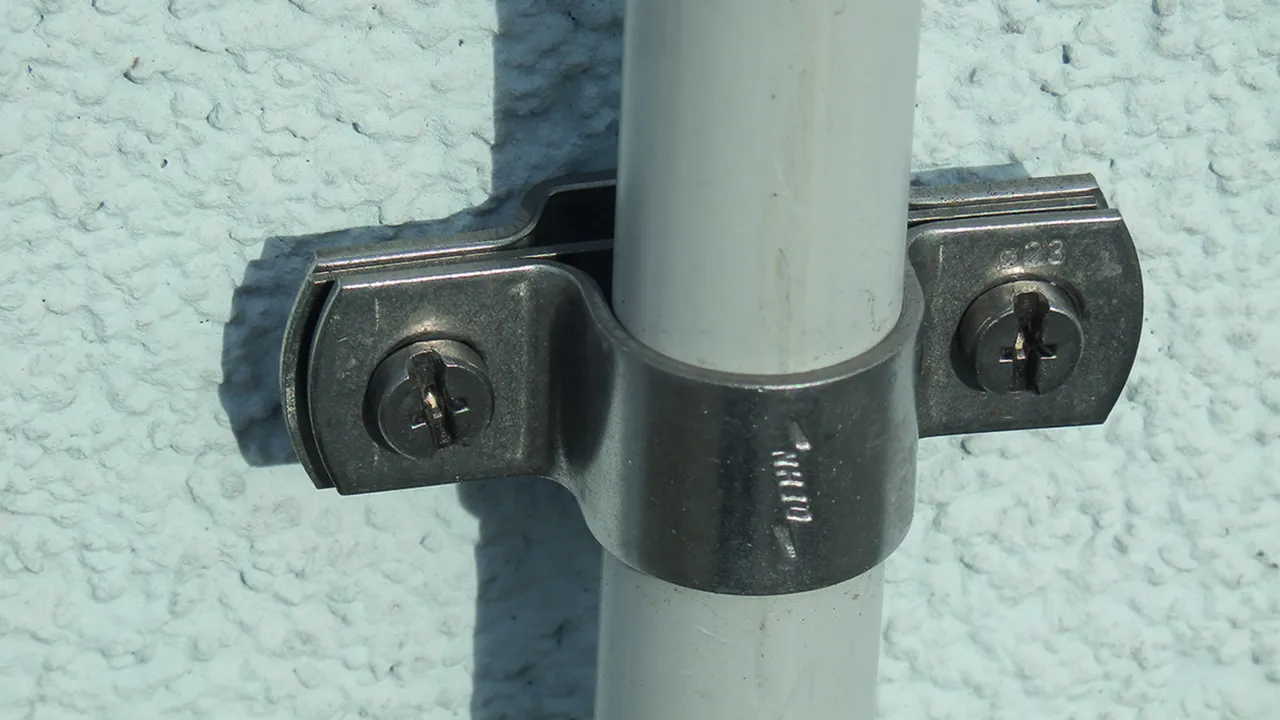

Wall-mounted conductor holder with thread, StSt, M8
Conductor holder with two-screw clamp
for HVI Conductors / CUI Conductors, e.g. for wall mounting
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm
Thread: M8
Standard: EN 62561-4

Brand: DEHN
Type: LH ZS 20 23 GM8 V2A
Part No.: 275250
or equivalent.



Technical data


Product 275250 was added to Notepad.

Product 275250 was added to the cart.


Conductor holder for HVI conductor

1 Product

Part No. 275220 LH ZS 20 H19 IGM8 GR PA

GTIN 4013364103450, Customs tariff No.: 85389099, Gross weight: 20.00 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Conductor holder for HVI Conductors, black
Conductor holder for HVI Conductor
For mounting of the HVI Conductor (black) e.g. on walls and within the sealing end range
Material of conductor holder: PA
Conductor support Rd: 20 mm
Female thread: M8
Fixing hole: 6.5 mm

Brand: DEHN
Type: LH ZS 20 H19 IGM8 GR PA
Part No.: 275220
or equivalent.



Technical data

Material of conductor holder PA
Conductor support Rd 20 mm
Female thread M8
Fixing hole 6.5 mm

Product 275220 was added to Notepad.

Product 275220 was added to the cart.
