Connection Elements for HVI long Conductor

Connection element for HVI long Conductor

1 Product

Part No. 819650 AE BO10 KF HVI 75 V2A

GTIN 4013364534377, Customs tariff No. (EU): 85359000, Gross weight: 193.30 g, PU: 10.00 pc(s)

Images

Additional information

Connection element for HVI long Conductor, stainless steel
Connection elements for HVI long Conductor for sealing
the HVI long Conductor on both ends,
for establishing the connections of the conductor
e.g. to the connection plate on the air-termination mast
or to other parts of the external lightning protection system.
Incl. heat-shrinkable sleeve
Material: StSt
Connection: bolt Ø10 mm, L 50 mm

Brand: DEHN
Type: AE BO10 KF HVI 75 V2A
Part No.: 819650
or equivalent.



Technical data

Material StSt
Connection bolt Ø10 mm, L 50 mm
Diameter Ø connection element 23 mm

Product 819650 was added to Notepad.

Go to Notepad

Product 819650 was added to the cart.

Go to Web-Shop

Connection kit for HVI long Conductor for installation inside the tube

1 Product

Part No. 819655 HVI LO ASS RIV KF V2A

GTIN 4013364534384, Customs tariff No. (EU): 85359000, Gross weight: 401.50 g, PU: 1.00 pc(s)

Images

Additional information

Connection kit for HVI long Conductor, Ø 21 mm, for installation inside the tube, stainless steel
Connection elements for sealing the HVI long Conductor at both ends
Material: StSt
Connection: bolt Ø10 mm, L 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LO ASS RIV KF V2A
Part No.: 819655
or equivalent.



Technical data

Material StSt
Connection bolt Ø10 mm, L 50 mm
Diameter Ø connection element 23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819655 was added to Notepad.

Go to Notepad

Product 819655 was added to the cart.

Go to Web-Shop

EB connection element for HVI long Conductor

For discharging the electric field of the HVI long Conductor in the sealing end range.
Special slotted design to electrically contact the semi-conductive sheath.

1 Product

Part No. 410229 PAE 20 23 AB11 V2A

GTIN 4013364107731, Customs tariff No. (EU): 85359000, Gross weight: 72.00 g, PU: 1.00 pc(s)

Images

Additional information

EB connection element for HVI long Conductors, StSt
EB connection element for HVI long Conductor for discharging the electrical field of HVI Conductor
in the sealing end range.
Special slotted design to electrically contact the semi-conductive sheath.
Material: StSt
Clamping range Ø: 20 mm
Connection hole Ø: 11 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: PAE 20 23 AB11 V2A
Part No.: 410229
or equivalent.

Certificates



Technical data

Material StSt
Clamping range Ø 20 mm
Connection hole Ø 11 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 410229 was added to Notepad.

Go to Notepad

Product 410229 was added to the cart.

Go to Web-Shop

Fixing kit for HVI long Conductor black / grey

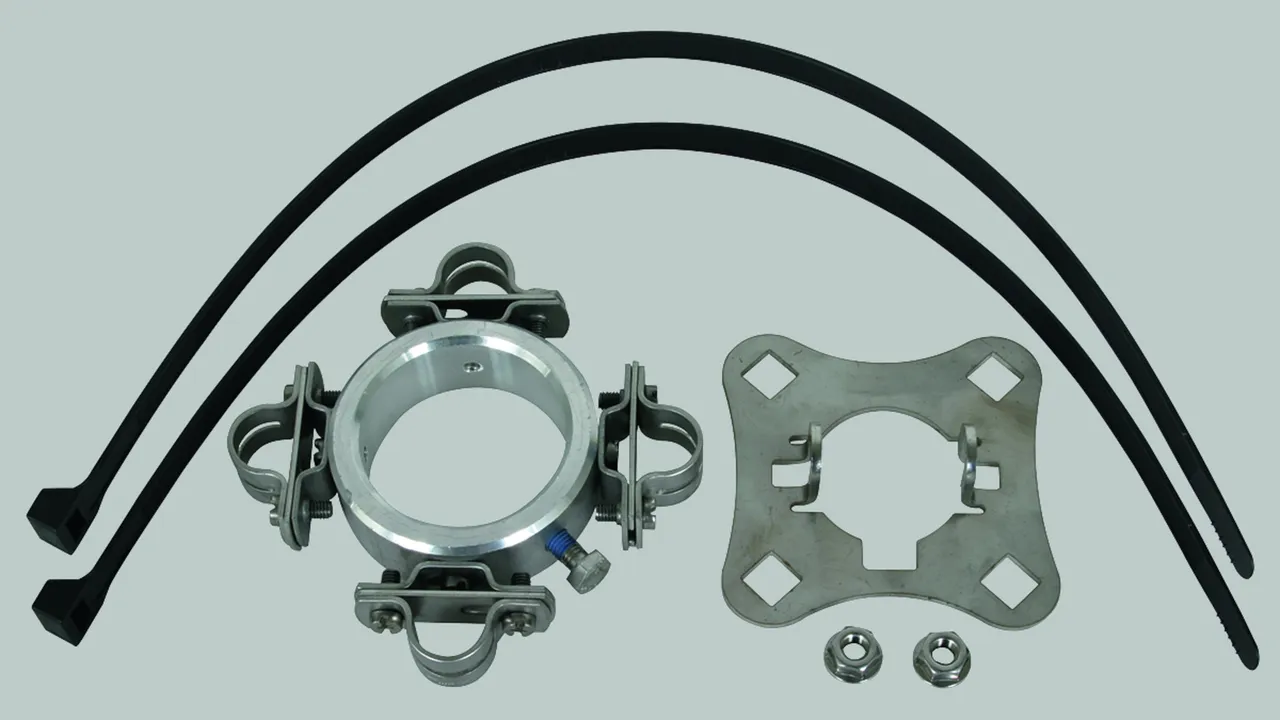

Fixing kit for installation of the HVI long Conductor on HVI long supporting tubes, consisting of a connection plate (4x, including two self-locking nuts with serrated bearings) and a fixing ring with four slotted conductor holders (Ø20 mm) for the sealing end (including two cable ties with plastic holder halves).

1 Product

Part No. 819294 BFS D61 4X20

GTIN 4013364152571, Customs tariff No. (EU): 85389099, Gross weight: 780.80 g, PU: 1.00 pc(s)

Images

Additional information

Fixing kit for HVI long Conductors, D 20mm, StSt / Al
Fixing kit for mounting the HVI long Conductor at the supporting tube D 50 mm, consisting of a connection plate (for four conductors, two lock nuts included) and a fixing ring with four slotted conductor holders for the sealing end (two cable ties included).
Material: StSt / Al
Connection plate support: square hole 13 mm
Conductor holder: 4 x 20 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: BFS D61 4X20
Part No.: 819294
or equivalent.

Certificates



Technical data

Material StSt / Al
Connection plate support square hole 13 mm
Conductor holder 4 x 20 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819294 was added to Notepad.

Go to Notepad

Product 819294 was added to the cart.

Go to Web-Shop

Connection plate

Connection plate (4x, including two self-locking nuts with serrated bearings) for installing the HVI long Conductor on the supporting tube Ø50 mm (e.g. part no. 105 330, 105 331, 105 332, 105 333).

1 Product

Part No. 819288 AP SR D50 4AE HVI V2A

GTIN 4013364236479, Customs tariff No. (EU): 85389099, Gross weight: 176.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Connecting plate, StSt
Connecting plate (for four conductors, including two self-locking nuts with serrated bearing) for installing a HVI long Conductor on the supporting tube, D 50 mm (e.g. Part No. 105 330, 105 331, 105 332, 105 333).
Material: StSt
Connection plate support: square hole 13
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: AP SR D50 4AE HVI V2A
Part No.: 819288
or equivalent.

Certificates



Technical data

Material StSt
Connection plate support square hole 13
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819288 was added to Notepad.

Go to Notepad

Product 819288 was added to the cart.

Go to Web-Shop

Supporting tube collar for noise reduction

1 Product

Part No. 819235 SCHIRM HVI SCH RED

GTIN 4013364477216, Customs tariff No. (EU): 85389099, Gross weight: 109.60 g, PU: 1.00 pc(s)

Images

Additional information

Supporting tube collar for noise reduction
for the internally installed HVI long Conductor
Ø20 mm and Ø23 mm in the supporting tube
Material: Plastic
Can be used for: HVI long black and HVI long grey
conductor diameter Ø: 20 / 23 mm

Brand: DEHN
Type: SCHIRM HVI SCH RED
Part No.: 819235
or equivalent.

Certificates



Technical data

Material Plastic
Can be used for HVI long black and HVI long grey
conductor diameter Ø 20 / 23 mm

Product 819235 was added to Notepad.

Go to Notepad

Product 819235 was added to the cart.

Go to Web-Shop
