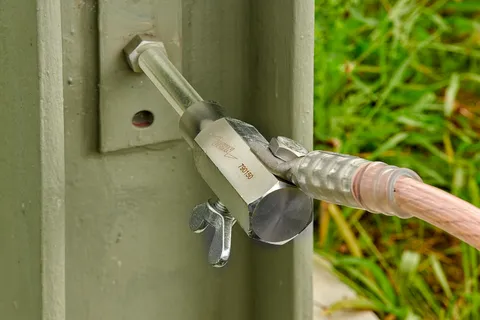

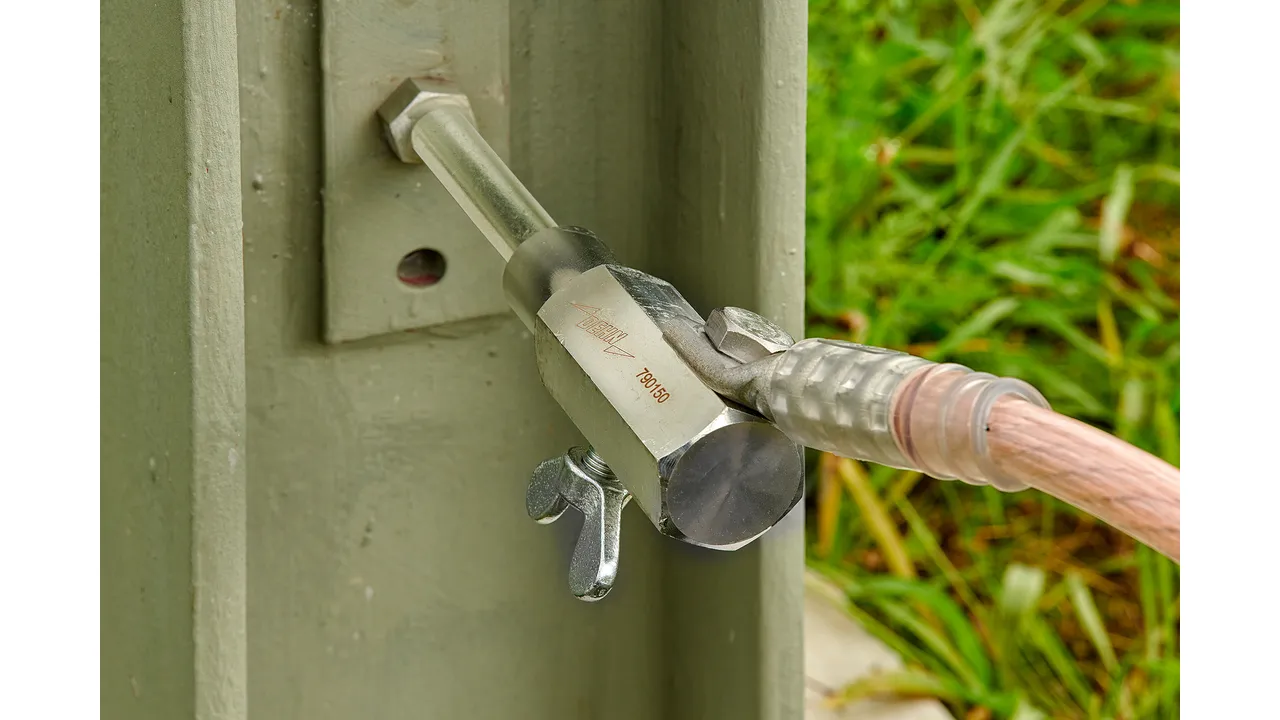

Puntos de anclaje de toma de tierra

  • Para conectar casquillos de conexión a tierra o placas de conexión a tierra según DIN 48088-2
  • Para soldar o atornillar para la conexión de piezas de conexión a tierra con tuercas o tornillos de mariposa al lado de fase
  • Piezas de conexión con perno roscado M12 o M16
  • Rosca interior M12 o M16

Details

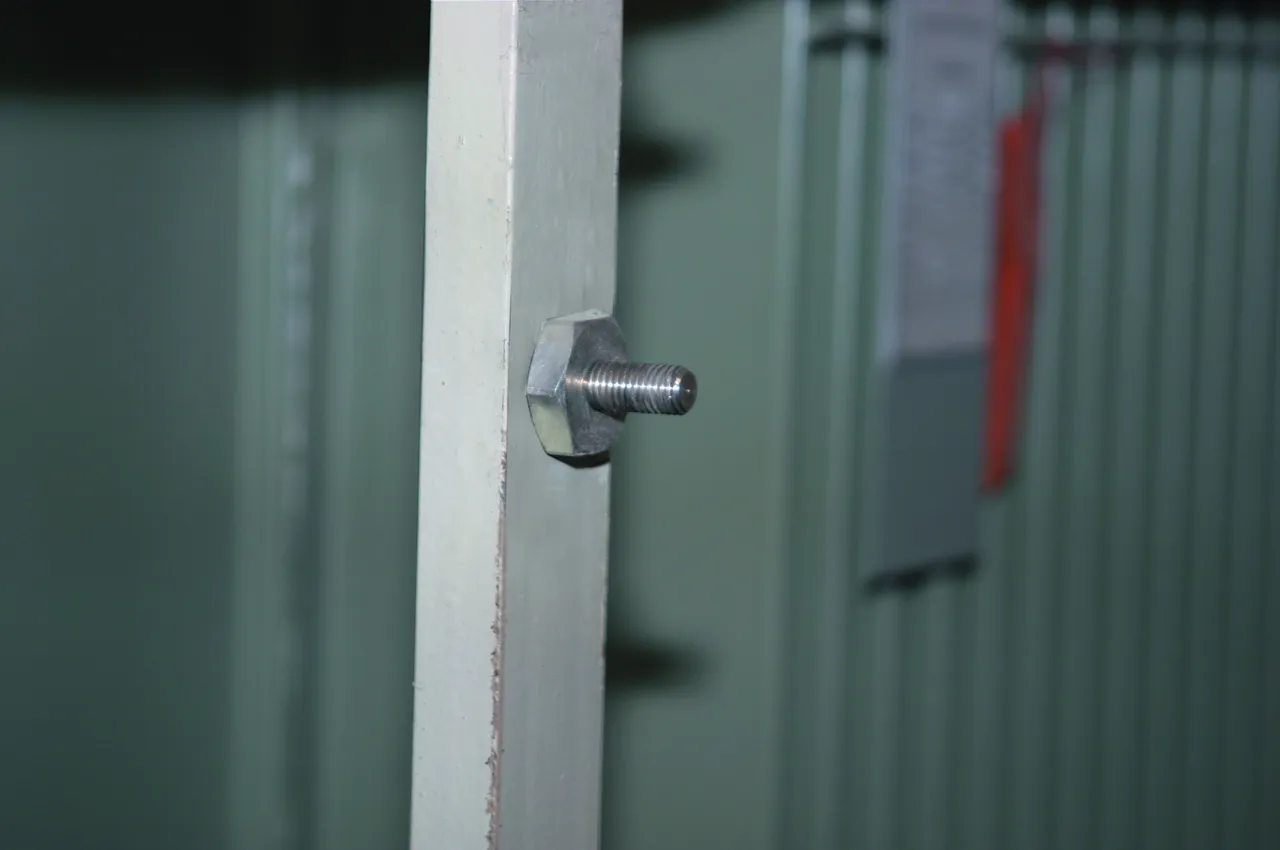

Pieza de conexión a tierra con perno roscado M12 para atornillar a una parte puesta a tierra de la instalación.
lorem ipsum

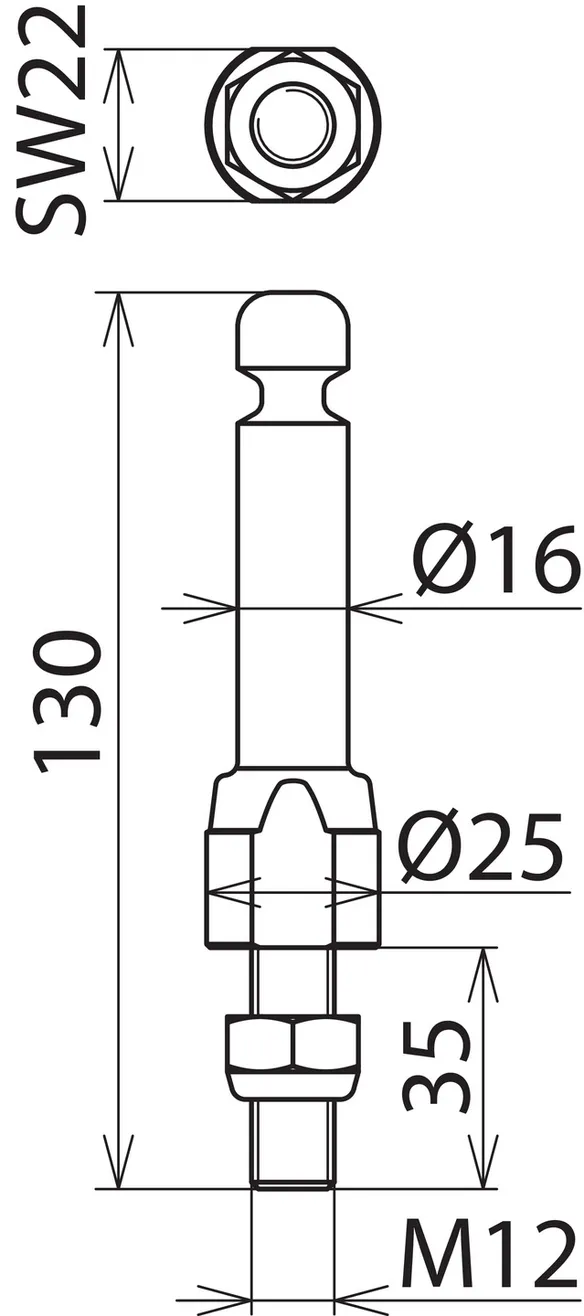

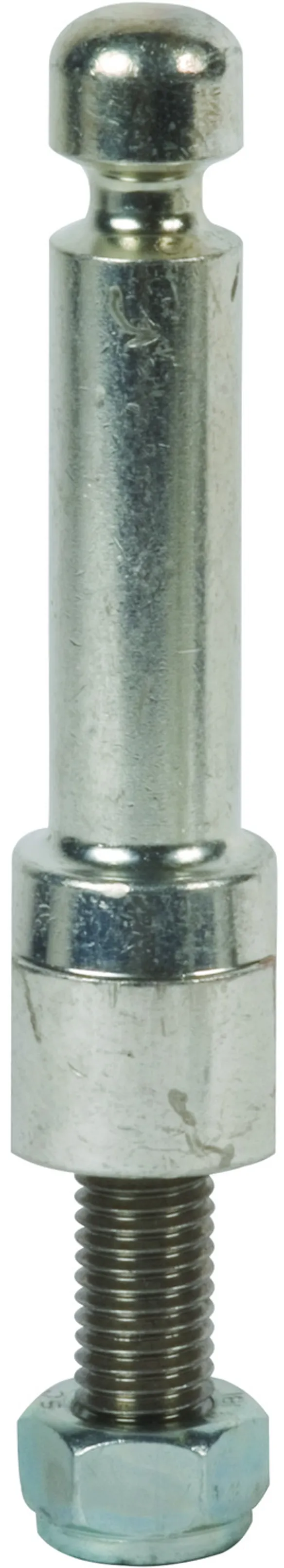

Punto de anclaje con ranura anular, con perno roscado y tuerca

2 Products

Part No. 790251 EFP 16 RN M12 35 SSM

GTIN 4013364089501, Customs tariff No. (EU): 85359000, Gross weight: 248.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12 x 35 mm
Diámetro 16 mm
Abertura de llave 22 mm
Sección máx. de cable Cu 150 mm²
Corriente máx. de cortocircuito Ik 0,5 s 42,0*) kA
Corriente máx. de cortocircuito Ik 1 s 29,6*) kA
Material latón (CuNi2Si) / gal Sn
Material del perno roscado INOX A2-70
Material de la tuerca DIN 985-M12-8 / gal Zn
*) Para dispositivos de puesta a tierra y cortocircuito con longitudes de cables > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790251 was added to Notepad.

Go to Notepad

Product 790251 was added to the cart.

Go to Web-Shop

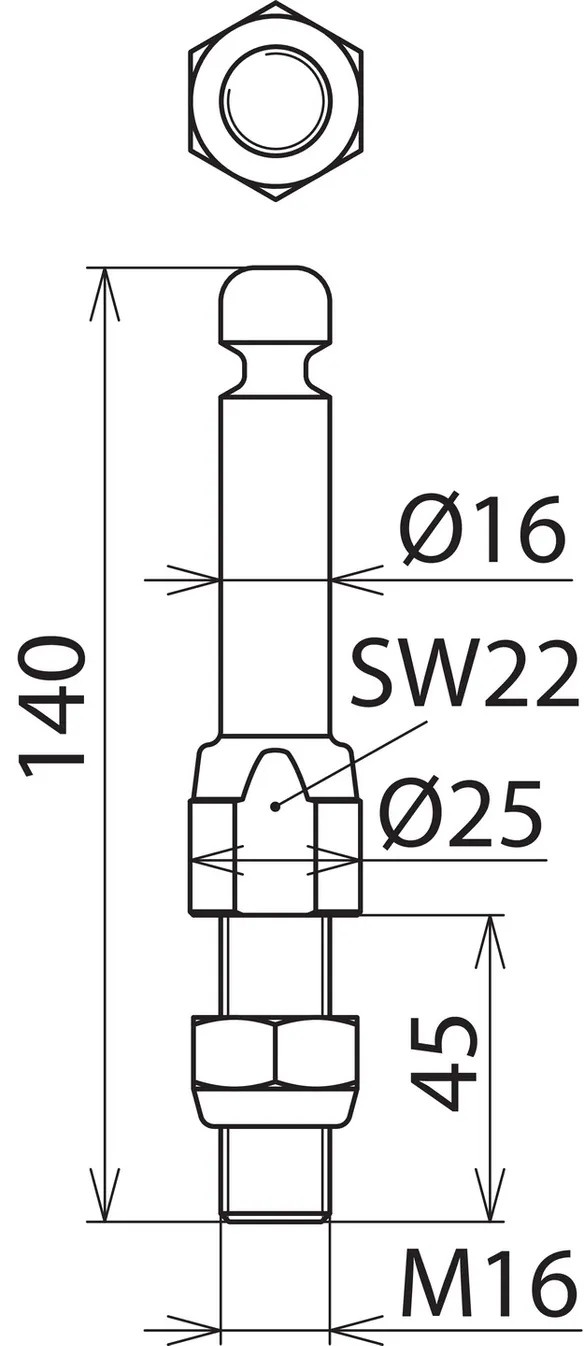

Part No. 790261 EFP 16 RN M16 45 SSM

GTIN 4013364089525, Customs tariff No. (EU): 85359000, Gross weight: 277.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M16 x 45 mm
Diámetro 16 mm
Abertura de llave 22 mm
Sección máx. de cable Cu 150 mm²
Corriente máx. de cortocircuito Ik 0,5 s 42,0*) kA
Corriente máx. de cortocircuito Ik 1 s 29,6*) kA
Material latón (CuNi2Si) / gal Sn
Material del perno roscado INOX A2-70
Material de la tuerca DIN 985-M16-8 / gal Zn
*) Para dispositivos de puesta a tierra y cortocircuito con longitudes de cables > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790261 was added to Notepad.

Go to Notepad

Product 790261 was added to the cart.

Go to Web-Shop

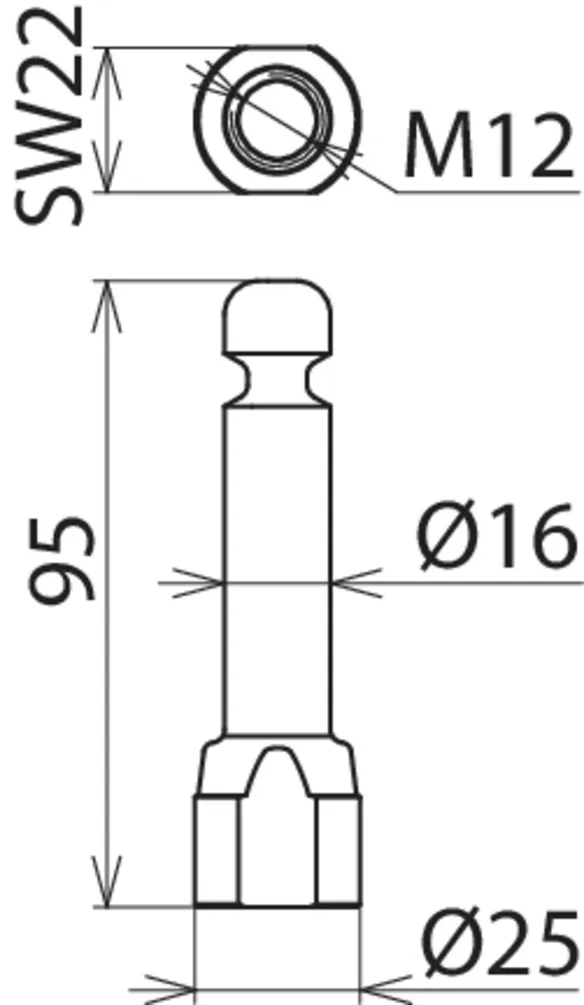

Punto de anclaje con ranura anular, con rosca interior

2 Products

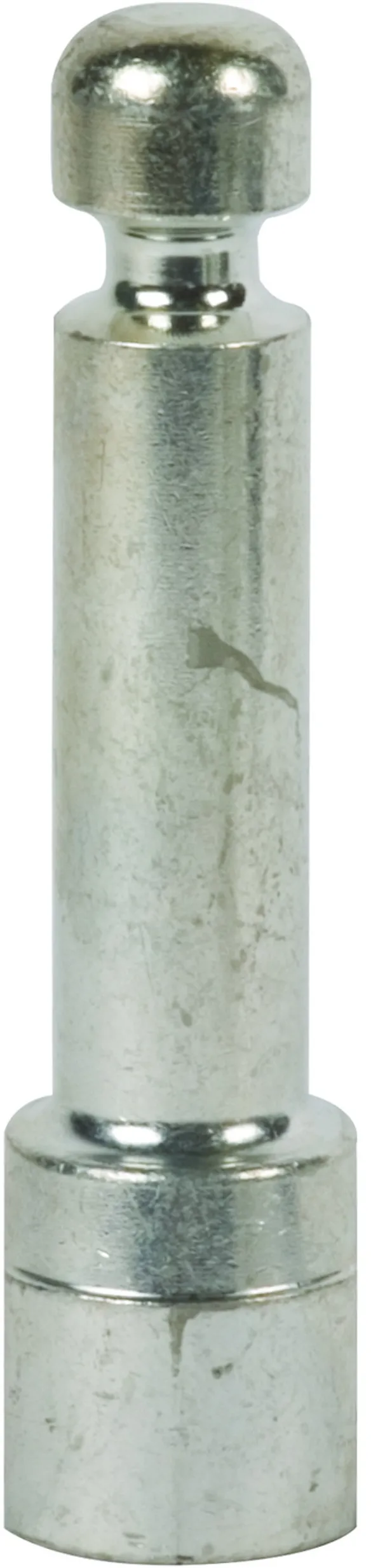

Part No. 790250 EFP 16 RN M12

GTIN 4013364089495, Customs tariff No. (EU): 85359000, Gross weight: 193.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12
Diámetro 16 mm
Abertura de llave 22 mm
Sección máx. de cable Cu 150 mm²
Corriente máx. de cortocircuito Ik 0,5 s 42,0*) kA
Corriente máx. de cortocircuito Ik 1 s 29,6*) kA
Material latón (CuNi2Si) / gal Sn
*) Para dispositivos de puesta a tierra y cortocircuito con longitudes de cable > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790250 was added to Notepad.

Go to Notepad

Product 790250 was added to the cart.

Go to Web-Shop

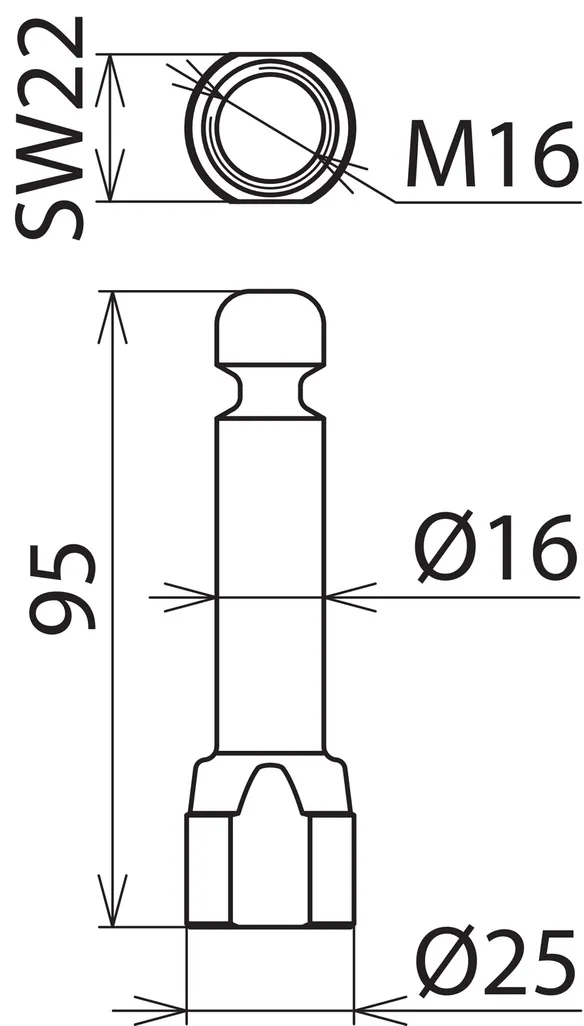

Part No. 790260 EFP 16 RN M16

GTIN 4013364089518, Customs tariff No. (EU): 85359000, Gross weight: 180.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M16
Diámetro 16 mm
Abertura de llave 22 mm
Sección máx. de cable Cu 150 mm²
Corriente máx. de cortocircuito Ik 0,5 s 42,0*) kA
Corriente máx. de cortocircuito Ik 1 s 29,6*) kA
Material latón (CuNi2Si) / gal Sn
*) Para dispositivos de puesta a tierra y cortocircuito con longitudes de cable > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790260 was added to Notepad.

Go to Notepad

Product 790260 was added to the cart.

Go to Web-Shop

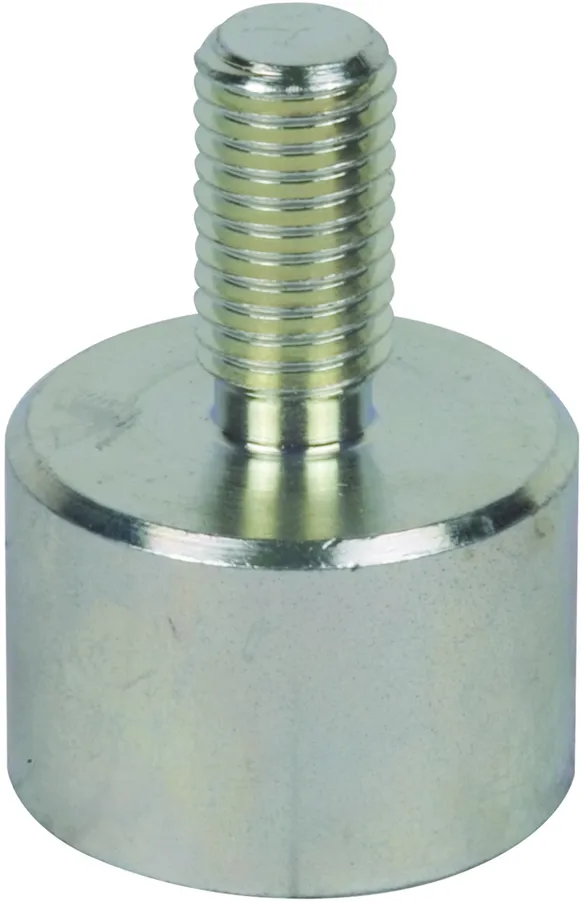

Pieza de conexión para soldadura, con perno roscado

2 Products

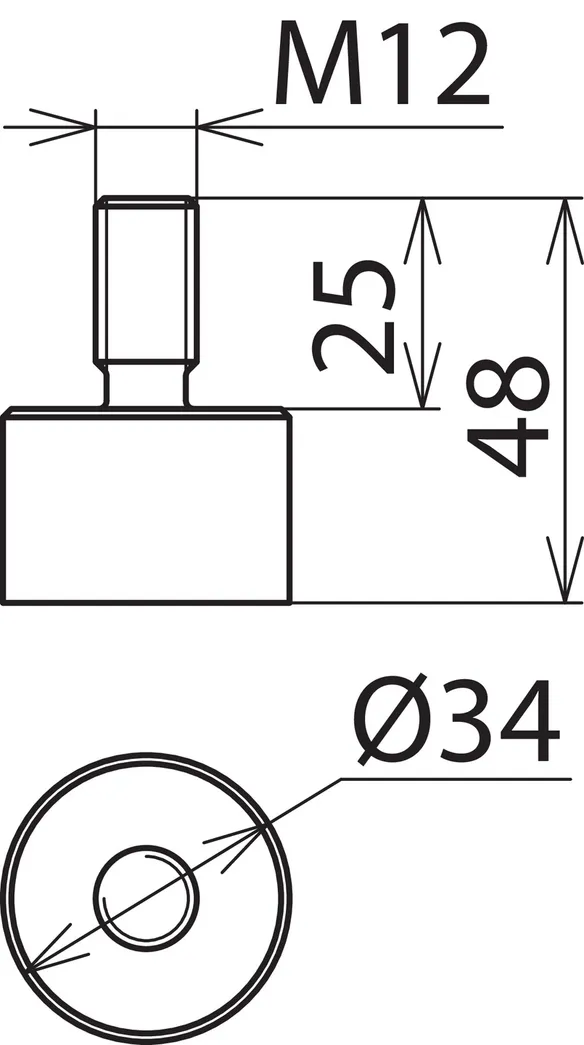

Part No. 705501 AS SCHW M12 25

GTIN 4013364003927, Customs tariff No. (EU): 85359000, Gross weight: 157.20 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12 x 25 mm
Material St/gal Zn

Product 705501 was added to Notepad.

Go to Notepad

Product 705501 was added to the cart.

Go to Web-Shop

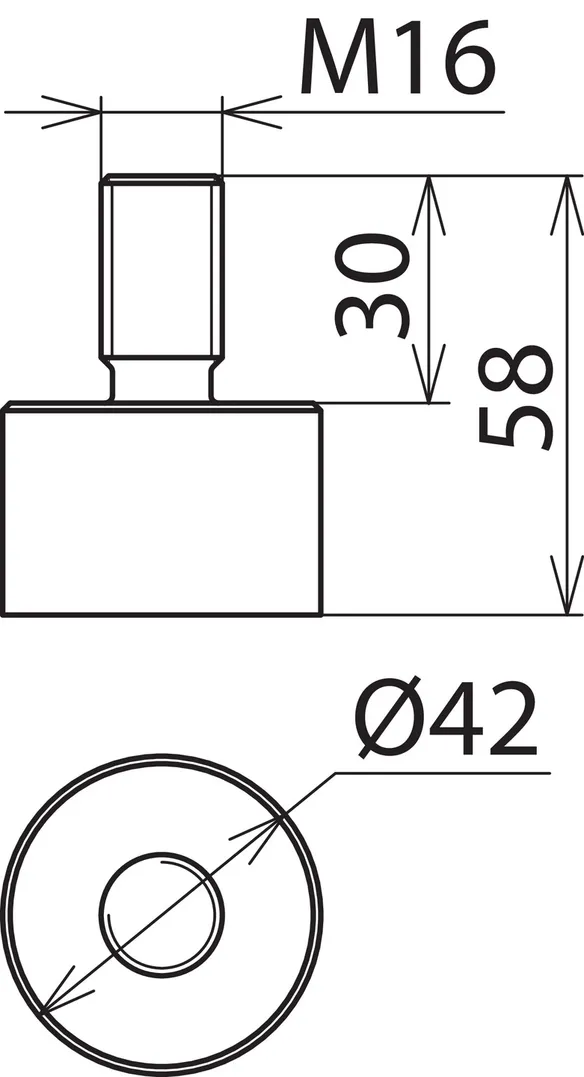

Part No. 755501 AS SCHW M16 30

GTIN 4013364003934, Customs tariff No. (EU): 85359000, Gross weight: 303.20 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M16 x 30 mm
Material St/gal Zn

Product 755501 was added to Notepad.

Go to Notepad

Product 755501 was added to the cart.

Go to Web-Shop

Pieza de conexión para soldadura, con rosca interior

2 Products

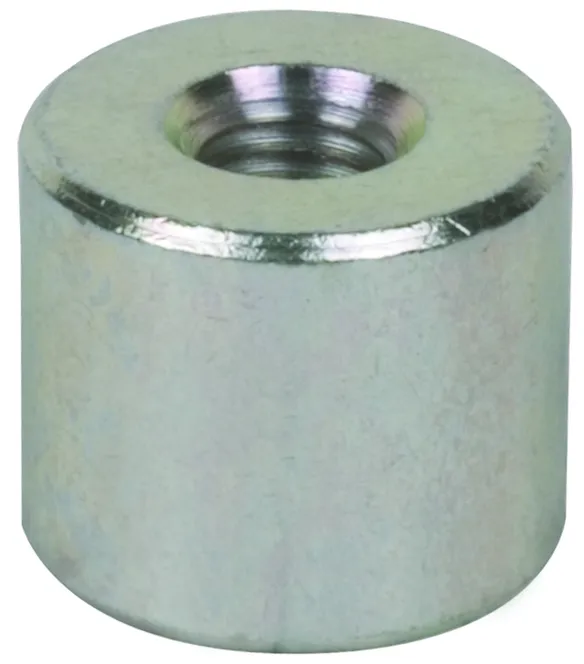

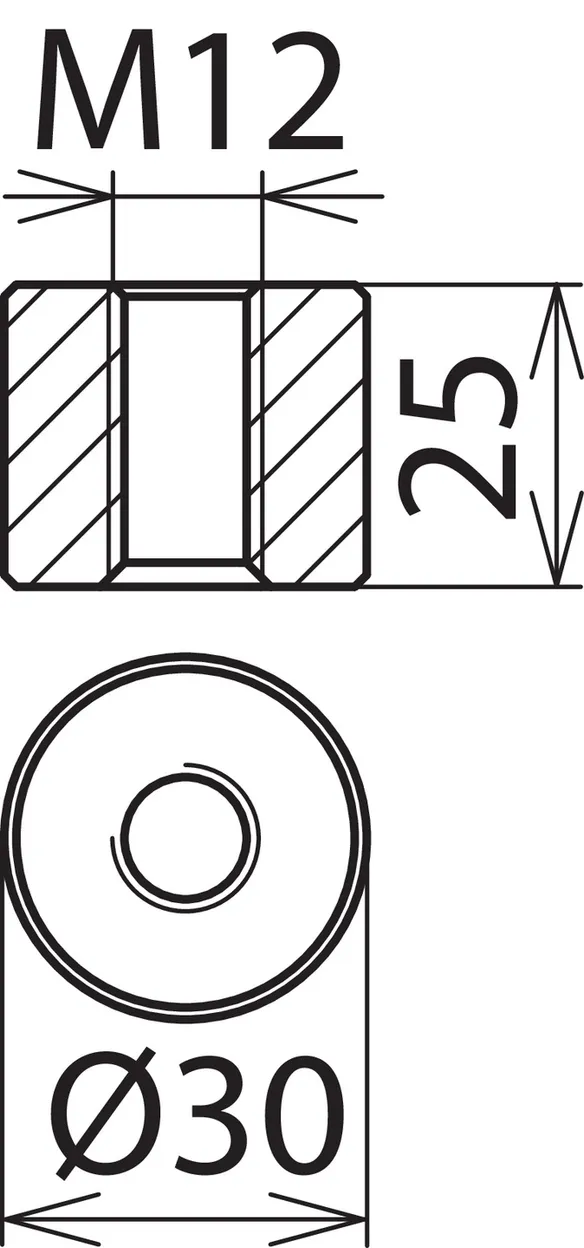

Part No. 336020 AS SCHW M12

GTIN 4013364003941, Customs tariff No. (EU): 85359000, Gross weight: 123.10 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12
Material St/gal Zn

Product 336020 was added to Notepad.

Go to Notepad

Product 336020 was added to the cart.

Go to Web-Shop

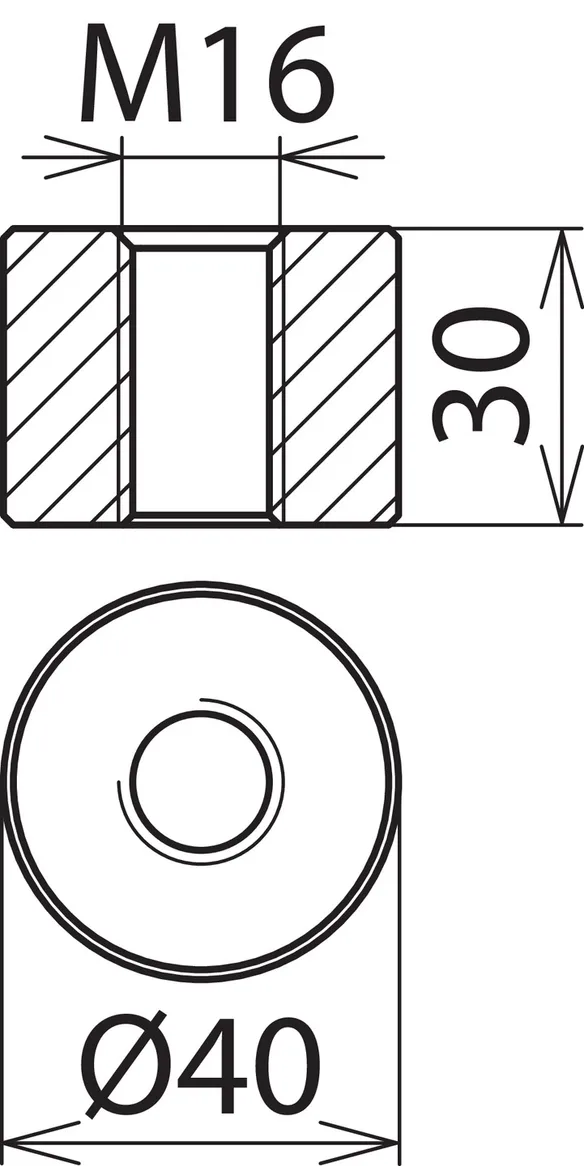

Part No. 336025 AS SCHW M16

GTIN 4013364003958, Customs tariff No. (EU): 85359000, Gross weight: 257.10 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M16
Material St/gal Zn

Product 336025 was added to Notepad.

Go to Notepad

Product 336025 was added to the cart.

Go to Web-Shop

Pieza de conexión para atornillar, con rosca interior

1 Product

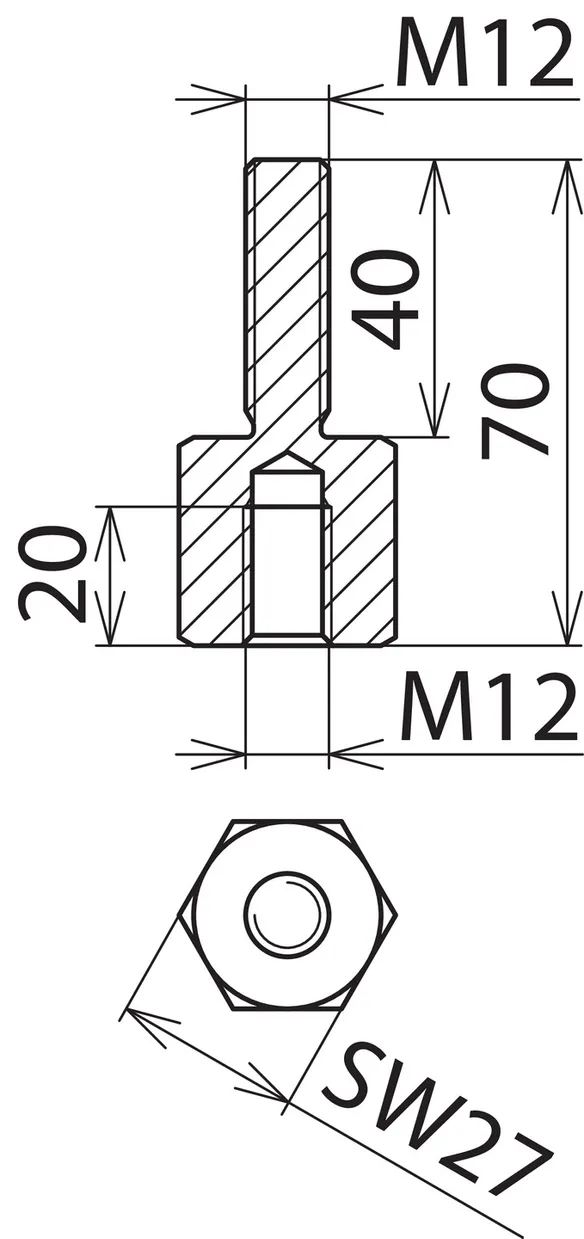

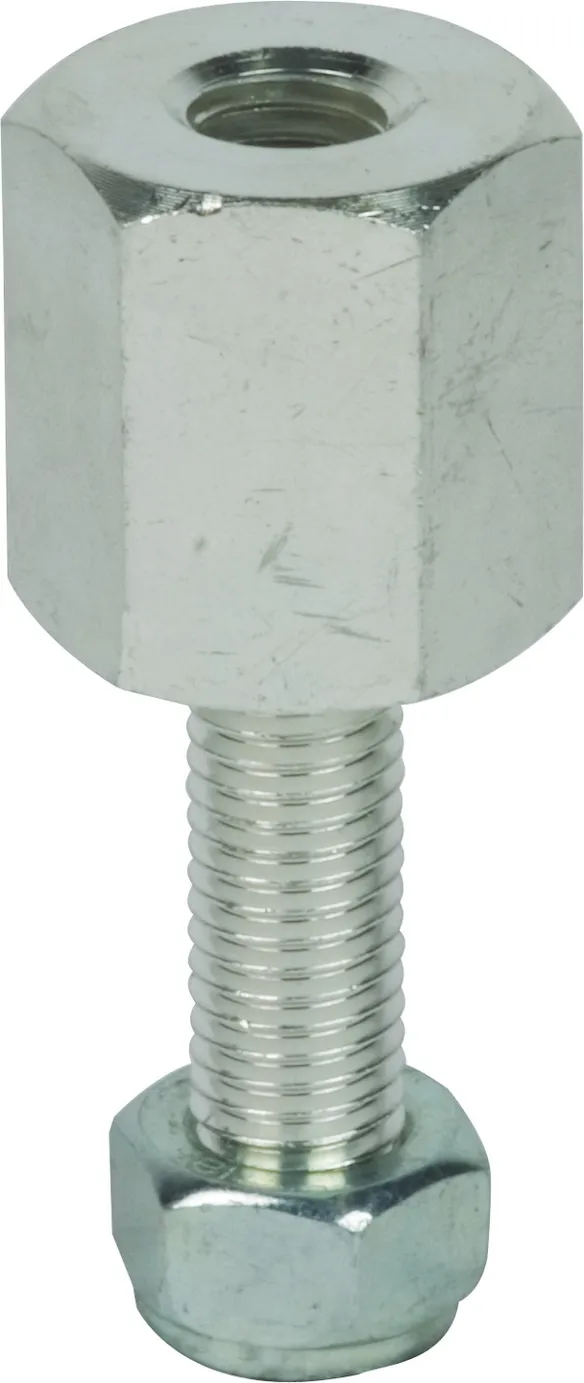

Part No. 705504 AS SCHR M12 M12 40

GTIN 4013364008021, Customs tariff No. (EU): 85389099, Gross weight: 183.20 g, PU: 5.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12 / M12 x 40 mm
Abertura de llave 27 mm
Material aleación Cu/gal Sn

Product 705504 was added to Notepad.

Go to Notepad

Product 705504 was added to the cart.

Go to Web-Shop

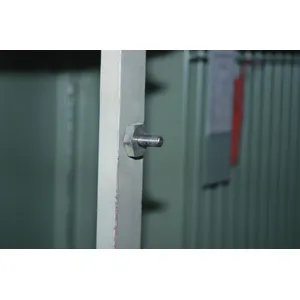

Pieza de conexión para atornillar, con perno roscado y tuerca hexagonal suelta

2 Products

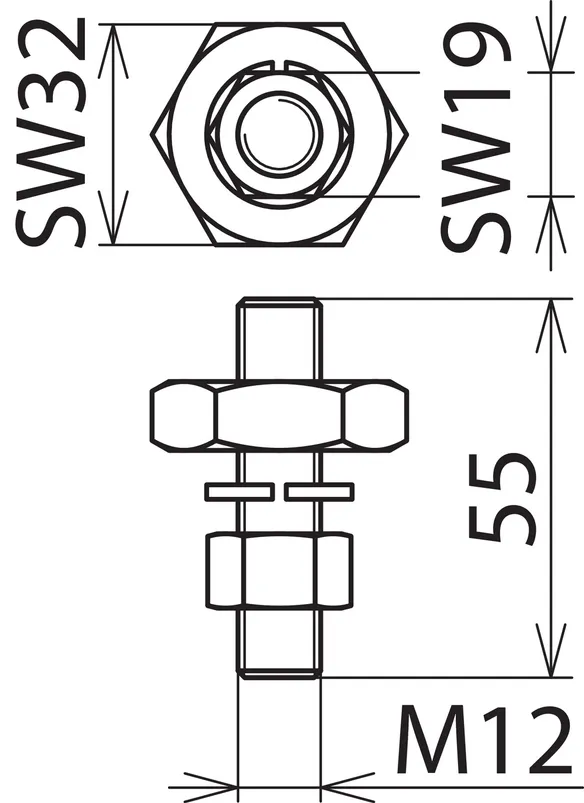

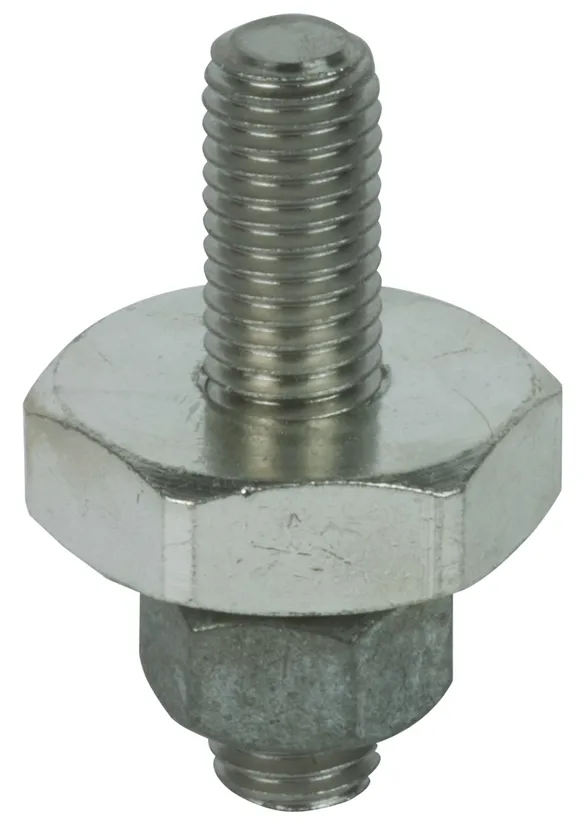

Part No. 705500 AS SCHR M12 55

GTIN 4013364000025, Customs tariff No. (EU): 85359000, Gross weight: 122.40 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12 x 55 mm
Abertura de llave 32 mm
Material del perno roscado INOX
Material de la tuerca aleación Cu/gal Sn / St/tZn

Product 705500 was added to Notepad.

Go to Notepad

Product 705500 was added to the cart.

Go to Web-Shop

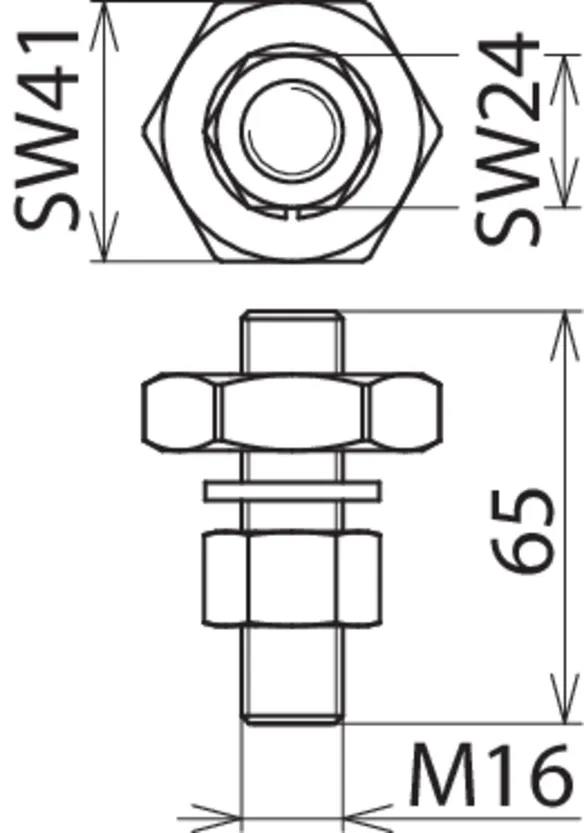

Part No. 750500 AS SCHR M16 65

GTIN 4013364000032, Customs tariff No. (EU): 85359000, Gross weight: 249.80 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M16 x 65 mm
Abertura de llave 41 mm
Material del perno roscado INOX
Material de la tuerca aleación Cu/gal Sn / St/tZn

Product 750500 was added to Notepad.

Go to Notepad

Product 750500 was added to the cart.

Go to Web-Shop

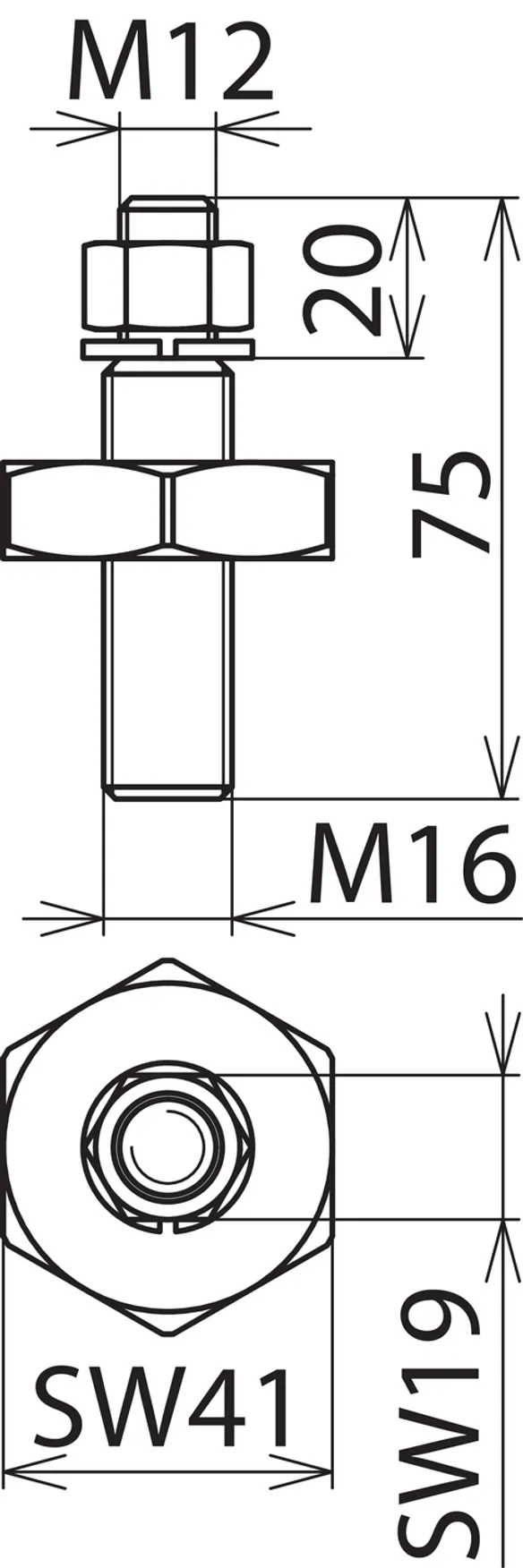

Pieza de conexión para atornillar, con perno roscado con transición de M12 a M16

1 Product

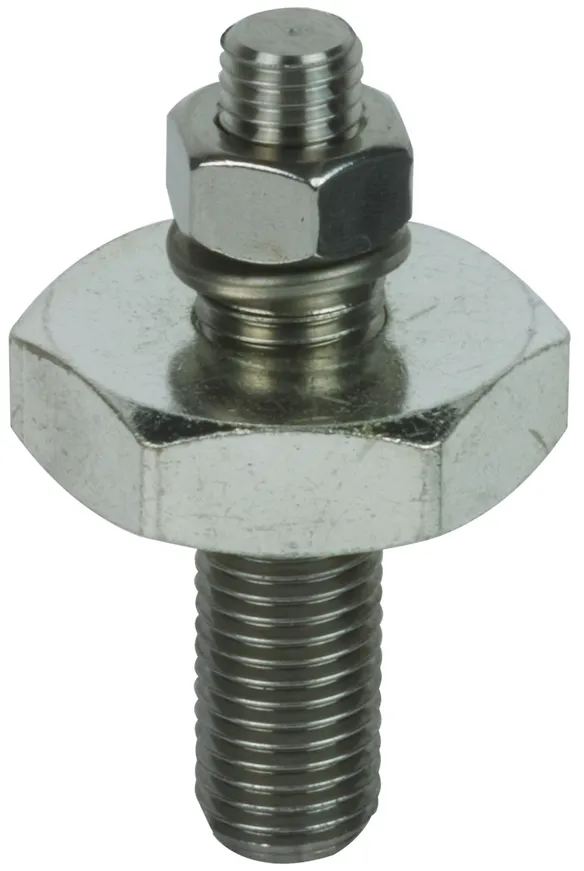

Part No. 705510 AS SCHR M16 55 M12

GTIN 4013364089587, Customs tariff No. (EU): 85359000, Gross weight: 240.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Dimensiones M12 x 20 mm / M16 x 55 mm
Abertura de llave 41 mm
Material del perno roscado INOX
Material de la tuerca aleación Cu/gal Sn

Product 705510 was added to Notepad.

Go to Notepad

Product 705510 was added to the cart.

Go to Web-Shop
