Földelési fixpontok

  • For connecting earth bushings or earth connecting plates in accordance with DIN 48088-2
  • Welding-type or bolted-type connector for connecting earth connectors with wing nut or wing bolt on the earth cable end
  • Connectors with M12 or M16 threaded pin
  • M12 or M16 female thread

Details

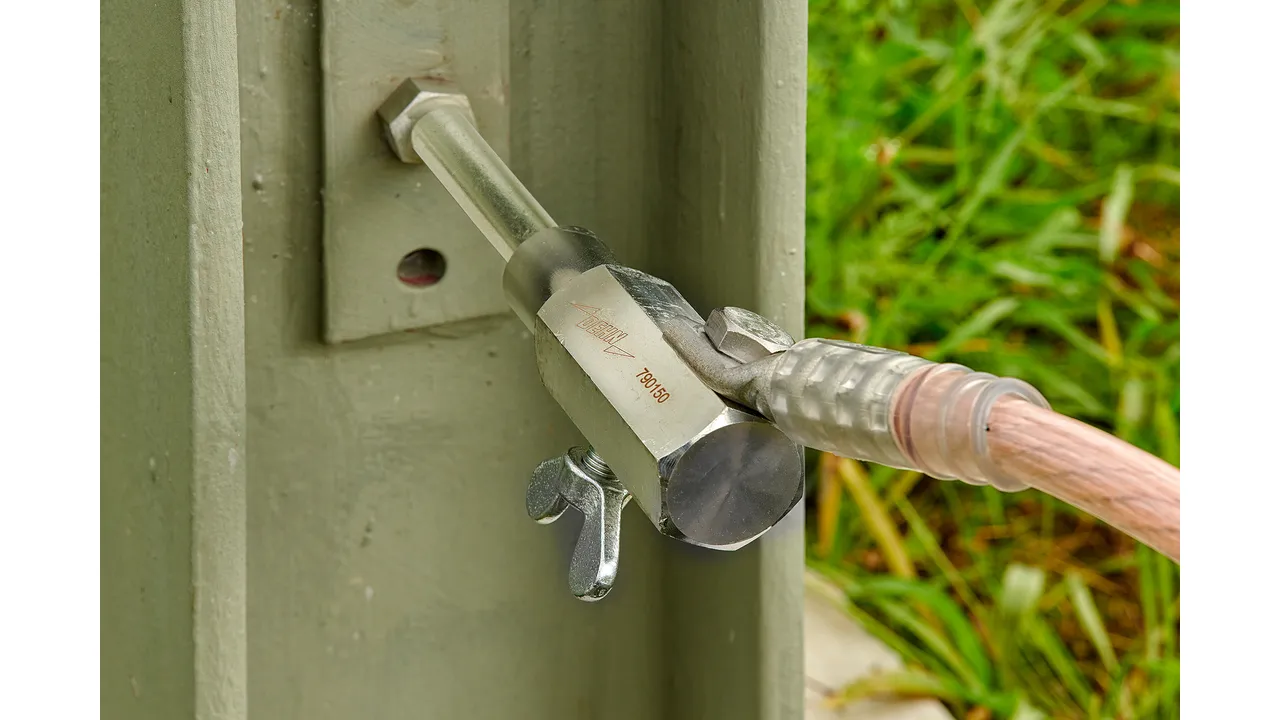

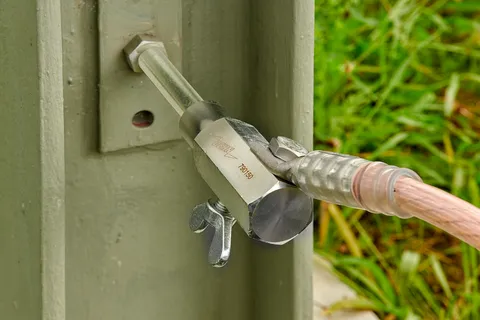

Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.
lorem ipsum

Ring Groove Fixed Point with Threaded Pin and Nut

2 Products

Part No. 790251 EFP 16 RN M12 35 SSM

GTIN 4013364089501, Customs tariff No. (EU): 85359000, Gross weight: 248.00 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12 x 35 mm
Diameter 16 mm
Wrench size 22 mm
Max. cable cross-section Cu 150 mm²
Max. rövidzárlati áram Ik 0,5 s 42.0*) kA
Max. rövidzárlati áram Ik 1 s 29.6*) kA
Material Brass (CuNi2Si) / gal Sn
Material (threaded pin) StSt A2-70
Material (nut) DIN 985-M12-8 / gal Zn
*) For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Product 790251 was added to Notepad.

Go to Notepad

Product 790251 was added to the cart.

Go to Web-Shop

Part No. 790261 EFP 16 RN M16 45 SSM

GTIN 4013364089525, Customs tariff No. (EU): 85359000, Gross weight: 277.00 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M16 x 45 mm
Diameter 16 mm
Wrench size 22 mm
Max. cable cross-section Cu 150 mm²
Max. rövidzárlati áram Ik 0,5 s 42.0*) kA
Max. rövidzárlati áram Ik 1 s 29.6*) kA
Material Brass (CuNi2Si) / gal Sn
Material (threaded pin) StSt A2-70
Material (nut) DIN 985-M16-8 / gal Zn
*) For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Product 790261 was added to Notepad.

Go to Notepad

Product 790261 was added to the cart.

Go to Web-Shop

Ring Groove Fixed Point with Female Thread

2 Products

Part No. 790250 EFP 16 RN M12

GTIN 4013364089495, Customs tariff No. (EU): 85359000, Gross weight: 193.00 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12
Diameter 16 mm
Wrench size 22 mm
Max. cable cross-section Cu 150 mm²
Max. rövidzárlati áram Ik 0,5 s 42.0*) kA
Max. rövidzárlati áram Ik 1 s 29.6*) kA
Material Brass (CuNi2Si) / gal Sn
*) For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Product 790250 was added to Notepad.

Go to Notepad

Product 790250 was added to the cart.

Go to Web-Shop

Part No. 790260 EFP 16 RN M16

GTIN 4013364089518, Customs tariff No. (EU): 85359000, Gross weight: 180.00 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M16
Diameter 16 mm
Wrench size 22 mm
Max. cable cross-section Cu 150 mm²
Max. rövidzárlati áram Ik 0,5 s 42.0*) kA
Max. rövidzárlati áram Ik 1 s 29.6*) kA
Material Brass (CuNi2Si) / gal Sn
*) For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Product 790260 was added to Notepad.

Go to Notepad

Product 790260 was added to the cart.

Go to Web-Shop

Weld-on Connector with Threaded Pin

2 Products

Part No. 705501 AS SCHW M12 25

GTIN 4013364003927, Customs tariff No. (EU): 85359000, Gross weight: 157.20 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12 x 25 mm
Material St/gal Zn

Product 705501 was added to Notepad.

Go to Notepad

Product 705501 was added to the cart.

Go to Web-Shop

Part No. 755501 AS SCHW M16 30

GTIN 4013364003934, Customs tariff No. (EU): 85359000, Gross weight: 303.20 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M16 x 30 mm
Material St/gal Zn

Product 755501 was added to Notepad.

Go to Notepad

Product 755501 was added to the cart.

Go to Web-Shop

Weld-on Connector with Female Thread

2 Products

Part No. 336020 AS SCHW M12

GTIN 4013364003941, Customs tariff No. (EU): 85359000, Gross weight: 123.10 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12
Material St/gal Zn

Product 336020 was added to Notepad.

Go to Notepad

Product 336020 was added to the cart.

Go to Web-Shop

Part No. 336025 AS SCHW M16

GTIN 4013364003958, Customs tariff No. (EU): 85359000, Gross weight: 257.10 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M16
Material St/gal Zn

Product 336025 was added to Notepad.

Go to Notepad

Product 336025 was added to the cart.

Go to Web-Shop

Bolted-type Connector with Female Thread

1 Product

Part No. 705504 AS SCHR M12 M12 40

GTIN 4013364008021, Customs tariff No. (EU): 85389099, Gross weight: 183.20 g, PU: 5.00 db.

Images

Additional information



Technical data

Dimensions M12 / M12 x 40 mm
Wrench size 27 mm
Material Copper alloy/gal Sn

Product 705504 was added to Notepad.

Go to Notepad

Product 705504 was added to the cart.

Go to Web-Shop

Bolted-type Connector with Threaded Pin and Separate Hexagon Nut

2 Products

Part No. 705500 AS SCHR M12 55

GTIN 4013364000025, Customs tariff No. (EU): 85359000, Gross weight: 122.40 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12 x 55 mm
Wrench size 32 mm
Material (threaded pin) StSt
Material (nut) Copper alloy/gal Sn / St/tZn

Product 705500 was added to Notepad.

Go to Notepad

Product 705500 was added to the cart.

Go to Web-Shop

Part No. 750500 AS SCHR M16 65

GTIN 4013364000032, Customs tariff No. (EU): 85359000, Gross weight: 249.80 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M16 x 65 mm
Wrench size 41 mm
Material (threaded pin) StSt
Material (nut) Copper alloy/gal Sn / St/tZn

Product 750500 was added to Notepad.

Go to Notepad

Product 750500 was added to the cart.

Go to Web-Shop

Bolted-type Connector for Converting from M12 to M16 Threaded Pin

1 Product

Part No. 705510 AS SCHR M16 55 M12

GTIN 4013364089587, Customs tariff No. (EU): 85359000, Gross weight: 240.00 g, PU: 1.00 db.

Images

Additional information



Technical data

Dimensions M12 x 20 mm / M16 x 55 mm
Wrench size 41 mm
Material (threaded pin) StSt
Material (nut) Copper alloy/gal Sn
