Equipotential Bonding Busbars Industry

Equipotential bonding busbars for the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.
Also for use in potentially explosive atmospheres (secured against self-loosening of screws).

– With spring washer
– Insulator UP (duroplastic, red) with M10 thread
– UV-stabilised and halogen-free

6 terminals

2 Products

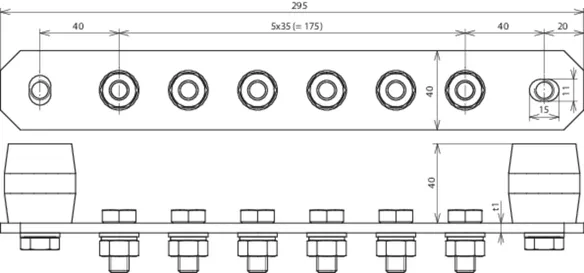

Part No. 472207 PAS I 6AP M10 CU

GTIN 4013364090927, Customs tariff No. (EU): 85359000, Gross weight: 964.00 g, PU: 1.00 Stk

Images

Additional information

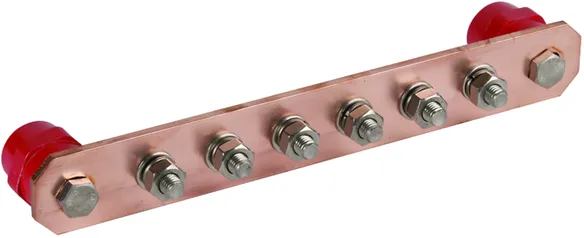

Equipotential bonding bar, industrial design, 6 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 6
Material: Cu
Dimensions: 295 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 6AP M10 CU
Part No.: 472207
or equivalent.

Certificates



Technical data

Material Cu
Dimensions (l x w x d1) 295 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472207 was added to Notepad.

Go to Notepad

Product 472207 was added to the cart.

Go to Web-Shop

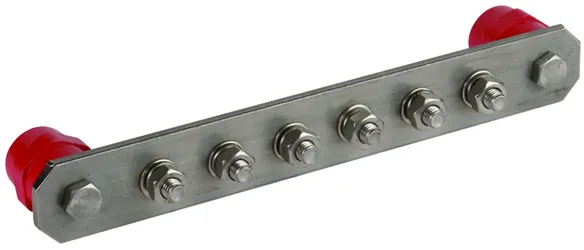

Part No. 472209 PAS I 6AP M10 V2A

GTIN 4013364090934, Customs tariff No. (EU): 85359000, Gross weight: 1.01 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 6 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 6
Material: StSt
Material No.: 1.4301 / 1.4303
Dimensions: 295 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 6AP M10 V2A
Part No.: 472209
or equivalent.

Certificates



Technical data

Material StSt
Dimensions (l x w x d1) 295 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472209 was added to Notepad.

Go to Notepad

Product 472209 was added to the cart.

Go to Web-Shop

8 terminals

2 Products

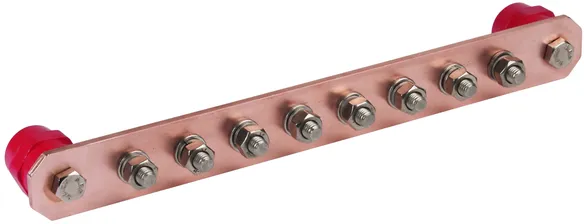

Part No. 472227 PAS I 8AP M10 CU

GTIN 4013364096424, Customs tariff No. (EU): 85359000, Gross weight: 1.14 kg, PU: 1.00 Stk

Predecessor

Images

Additional information

Equipotential bonding bar, industrial design, 8 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 8
Material: Cu
Dimensions: 365 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 8AP M10 CU
Part No.: 472227
or equivalent.

Certificates



Technical data

Material Cu
Dimensions (l x w x d1) 365 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472227 was added to Notepad.

Go to Notepad

Product 472227 was added to the cart.

Go to Web-Shop

Part No. 472229 PAS I 8AP M10 V2A

GTIN 4013364096431, Customs tariff No. (EU): 85359000, Gross weight: 1.18 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 8 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)

Number of terminals: 8
Material: StSt
Material No.: 1.4301 / 1.4303
Dimensions: 365 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 8AP M10 V2A
Part No.: 472229
or equivalent.

Certificates



Technical data

Material StSt
Dimensions (l x w x d1) 365 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472229 was added to Notepad.

Go to Notepad

Product 472229 was added to the cart.

Go to Web-Shop

10 terminals

2 Products

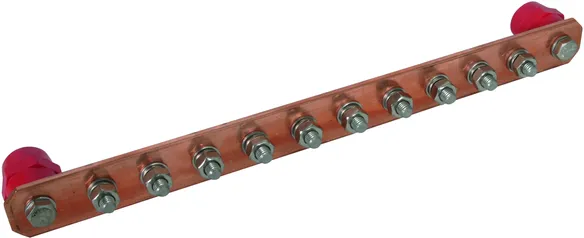

Part No. 472217 PAS I 10AP M10 CU

GTIN 4013364090941, Customs tariff No. (EU): 85359000, Gross weight: 1.35 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 10 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 10
Material: Cu
Dimensions: 435 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 10AP M10 CU
Part No.: 472217
or equivalent.

Certificates



Technical data

Material Cu
Dimensions (l x w x d1) 435 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472217 was added to Notepad.

Go to Notepad

Product 472217 was added to the cart.

Go to Web-Shop

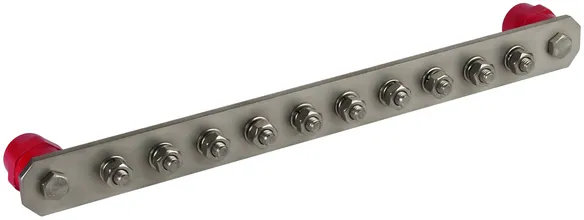

Part No. 472219 PAS I 10AP M10 V2A

GTIN 4013364090958, Customs tariff No. (EU): 85359000, Gross weight: 1.41 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 10 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 10
Material: StSt
Material No.: 1.4301 / 1.4303
Dimensions: 435 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 10AP M10 V2A
Part No.: 472219
or equivalent.

Certificates



Technical data

Material StSt
Dimensions (l x w x d1) 435 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472219 was added to Notepad.

Go to Notepad

Product 472219 was added to the cart.

Go to Web-Shop

12 terminals

2 Products

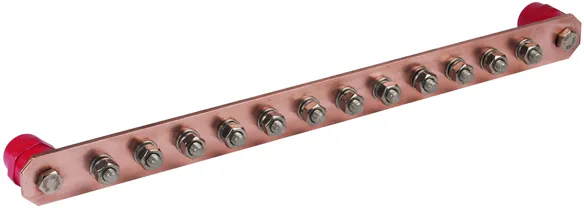

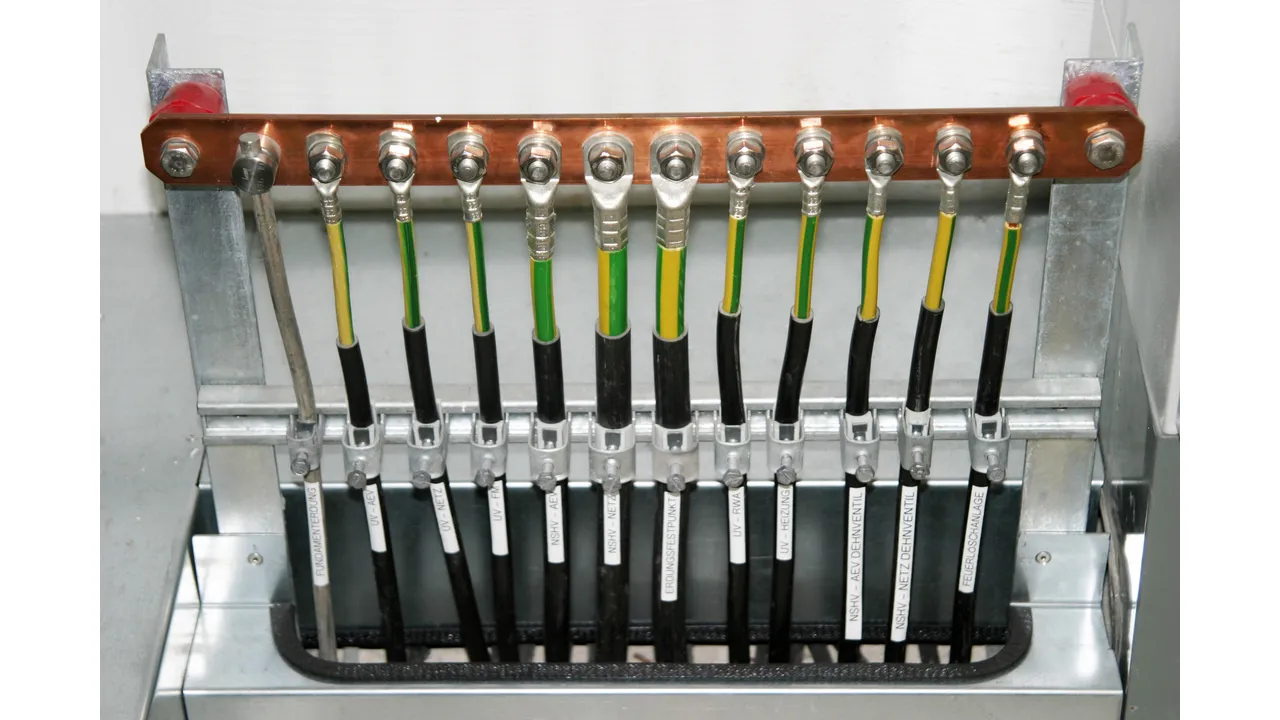

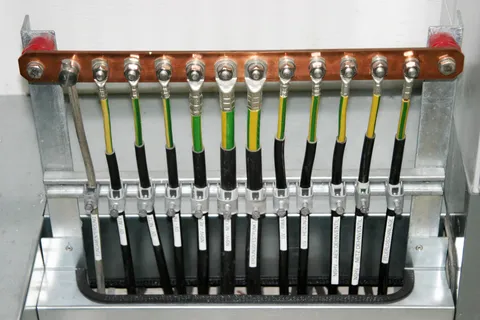

Part No. 472237 PAS I 12AP M10 CU

GTIN 4013364096448, Customs tariff No. (EU): 85359000, Gross weight: 1.53 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 12 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)

Number of terminals: 12
Material: Cu
Dimensions: 505 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 12AP M10 CU
Part No.: 472237
or equivalent.

Certificates



Technical data

Material Cu
Dimensions (l x w x d1) 505 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472237 was added to Notepad.

Go to Notepad

Product 472237 was added to the cart.

Go to Web-Shop

Part No. 472239 PAS I 12AP M10 V2A

GTIN 4013364096455, Customs tariff No. (EU): 85359000, Gross weight: 1.59 kg, PU: 1.00 Stk

Images

Additional information

Equipotential bonding bar, industrial design, 12 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Number of terminals: 12
Material: StSt
Material No.: 1.4301 / 1.4303
Dimensions: 505 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Brand: DEHN
Type: PAS I 12AP M10 V2A
Part No.: 472239
or equivalent.

Certificates



Technical data

Material StSt
Dimensions (l x w x d1) 505 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 472239 was added to Notepad.

Go to Notepad

Product 472239 was added to the cart.

Go to Web-Shop
