Zaciski krawędziowe UNI

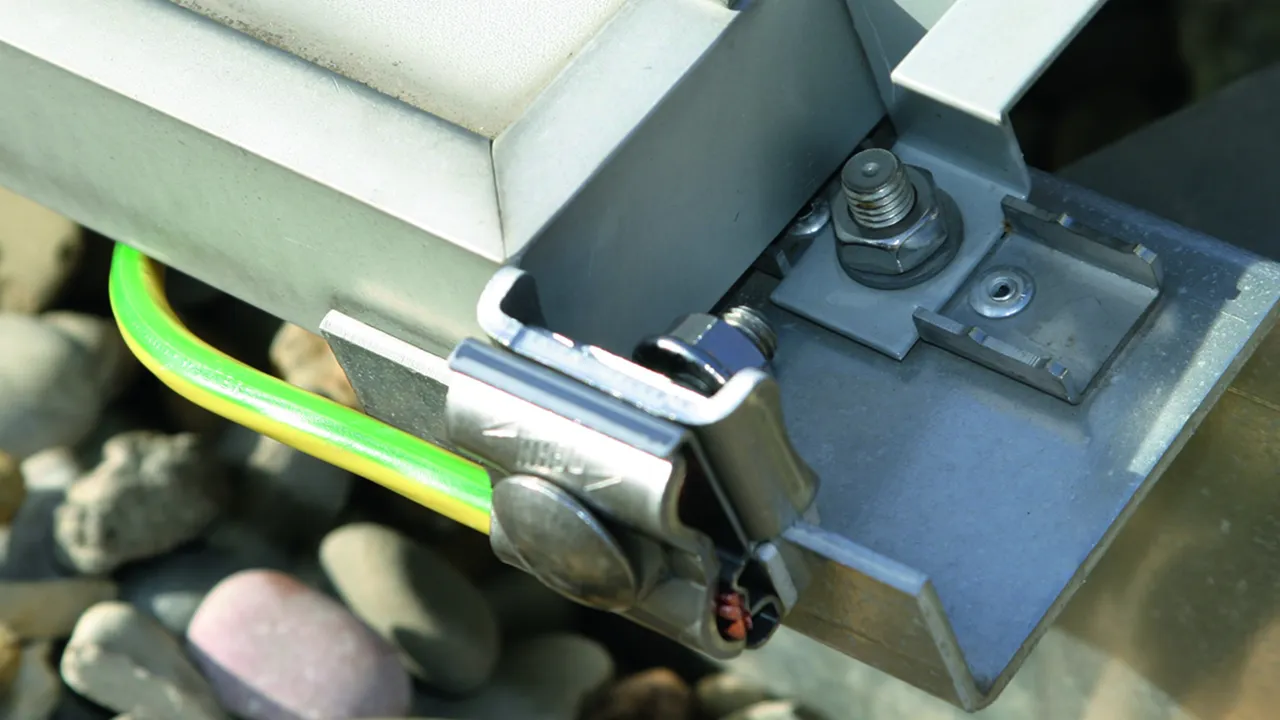

For integrating mounting systems e.g. of PV installations into the functional equipotential bonding / functional earthing (optionally black conductor) and lightning equipotential bonding according to IEC/EN 62305-3.

The StSt contact plate (intermediate element) allows for different materials of conductors (Cu, Al, St/tZn and StSt ) to be connected to the usual mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double cleat design allows for easy and quick interconnection of the profiles, e.g. by feed-through wiring.

Ze śrubą M8 i nakrętką samohamowną

1 Product

Part No. 365250 UNI FK 8.10 KBF0.7 8 AL V2A

GTIN 4013364148307, Customs tariff No. (EU): 85359000, Gross weight: 85.00 g, PU: 50.00 szt.

Images

Additional information

UNI saddle clamp
Saddle clamps for incorporating the mounting systems e.g. of PV systems into the functional equipotential
bonding/functional earthing and lightning equipotential bonding
With M8 screw and nut
Zakres zacisku (rąbek): 0.7-8 mm
Zakres zacisku (drut): 8-10 mm
Przyłączenie (drut / wielodrutowo): 4-50 mm2
Norma: EN 62561-1

Producent: DEHN
Typ: UNI FK 8.10 KBF0.7 8 AL V2A
Nr kat.: 365250
lub podobny.

Certificates



Technical data

Zakres zacisku (rąbek) 0.7-8 mm
Materiał wspornika zaciskowego Al
Zakres zacisku (drut) 8-10 mm
Przyłączenie (drut / wielodrutowo) 4-50 mm2
Materiał podwójnej płytki dociskowej StSt
Norma EN 62561-1
