Zaciski łączące do wypustów uziemiających i zbrojenia

For connecting the reinforcement with clamping frame.
For round conductors or fixed earthing terminals with concomitant fixing in the formwork

Arrangement:
(II) = parallel
(+) = cross

Do małych średnic

1 Product

Part No. 308035 VK 6.22 FL40 KB6.10 BSB STBL

GTIN 4013364123472, Customs tariff No. (EU): 85359000, Gross weight: 169.60 g, PU: 25.00 szt.

Images

Additional information

Connecting clamps for reinforcements, St/bare
Connecting clamp for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping frame for flexible connection of round conductors or fixed earthing terminals with
concomitant fixing in the formwork

Materiał: St/bare
Zakres zacisku (drut / drut): (+/II) 6-22 / 6-10 mm
Zakres zacisku (drut / płaskownik): (+) 6-22 / 40 mm
Spełnia wymagania normy: EN 62561-1
Prąd zwarciowy (50 Hz): 1.0 kA

Producent: DEHN
Typ: VK 6.22 FL40 KB6.10 BSB STBL
Nr kat.: 308035
lub podobny.

Certificates



Technical data

Materiał St/bare
Zakres zacisku (drut / drut) (+/II) 6-22 / 6-10 mm
Zakres zacisku (drut / płaskownik) (+) 6-22 / 40 mm
Śruba di M10 x 60 mm
Spełnia wymagania normy EN 62561-1
Prąd zwarciowy (50 Hz) (1 s; ≤ 300°C) 1.0 kA

Product 308035 was added to Notepad.

Go to Notepad

Product 308035 was added to the cart.

Go to Web-Shop

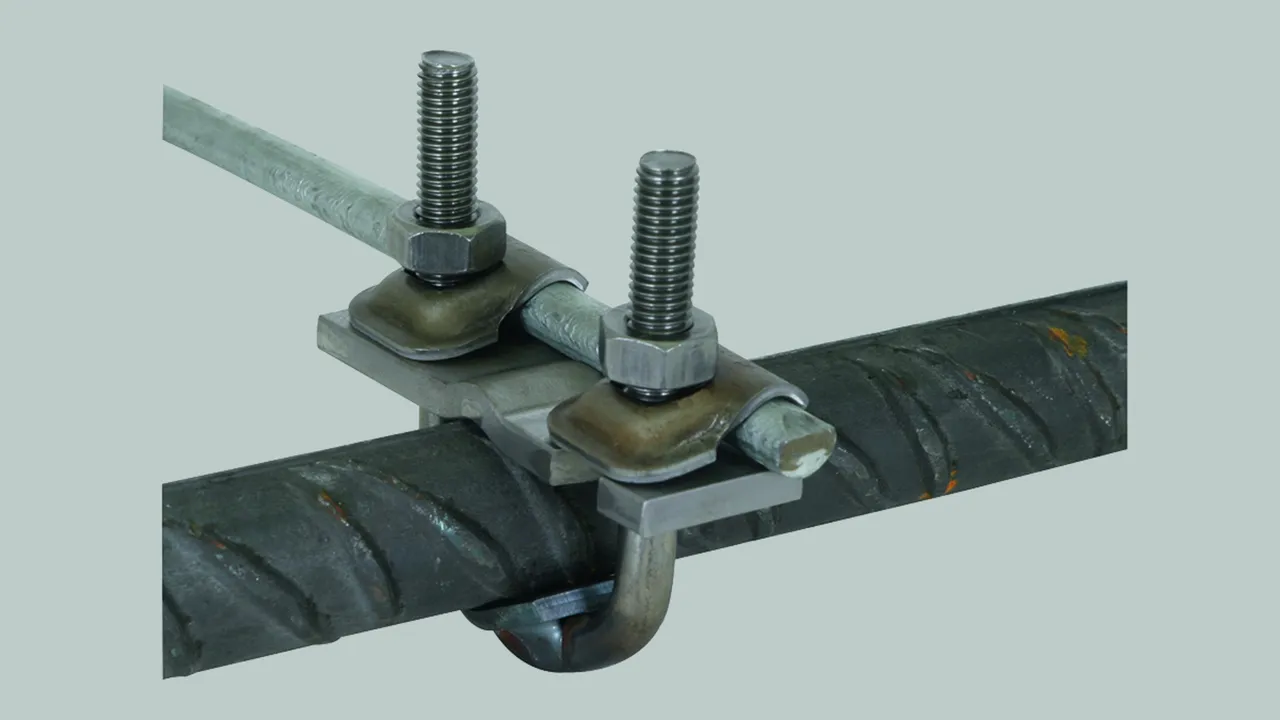

Zacisk kabłąkowy do dużych średnic

1 Product

Part No. 308046 BVK 16.48 FL40 KB6.10 BSB STBL

GTIN 4013364124462, Customs tariff No. (EU): 85359000, Gross weight: 292.40 g, PU: 25.00 szt.

Images

Additional information

Connecting clamps for U-clamps, St/bare
Connecting clamp for reinforcements
U-clamp terminal for great diameters
For connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping frame for flexible connection of round conductors or fixed earthing terminals with
concomitant fixing in the formwork

Materiał: St/bare
Zakres zacisku (drut / drut): (+/II) 16-48 / 6-10 mm
Zakres zacisku (drut / płaskownik): (II) 16-48 / 30-40 mm
Spełnia wymagania normy: EN 62561-1
Prąd zwarciowy (50 Hz): 9.9 kA

Producent: DEHN
Typ: BVK 16.48 FL40 KB6.10 BSB STBL
Nr kat.: 308046
lub podobny.

Certificates



Technical data

Materiał St/bare
Zakres zacisku (drut / drut) (+/II) 16-48 / 6-10 mm
Zakres zacisku (drut / płaskownik) (II) 16-48 / 30-40 mm
Śruba stirrup bolt M10 x 48 mm
Spełnia wymagania normy EN 62561-1
Prąd zwarciowy (50 Hz) (1 s; ≤ 300°C) 9.9 kA

Product 308046 was added to Notepad.

Go to Notepad

Product 308046 was added to the cart.

Go to Web-Shop
