Końcówki

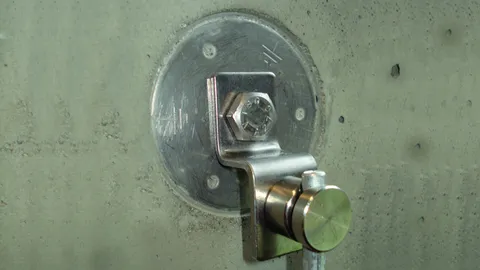

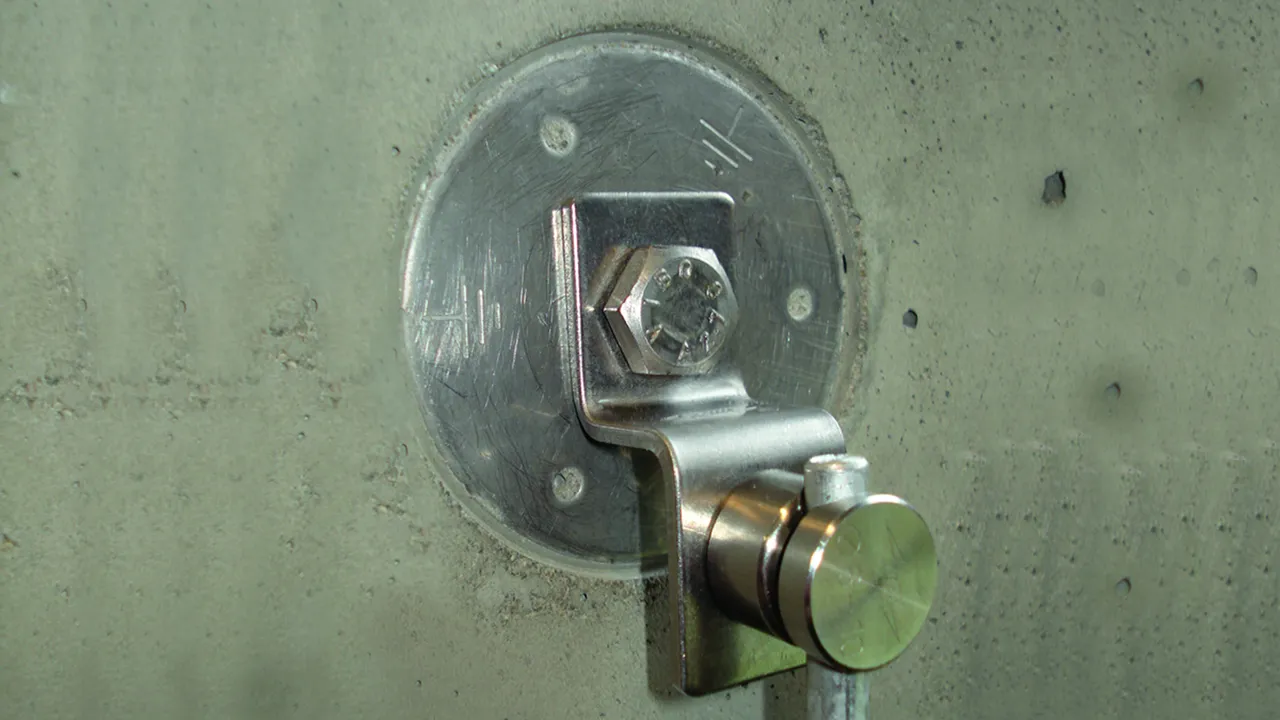

For screwing to the fixed earthing terminal to connect e.g. an equipotential bonding bar or construction elements such as steel girders etc.

Wykonanie podstawowe

Universally usable for connections M10 and M12, e.g. at the fixed earthing terminal.

For connection of Rd e.g. with KS connector (Part No. 301 019), or for connection of Fl with screws and nuts M10 or M12.

1 Product

Part No. 390499 ES ZF 2XB18 V2A

GTIN 4013364127517, Customs tariff No. (EU): 85359000, Gross weight: 58.20 g, PU: 50.00 szt.

Predecessor

Images

Additional information

End piece, basic, StSt
End piece
For screwing to the fixed earthing terminal for connection
of e.g. an equipotential bonding bar
For universal use with M10 and M12 connections
For connecting Rd, e.g. with KS connector (Part No. 301 019) or for connecting Fl with M10 screws and nuts
Materiał: StSt
Otwór Ø: 10.5 / 12.5 mm

Producent: DEHN
Typ: ES ZF 2XB18 V2A
Nr kat.: 390499
lub podobny.

Certificates



Technical data

Materiał StSt
Otwór Ø 10.5 / 12.5 mm

Product 390499 was added to Notepad.

Go to Notepad

Product 390499 was added to the cart.

Go to Web-Shop

Wykonanie z otworami kwadratowymi

Dimension 11x11 mm, for connection of Rd e.g. with KS connector (Part No. 301 019) or for connection of Fl with screws and nuts M10.

1 Product

Part No. 390479 ES ZF 2X11.11 1XB13 V2A

GTIN 4013364035324, Customs tariff No. (EU): 85359000, Gross weight: 75.90 g, PU: 50.00 szt.

Predecessor

Images

Additional information

End piece with square hole, StSt
End piece
For screwing to the fixed earthing terminal for connection
of e.g. an equipotential bonding bar with square holes 11x11 mm
For connecting Rd e.g. with KS connector (Part No. 301 019) or for connecting Fl with M10 screws and nuts
Materiał: StSt
Otwór Ø: 13 mm

Producent: DEHN
Typ: ES ZF 2X11.11 1XB13 V2A
Nr kat.: 390479
lub podobny.

Certificates



Technical data

Materiał StSt
Odległość między otworami 30 mm
Otwór Ø 13 mm

Product 390479 was added to Notepad.

Go to Notepad

Product 390479 was added to the cart.

Go to Web-Shop

Wykonanie z otworami okrągłymi i łącznikiem KS

With bores Ø11 mm.

1 Product

Part No. 363010 ES ZF 2XB11 KSV 7.10 STTZN

GTIN 4013364045743, Customs tariff No. (EU): 85359000, Gross weight: 126.40 g, PU: 50.00 szt.

Images

Additional information

End piece with hole and KS connector, St/tZn
End piece
For screwing to the fixed earthing terminal for connection
of e.g. an equipotential bonding bar with connection holes Ø11 mm and KS connector
Materiał: St/tZn
Otwór Ø: 11 mm
Zakres zacisku (drut): 7-10 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ES ZF 2XB11 KSV 7.10 STTZN
Nr kat.: 363010
lub podobny.

Certificates



Technical data

Materiał St/tZn
Odległość między otworami 22 mm
Otwór Ø 11 mm
Zakres zacisku (drut) 7-10 mm
Spełnia wymagania normy EN 62561-1

Product 363010 was added to Notepad.

Go to Notepad

Product 363010 was added to the cart.

Go to Web-Shop

Wykonanie z otworami okrągłymi

With bores Ø11 mm.

1 Product

Part No. 363000 ES ZF 3XB11 STTZN

GTIN 4013364045750, Customs tariff No. (EU): 85359000, Gross weight: 68.00 g, PU: 50.00 szt.

Images

Additional information

End piece with hole, St/tZn
End piece
For screwing to the fixed earthing terminal for connection
of e.g. an equipotential bonding bar with connection holes Ø11 mm, without KS connector
Materiał: St/tZn
Otwór Ø: 11 mm

Producent: DEHN
Typ: ES ZF 3XB11 STTZN
Nr kat.: 363000
lub podobny.

Certificates



Technical data

Materiał St/tZn
Odległość między otworami 22 mm
Otwór Ø 11 mm

Product 363000 was added to Notepad.

Go to Notepad

Product 363000 was added to the cart.

Go to Web-Shop
