Obejma uziemiająca na rurę

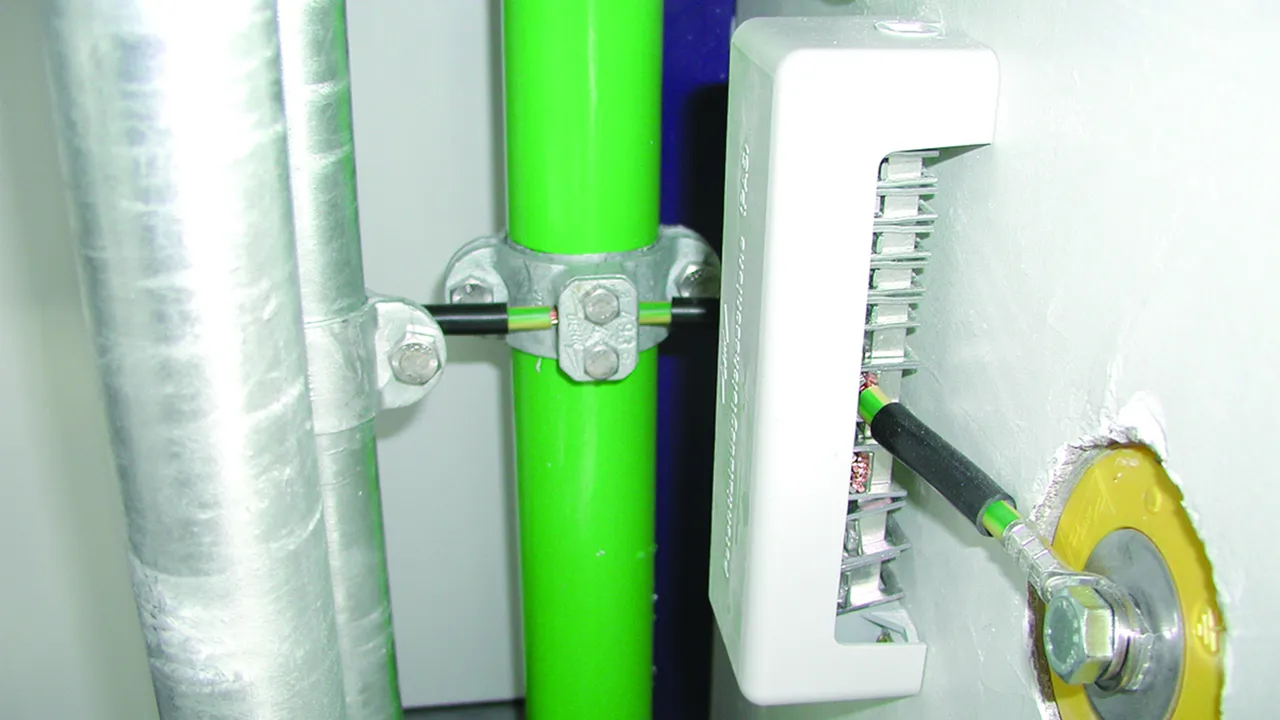

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.

The clamping range (specified in mm) refers to the outer diameter and the clamping range (specified in inch) refers to the inner diameter (nominal width) of the pipes.

Ze śrubami M10

Connection for Rd 4-10 mm or connection wire cross-section max. 70 mm2.

6 Products

Part No. 407012 ERS 21 AS4.10 TG STTZN

GTIN 4013364026100, Customs tariff No. (EU): 85359000, Gross weight: 442.00 g, PU: 10.00 szt.

Images

Additional information

Earthing pipe clamp-lightning protection with M10 screw, tube d 21 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 21 mm
Materiał: MCI / St/tZn
Wymiary: 80 x 11 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 21 AS4.10 TG STTZN
Nr kat.: 407012
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 21 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 80 x 11 mm
Spełnia wymagania normy EN 62561-1

Product 407012 was added to Notepad.

Go to Notepad

Product 407012 was added to the cart.

Go to Web-Shop

Part No. 407034 ERS 27 AS4.10 TG STTZN

GTIN 4013364026117, Customs tariff No. (EU): 85359000, Gross weight: 453.00 g, PU: 10.00 szt.

Images

Additional information

Earthing pipe clamp - lightning protection with M10 screw, tube d 27 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 27 mm
Materiał: MCI / St/tZn
Wymiary: 83 x 14 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 27 AS4.10 TG STTZN
Nr kat.: 407034
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 27 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 83 x 14 mm
Spełnia wymagania normy EN 62561-1

Product 407034 was added to Notepad.

Go to Notepad

Product 407034 was added to the cart.

Go to Web-Shop

Part No. 407100 ERS 34 AS4.10 TG STTZN

GTIN 4013364026124, Customs tariff No. (EU): 85359000, Gross weight: 467.00 g, PU: 10.00 szt.

Images

Additional information

Earthing pipe clamp - lightning protection with M10 screw, tube d 34 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 34 mm
Materiał: MCI / St/tZn
Wymiary: 85 x 17.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 34 AS4.10 TG STTZN
Nr kat.: 407100
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 34 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 85 x 17.5 mm
Spełnia wymagania normy EN 62561-1

Product 407100 was added to Notepad.

Go to Notepad

Product 407100 was added to the cart.

Go to Web-Shop

Part No. 407114 ERS 42 AS4.10 TG STTZN

GTIN 4013364026131, Customs tariff No. (EU): 85359000, Gross weight: 490.00 g, PU: 10.00 szt.

Images

Additional information

Earthing pipe clamp - lightning protection with M10 screw, tube d 42 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 42 mm
Materiał: MCI / St/tZn
Wymiary: 100 x 24.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 42 AS4.10 TG STTZN
Nr kat.: 407114
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 42 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 100 x 24.5 mm
Spełnia wymagania normy EN 62561-1

Product 407114 was added to Notepad.

Go to Notepad

Product 407114 was added to the cart.

Go to Web-Shop

Part No. 407112 ERS 48 AS4.10 TG STTZN

GTIN 4013364026148, Customs tariff No. (EU): 85359000, Gross weight: 512.00 g, PU: 10.00 szt.

Images

Additional information

Earthing pipe clamp - lightning protection with M10 screw, tube d 48 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 48 mm
Materiał: MCI / St/tZn
Wymiary: 95 x 22 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 48 AS4.10 TG STTZN
Nr kat.: 407112
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 48 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 95 x 22 mm
Spełnia wymagania normy EN 62561-1

Product 407112 was added to Notepad.

Go to Notepad

Product 407112 was added to the cart.

Go to Web-Shop

Part No. 407200 ERS 60 AS4.10 TG STTZN

GTIN 4013364026162, Customs tariff No. (EU): 85359000, Gross weight: 568.20 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp - lightning protection with M10 screw, tube d 60 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 60 mm
Materiał: MCI / St/tZn
Wymiary: 113 x 30.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 60 AS4.10 TG STTZN
Nr kat.: 407200
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 60 mm
Materiał MCI / St/tZn
Wymiary (l1 x r1) 113 x 30.5 mm
Spełnia wymagania normy EN 62561-1

Product 407200 was added to Notepad.

Go to Notepad

Product 407200 was added to the cart.

Go to Web-Shop

Wykonanie ze stali ocynkowanej ogniowo ze śrubami M8

St/tZn material thickness 3 mm.
Connection for Fl with screws and nuts M10, for Rd 7-10 mm e.g. KS connector Part No. 301 000 or clamping frame, Part No. 390 150.

10 Products

Part No. 410038 ERS 17 AB11 STTZN

GTIN 4013364026223, Customs tariff No. (EU): 85359000, Gross weight: 215.00 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 17 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 17 mm
Materiał: St/tZn
Wymiary: 110 x 8.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 17 AB11 STTZN
Nr kat.: 410038
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 17 mm
Materiał St/tZn
Wymiary (l1 x r1) 110 x 8.5 mm
Spełnia wymagania normy EN 62561-1

Product 410038 was added to Notepad.

Go to Notepad

Product 410038 was added to the cart.

Go to Web-Shop

Part No. 410012 ERS 21 AB11 STTZN

GTIN 4013364026186, Customs tariff No. (EU): 85359000, Gross weight: 238.20 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 27 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 21 mm
Materiał: St/tZn
Wymiary: 115 x 10.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 21 AB11 STTZN
Nr kat.: 410012
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 21 mm
Materiał St/tZn
Wymiary (l1 x r1) 115 x 10.5 mm
Spełnia wymagania normy EN 62561-1

Product 410012 was added to Notepad.

Go to Notepad

Product 410012 was added to the cart.

Go to Web-Shop

Part No. 410034 ERS 27 AB11 STTZN

GTIN 4013364026247, Customs tariff No. (EU): 85359000, Gross weight: 235.00 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 27 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 27 mm
Materiał: St/tZn
Wymiary: 115 x 13.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 27 AB11 STTZN
Nr kat.: 410034
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 27 mm
Materiał St/tZn
Wymiary (l1 x r1) 115 x 13.5 mm
Spełnia wymagania normy EN 62561-1

Product 410034 was added to Notepad.

Go to Notepad

Product 410034 was added to the cart.

Go to Web-Shop

Part No. 410100 ERS 34 AB11 STTZN

GTIN 4013364026254, Customs tariff No. (EU): 85359000, Gross weight: 250.60 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 34 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 34 mm
Materiał: St/tZn
Wymiary: 124 x 17 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 34 AB11 STTZN
Nr kat.: 410100
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 34 mm
Materiał St/tZn
Wymiary (l1 x r1) 124 x 17 mm
Spełnia wymagania normy EN 62561-1

Product 410100 was added to Notepad.

Go to Notepad

Product 410100 was added to the cart.

Go to Web-Shop

Part No. 410114 ERS 42 AB11 STTZN

GTIN 4013364026261, Customs tariff No. (EU): 85359000, Gross weight: 280.80 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 42 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 42 mm
Materiał: St/tZn
Wymiary: 132.5 x 21 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 42 AB11 STTZN
Nr kat.: 410114
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 42 mm
Materiał St/tZn
Wymiary (l1 x r1) 132.5 x 21 mm
Spełnia wymagania normy EN 62561-1

Product 410114 was added to Notepad.

Go to Notepad

Product 410114 was added to the cart.

Go to Web-Shop

Part No. 410112 ERS 48 AB11 STTZN

GTIN 4013364026278, Customs tariff No. (EU): 85359000, Gross weight: 302.04 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 48 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 48 mm
Materiał: St/tZn
Wymiary: 140.5 x 24 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 48 AB11 STTZN
Nr kat.: 410112
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 48 mm
Materiał St/tZn
Wymiary (l1 x r1) 140.5 x 24 mm
Spełnia wymagania normy EN 62561-1

Product 410112 was added to Notepad.

Go to Notepad

Product 410112 was added to the cart.

Go to Web-Shop

Part No. 410134 ERS 55 AB11 STTZN

GTIN 4013364026285, Customs tariff No. (EU): 85359000, Gross weight: 318.04 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 55 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 55 mm
Materiał: St/tZn
Wymiary: 145 x 27.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 55 AB11 STTZN
Nr kat.: 410134
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 55 mm
Materiał St/tZn
Wymiary (l1 x r1) 145 x 27.5 mm
Spełnia wymagania normy EN 62561-1

Product 410134 was added to Notepad.

Go to Notepad

Product 410134 was added to the cart.

Go to Web-Shop

Part No. 410200 ERS 60 AB11 STTZN

GTIN 4013364026292, Customs tariff No. (EU): 85359000, Gross weight: 330.04 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, St/tZn, with M8 screw, tube d 60 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 60 mm
Materiał: St/tZn
Wymiary: 151 x 30 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 60 AB11 STTZN
Nr kat.: 410200
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 60 mm
Materiał St/tZn
Wymiary (l1 x r1) 151 x 30 mm
Spełnia wymagania normy EN 62561-1

Product 410200 was added to Notepad.

Go to Notepad

Product 410200 was added to the cart.

Go to Web-Shop

Part No. 410212 ERS 76 AB11 STTZN

GTIN 4013364026308, Customs tariff No. (EU): 85359000, Gross weight: 409.65 g, PU: 1.00 szt.

Images

Additional information

Pipe clamps for roof poles, St/tZn
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
or for connecting spark gaps to the roof support
Zakres zacisku (rura Ø): 76 mm
Materiał: St/tZn
Wymiary: 169 x 38 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 76 AB11 STTZN
Nr kat.: 410212
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 76 mm
Materiał St/tZn
Wymiary (l1 x r1) 169 x 38 mm
Spełnia wymagania normy EN 62561-1

Product 410212 was added to Notepad.

Go to Notepad

Product 410212 was added to the cart.

Go to Web-Shop

Part No. 410300 ERS 89 AB11 STTZN

GTIN 4013364026315, Customs tariff No. (EU): 85359000, Gross weight: 426.47 g, PU: 1.00 szt.

Images

Additional information

Pipe clamps for roof poles, St/tZn
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
or for connecting spark gaps to the roof support
Zakres zacisku (rura Ø): 89 mm
Materiał: St/tZn
Wymiary: 182.5 x 44.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 89 AB11 STTZN
Nr kat.: 410300
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 89 mm
Materiał St/tZn
Wymiary (l1 x r1) 182.5 x 44.5 mm
Spełnia wymagania normy EN 62561-1

Product 410300 was added to Notepad.

Go to Notepad

Product 410300 was added to the cart.

Go to Web-Shop

Wykonanie ze stali nierdzewnej ze śrubami M8

StSt material thickness 2.5 mm.
Connection for Fl with screws and nuts M10, for Rd 7-10 mm e.g. KS connector Part No. 301 000 or clamping frame, Part No. 390 150.

10 Products

Part No. 410309 ERS 17 AB11 V2A

GTIN 4013364081451, Customs tariff No. (EU): 85359000, Gross weight: 184.00 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 17 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 17 mm
Materiał: StSt
Wymiary: 110.5 x 8.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 17 AB11 V2A
Nr kat.: 410309
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 17 mm
Materiał StSt
Wymiary (l1 x r1) 110.5 x 8.5 mm
Spełnia wymagania normy EN 62561-1

Product 410309 was added to Notepad.

Go to Notepad

Product 410309 was added to the cart.

Go to Web-Shop

Part No. 410319 ERS 21 AB11 V2A

GTIN 4013364081505, Customs tariff No. (EU): 85359000, Gross weight: 192.00 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 21 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 21 mm
Materiał: StSt
Wymiary: 114.5 x 10.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 21 AB11 V2A
Nr kat.: 410319
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 21 mm
Materiał StSt
Wymiary (l1 x r1) 114.5 x 10.5 mm
Spełnia wymagania normy EN 62561-1

Product 410319 was added to Notepad.

Go to Notepad

Product 410319 was added to the cart.

Go to Web-Shop

Part No. 410329 ERS 27 AB11 V2A

GTIN 4013364081512, Customs tariff No. (EU): 85359000, Gross weight: 196.00 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 27 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 27 mm
Materiał: StSt
Wymiary: 115.5 x 13.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 27 AB11 V2A
Nr kat.: 410329
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 27 mm
Materiał StSt
Wymiary (l1 x r1) 115.5 x 13.5 mm
Spełnia wymagania normy EN 62561-1

Product 410329 was added to Notepad.

Go to Notepad

Product 410329 was added to the cart.

Go to Web-Shop

Part No. 410339 ERS 34 AB11 V2A

GTIN 4013364081550, Customs tariff No. (EU): 85359000, Gross weight: 210.60 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 34 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 34 mm
Materiał: StSt
Wymiary: 124 x 17 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 34 AB11 V2A
Nr kat.: 410339
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 34 mm
Materiał StSt
Wymiary (l1 x r1) 124 x 17 mm
Spełnia wymagania normy EN 62561-1

Product 410339 was added to Notepad.

Go to Notepad

Product 410339 was added to the cart.

Go to Web-Shop

Part No. 410349 ERS 42 AB11 V2A

GTIN 4013364081604, Customs tariff No. (EU): 85359000, Gross weight: 236.60 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 42 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 42 mm
Materiał: StSt
Wymiary: 132.5 x 21 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 42 AB11 V2A
Nr kat.: 410349
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 42 mm
Materiał StSt
Wymiary (l1 x r1) 132.5 x 21 mm
Spełnia wymagania normy EN 62561-1

Product 410349 was added to Notepad.

Go to Notepad

Product 410349 was added to the cart.

Go to Web-Shop

Part No. 410359 ERS 48 AB11 V2A

GTIN 4013364081468, Customs tariff No. (EU): 85359000, Gross weight: 254.04 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 48 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 48 mm
Materiał: StSt
Wymiary: 140.5 x 24 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 48 AB11 V2A
Nr kat.: 410359
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 48 mm
Materiał StSt
Wymiary (l1 x r1) 140.5 x 24 mm
Spełnia wymagania normy EN 62561-1

Product 410359 was added to Notepad.

Go to Notepad

Product 410359 was added to the cart.

Go to Web-Shop

Part No. 410369 ERS 55 AB11 V2A

GTIN 4013364081529, Customs tariff No. (EU): 85359000, Gross weight: 266.04 g, PU: 25.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 55 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 55 mm
Materiał: StSt
Wymiary: 145 x 27.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 55 AB11 V2A
Nr kat.: 410369
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 55 mm
Materiał StSt
Wymiary (l1 x r1) 145 x 27.5 mm
Spełnia wymagania normy EN 62561-1

Product 410369 was added to Notepad.

Go to Notepad

Product 410369 was added to the cart.

Go to Web-Shop

Part No. 410379 ERS 60 AB11 V2A

GTIN 4013364081475, Customs tariff No. (EU): 85359000, Gross weight: 278.04 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 60 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 60 mm
Materiał: StSt
Wymiary: 151 x 30 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 60 AB11 V2A
Nr kat.: 410379
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 60 mm
Materiał StSt
Wymiary (l1 x r1) 151 x 30 mm
Spełnia wymagania normy EN 62561-1

Product 410379 was added to Notepad.

Go to Notepad

Product 410379 was added to the cart.

Go to Web-Shop

Part No. 410389 ERS 76 AB11 V2A

GTIN 4013364081482, Customs tariff No. (EU): 85359000, Gross weight: 322.55 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 76 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 76 mm
Materiał: StSt
Wymiary: 169 x 38 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 76 AB11 V2A
Nr kat.: 410389
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 76 mm
Materiał StSt
Wymiary (l1 x r1) 169 x 38 mm
Spełnia wymagania normy EN 62561-1

Product 410389 was added to Notepad.

Go to Notepad

Product 410389 was added to the cart.

Go to Web-Shop

Part No. 410399 ERS 89 AB11 V2A

GTIN 4013364081499, Customs tariff No. (EU): 85359000, Gross weight: 370.07 g, PU: 1.00 szt.

Images

Additional information

Earthing pipe clamp, StSt, with M8 screw, tube d 89 mm
BS earthing pipe clamp
For integrating pipes into the equipotential bonding according to EN 62305-3 (VDE 0185-305-3)
Zakres zacisku (rura Ø): 89 mm
Materiał: StSt
Wymiary: 182.5 x 44.5 mm
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: ERS 89 AB11 V2A
Nr kat.: 410399
lub podobny.

Certificates



Technical data

Zakres zacisku (rura Ø) 89 mm
Materiał StSt
Wymiary (l1 x r1) 182.5 x 44.5 mm
Spełnia wymagania normy EN 62561-1

Product 410399 was added to Notepad.

Go to Notepad

Product 410399 was added to the cart.

Go to Web-Shop
back to top
