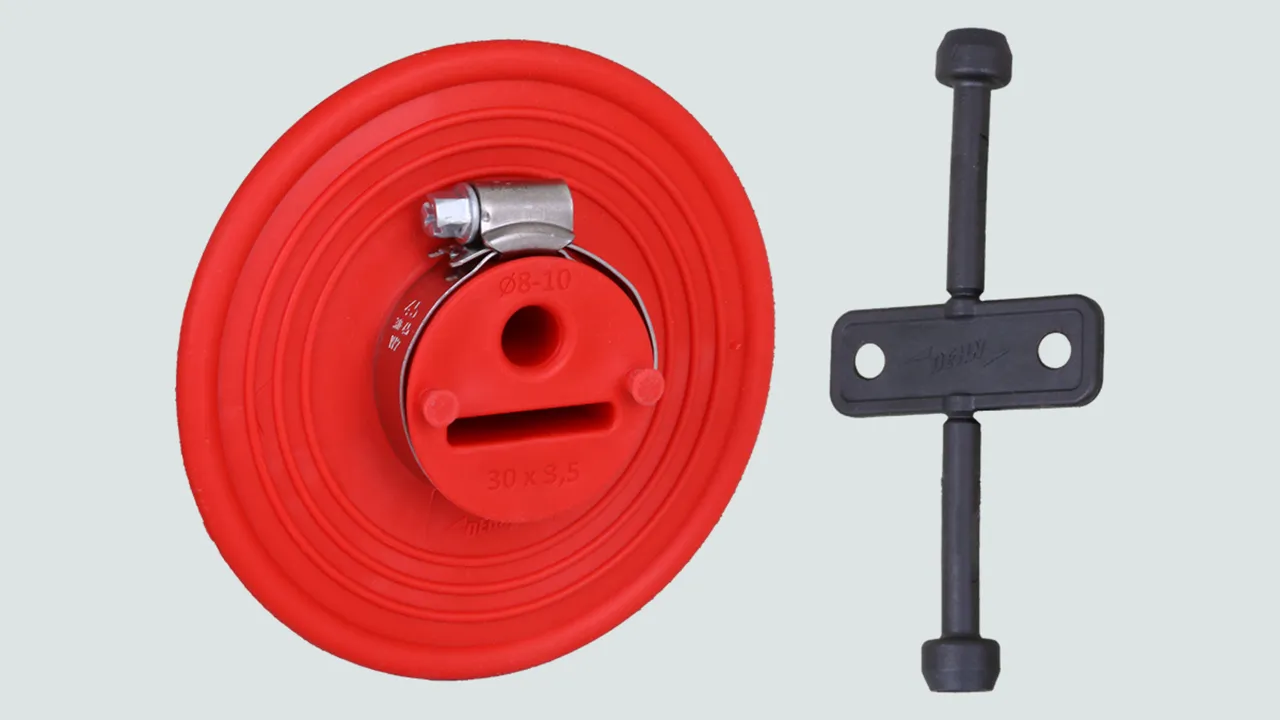

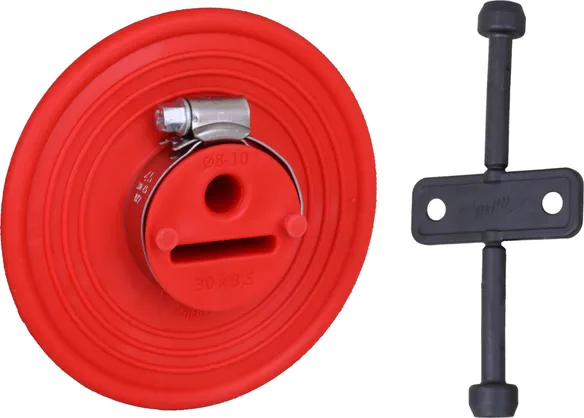

Sealing collar for round and flat conductors

Sealing collar for bushings in case of watertight foundation slabs / walls (e.g. white tank).
Water-pressure-tight, to be pushed on round conductors with StSt tensioning straps

Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.

For round conductors

1 Product

Part No. 478598 DM AF RD10 D105MM TPE

GTIN 4013364158016, Customs tariff No. (EU): 40169300, Gross weight: 120.00 g, PU: 10.00 pc(s)

Images

Additional information

Sealing collar for connection lug (round conductors)
Sealing collar for bushings in case of water-tight foundation slabs / walls (e.g. white tank).
Water-pressure-tight sealing collar can be pushed onto round conductors with StSt tensioning straps. Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
Sealing collar material: thermoplast elastomer
Material of tensioning straps: StSt
Diameter of sealing collar: 105 mm
Bushing / seal, Rd.: 10 mm
Pressure-water test: 1 bar
Standard: EN 62561-5

Brand: DEHN
Type: DM AF RD10 D105MM TPE
Part No.: 478598
or equivalent.

Certificates



Technical data

Sealing collar material thermoplast elastomer
Material of tensioning straps StSt
Diameter of sealing collar 105 mm
Bushing / seal, Rd. 10 mm

Product 478598 was added to Notepad.

Go to Notepad

Product 478598 was added to the cart.

Go to Web-Shop

For flat conductors

1 Product

Part No. 478599 DM AF FL30X3.5 D120MM TPE

GTIN 4013364158023, Customs tariff No. (EU): 40169300, Gross weight: 170.00 g, PU: 10.00 pc(s)

Images

Additional information

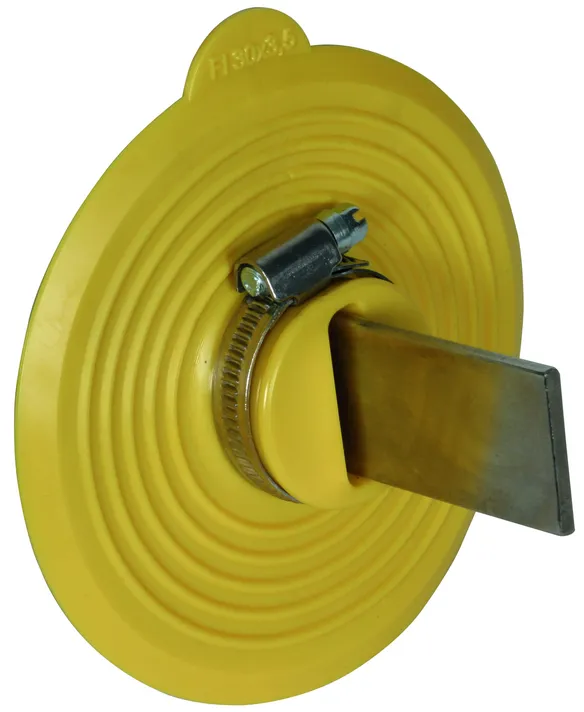

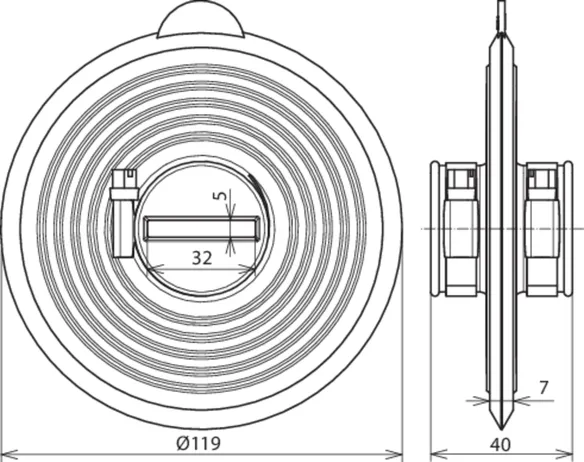

Sealing collar for connection lug (flat conductors)
Sealing collar for bushings in case of water-tight foundation slabs / walls (e.g. white tank). Water-pressure-tight, to be pushed/positioned on round conductors with StSt tensioning straps. Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
Sealing collar material: thermoplast elastomer
Material of tensioning straps: StSt
Diameter of sealing collar: 119 mm
Pressure-water test: 1 bar
Standard: EN 62561-5

Brand: DEHN
Type: DM AF FL30X3.5 D120MM TPE
Part No.: 478599
or equivalent.

Certificates



Technical data

Sealing collar material thermoplast elastomer
Material of tensioning straps StSt
Diameter of sealing collar 119 mm

Product 478599 was added to Notepad.

Go to Notepad

Product 478599 was added to the cart.

Go to Web-Shop
