High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

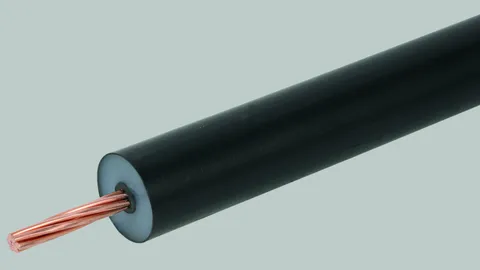

HVI power Conductor

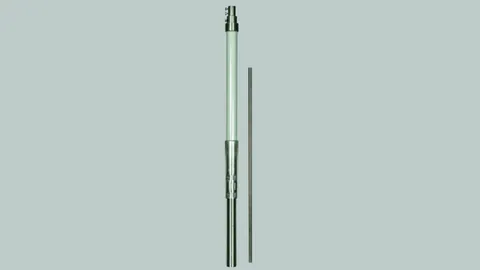

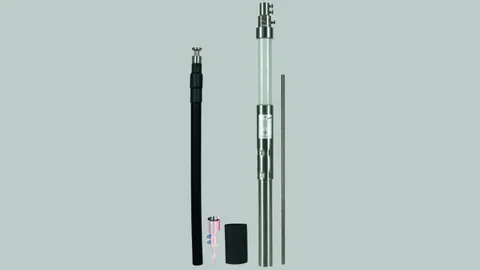

Supporting Tube with HVI power Conductor
Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).
Conductor length to be indicated when ordering (in steps of 0.5 m).

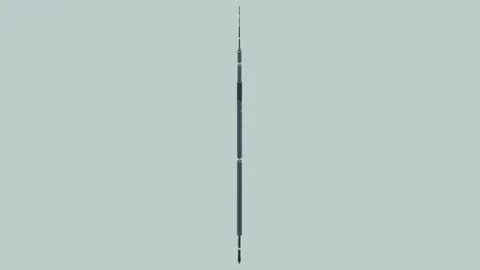

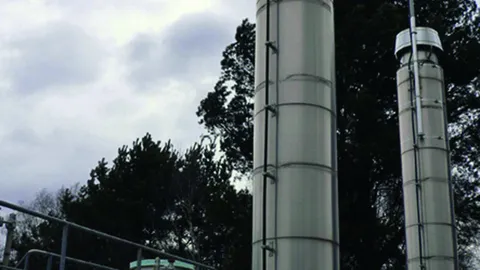

Air-termination Mast with HVI power Conductor
Fixing has to be implemented with three variable supports (Part No. 105 345).
Transport length 6000 mm.
HVI power Conductor
For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

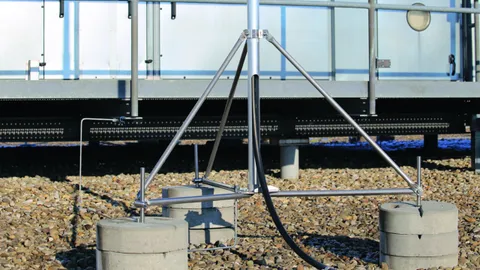

Tripods for Supporting Tubes without Side Outlet
For keeping the bending radius of the HVI Conductor (installed inside of the supporting tube) at the bottom of the tripod, put two concrete bases under and one on top of the brace.
Adjustable to the roof inclination up to max. 10°.

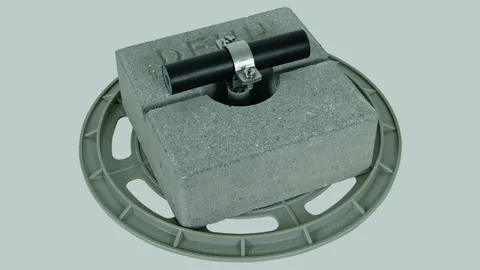

The stackable concrete base (Part No. 102 010) and the support plate (Part No. 102 050) must to be ordered separately.
Note: Information on the compatibility of materials of roof conductor holders as well as support plates with roof elements can be requested from DEHN.
Tripods for Supporting Tubes with side outlet
Adjustable to the roof inclination up to max. 5°
The stackable concrete base (Part No. 102 010) and the support plate (Part No. 102 050) as well as the threaded rod sets (Part No. 105 396-105 398 or Part No. 105 496-105 498) must to be ordered separately.
Conductor Holders for HVI power Conductor in Ex Areas
The HVI power Conductor has to be installed in accordance with the installation instructions.

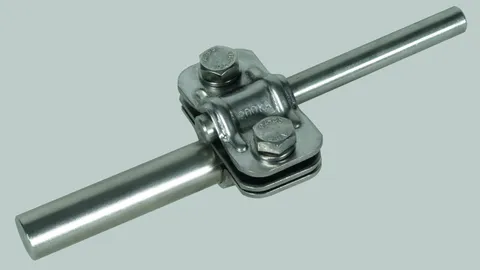

Connecting Components 200 kA (10/350 ?s)
Clamps are tested with a 200 kA (10/350 µs) lightning impulse current, based on EN 62561-1.

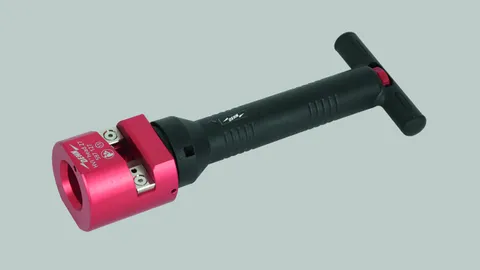

Stripping Tool for HVI®power Conductors
- Tool consisting of handle and various exchangeable cutting heads
- Stripping length of the HVI power Conductor is adjustable in steps of 0.2 mm (lock points) by the knob in the handle and is shown on the handle scale

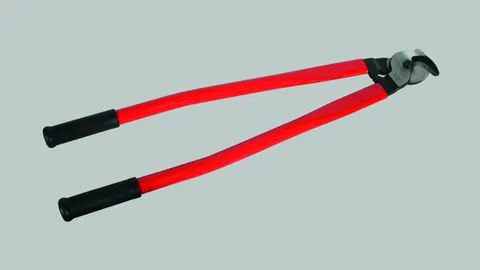

Cable Shears for HVI Conductors
The special design of the cable shears also allows for a precise cutting of stranded conductors for attaching the connection elements easily.
