Connection Lugs, Conductor Holders, Test Joint Boxes

Earth entry rods, terminal lugs and test joints for connecting the down conductor to the earth-termination system.

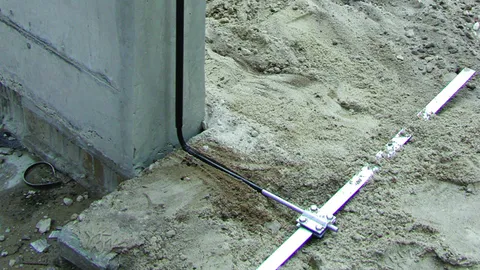

Earth Entry Rod Set

Complete with disconnecting sleeve and connection clamps (KS screws).

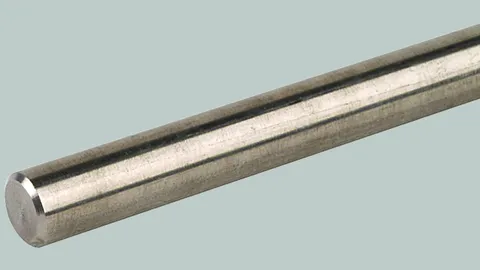

Earth Entry Rods

For connecting down conductors to the earth-termination system.

Straightened / Angled Connection Lugs

For connecting down conductors to the earth-termination system; made of corrosion-resistant stainless steel.

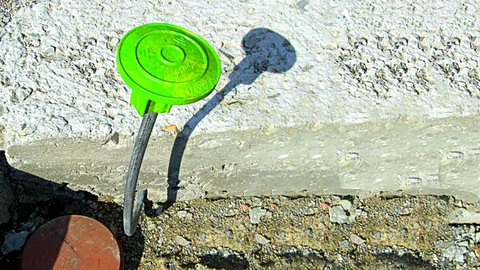

Marker for Connection Lugs

Attached to round wires or strips to make them conspicuous (as required by DIN 18014) during the construction work.

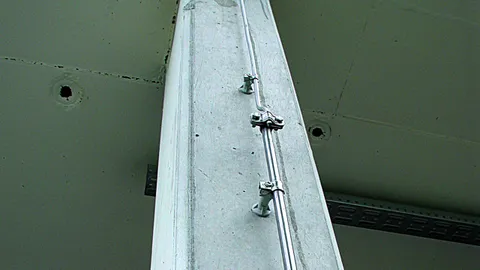

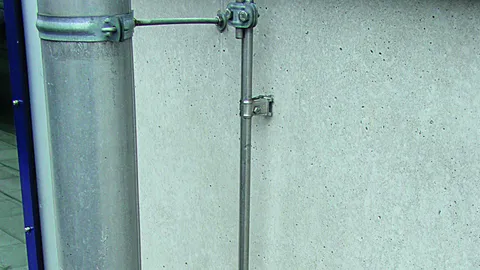

Conductor Holders DEHNhold

Conductor holder with a slotted saddle clamp for fixing round conductors, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

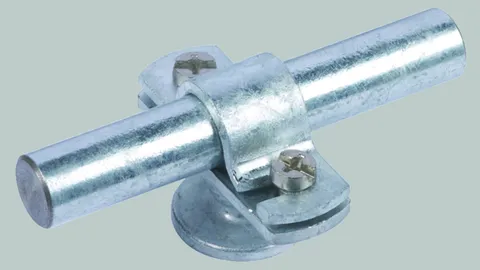

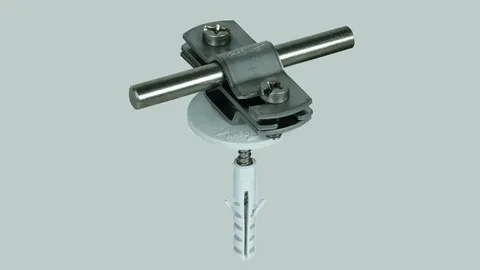

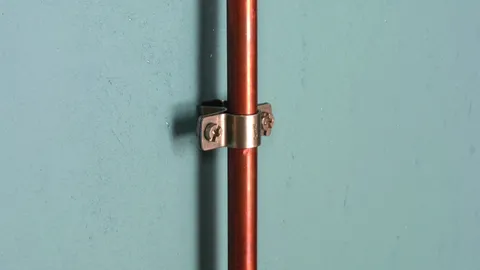

Conductor Holder with Saddle Clamp – Flat Design

Two-screw clamp with two M6 screws, for round and flat conductors.
With plastic cover disc (grey).

Conductor Holders with Saddle Clamp and Flange

Complete unit with flange for installing conductors, fixed conductor routing.

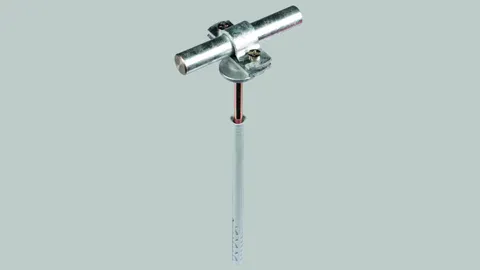

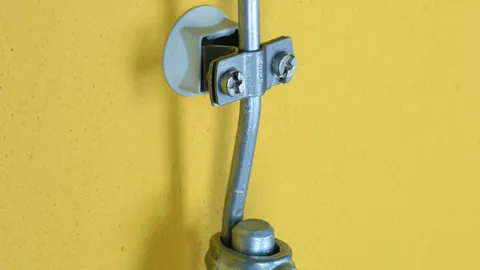

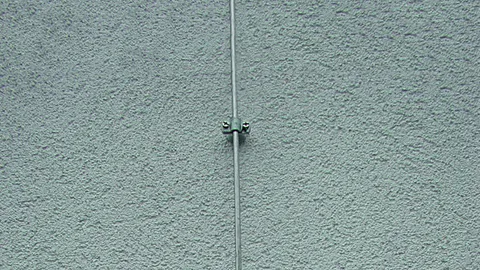

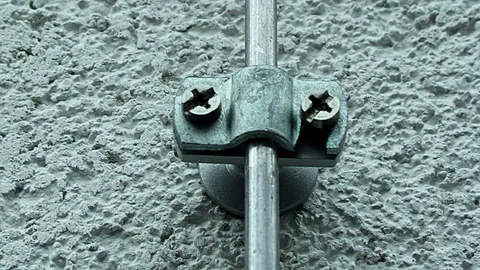

Conductor Holders for External Thermal Insulation Composite Systems

Two-screw clamp with M6 screws, fixed conductor routing.

Rod Holders DEHNhold

For fixing air-termination and earth entry rods, with slotted saddle clamp, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

Rod Holders with Saddle Clamp and Flange

Complete unit with flange for installing air-termination and earth entry rods, fixed conductor routing.

Rod Holders for External Thermal Insulation Composite Systems

Two-screw clamp with M6 screws, with flange (ZDC) and plastic plug Ø10 mm.

Rod Holders DEHNfix

Two-in-one holder system (fixes the holder and the conductor), fixed conductor routing.
Only suitable for solid stone or concrete.

Rod Holder with Claw

For wall mounting with M6 fixing screw, fixed conductor routing.

Flat Strip Holders DEHNhold

For fixing flat conductors via a slotted clamp, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

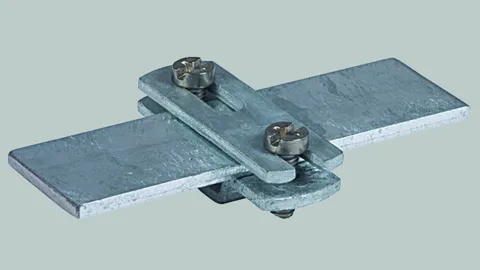

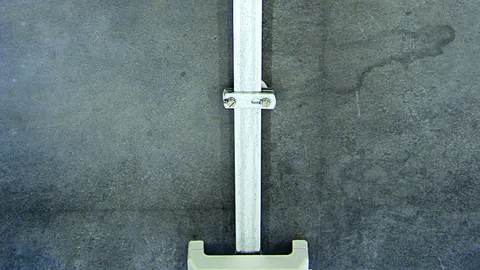

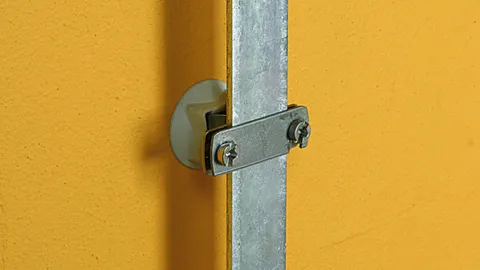

Flat Strip Holders with Clamping Plate – Flat Design

Two-screw clamp with M6 screws.

Flat Strip Holders with Clamping Plate and Flange

Complete unit with flange for installing flat strips.

Flat Strip / Round Conductor Holders with Thrust Piece

For wall mounting.
Thrust piece with M8 screw for installing flat strips up to 11 mm and round conductors 6-10 mm.

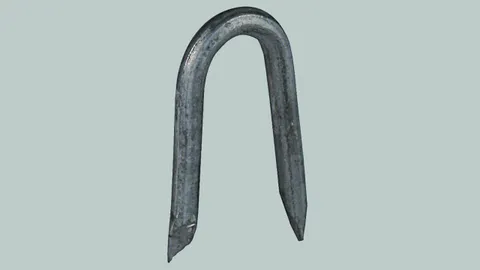

Staples

Staples for fixing conductors on objects like wooden masts.

Staples for Flat Strips

For fixing strips on objects like wooden masts.

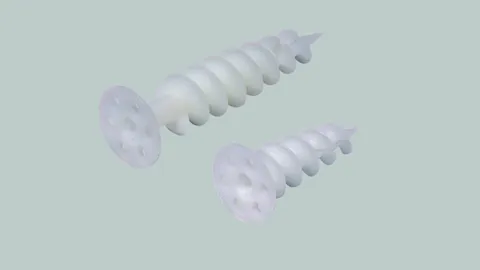

Anchors for Rigid Foam Boards

For fixing conductor, flat strip and rod holders in external thermal insulation composite systems.
With star drive (TX40).
Mounting with wood screws Ø4.5 mm.

This anchor may only be used for fixing conductor holders if there is no additional traction on the down conductor.

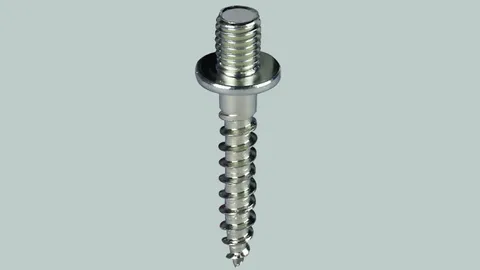

Wood Screws with Threaded Head

Hanger bolt for fixing conductor, flat strip and rod holders with female thread.

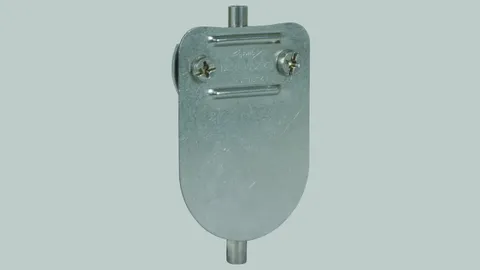

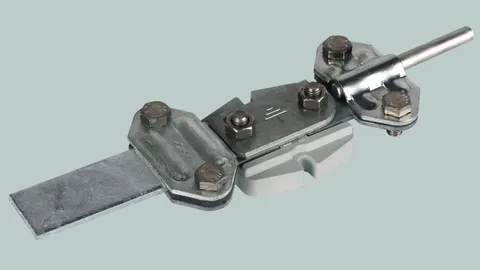

FIX Test Joint

With insulating piece and disconnetion lug.

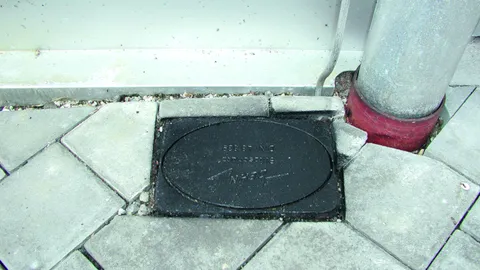

UF Test Joint Boxes

For underground installation, for disconnecting the down conductor from the earth-termination system for measuring purposes.

Test Joint Boxes

For concrete construction with integrated test joint and special construction markings.

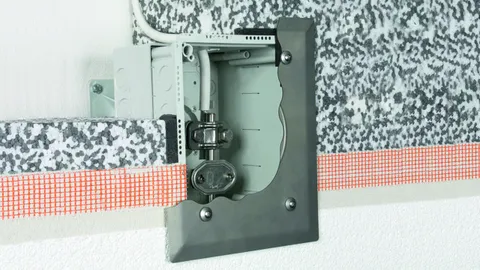

Test Joint Box for External Thermal Insulation Composite Systems

The telescopic test joint box is particularly designed for external thermal insulation composite systems (full thermal insulation).
It is continuously adjustable from 90-140 mm. Thanks to the additional spacer, the test joint box can be used for insulation material thicknesses up to 320 mm.

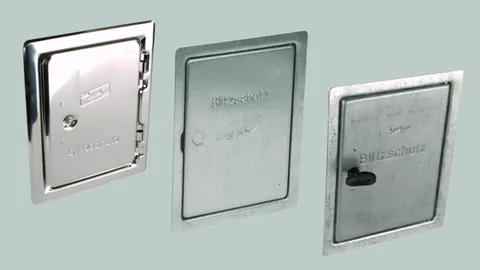

Inspection Doors

For flush-mounted test joints.

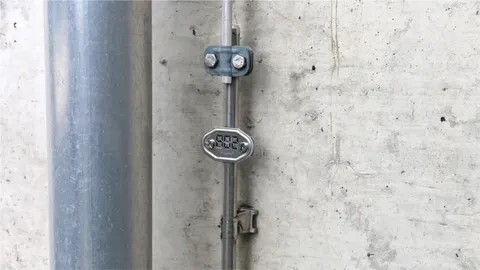

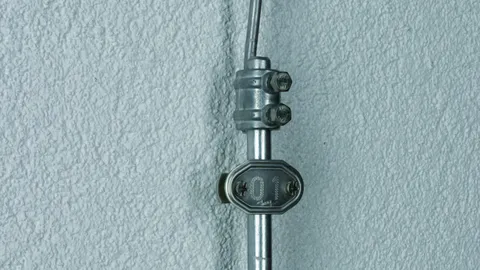

Variable Number Plates

Test joints, down conductors and connection lugs can be marked using the variable number plate. On site, the individual pre-embossed numbers can be quickly inserted into the plate without additional tools. This ensures uniform marking.

Number plates that can be marked

Numbers from 1 to 999 and also certain combinations, such as A01, b02, C03, d04, etc., can be created with the 7-segment number plate and the accompanying paint marker. The special black paint marker has been tried and tested over a long period of time in use with the number plate, is highly opaque, dries quickly, is weatherproof and extremely light-resistant, as well as abrasion-resistant. Other paints or pens cannot be recommended.
The number plate without pre-embossing can be used for on-site marking with punched numbers 10 mm in size.

Carrier Plate for VDB Test Badge

For attaching the test badge to the down conductor or earth entry.

Two-Screw Clamp

With M6 thread, for combination with the "Attention! Equipotential bonding" sign (Part No. 480 599) or e.g. with number plates.
