Flat Strip Holders DEHNhold

For fixing flat conductors with slotted cleat, fixed conductor leading.
For use with different materials e.g. Al, StSt, St/tZn and Cu.

With female thread

1 Product

Part No. 274030 FBH ZS 30 M8 V2A

GTIN 4013364130340, Customs tariff No. (EU): 85389099, Gross weight: 35.90 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

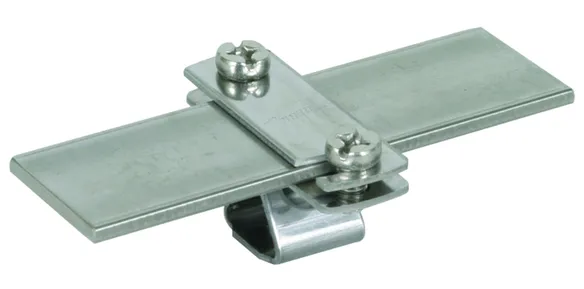

DEHNhold flat strip holder with female thread, StSt
DEHNhold strip holder
For fixing of flat conductors with slotted cleat,
fixed conductor leading.
Material of conductor holder: StSt
Conductor holder support Fl: 30 x 3.5 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: FBH ZS 30 M8 V2A
Part No.: 274030
or equivalent.

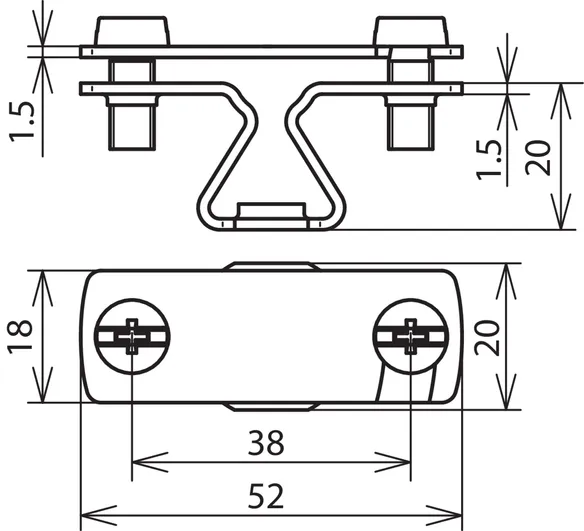

Technical data

Material of conductor holder StSt
Conductor holder support Fl 30 x 3.5 mm
Conductor holder support Rd 6-10 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Standard EN 62561-4

Product 274030 was added to Notepad.

Product 274030 was added to the cart.


Premounted with screw, plastic base and dowel

1 Product

Part No. 274230 FBH ZS 30 KS KD8X40 V2A

GTIN 4013364130456, Customs tariff No. (EU): 85389099, Gross weight: 46.90 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

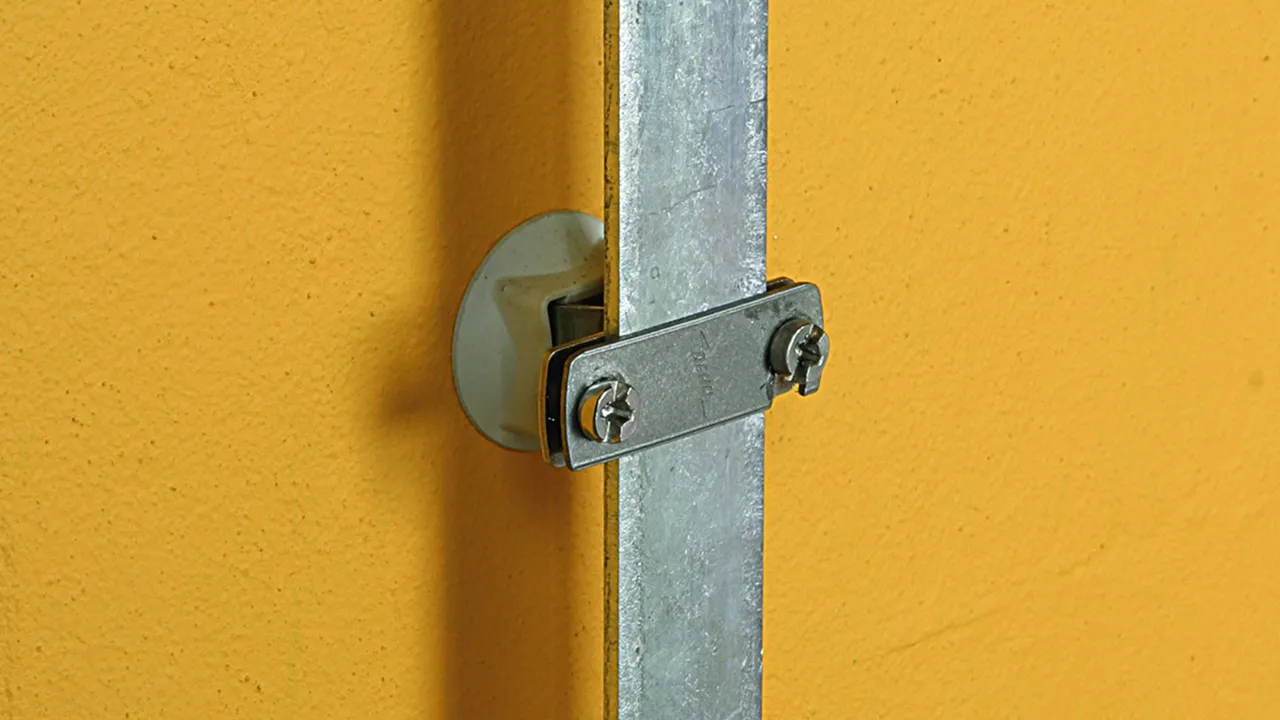

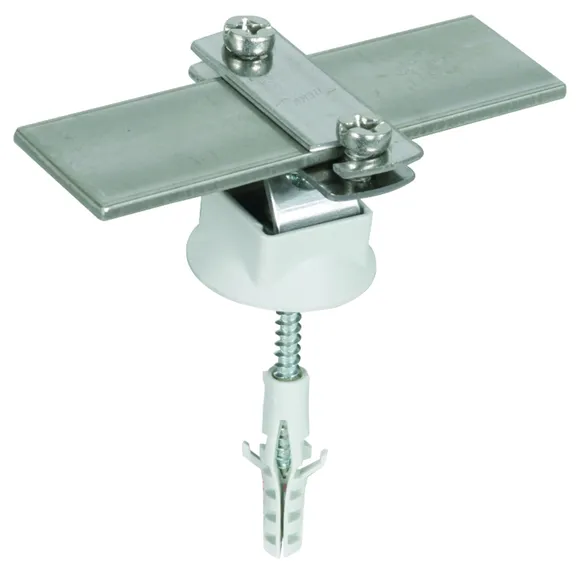

DEHNhold flat strip holder, premounted, with screw, StSt
DEHNhold strip holder
For fixing of flat conductors with slotted cleat,
fixed conductor leading.
Premounted with screw, plastic base and dowel
Material of conductor holder: StSt
Conductor holder support Fl: 30 x 3.5 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic dowel: Ø8 x 40 mm

Brand: DEHN
Type: FBH ZS 30 KS KD8X40 V2A
Part No.: 274230
or equivalent.

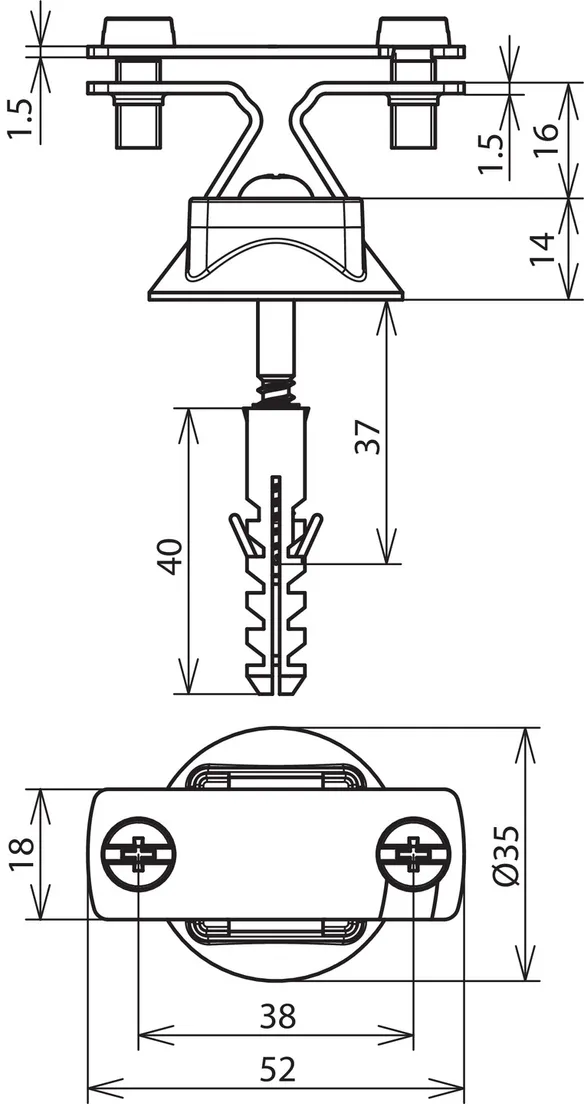

Technical data

Material of conductor holder StSt
Conductor holder support Fl 30 x 3.5 mm
Conductor holder support Rd 6-10 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Screw ak 5 x 50 mm
Plastic dowel Ø8 x 40 mm
Standard EN 62561-4
