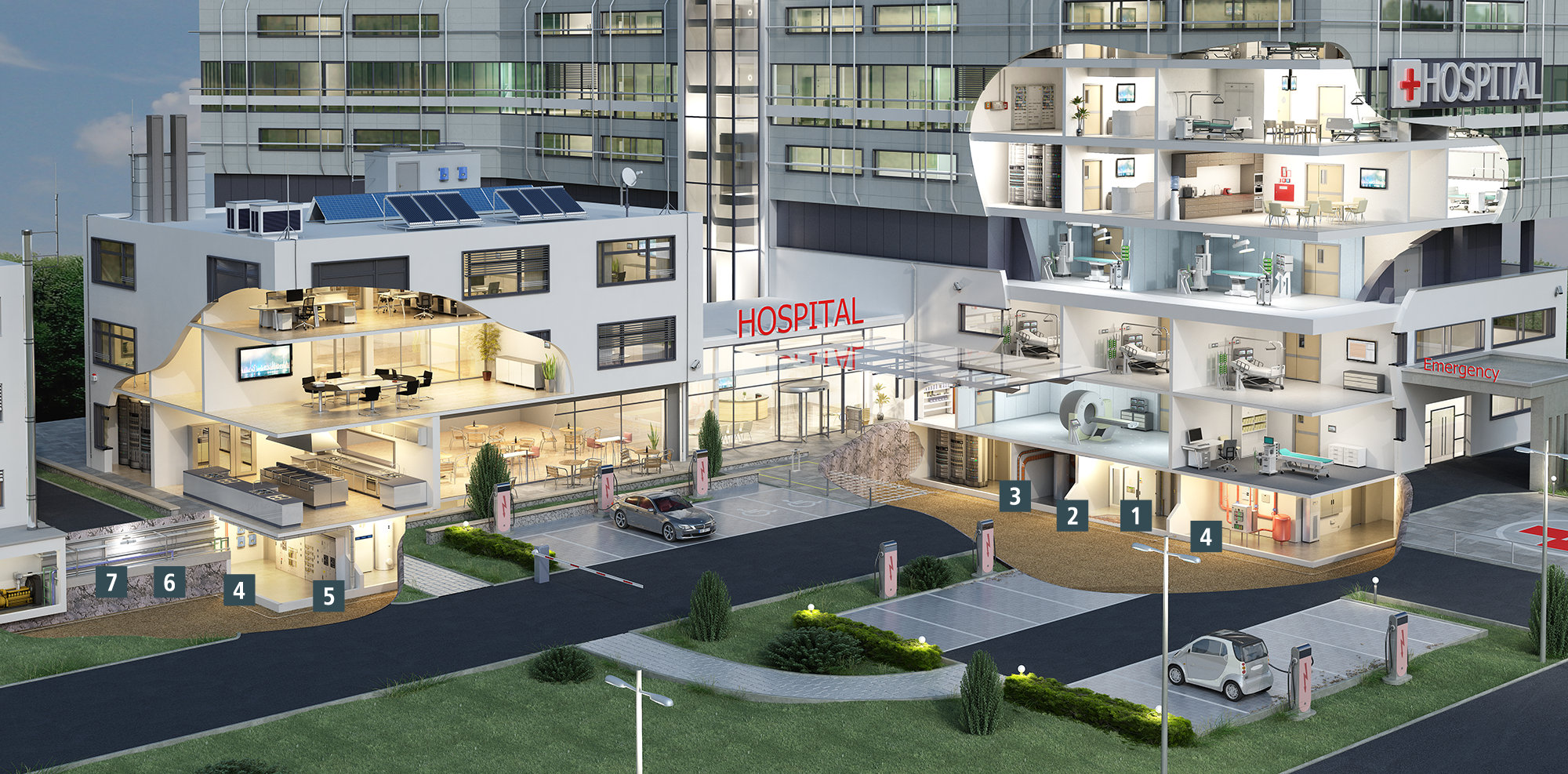

Earthing and equipotential bonding for hospitals

Since a large number of electrical systems are in use in medical facilities such as hospitals, earthing and equipotential bonding represent important safety components.

It is crucial that such an installation is meticulously planned and professionally carried out. This is because even the smallest errors can be almost impossible to correct retrospectively and are associated with extremely high costs.

As your reliable partner for all aspects of lightning protection, we support your project from the planning phase through to the standard-compliant implementation of your earthing system for the hospital.

1
Product category
Round wire
800010
Steel wire with zinc coating, for use in lightning protection and earthing systems.
Strip, HDG steel
852335
Steel strip with zinc coating, for use in lightning protection and earthing systems.
Stainless steel connection lug
860115
Round wire for connecting down conductors to the earth-termination system.
Copper cable
832740
For lightning protection and earth-termination systems or equipotential bonding.
Connecting clamp, HDG steel
308026
For connecting concrete steel mats or reinforcements with flat conductors. Version for T, cross and parallel connections.
SV clamp, HDG steel
308220
For connecting round and flat conductors. For T, cross and parallel connections. With anti-twist protection for the screws.
Cross unit, stainless steel
318229
For aboveground and underground connection of round and flat conductors. With intermediate plate and screws.
Connection clamp with thrust bracket, St/bare
308031
For connecting round and flat conductors in the concrete foundation, in concrete steel mats and reinforcing steel with round and flat conductors. For T, cross and parallel connections.

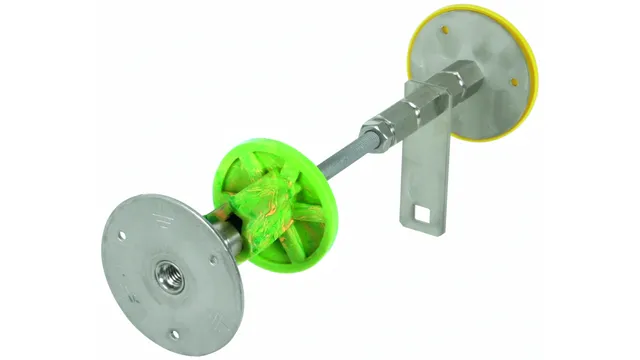

Wall bushing
478530
For the water-pressure-tight feed-through of earthing and equipotential bonding conductors through concrete walls of a watertight concrete construction.
Fixed earthing point clamp
478129
For connecting round and flat conductors to fixed earthing points with thread. Made of stainless steel (V4A). Suitable for installation on the rear side without connecting shaft. Light design, with connection thread.
Equipotential bonding bar, Cu
472227
For industrial applications, without cover, with eight connections for functional and lightning equipotential bonding. With UP insulator and M10 thread, UV-stabilised, halogen-free. Suitable for use in hazardous areas.
Fixed earthing point, StSt
478011
Corrosion-free connection of the down conductor. For protective equipotential bonding and/or functional equipotential bonding for installation in the formwork. Type M version with connecting shaft and M10/12 connection thread.

Relevant standards for earthing systems for hospitals

  • IEC 62305 provides the framework for the design of earthing systems and is internationally valid
  • The DIN EN 50310 standard applies in Europe for the installation of equipotential bonding networks
