DG EZ50-S 120/240 V 3W+G

Art.-Nr. 908166

Product 908166 was added to Notepad.

Go to Notepad

Product 908166 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 / 240 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 370 Vac / 370 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	700 V / 1200 V / 1200 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase with N protected
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36‘‘ Long, 10 AWG stranded
Mounting method	1/2“ NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclosure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

DG EZ50-S 120/208 V 4W+G

Art.-Nr. 908167

Product 908167 was added to Notepad.

Go to Notepad

Product 908167 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	120 / 208 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 360 Vac / 360 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	700 V / 1200 V / 1200 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

DG EZ50-S 277/480 V 4W+G

Art.-Nr. 908168

Product 908168 was added to Notepad.

Go to Notepad

Product 908168 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	277 / 480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 Vac / 565 Vac / 770 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V / 1800 V / 2500 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

DG EZ50-S 480 V 3W+G

Art.-Nr. 908169

Product 908169 was added to Notepad.

Go to Notepad

Product 908169 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 Vac / 1100 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

DG EZ50-S 600 V 3W+G

Art.-Nr. 908170

Product 908170 was added to Notepad.

Go to Notepad

Product 908170 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	347 / 600 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 Vac / 1020 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V / 3000 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye systems
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

DG EZ50-S 120 V 2W+G

Art.-Nr. 908171

Product 908171 was added to Notepad.

Go to Notepad

Product 908171 was added to the cart.

Go to Web-Shop

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating (VPR)	800 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Results for products (0)

Results for content (0)

DEHNguard EZ

DG EZ50-S 120/240 V 3W+G

Art.-Nr. 908166

Product 908166 was added to Notepad.

Product 908166 was added to the cart.

DG EZ50-S 120/208 V 4W+G

Art.-Nr. 908167

Product 908167 was added to Notepad.

Product 908167 was added to the cart.

DG EZ50-S 277/480 V 4W+G

Art.-Nr. 908168

Product 908168 was added to Notepad.

Product 908168 was added to the cart.

DG EZ50-S 480 V 3W+G

Art.-Nr. 908169

Product 908169 was added to Notepad.

Product 908169 was added to the cart.

DG EZ50-S 600 V 3W+G

Art.-Nr. 908170

Product 908170 was added to Notepad.

Product 908170 was added to the cart.

DG EZ50-S 120 V 2W+G

Art.-Nr. 908171

Product 908171 was added to Notepad.

Product 908171 was added to the cart.

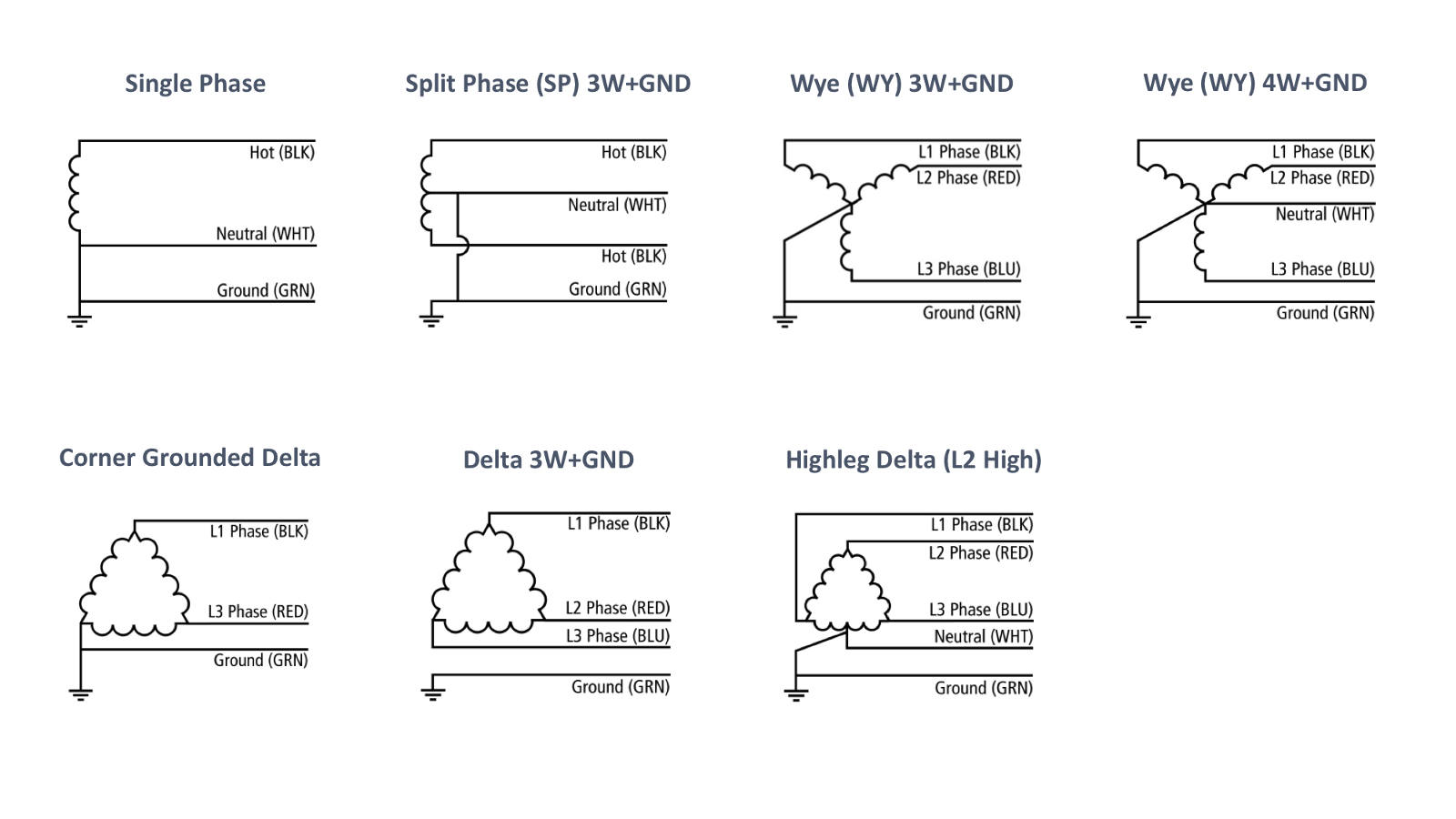

Supply System
